High efficiency automatic plastic vacuum bag paging labeling machine

Feedback Ratings
$12,000.00 / Set | 1 Set (Min. Order)
Model Number:
PM-DPM-A
$12,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
25 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
machine size (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
bags,pouch,tag,card,unshaped carton
Packaging Material:
Paper, Plastic, leather
Type:
Labeling Machine
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
110V/220V/380V
Power:
1.0KW
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
SKILT
Dimension(L*W*H):
2200(L)*1000(W)*1300(H) (mm)
Weight:
280KG
Certification:
CE/ISO9001
Name:
automatic plastic vacuum bag paging labeling machine
PLC,Touch screen:
SIEMENS
Function:
Automatic Paging Labeling Machine
Product range:
pouch/bag/card/box/unshaped carton
Material:
S304 Stainless Steel
Labeling speed:
20-200pcs/min
Advantage:
Economy Labeling Machine
Label material:
Adhesive Sticker Label
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
2500X1200X1800 cm
Single gross weight:
300.0 kg
Package Type:
Standard export wooden case
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 25 To be negotiated
SKILT Partner
Product Description

1. The Scope of Application

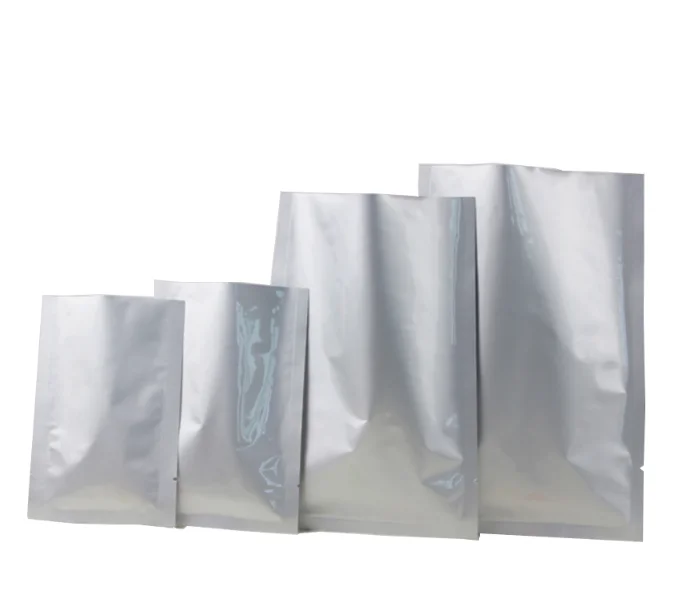

The model PM-DPM-A Paging&labeling machine, suit for very thin products that need labeling on top surface, such as pouch, card,tags, unshaped box,unshaped carton,bags and so on.

2. Equipment composition

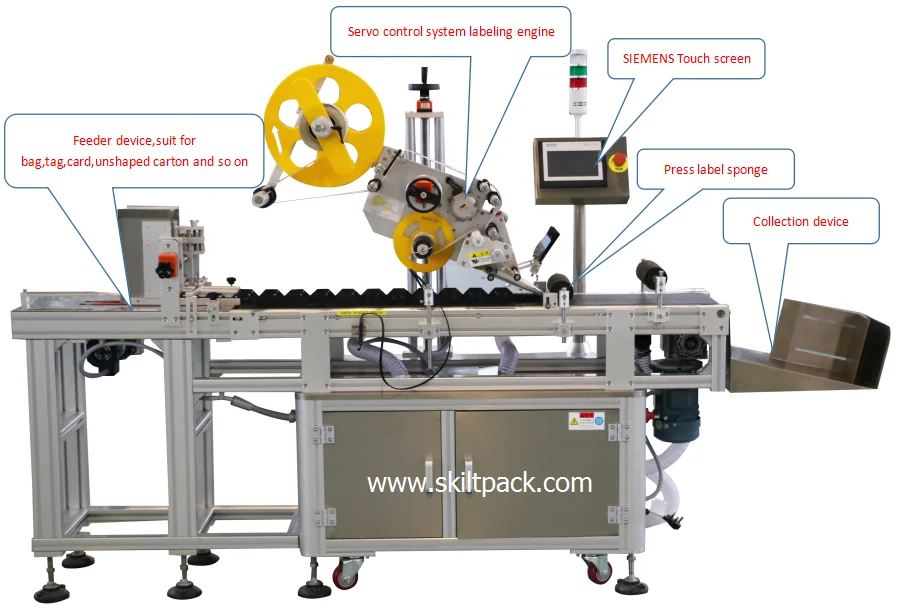

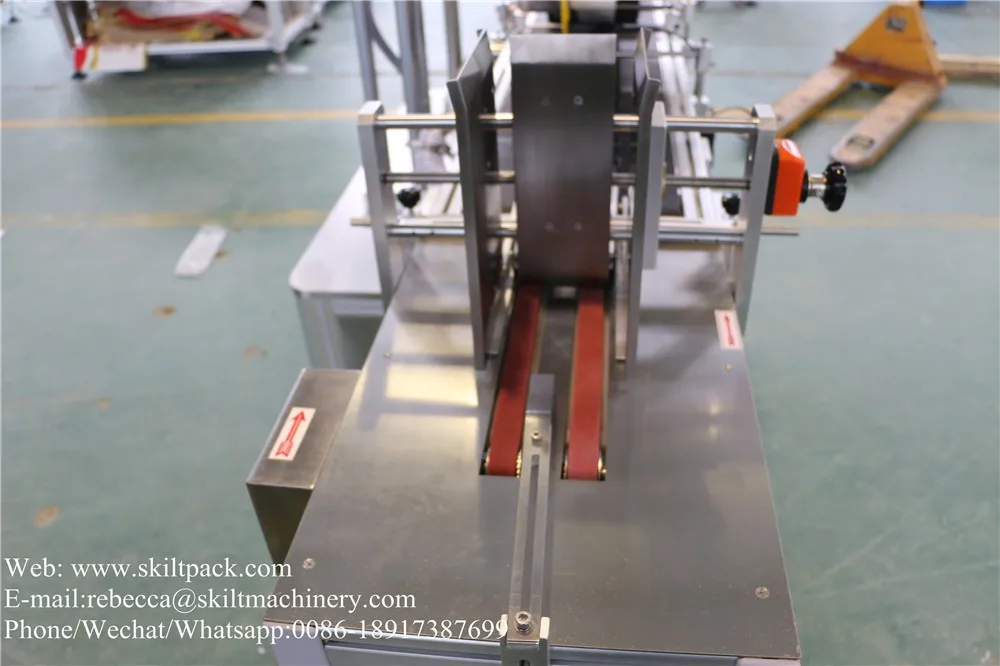

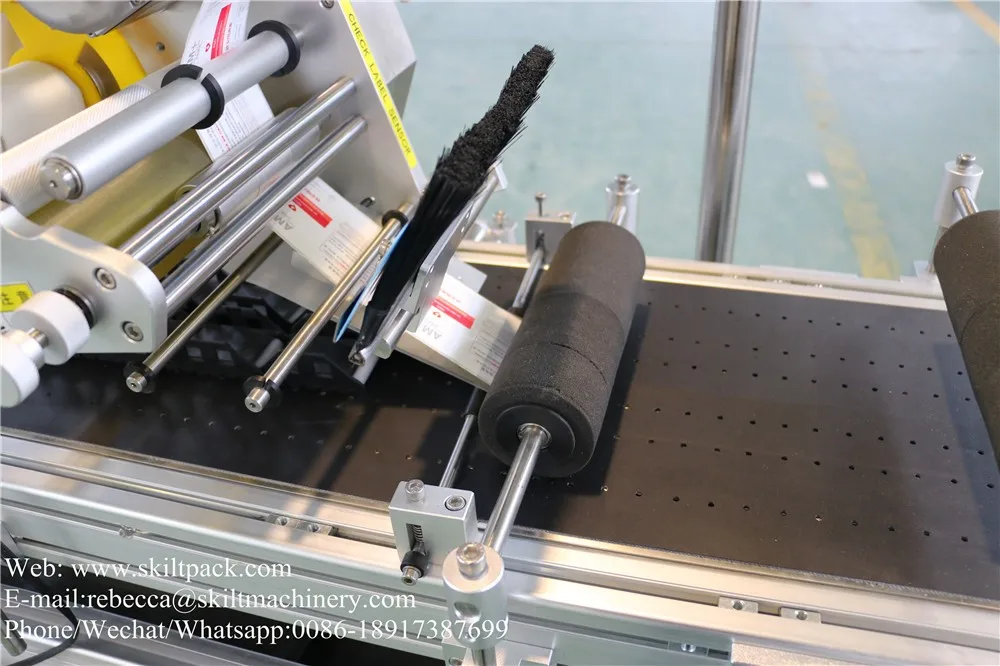

Electrical cabinet, Conveying mechanism, paging device, Brush label device,feeder device ,1# labeling engine,collection device, Operation system and control system ;

3. Equipment function characteristics
1) Control system:  German SIEMENS PLC control system, with stable operation and extremely low failure rate.


2) Operation system: German SIEMENS 7 inch touch screen, directly visual interface easy operation, with Chinese and English language, also rich with help function and fault display function.

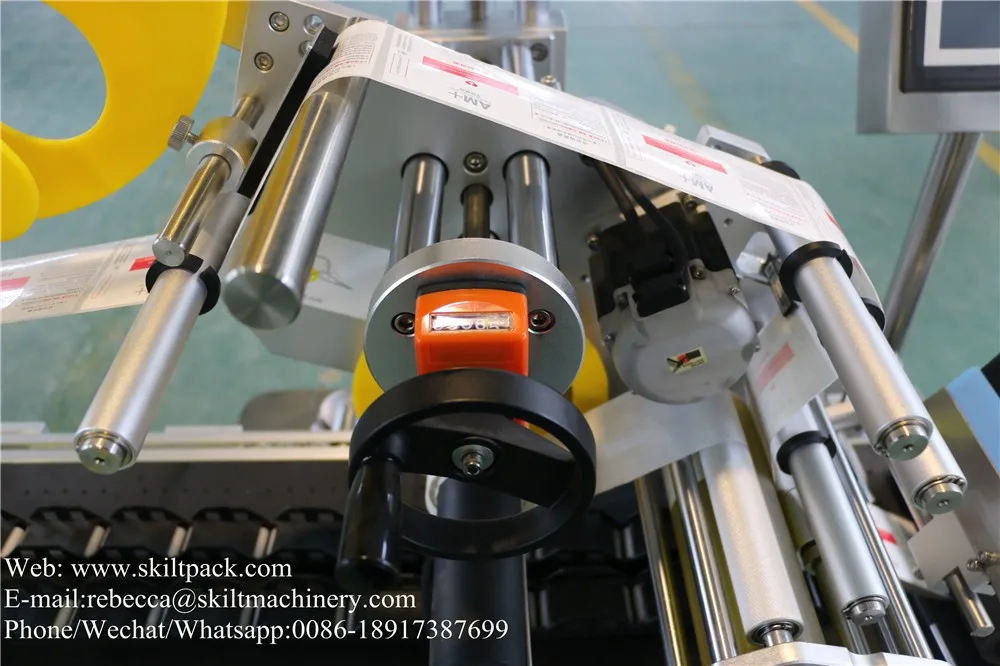

3) Labeling system: The whole labeling engine use
German Avery brand , only SKILT with this kinds labeling engine in China, with rather high Competitive Advantage;


4) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.


5) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.


6) Others:  Low voltage circuit all use the German Schneider brand.   The bearing use IKO
.

Technical Paramter
Model
PM-DPM-A
Driving Mold
Servo motor
Capacity (Pcs/min)
20-200pcs
Label material
Adhesive sticker, transparent or opaque
Suitable label size
Width:15-160mm Length:15-300mm
Suitable bottle size
can customized
Voltage
AC110V/220V/380V
Operating direction
left or right
Labeling accuracy
±1.0 mm
Total power
800W
Machine size
2200x800x1600mm
No
Name
Model
Unit
Brand
1
PLC control system
288-1ST20-OAAO
1 set
SEMIENS
2
Touch screen
648-OCC11-3AXO
1 set
SEMIENS
3

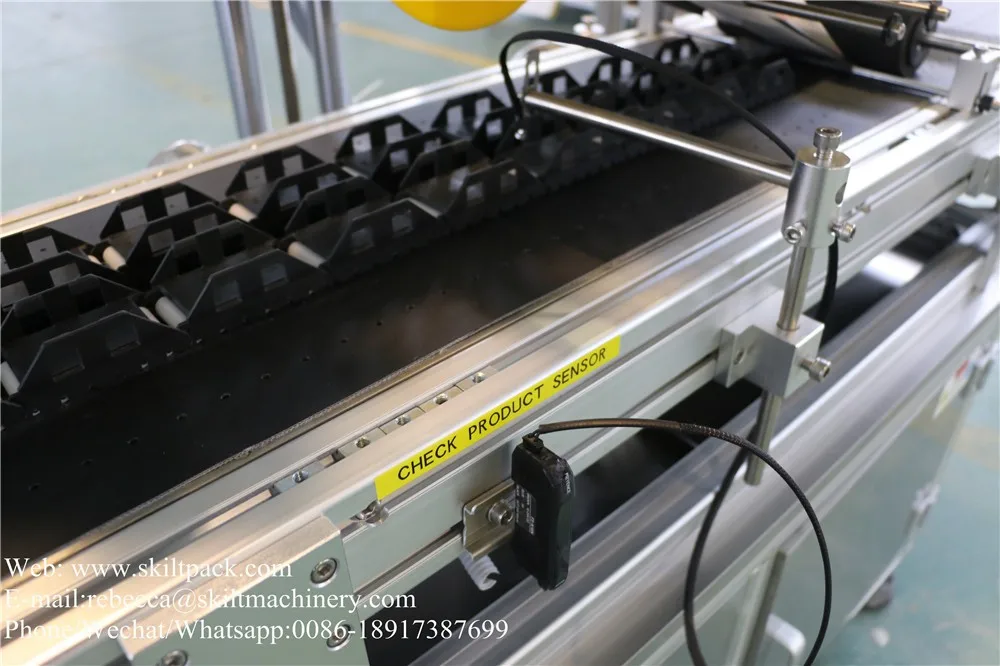

photoelectric sensor               (check bottle)
FS-N18N
1 set
Japan KEYENCE

4
Photoelectric sensor
 (Check opaque label)
GS61/6.2
1Set
German Lueze
Photoelectric sensor
(Check transparent label)
LRD2100
1Set
USA Lion
5
Servo motor
2004-RZ08BAIAN
1 set
America AB
6
Drive
2003-CSD3-08BX2
1set
America AB
7
Main transport motor
90W1:30
1 set
German JSCC
8
Speed Controller
25-90W
1 set
German JSCC

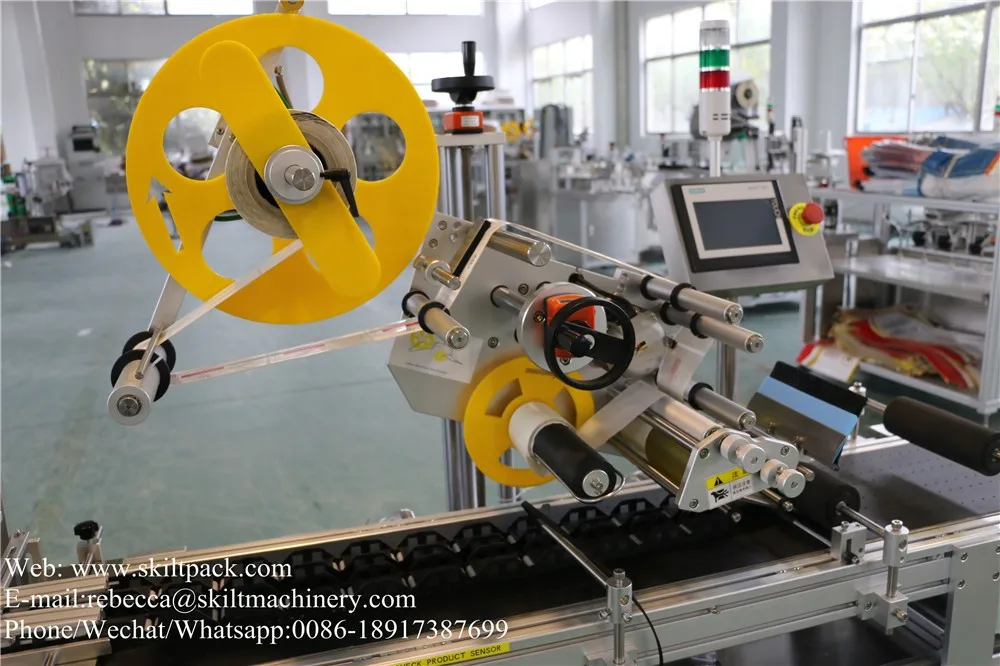

Detailed Images
SKILT Team
SKILT Progress
FAQ

1. Q: What label material does SKILT labeling machine use?
    A: Self-adhesive sticker.

2. Q: The machine is automatic or semi-auto?
    A: SKILT only produce automatic Labeling machine.

3. Q: Which kinds of labeling machine suit for our products?
    A: Pls supply the labeling products and label size ( product pictures with label on it is rather helpful),

         then we will recommend the suitable machine for ref again.

4. Q: The machine can connect with the product line or not?
    A: Machine connect with production line or operation alone all ok as you need .
