High efficiency driverless AC led module

FOB Reference Price:Get Latest Price
$15.00 - $25.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
BSMX64-30
Emitting Color:
Cool White
Luminous Intensity:
5000-6000mcd
Luminous Flux(lm):
5500
Optical Attenuation(%):
1
Power:
50w
Power Dissipation:
0.64W
Viewing Angle(°):
25/60/90/120/157*85
Color Rendering Index(Ra):
70
Color Temperature:
3000-6000K
Operating Temperature(℃):
-40 - 50
Storage Temperature(℃):
-40 - 50
Place of Origin:
Zhejiang, China
Brand Name:
BOPIN
Certification:
CE, RoHS
Light efficacy:
above 110lm/w
Delievery Date:
7-30 working days
Application:
transformation of garden lights/street lights
Market:
Europe / Mid-east / South Africa / Aisa
Payment:
T/T,Western union,Paypal
Product name:
led modules
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1PC led module with PE bag / Each lamp packed with 1 CTN with foam for reinforcement / Outside with protective films & packing belt & wooden tray.
Port
Ningbo / Shanghai
Lead Time :
7-30 working days after deposit
Product Description

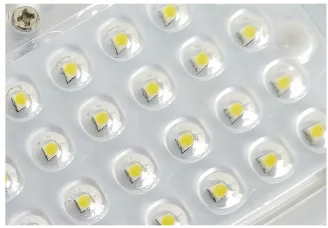

Adopt high transparency and anti-UV PC lens,multiple lighting disturbutions are available

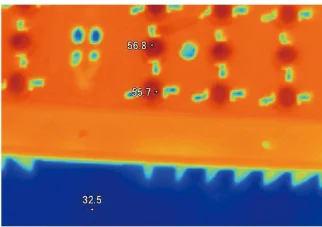

Waved design of the heat sink, resulting excellent thermal performance.LEDchip TJ.:125Deg

Led modules adopt industrial grade silicone seal,meet IP68 rating.

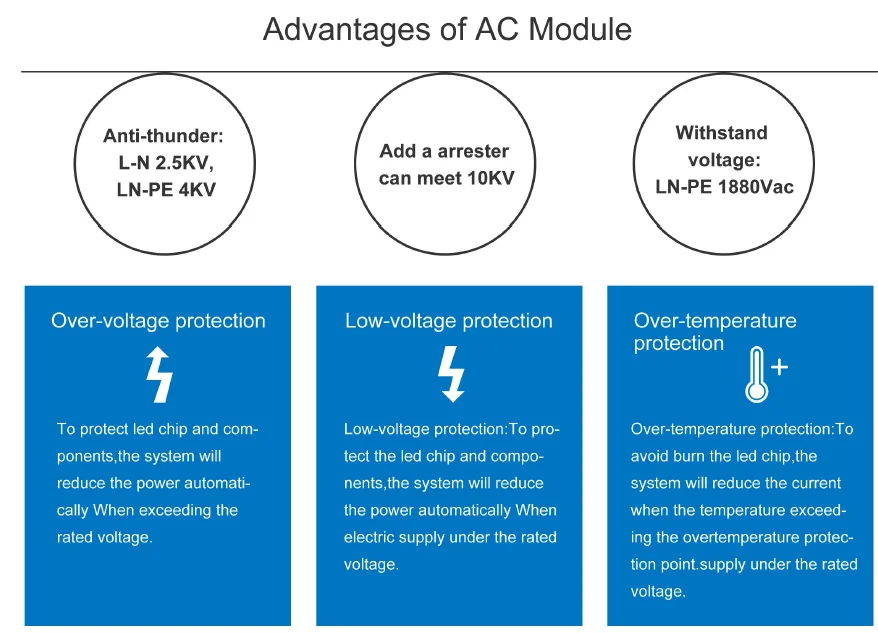

Surge protecor>4KV. The led modules can be used outside safely.

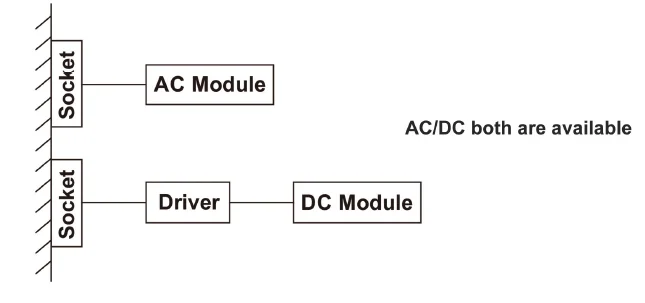

AC or DC are ok,You can choose according customer's needs.

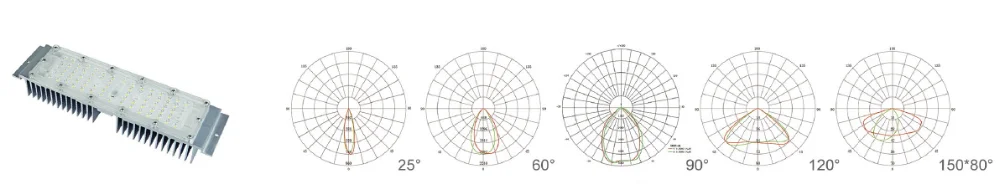

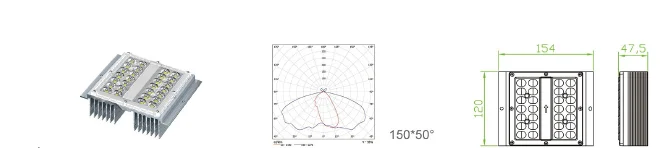

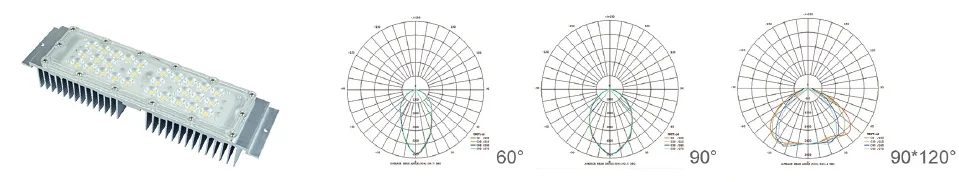

4.Different beam angle,Wide use

The number of led modules is adjustable according to the size of the housing of light so as to satisfy

the need for lighting in different areas.Our led module are widely used in LED high bay light, wall pack

 fixtures, flood light , street light , parking lot light , canopy light ,advertising board etc.

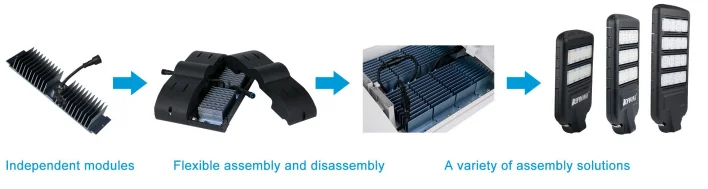

Modular design

Saving costs and no need to replace the housing.Just replacing the illuminant or its fitting

can meet the requirements.

Parameter

1.Parameter AC Module

Model
Wattage
Input voltage
Driver current
Light efficacy
Size
BSMX56-30
30W-50W
AC180-264V
Max0.284A@AC180V
>110lm/w
154*120*47.5mm
Model
Wattage
Input voltage
Driver current
Light efficacy
Size
BSMX28-50
30W-60W
AC180-264V
Max0.340A@AC180V
>145lm/w
154*120*47.5mm
Model
Wattage
Input voltage
Driver current
Light efficacy
Size
BSMX64-30
30W-60W
AC180-264V
Max0.340A@AC180V
>110lm/w
290*70*48mm


2.Parameter DC Module

Model
Wattage
Input voltage
Driver current
Light efficacy
Size
BSM28-50
30W-60W
DC42-54V
0.7-1.3A
>170lm/w
154*120*47.5mm
Model
Wattage
Input voltage
Driver current
Light efficacy
Size
BSM56-30
30W-50W
DC40-44V
0.7-1.2A
>130lm/w
154*120*47.5mm
Model
Wattage
Input voltage
Driver current
Light efficacy
Size

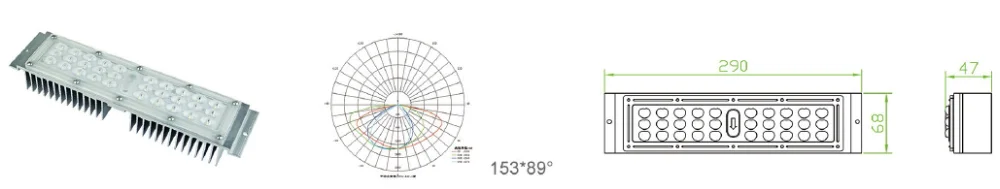

BSM30-30
20W-60W
DC28-32V/DC57-63V
1.3-1.8A/0.65-0.9A
>130lm/w
290*68*47mm
Model
Wattage
Input voltage
Driver current
Light efficacy
Size
BSM30-50
30W-60W
DC42-54V/DC63-81V
0.67-1.3A/0.45-0.87A
>170lm/w
290*68*47mm
Model
Wattage
Input voltage
Driver current
Light efficacy
Size
BSYM64-30
30W-60W
DC45-52V
0.64-1.14A
>130lm/w
290*70*45mm
Model
Wattage
Input voltage
Driver current
Light efficacy
Size
BSYM28-50
30W-60W
DC42-54V/DC21-27V
0.7-1.3A/1.4-2.6A
>170lm/w
290*70*46mm
Model
Wattage
Input voltage
Driver current
Light efficacy
Size

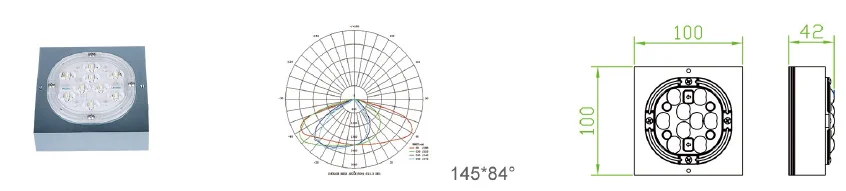

BSM09-35
18W-26W
DC25-27V
0.7-1A
>130lm/w
100*100*42mm

Our factory are professional production led module 9 years,there are too many types led module.More inforemation or your requirements ,please contact me,welcome your communication.

Company Information

Zhejiang Boshang Optoelectronic Co.,Ltd (Founded in 2008). is a leading designer and manufacturer in modular high power LED outdoor lighting industry & Commercial indoor lighting field in China.We offers a wide range of LED solutions to make the world full of energy-saving.

Based on top-of-the-line patented IP68 LED modules, we have developed a series of modular LED lighting products including street lights, solar led street light ,high bay lights, tunnel lights, flood/spot lights and garden lights,led modules which are CE, RoHS, TUV, SAA, CCC, CQC, CB, LM-79,LM-82 and …… approved.

BOPIN LED Streetlights, with rich revolutionary and creative ideas, is the perfect combination of technology,creativity and light. Let the BOPIN LED release the maximum brightness; Design for road and street lighting, it is a total subversion of the traditional concept of road and street lighting.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 7 working days, mass production time needs 25 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer  5 years warranty to our products.
