High efficiency pipe line inline pump single stage jockey pump bathroom pressure booster pump

FOB Reference Price:Get Latest Price
$79.00 - $499.00 / Sets | 1 Set/Sets (Min. Order)
Horsepower:
0.37kw/0.5hp
Maximum Flow Rate:
4.3m3/h
Maximum Head:
14m
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Qingeal pump
Model Number:
25ZBFS4.3-14-0.37
Structure:
Single-stage Pump
Usage:
Water
Application:
Submersible, Self-priming pump
Power:
Electric, 0.37kw
Fuel:
Electric
Pressure:
Low Pressure
Theory:
Centrifugal Pump
Standard or Nonstandard:
Standard
Material:
stainless steel
Flow:
4.3m3/h
Head:
14m
Voltage:
220v/380v
Outlet dia:
25mm
Warranty:
1 year warranty
Supply Ability
Supply Ability:
1500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed by plywood box
Port
Ningbo/Shanghai/Shenzhen/Guangzhou
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Introduction

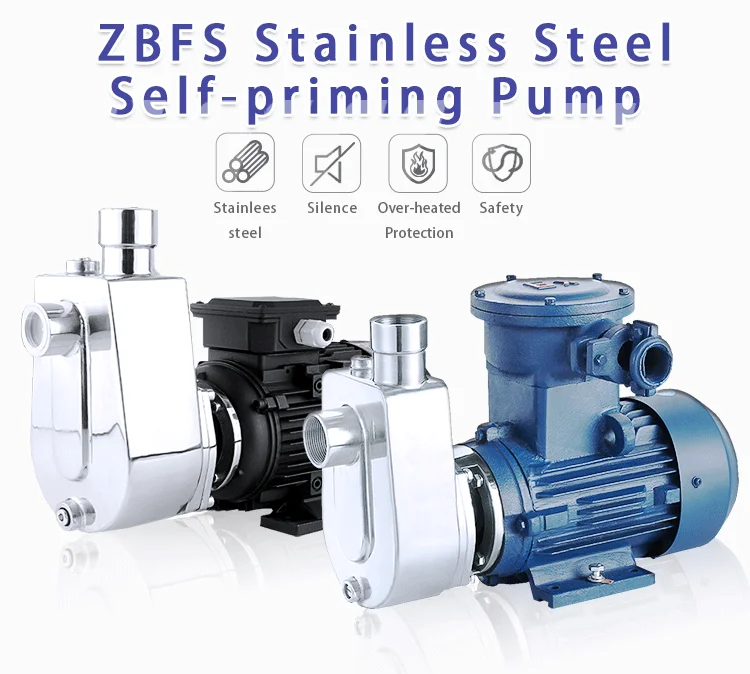

   ZBFS booster acid self-priming pump is made of 304 stainless steel and 316 stainless steel two materials, which one is corrosion-resistant, centrifugal. Some pump of the semi-open type of structure, and some are closed structure. In addition to that, the motor, straight connection and bearing, bracket , shaft seals are currently used in the West Germany, which is more advanced, the same as cantilevered mechanical seal. At the same time, our company's product have a set of excellent structure, performance, shape, and the connection frame is made of high quality stainless steel material. Therefore, the two series of products have the advantages of reliable corrosion resistance, easy to use, easy maintenance, compact structure, low energy consumption and good sealing performance.

Product Detials
Product Paramaters
Model
Max flow
(m3/h)
Max head
(m)
DIA
(mm)
Power
(kw)
Suction
(m)
Voltage
(v)
25ZBFS4-10-0.25
4
10
25
0.25
5
220V/380
25ZBFS4.3-14-0.37
4.3
14
25
0.37
6
220V/380
25ZBFS6-16-0.55
6
16
25
0.55
6
220V/380
25ZBFS8-22-0.75
8
22
25
0.75
7
220V/380
40ZBFS15-20-1.5
15
20
40
1.5
8
220V/380
50ZBFS22-25-2.2
22
25
50
2.2
8
220V/380
50ZBFS26-31-3
26
31
50
3
8
380

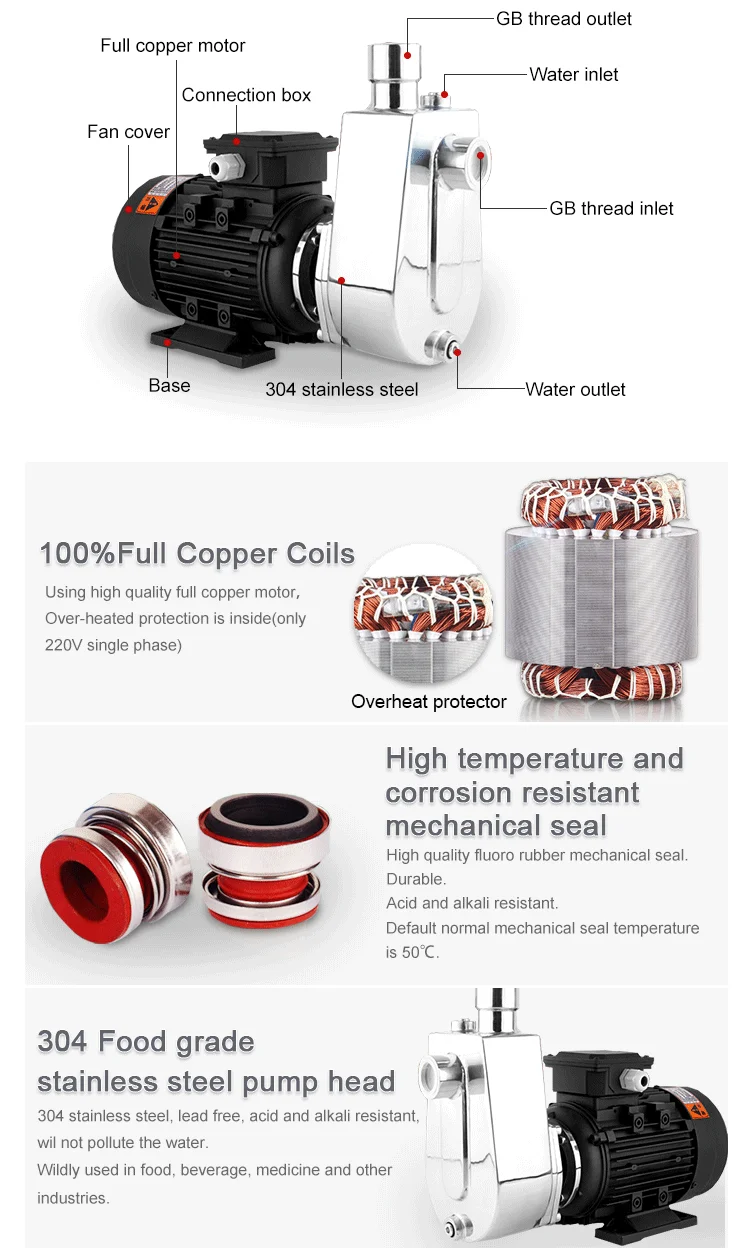

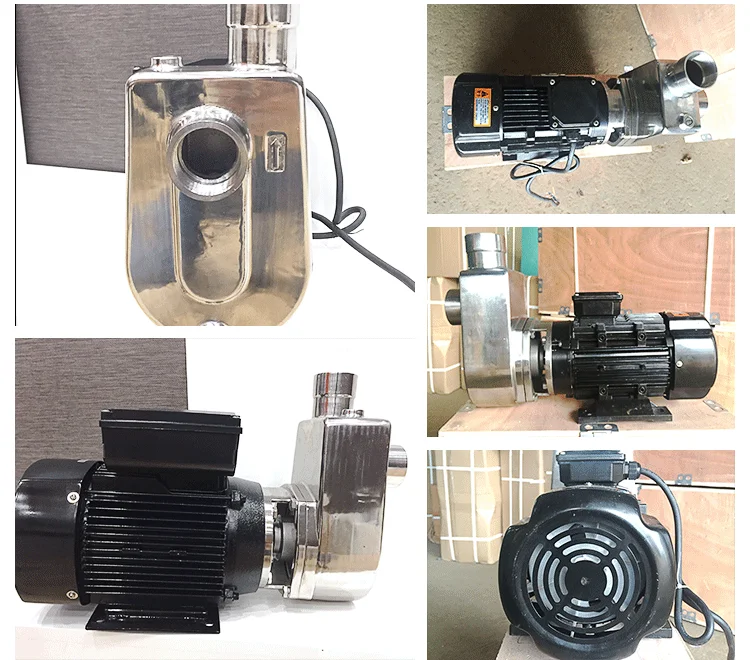

Detailed Image

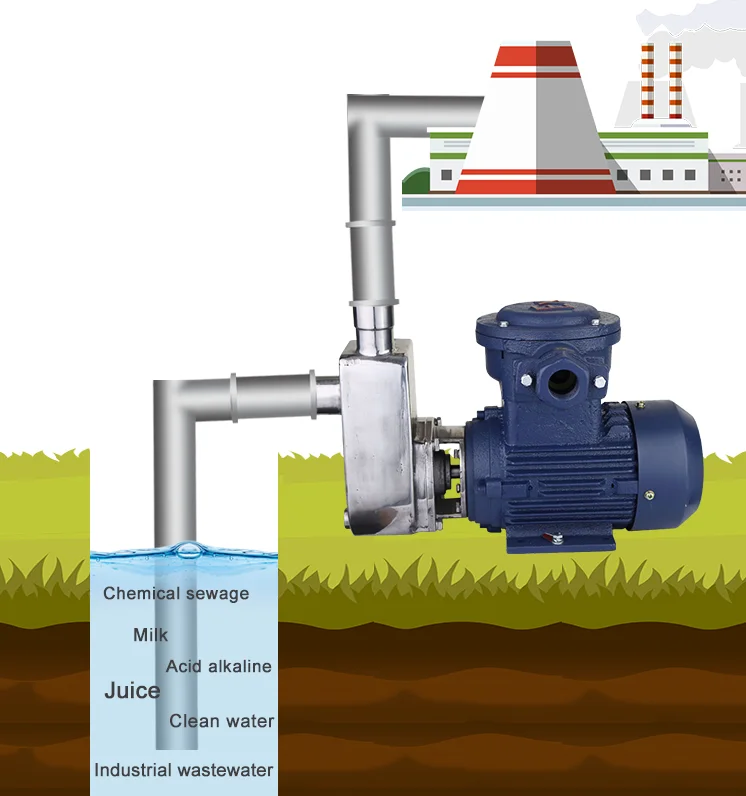

Application

This series of self priming pump can transport the liquid's temperature is not higher than 103℃, containing small soft particles or fiber or corrosive liquid.
Widely used in food, beverage, medicine, sewage treatment, chemical industry and other industries.

Steps for Usage

Safety Practice of ZBFS Stainless Steel Self - priming Pump
First, start before work
1. Check the motor fan, impeller whether the card grinding, rotation is flexible.
2. Open the inlet valve, slightly open the export valve, unscrew the upper part of the pump water plug, add water to the pump and remove the air inside the pump, the air exhausted after tightening the water plug.
3. Hand plate pump, so that the lubricant into the mechanical seal face.
4. Jog motor, to confirm the direction of rotation of the motor is correct.

Second, start and run
1. Press the motor start button, the pump began to suck.
2. See whether the export pressure rises, when the outlet pressure rises and stabilizes in a range of readings, gradually open the outlet valve, adjust the pressure and the water speed.
3. Check the bearing temperature (shaft temperature ≤ 75 ℃), check the pump mechanical seal is leaked; when the big leak or abnormal pump should be handled.

Third, stop the pump
1. Gradually close the outlet valve, press the pump power button.
2. Close the inlet valve.


Fourth, the use of precautions
1. Such as the ambient temperature below 0 ℃, the pump should be drained, so as to avoid cracking the pump.
2. Prohibit the pump in the case of air is not exhausted long-term operation.
3. The operation found that mechanical wear, pump noise and vibration should be stopped when the pump check and troubleshooting.
