High frequency sliding table plastic welding machine for PVC file blister box sealing

FOB Reference Price:Get Latest Price
US $6,800-9,500 / Sets | 1 Set/Sets High Frequency Book Cover Welding machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jingyi
Model Number:
JY8000CWJ
Voltage:
110V/220V/380V/Customize
Power:
8KW
Frequency:
27.12KHz
Welding Area:
According to your product
Dimensions:
1380*1000*1800mm
Weight:
850KG
Usage:
PVC file folder welding machine
After-sales Service Provided:
Engineers available to service machinery overseas
Product:
High Frequency Book Cover Welding machine
Application:
High Frequency Book Cover Welding machine
Warranty:
1 year warranty
Type:
High Frequency Book Cover Welding machine
For Suitable Materials:
PVC material
For Installation and Operation:
Provided Freely
Operation:
pmeumatic and foot pedal
Head:
Single head
Function:
for PVC folder, PVC ring welding
Certificate:
ISO9001:2004,SGS,CE
Supply Ability
Supply Ability:
200 Set/Sets per Month High Frequency Book Cover Welding machine
Packaging & Delivery
Packaging Details
Strong Wooden Case
Port
SHENZHEN
Lead Time :
Shipped in 5 days after payment
Product Description

Features

1. Safety device

When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by misoperation is also prevented.

2. Strong Foot Pedal
Machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.

3. Easily Adjustable Tuner
Machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.

4. Jamming Prevention Device
High frequency welding machine equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc.

Specification
Model
JY8000CWJ
Machine Working Principle
HF Output
8KW
HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded.

This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate.

Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Oscillation Frequency
27.12MHZ
Power Supply
AC220/380/400/415/440V 3Phase
Input Power
15KVA
Oscillation Tube
TOSHIBA 7T69RB
Max Pressure
1500KG
Max Gap of Electrodes
200MM

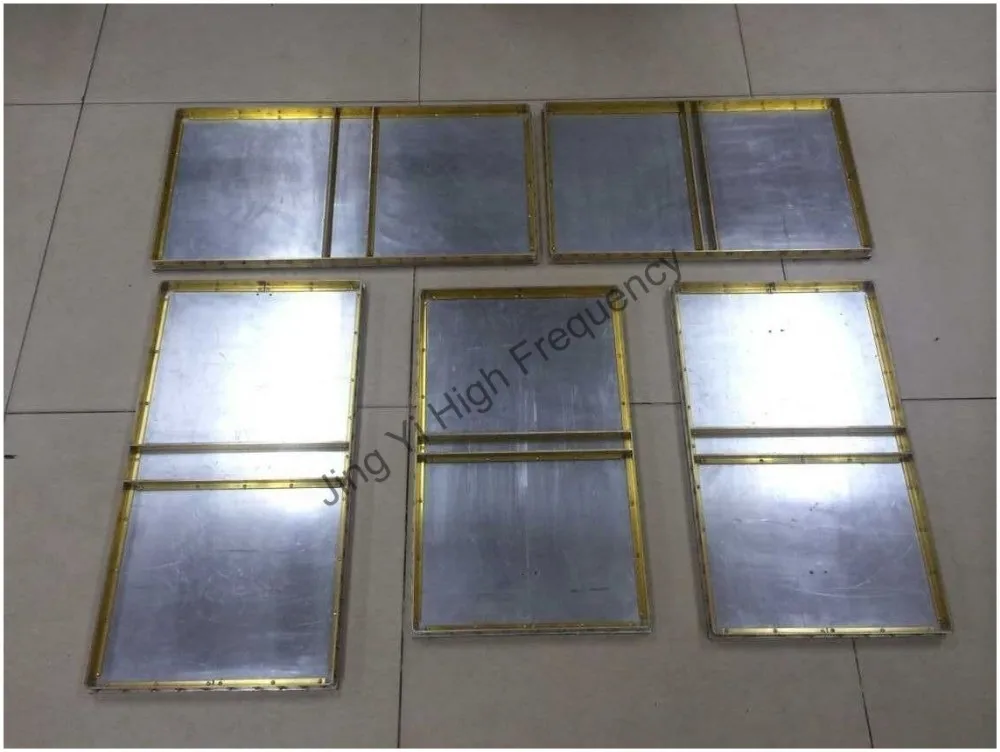

Electrode Size
900*400MM
Net Weight
900KG
Packing Size
1380*1000*1800MM
                       Main Spare Parts
Solenoid valve
Taiwan Air TAC
Timer
Taiwan CKC
Temperature Controller
Korea Rainbow
Contactor
Japan Fuji
Relay
Japan OMRON
Oscillation Tube
Toshiba
Anti-Spark Systerm
NL-5557
Working Video



Please click following links to see the machine working video:


     https://youtu.be/a-bl-7L7rWQ



Application

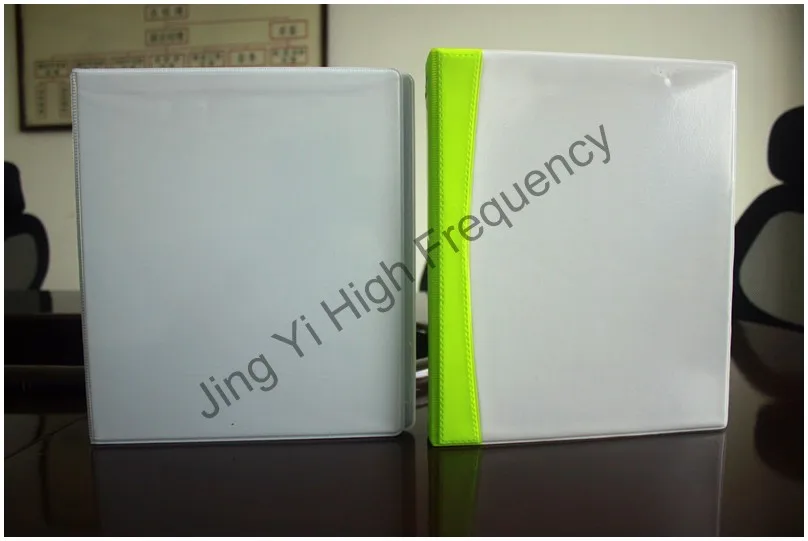

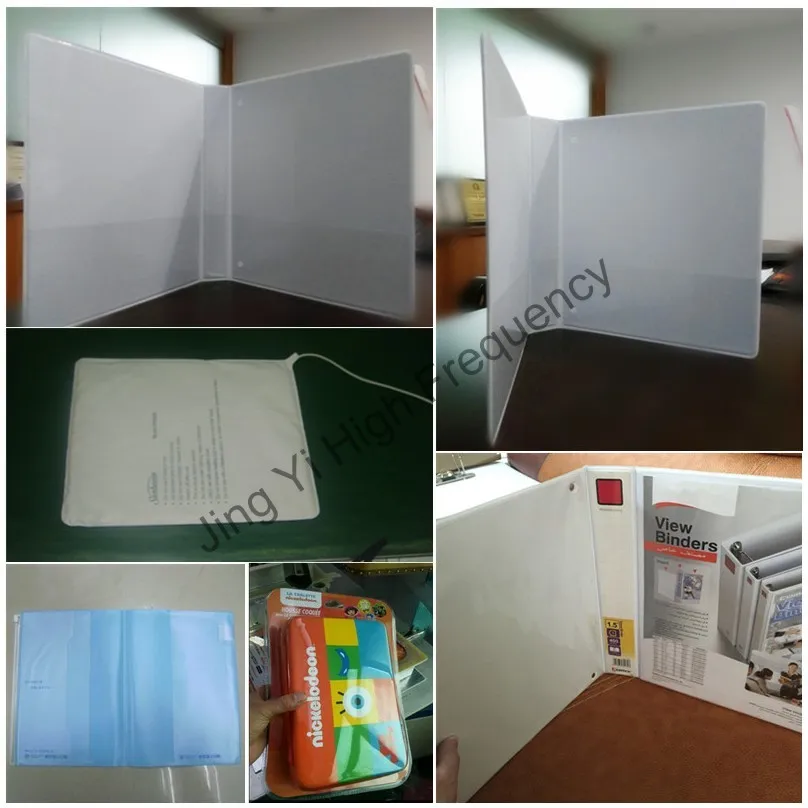

Final products done with HF welding
Common products manufactured with HF welding method are Binders, folders, rings, files, tarpaulins, tents, ceilings, advertising outdoor banners, waterbeds, inflatable boats, drip and blood bags, tensile structures, conveyor belts, rain clothing, etc.

What material can be HF welded
The material most common in high frequency welding in PVC (something called simply vinyl) and PU (polyurethane). The material can be thick or thin, reinforced or coated. It cab also be plain, coloured or structure/patterned.

Polyvinylchlorde (PVC) and polyurethanes (PU) are the most common thermoplastics that are weldabele by HF also it is possbile to perform HF welding on other types of materia inculding naylon, PA, ABS, modified TOP, PETG, but particular attention should be pay on working parameters. HF welding is not suitable for PTFE, polycarbonte, polystyrne, polyethylene or polypropylene. Howeve, a special type of mixed fabrics have been produced recently, which have the capability to be HF welded.
