High grade photovoltaic 200AH gel battery 2v 200ah with good price

  • 10-99 Pieces
    $260.00
  • 100-499 Pieces
    $240.00
  • >=500 Pieces
    $210.00
Battery Size:
Customized
Nominal Capacity:
200AH 300AH 400AH 500AH 600AH 800AH 1500AH 2000AH 3000AH Customized
Nominal Voltage:
2v
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Chinaland
Certification:
ce
Model Number:
2V-1000AH
Place of Origin:
Anhui, China
Weight:
72kg, 72kg
Sealed Type:
Sealed
Maintenance Type:
Free
Usage:
Slolar Energy System
Certificate:
TUV/CE/UL/ROSH/MSDS
Capacity:
2V 1000AH
Warranty:
5 Years
Battery type:
Gel
Dimension:
521x269x220mm
Application:
Solar System,UPS
Brand:
can accept OEM Brand
Cycle life:
1500times

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X27X22 cm
Single gross weight:
72.000 kg
Package Type:
carton box and wooden pallet , 1pc /2pcs per carton , 25pcs/26pcs per pallet
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated
Products Description
Battery Specification
2V Series Data sheet
1, Function Parameter
5, Environment Temperature
Norminal Voltage
2V
Discharge Temperature
-40-60℃
Norminal Capacity(10 hours rate)
1000Ah
Charge Temperature
-15-50℃
Numbers of Cells
1Cell
Storage Temperature
-15-40℃
2, Rated Capacity at 25℃(77℉)
6, Inner Resistance & Max. Discharge Current
10hr,1.80V/cell,20℃/68℉
1000Ah
Fully Charge Battery at 25℃(77℉)
0.37mΩ
5hr,1.75V/cell,20℃/68℉
865Ah
Max. Discharge Current
2500A(5s)
3hr,1.75V/cell,20℃/68℉
762Ah
Short Circuit Current
5400A
3, Capacity affected by Temperature(10 hour rate)
7, Self-discharge@25℃(77℉)
40℃(104℉)
102%
Capacity after 3 Month Storage
94%
25℃(77℉)
100%
Capacity after 6 Month Storage
88%
0℃(32℉)
90%
Capacity after 9 Month Storage
82%
-15℃(5℉)
70%
Capacity after 12 Month Storage
76%
4, Constant Voltage Charging at 25℃(77℉)
8, Dimension & Weight
Cycle Charge
2.40V~2.50V
Length
233mm
Max Charging Current
250A
Width
210mm
Temperature Compensation
-5mV/℃
Height
646mm
Float Use
2.25-2.3V
Total Height
681mm
Temperature Compensation
-3mV/℃
Reference Weight
78.5
Battery Construction

Key Features :

♦Designed Long service life of 22 years
♦Up to 3500 deep discharge cycles at 50% Deepth of Discharge
♦High gas recombination efficiency
♦Wide suitability of ambient temperature range
♦Low self discharge
Element
Electrolyte
Positive Plate
Negative Plate
Container
Material
Colloidal silicon
Lead dioxide
Lead
ABS
Element
Cover
Safety valve
Terminal/Wire
Separator
Material
ABS
Rubber
Copper
Fiberglass

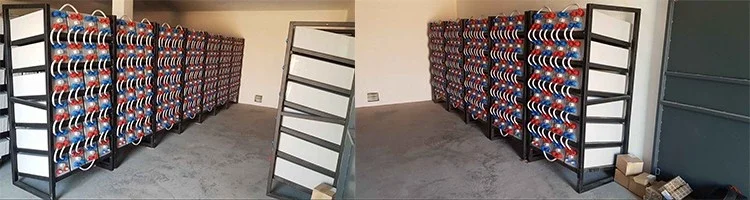

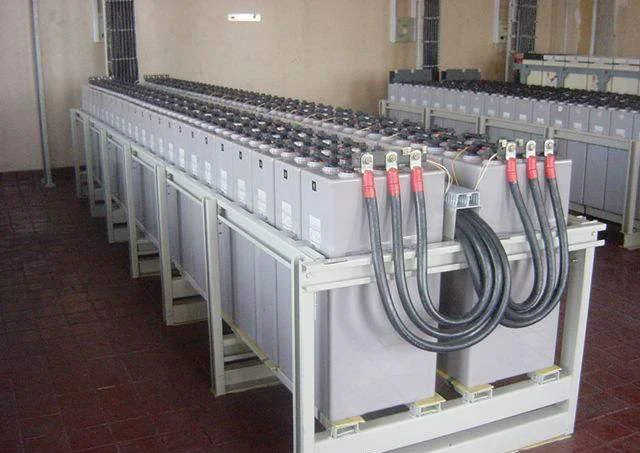

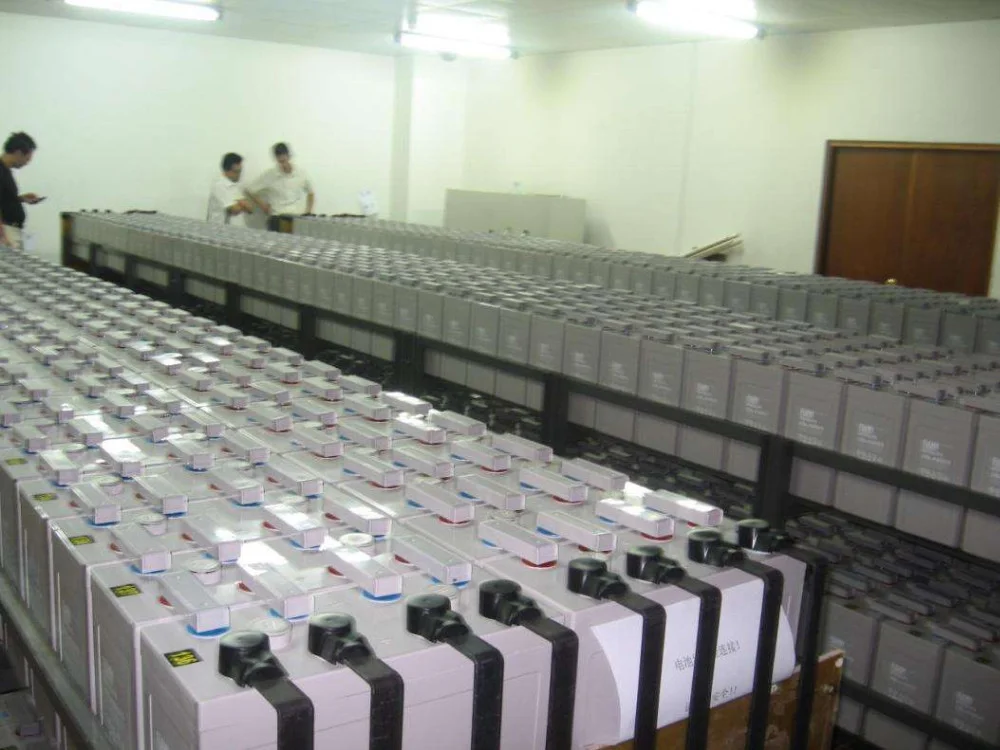

Detailed Image
Company Profile
Chinaland Solar Technology Co., Ltd
was founded in October 31, 2008. Business Scope: Solar Mono Silicon Ingot, Silicon Solar Modules,Solar PV system, Solar
Controller, Solar Interver, Intelligent Furniature Series, Intelligent Electrical Products Development and Reserch,
Manufacture,Sales, and Construction etc. Import and export business...

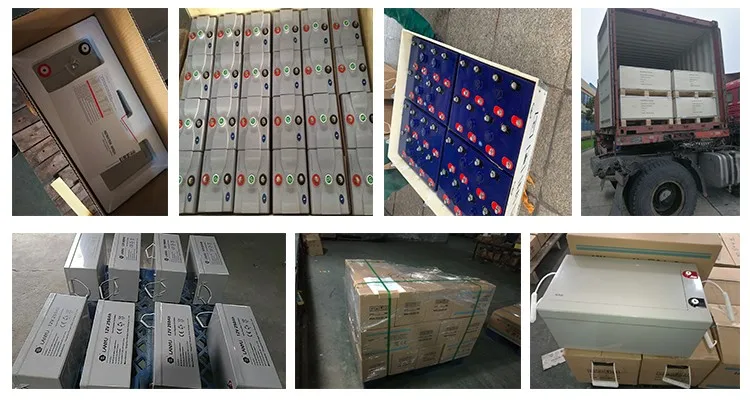

Package &Delivery

Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : 5-15days
