High precision experienced manufacturer single facer carton box corrugated making cardboard machine for line

  • 1 - 1 Sets
    $6,000.00
  • >=2 Sets
    $5,800.00
Model Number:
SMDM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Machinery & Hardware
Packaging Material:
Plastic, Wood
Type:
Other, Other
Applicable Industries:
Manufacturing Plant, Printing Shops, Advertising Company, packaging company
Condition:
New
Packaging Type:
Case, Film
Automatic Grade:
Other
Driven Type:
Electric
Voltage:
Customized
Power:
Contact
Place of Origin:
Hebei, China (Mainland)
Brand Name:
SOOME
Weight:
Model
Dimension(L*W*H):
Machine Model

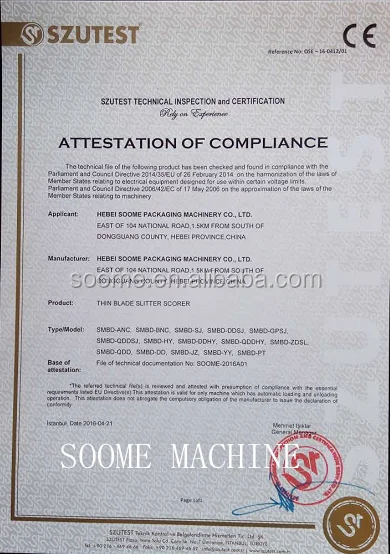

Certification:
CE Certificate
Color:
Customer's Request
Usage:
MAKING CORRUGATED CARDBOARD
Function:
Automatic Weight Packaging Line
Supply Ability
Supply Ability:
6 Set/Sets per Day
Packaging & Delivery
Packaging Details
wooden or plastic
Port
all china ports
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

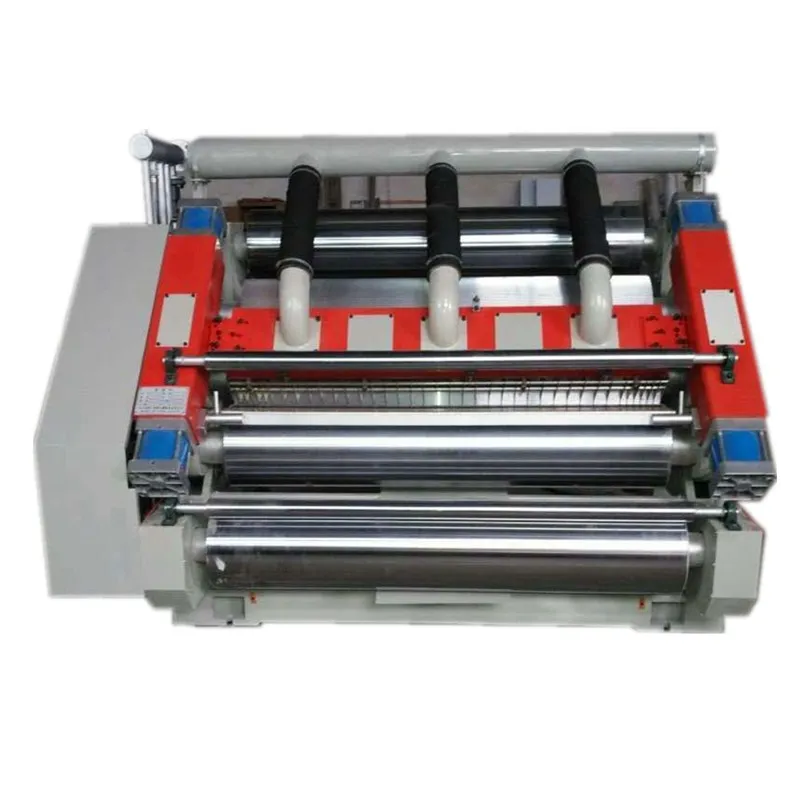

 High precision experienced manufacturer single facer carton box corrugated making cardboard machine for line
The suction hood structure, with a high power fan. Suction silencer with the wind, gas and electric control cabinet are concentrated in the same operating distance, the host is not less than 1.5 meters, the operation side closed full cover. The wallboard used Cast iron structure,the thickness of the wallboard 130mm.Corrugated roll material used 48CrMo Alloy steel,after hardening and tempered,intermediate frequency quenching,surface grinding,the corrugated main roll diameter of 280mm,The surface hardness HRC 58 above.Key parts roll and pressure roll bearing use Wafangdian make high temperature bearing. Pressure roll Φ292mm,surface grinding machining and chromium plating process;The cylinder control moves up and down,material use medium carbon steel,tempering treatment(buffer unit). Pneumatic control glue,the glue roller Φ216mm after surface polishing engraved with 25 line after the pit type checker processing hard chromium plating,after the scraping glue roller surface polishing hard chromium plating. Corrugated roller,pressure roller material made in Zhongyuan special steel,corrugated roller single side 0.15mm up middle high,pressure roller single side 0.075mm middle high.Add limit switch.Pressure cylinder use Φ160mm cylinder.Preheat roller used made in Tiangang seamless steel pipe Φ320mm.

The conventional technical parameters
Work paper size
1800mm
Operation direction
Right/left(According to the customer factory hall)
Design speed
80m/min
Temperature range
160—200℃
Air supply
0.4—0.9Mpa
Heating mode
Steam heating




Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Packaging & Shipping

Packaging:

Packed by plastic film.(If customer need wooden case pack need payment by buyer)

Shipping:

From Tianjin port To Destination country.

Delivery Time:

Shipped in 30 days after payment.(For details, please consult)



Our Services

   Our  Team  Service

WARRANTY:

1 year warranty after installation,of the spare parts is broken in the warranty period,we will send replacement parts as free,but delivery cost will be your account.



INSTALLATION AND TRAINING

We can send 1-2 engineers to install and set up machine,but all the charges should be paid by buyer.

FAQ



1. Q: Are you a manufacturer, trading company or a third party?



   A: We are a manufacturer, located in Shangen Ind Zone Chashan Town Ouhai District Wenzhou City Zhejiang province, China. Warmly welcome to visit our company.

2. Q: How about the after-sale service?



   A: 1) TM online for 24 hours, also contact by email, wechat, skype, Facebook, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.



Any Requirement, Please Feel Free To Contact Us
