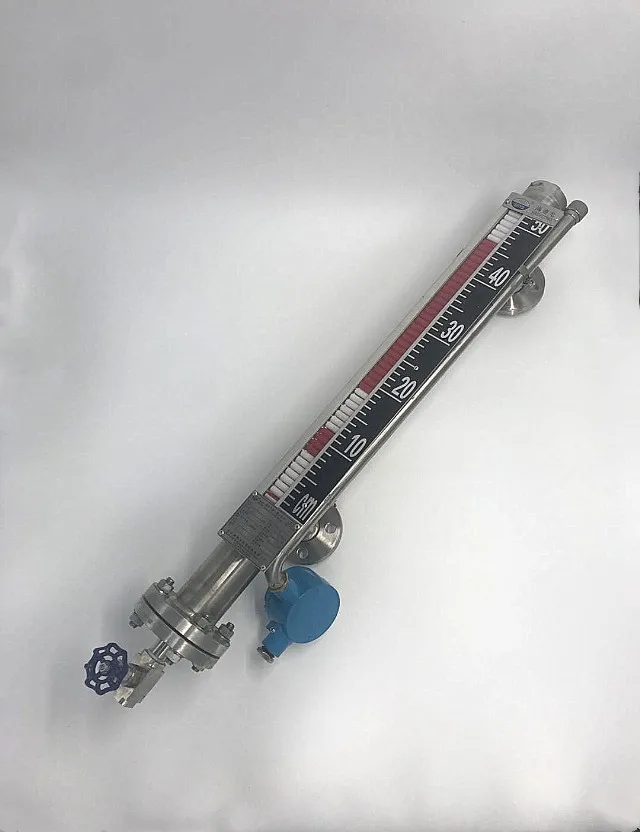

High pressure and temp Magnetic floater level indicator

FOB Reference Price:Get Latest Price
$400.00 - $2,000.00 / Set | 10 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China
Brand Name:
HAIDELONG, HDL
Model Number:
UHZH
Power supply:
24VDC
Normal Pressure:
<=25MPa
Flange standard:
HG/T20592-2009, HG/T20615-2009 or on request
Measuring Range:
300~15000mm
Range:
300mm to 6000mm
Operating temperature:
-196 to+450 Degrees Celsius
Ambient temperature:
-40 to 80 Degrees Celsius
Measuring accurancy:
±5mm
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
In Plywood
Port
Wuhan/Ningbo/customer request
Lead Time :
Within 3 weeks after payment
Product Description

Product Application

The UHZH series magnetic float level transmitter and UHQC series magnetic ball float level transmitter are new designed generation level indicator according to magnetic coupling principle. They present the level indication directly and clearly with advanced technology and the proper structure and are suitable for petroleum, chemical, power, light industry and pharmaceutical industrial field, etc. UHZH series magnetic float level transmitter is mounted on side of vessels, while UHQC series magnetic ball float level transmitter is mounted on the top of vessels, especially for the measurement of the underground storage tanks.

ordinary magnetic float level transmitter
Application range
This level transmitter is the most frequently used side-mounted magnetic float level transmitter, is suitable for level measuring which the liquid medium PN ≤ 6.3MPa and the operating temperature ≤ 300°C.
Range
300mm ~ 6000mm (increasing the range can be manufactured specially)
Nominal pressure
10MPa ~ 16MPa
Nominal diameter
DN25 (or on request)
Ambient temperature
 -40°C ~ +80°C
Operating temperature
≤300°C
Measuring accuracy
±5mm
Medium density
Level: ρ≥0.45g/cm³; Interface: ρ1-ρ2 ≥0.16g/cm³
Wetted material
304, 316L or on request
Flange standard
HG/T20592-2009, HG/T20615-2009 or on request
high pressure magnetic float level transmitter
Application range
this level transmitter is frequently used in high pressure environment, is suitable for level measuring which the liquid medium PN between 10MPa and 16MPa and the operating temperature ≤ 300°C.
Range
300mm ~ 6000mm (increasing the range can be manufactured specially)
Nominal pressure
10MPa ~ 16MPa
Nominal diameter
DN25 (on request)
Ambient temperature
-40°C~ +80°C
Operating temperature
≤300°C
Measuring accuracy
±5mm
Medium density
Level: ρ≥0.5g/cm³; Interface: ρ1-ρ2 ≥0.16g/cm³
Wetted material
304, 316L or on request
Flange standard
HG/T20592-2009, HG/T20615-2009 or on request
high temperature magnetic float level transmitter
Application range
this level transmitter is frequently used in high temperature environment, is suitable for level measuring which the liquid medium of PN ≤ 11MPa and the operating temperature between +300°C ~ +450°C.
Range
300mm ~ 6000mm (increasing the range can be manufactured specially)
Nominal pressure
≤11.0MPa
Nominal diameter
DN25 (on request)
Ambient temperature
-40°C ~ +80°C
Operating temperature
+300°C ~ +450°C
Measuring accuracy
±5mm
Medium density
Level: ρ≥0.5g/cm³; Interface: ρ1-ρ2 ≥0.16g/cm³
Wetted material
304, 316L or on request
Flange standard
HG/T20592-2009, HG/T20615-2009 or on request
antirot magnetic float level transmitter
Application range
Chamber 304 interior liner PTFE,this transmitter is suitable for measuring level for petrol and chemical industry while with of strong corrosion occasion
Range
 300mm ~ 6000mm
Nominal pressure
 ≤2.5MPa
Nominal diameter
DN25 (or on request)
Ambient temperature
-40°C ~ +80°C
Operating temperature
-30°C ~ +200°C
Measuring accuracy
±5mm
Medium density
Level: ρ≥0.5g/cm³; Interface: ρ1-ρ2 ≥0.16g/cm³
Wetted material
chamber 304 interior liner PTFE, float PTFE
Flange standard
HG/T20592-2009, HG/T20615-2009 or on request

vacuum jacket magnetic float level transmitter
Application range
this level transmitter is suitable to measure liquid medium for low temperature and easy to frost occasion.
Range
300mm ~ 6000mm
Nominal pressure
≤6.3MPa
Nominal diameter
DN25 (or on request)
Ambient temperature
-40°C ~ +80°C
Operating temperature
 -196°C ~ 0°C
Measuring accuracy
±5mm
Medium density
 Level: ρ≥0.5g/cm³; Interface: ρ1-ρ2 ≥0.16g/cm³
Wetted material
304, 316L or on request
Flange standard
HG/T20592-2009, HG/T20615-2009 or on request
