High pressure piston Air compressor

  • >=1 Sets
    $1,850.00
Power(W):
15 KW
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New, New
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Brazil, Thailand, Kenya
Showroom Location:
Kenya
Type:
Piston, Piston
Configuration:
Stationary
Power Source:
AC Power, AC Power
Lubrication Style:
Lubricated
Mute:
No
Place of Origin:
Jiangsu, China
Brand Name:
shangair
Model Number:
CWM-1.2/30-YQH
Voltage:
Customer's Requirement)
Dimension(L*W*H):
2000*1100*1600mm
Weight:
640kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Working Pressure:
30bar
Air capacity:
1.2cbm per min
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Core Components:
Pressure vessel, engine, Bearing
Product name:
High pressure piston Air compressor
Cooling method:
Air Cooling
Application:
Bottle blowing machine
Motor power:
15 Kw ( 20 Hp)
Name:
Piston Air Compressor
Capacity:
1.2m3/min
Working pressure:
30bar
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
PACKED IN WOODEN CASE WITH STRONG SEAWORTHY PACKING SUITALBE FOR EXPORT.
Port
Ningbo,China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated

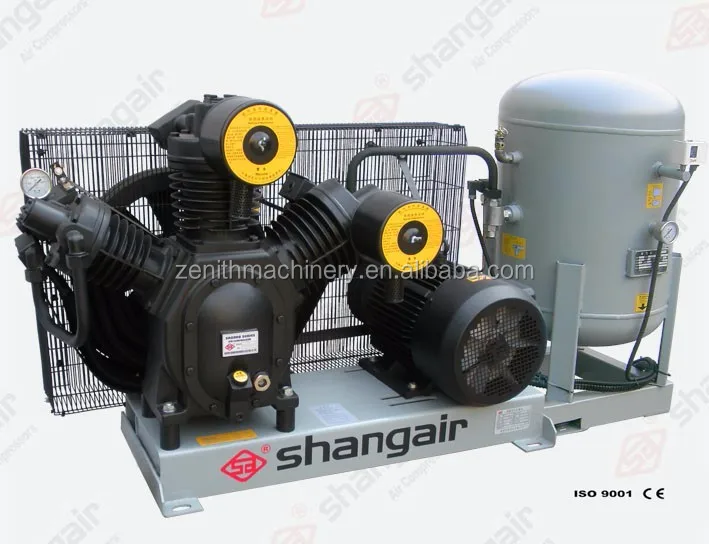

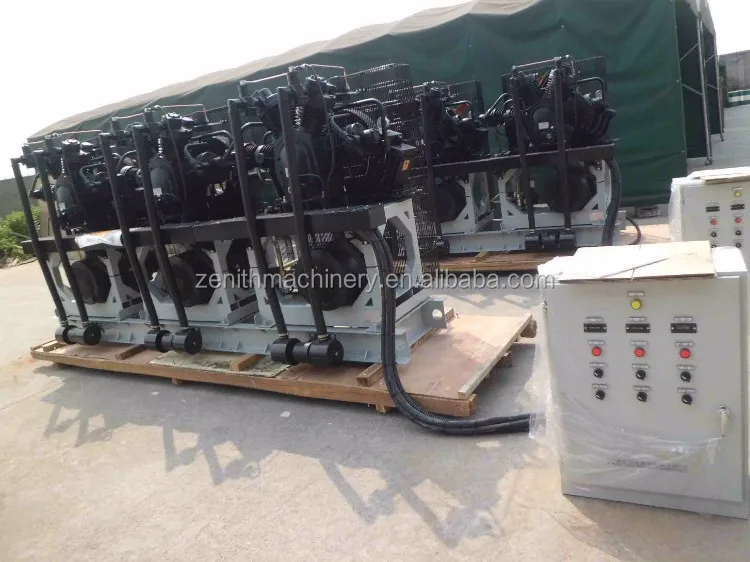

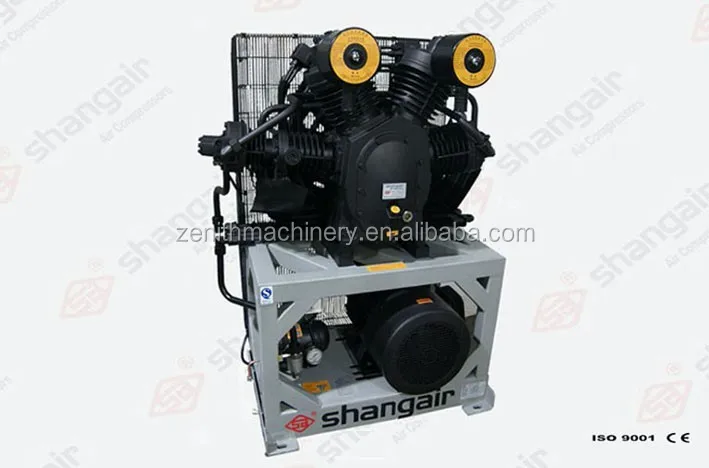

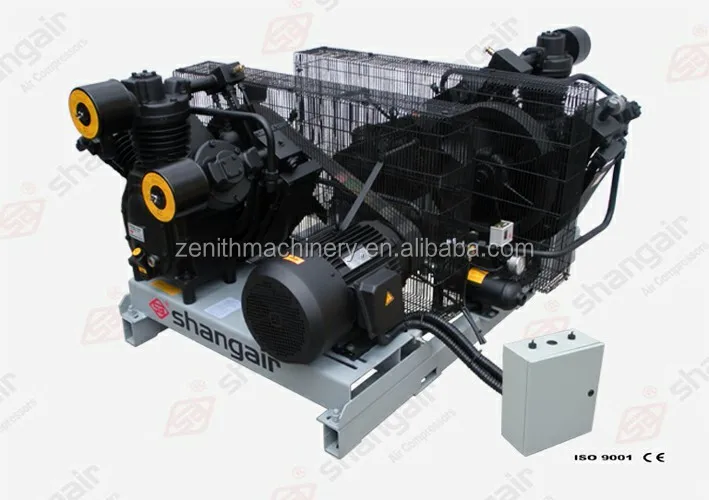

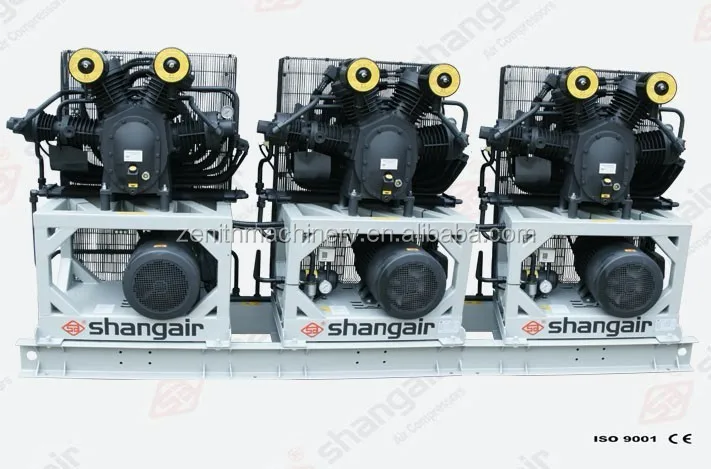

Machine Main photos
Product Description
SHANGHAI BRAND AIR COMPRESSOR

Main Characters Of Shangair Brand High Pressure Air Compressor

Shangair patent cylindrical direct-flow valve is used by our compressors. The valve is made from the stainless steel belt imported from Sweden and it is free from fracture during the working life.

The piston of our air compressor applies the integral cast chromium plating ring, the working life is extended by 3 to 4 times.

Shangair’s unique compressor dynamic balancing technology. The vibration is only as a quarter of the world standard.

The whole air compressor adopts rolling bearing without bearing shell (Comprising connecting rod).

To ensure safety and reliability of air compressor, redundancy design principle is adopted and multiple protection measures are taken: such as overload protection; overheat protection; phase-failure protection; under voltage protection; drainage while stop running; startup under the condition pressure is zero.

High reliability, long maintenance cycle, very low oil consumption (oil-saving), low energy (power saving), these dramatically reduce the general operating cost of our air compressors.

Main Specification
Model
Displacement m3/min
Pressure Mpa
Tank
 m3
Motor kw
   Rotational speed r/min
  Size (L*W*H)
 mm
Weight kg
Model
Displacement m3/min
Pressure Mpa
Tank m3
Motor kw
Rotational speed r/min
Size (L*W*H) mm
Weight kg
CVM-0.75/30
0.75
3.0
9
800
1800*1100*1350
450
CVM-0.75/30-YQ
0.75
3.0
0.1
9
800
2000*1100*1750
510
CWM-1.0/30
1.0
3.0
11
600
1800*1100*1350
550
CWM-1.0/30-YQ
1.0
3.0
0.15
11
600
2000*1100*1600
600
CWM-1.2/30
1.2
3.0
11
620
1800*1100*1350
530
CWM-1.2/30-YQ
1.2
3.0
0.15
11
620
2000*1100*1600
620
CWM-1.2/30-YQH
1.2
3.0
0.15
15
630
2000*1100*1600
640
2-CWM-2.0/30
2.0
3.0
2*11
600
2000*1750*1450
1000
2-CWM-2.4/30
2.4
3.0
2*11
620
2000*1750*1450
1000
2-CWM-2.4/30H
2.4
3.0
2*15
670
2000*1750*1450
1000
34CSH-1830
1.6
3.0
18.5
730
1500*1130*2000
650
2-34CSH-1830
3.2
3.0
2*18.5
730
2800*1130*2000
1500
3-34CSH-1830
4.8
3.0
3*18.5
730
4200*1130*2000
2300
4-34CSH-1830
6.4
3.0
4*18.5
730
5400*1130*2000
3200
83CSH-2230
2.0
3.0
22
620
2300*1250*1450
750
2-83CSH-2230
4.0
3.0
2*22
620
4500*1250*1650
1900
3-83CSH-2230
6.0
3.0
3*22
620
6500*1250*1650
2800
09CSH-1840
1.6
4.0
18.5
730
1700*1130*2000
650
2-09CSH-1840
3.2
4.0
2*18.5
730
2800*1130*2000
1500
3-09CSH-1840
4.8
4.0
3*18.5
730
4200*1130*2000
2300
4-09CSH-1840
6.4
4.0
4*18.5
730
5400*1130*2000
3200
83CSH-2240
2.0
4.0
22
600
2000*1250*1450
750
2-83CSH-2240
4.0
4.0
2*22
600
4500*1250*1650
2000
3-83CSH-2240
6.0
4.0
3*22
600
6500*1250*1650
2900
CVZ-3.0/8/40
3.0
4.0(0.8)
18.5
800
1700*1100*1650
580
CWZ-4.0/8/40
4.0
4.0(0.8)
18.5
800
1700*1100*1650
580
2-CVZ-6.0/8/40
6.0
4.0(0.8)
2*18.5
800
2200*1350*1850
1350
2-CWZ-8.0/8/40
8.0
4.0(0.8)
2*18.5
800
2000*2400*1650
1380
(○) means without air tank inside
