High quality Cast Steel Slag Pot for customized

FOB Reference Price:Get Latest Price
$1,000.00 - $2,000.00 / Tons | 3 Ton/Tons (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
Julongxiang
Model Number:
OEM
Application:
Industry, Machinery parts
Material:
Iron, Cast Steel
Dimensions:
Customer Required, With drawing/Customized size
Process:
Casting, Machining
Certification:
EN10204-3.1
Service:
OEM/ODM
Surface Treatment:
Shaft ear
Product name:
High quality Cast Steel Slag Pot for customized
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden cases or packing according to customer's request.
Port
Dalian Port
Lead Time :
Within 30 days after you payment
Product Description

We can offer our customers a comprehensive range of Casting Parts that match the strict quality requirements of International market .

Product Name
High quality Cast Steel Slag Pot for customized
Material
Cast steel
Color
Depends on customer requirement
Standard
EN10204-3.1

Component      analysis
ca. 0,18 % C
max. 0,22 % C
< 0,020 % P
ca. 0,30 % Si
max. 0,50 % Si
< 0,015 % S
ca. 1,30 % Mn,
max. 1,55 % Mn


Mechanical behavior


Tensile experiment
Rm≥450(Nm㎡)
Rp 0,2≥230(Nm㎡)
A≥20(%)
   Notched impact value
ISO – V:≥45(MW(J))
Used
Metallurgical industry

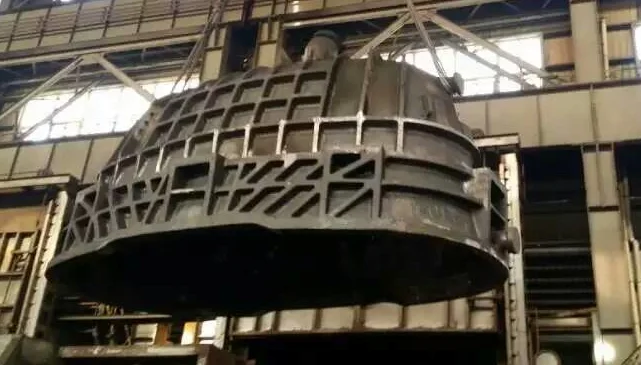

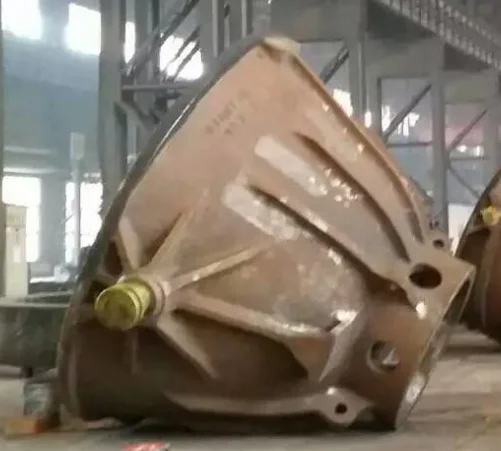

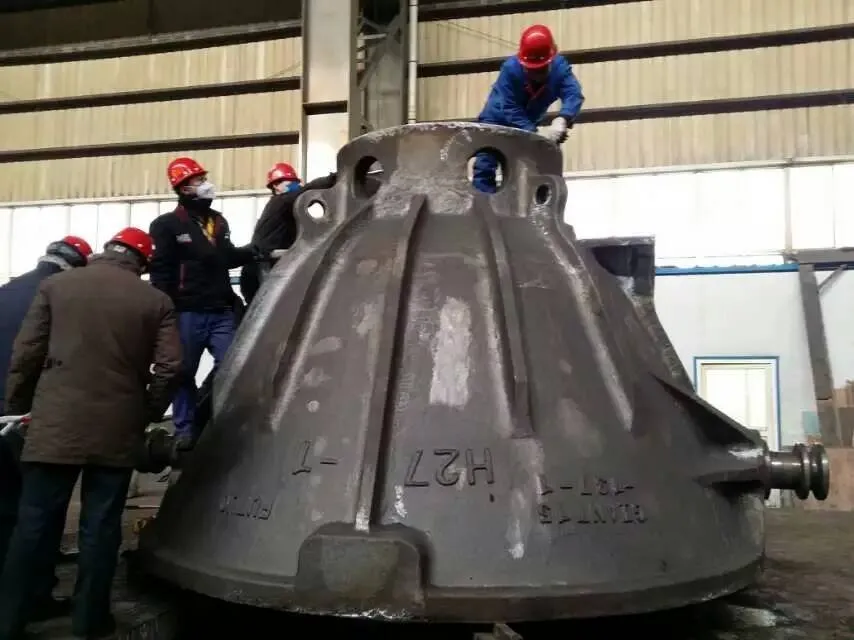

Products Show

Modeling and Pouring

1.According to DIN 1683, GTB 19 control tolerances, GTB19 / 5 control wall thickness.

2.When pouring, the slag can be opened down

3.In the sand mold to be placed in some loose grass, such as rope, in order to facilitate the slag tank after casting contraction.

4.In thick areas, such as the trunnion area, it is necessary to add cold iron at the time of molding.

5.If you need to put the shaft stud into it, make sure it is clean and free from rust.

6.The trimmed trunnions can be designed to be cast on the outer contour of the slag tank or through the wall thickness of the slag tank to the inner contour of the slag tank. When the latter is selected, the trunnion protrusion and the concealed weld are If necessary, it should be polished on the inner surface of the slag tank.

7.The shaft itself and the casting body are not allowed to connect the welding, so that there will be cracks. Such cracks are subject to a specified limit and are never allowed to exceed this limit, most of which is caused by paint or molding materials - the shape of the shaft ear needs to be protected in the mosaic area to ensure a clean product. Tape with trunks.

8.Bake sand molds before pouring to remove moisture.

9.The end of the pouring, the use of a few gate of the ring runner (in the bottom / slag tank opening)

10.The riser needs to be placed on the "column feet", and sometimes it is necessary to add a riser to the bottom of the slag tank.

11.After cutting the riser, the slag tank must remain stable. (Not allowed to tilt !!)

12.Measured from the center of the bottom of the slag, at least 50 mm from the ground.

13.Manufacturing, assembly molds to strive for future products as much as possible to reduce the burr. Need to wear off the burr, any groove is not accepted.

Our Company

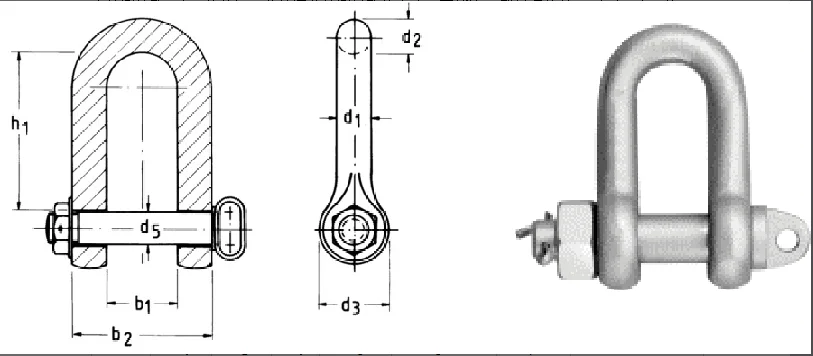

Drawing

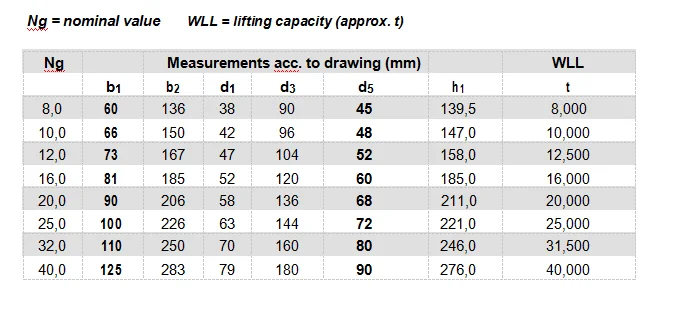

Dimentions


Warehouse

Our Warehouse

Team

Our Team

To be certified.


Slag pot are slag for smoky, nonmetallic, and alloy smelting and transported from A to B by special loaders, cranes or rail vehicles.


Packing & Delivery

Packing Details  : Depends on Customer

Delivery Details :  Delivery product after you payment

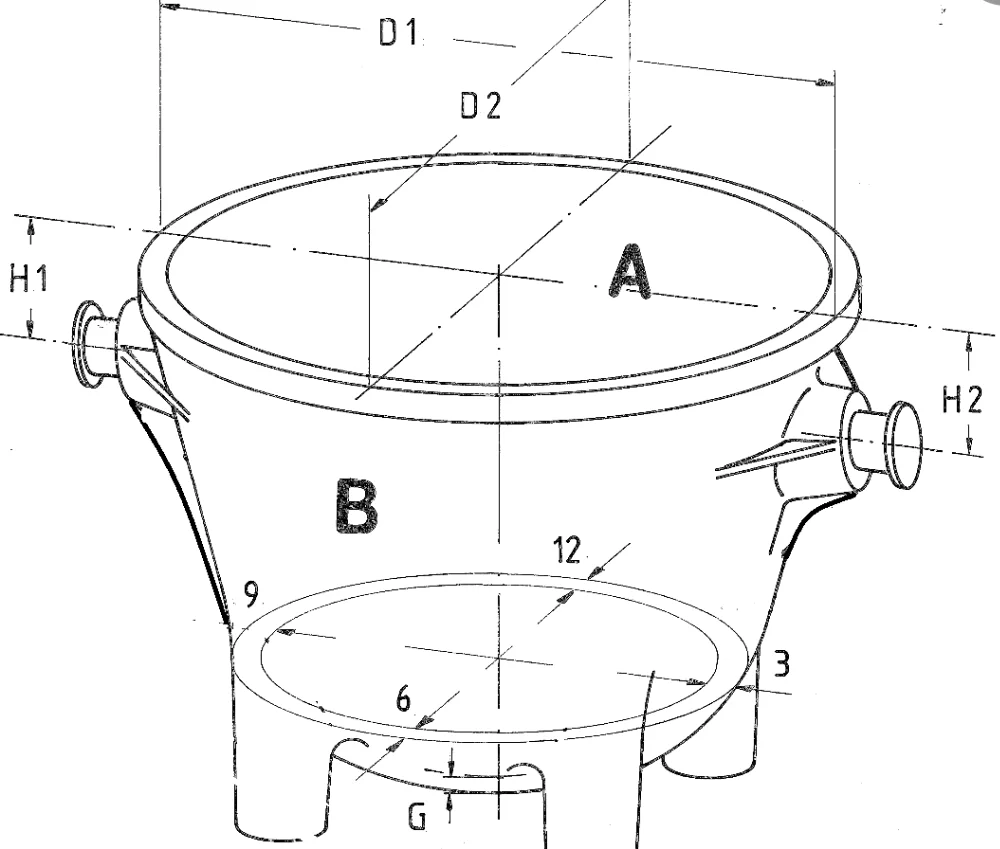

                        Drawing
                         Drawing

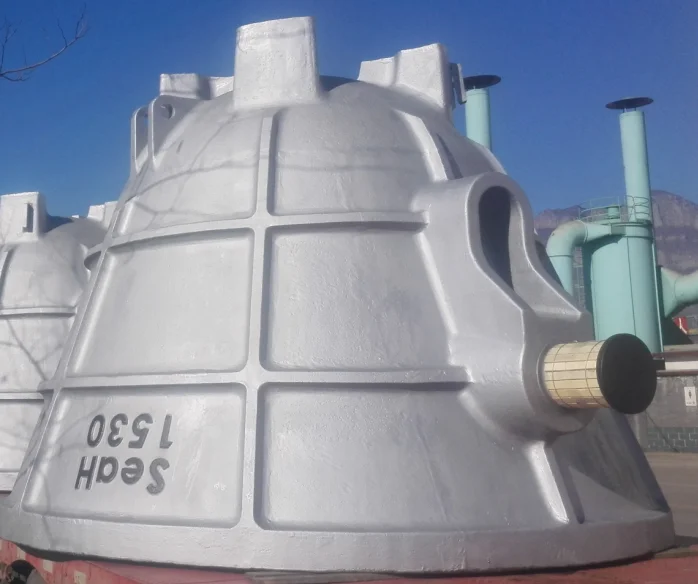

Finished product
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 20-35 days to ship.

Q: .What's your products' performance during using?

A. Our product have the long life.

B. We have rich experience in steelmakingng.

c. We have professional teamwork and the bset service for you.
