High quality MM-600 floor tile press machine for sale

FOB Reference Price:Get Latest Price
$21,000.00 - $23,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Cement
Use:
FLOOR
Place of Origin:
Henan, China
Brand Name:
MANMACH
Model Number:
MM600
Power:
7.5 kw
Voltage:
380V
Dimension(L*W*H):
3100*1500*2600
Weight:
6.5 Tons
Certification:
ISO9001
Product name:
floor tile press machine
Name:
terrazzo tile machine
Raw material:
CONCRETE
Control system:
PLC(imported Brand)
Item:
hot sale
Machine:
MANMACH
Usage:
tile making
Feature:
clean
Material:
iron
Color:
blue
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Production Capacity:
6 pcs/min
Supply Ability
Supply Ability:
19 Set/Sets per Month
Packaging & Delivery
Packaging Details
MM 600 floor tile press machine
1. The machines will be packed with wooden pallets or wooden boxes.
2. Without polishing machine, it needs one piece of 20GP container.
3. With polishing machien, it needs one piece of 40GP container.
4. The empty container will be deliveried from port to the factory.
5. The machines-loaded will be made in the factory
6. All of the machines in the container will be fixed by steel ropes.
7. The machines and container will be sent to the port
Port
Qingdao, Shanghai, Ningbo
Lead Time :
Shipped in 25 days after payment
Product Description

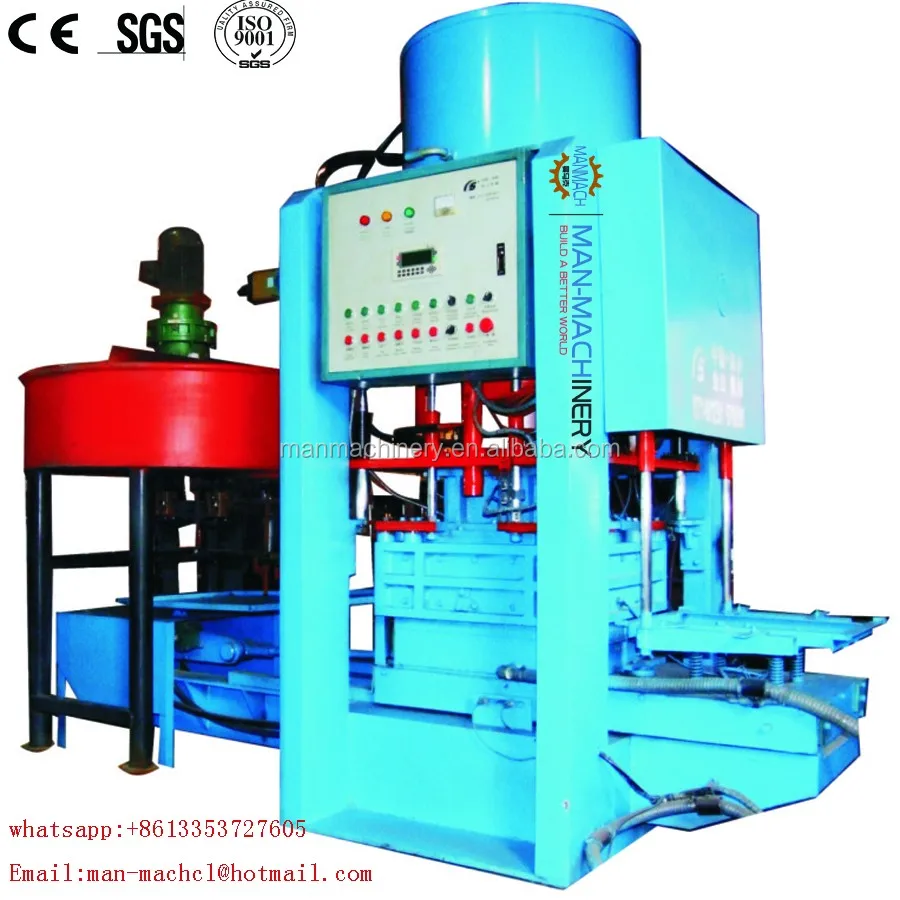

MM-600  floor Tile  Press Machine

The single-mould press MM-600 is specifically designed for the molding of small-size products (up to 600×600 mm and with thickness from 20 to 40 mm in the standard version), but it is also suitable for molding tiles of smaller size.
Provided with automatic doser of the wet mixture with large-diameter dosing cups, the thickness of the tiles can be easily adjusted.

www.man-mach.com

SPECIFICATIONS FOR MM-600  TILE  PRESS MACHINE
Model:
MM600
Pressure:
250T (customized pressure is available)
 Power:
7.5 kw
Weight:
6.5 Tons
Production:
6 pcs/min
Dimension:
3100*1500*2600
Max.mold size:

600*600
Hydraulic system:
 Italian ATOS
Electrical system:
Japanese MITSUBISHI

Main Features

 1. Only for single-layer tiles

2. Italian ATOS hydraulic system and Japanese MITSUBISHI PLC system.
3. Changed with molds, it can produce various roof tiles too
4. Easy operation and maintenance
5. Sizes of manufactured tiles: 600*600, 500*500, 400*400, 330*300, 300*300, 250*250mm
Certifications
Detailed Images

Machine Parts

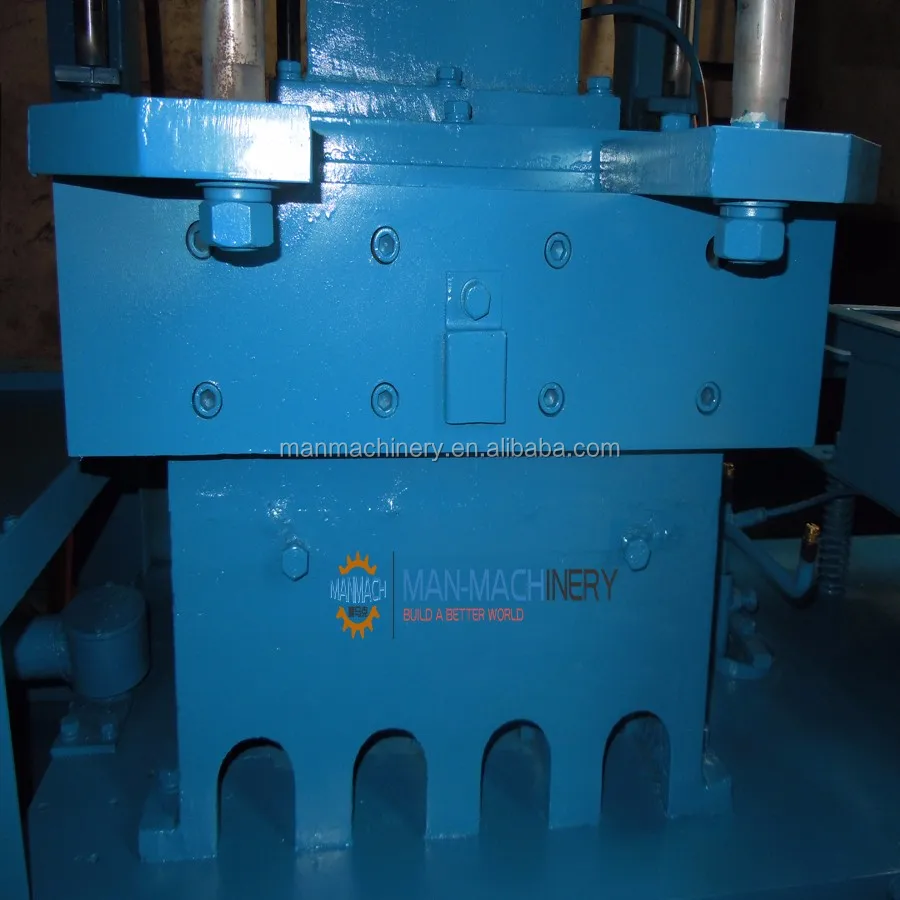

Name:Mold


1. Made of Cr12MoV, special steel mold
2. Producing 1 million pieces of tiles
3. Surface patterns are processed by CNC machine
4. The tiles with better appearance and higher density

Main Features

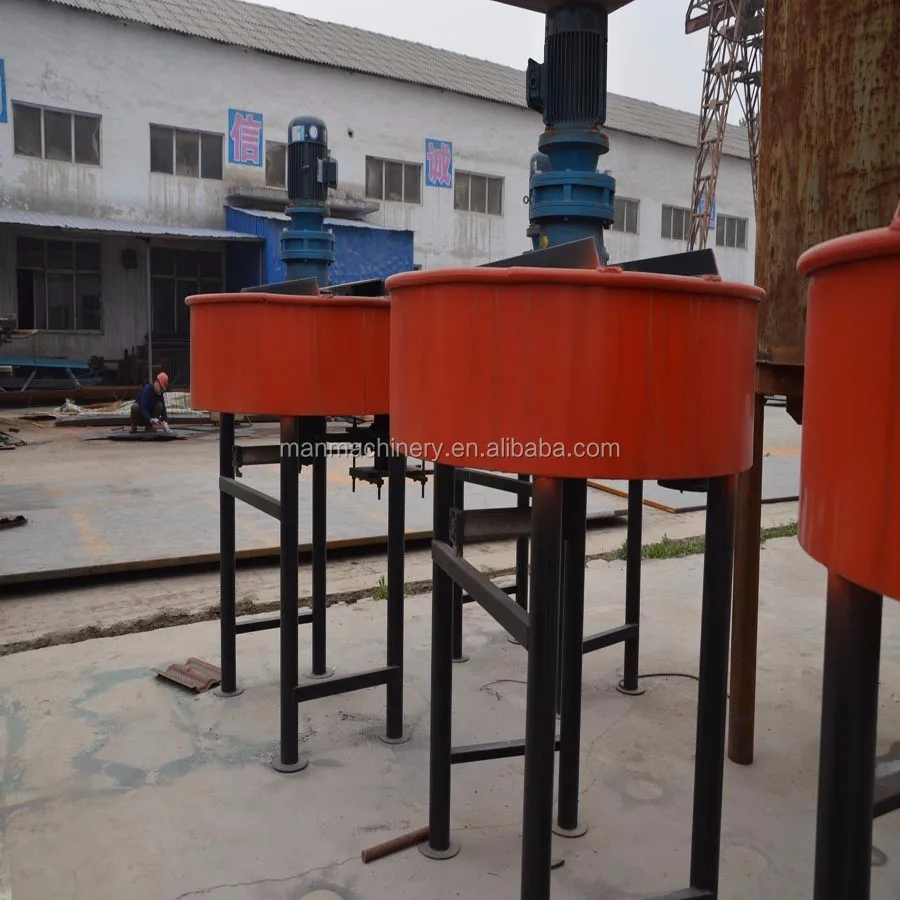

Name: Mixer

1. Robust body
2. Discharging door is opened by pneumatic cylinder
3. Automatic feeding materials and water
4. Large feeding and discharging capacity
5. Mixing evenly and high efficiency

Machine Parts

Name:  doser


1. Quantifying materials accurately
2. Automatic feeding with pneumatic cylinder
3. Controlled by PLC unit

Main Features

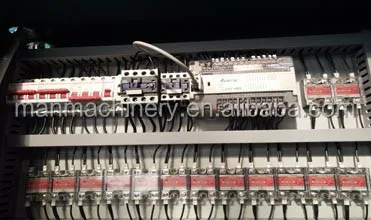

Name: electrical system


1. Optional choice: Schneider, Omron, CHNT or Delixi
2. PLC unit: Mitsubishi or Delta
3. More reliable and stable
4. More safe

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3100*1500*2600
Weight
6.5 Tons



Packaging Details
1. The machines will be packed with wooden pallets or wooden boxes.
2. Without polishing machine, it needs one piece of 20GP container.
3. With polishing machien, it needs one piece of 40GP container.
4. The empty container will be deliveried from port to the factory.
5. The machines-loaded will be made in the factory
6. All of the machines in the container will be fixed by steel ropes.
7. The machines and container will be sent to the port
Contact With Us

Any question,please contact me any time,I will service for you 24 hours
