High-quality Metal Cut Machine Cnc Lathe Ck6136

FOB Reference Price:Get Latest Price
$10,560.00 - $18,800.00 / Set | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
360
Spindle bore:
51
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Max. Length of Workpiece (mm):
1000 mm
Type:
Horizontal
Condition:
New
Year:
2020
Structure:
Flat Bed Lathe, Flat Bed Lathe
Max. Spindle Speed (r.p.m):
2500-2500r.p.m -r.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
51 m'm
Width of bed (mm):
206 mm
Spindle Motor Power(kW):
3
No. of Spindles:
Twin
Max. Turned Length (mm):
1000
Number of Axes:
2
Travel (X Axis)(mm):
150 mm
Travel (Z Axis)(mm):
500 mm
Positioning Accuracy (mm):
0.012
Repeatability (X/Y/Z) (mm):
0.012
Place of Origin:
Anhui, China
Dimension(L*W*H):
2300*1100*1650mm
Brand Name:
WHITE EAGLE
Model Number:
CK6136
Voltage:
As customer required
Certification:
ISO and CE
CNC Control System:
FANUC ,SIEMENS AND GSK
Toolpost Brand:
Hongda
Tool Post Stations:
6, 4
Weight (KG):
1600
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
High-accuracy
Local Service Location:
None
Showroom Location:
None
Max. Swing Diameter (mm):
360 mm
CNC or Not:
CNC
Automatic Grade:
Automatic
Name:
High-quality Metal Cut Machine Cnc Lathe Ck6136
Max.swing over bed:
360
Max.swing over toolpos (mm):
150
Spindle taper:
MT4
Spindle speed range:
60-2500
Max matchining length:
1000mm
Power (kW):
3kw
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywooden box or customed
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 45 To be negotiated
Video Description
Product Description

Precision Metal Mini Lathe Machine Price Working Made In China Factory Ck6136


Model and specification
CK6136*500/750/1000
Swing over bed
φ1360mm
Swing over TOOLPOST
φ1180mm
Distance between centers
500/750/1000mm
Max.machining length
500/750/1000mm
Chuck size
φ160mm
Spindle nose and taper stype
A2-5
Spindle speed range
60-2500
Spindle bore dia.
φ51
Spindle power
3
Max.bar feeding dia
φ45
Rapid traverse speed
6/8
Stations No.
4/6
X/Z Accurac of positioning repeatability
0.01/0.02
Quill diameter
φ50
Quill travel
120
taper of quill
MT4
Guideway width
206


Main Features

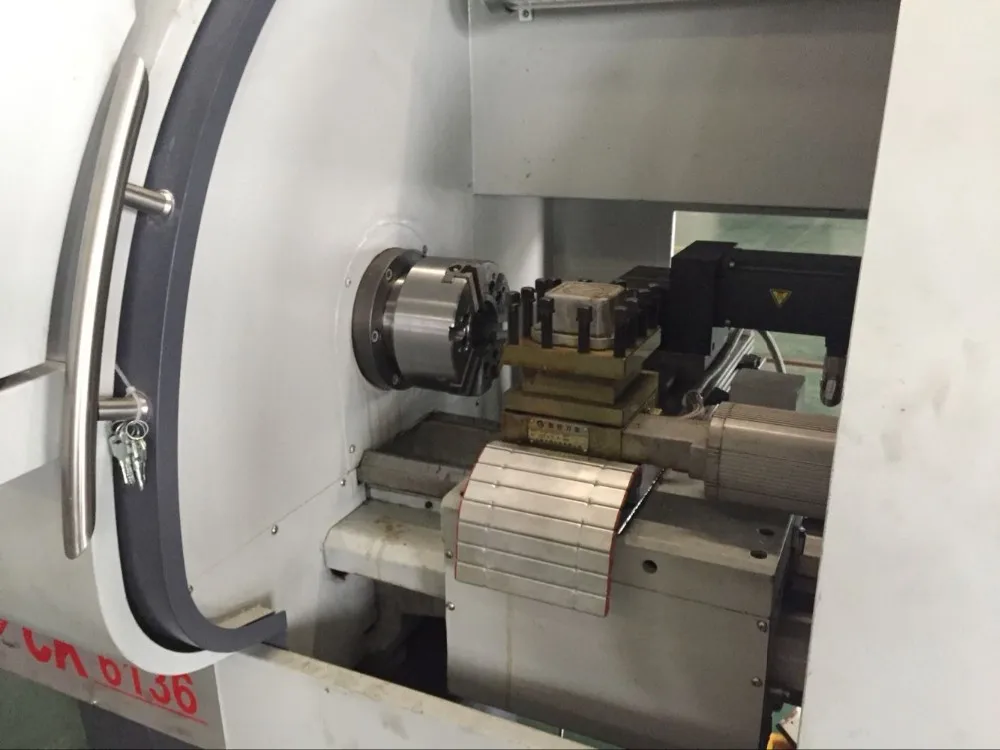

1)The machine can process precisely internal or external diameter,face ,taper,arc and treading with high efficiency
2)Standard toolpost is 4-stations,also 6-stations toolpost can be optional selection
3)Spindle speed changed by frequency
4)Induction harden bed-way.Bed saddle with plastic sticker can improve the accuracy and service life of the machine
5)The spindle is supported by imported precision bearings
6)Normally machine is provided with 3-jaw chuck.According to customer's optional selection,hydraulic chuck or pneumatic chuck also can be supplied

Accessories

Standard accessories

1)3-jaw chuck and tool post wrench
2)Allen wrench
3)Electrical tool post(4 station)
4)Cooling system
5)Manual lubricating system
6)Working lamp
7)Iron casting stand

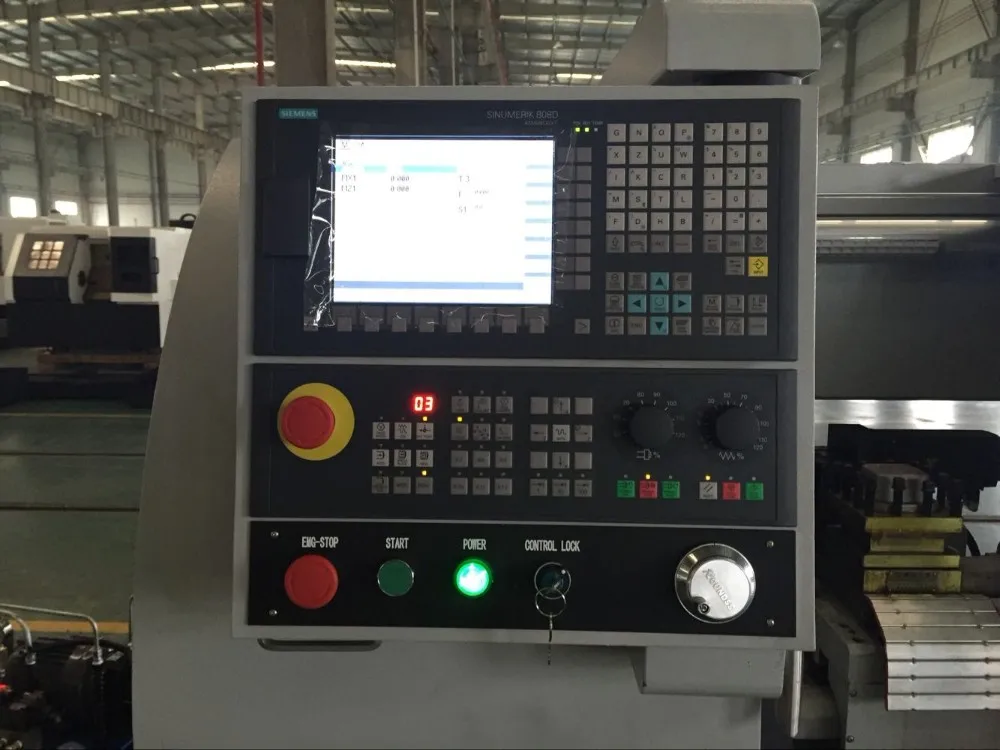

8)GSK CNC controller system.

Optional accessories

1)6-Stations toolpost
2)Pneumatic chuck
3)Hydraulic chuck
4)controller system:Siemens or FANUC
5)Auto-lubricating system

Packing & Delivery
Packaging
Size
1850*1200*1650mm
Weight
N.W./G.W 1400/1600KGS



Packaging Details
Plywood case
Certifications
Our Work Shop
We In Fairs
Our Service

OEM APPROVED

* LOGO OEM accept.

* Packing design OEM accept

* Even machine design OEM accept.

Our team Service

* Professional team,perfect pre-sale and after-sale service.

* Engineers available to service machinery overseas.

* Good English speakers from sale department,can handle your suggestion
