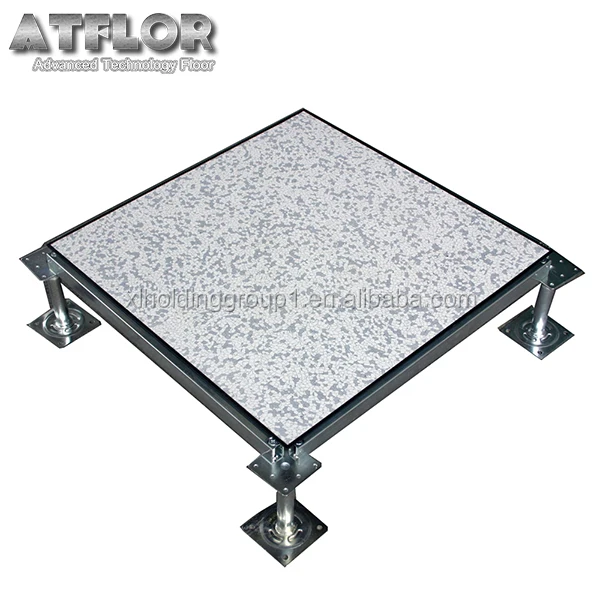

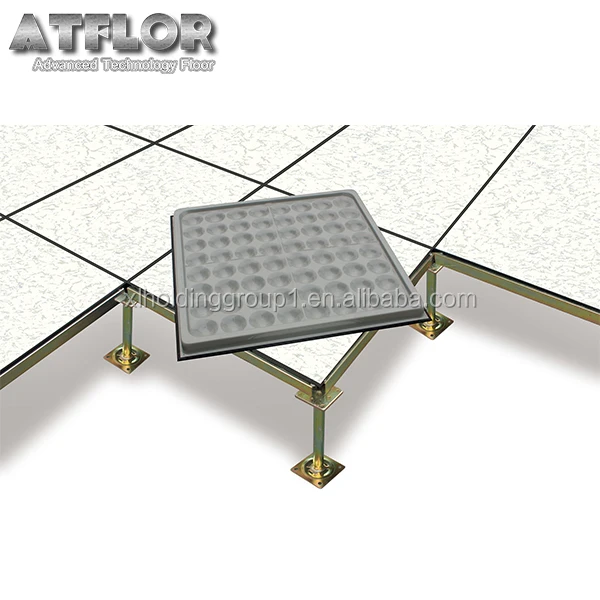

High quality good performance antistatic steel raised access floor

FOB Reference Price:Get Latest Price
$20.00 - $30.00 / Square Meter | 200 Square Meter/Square Meters (Min. Order)
Color:
Lead Time:
Quantity(Square Meters) 1 - 5000 5001 - 10000 10001 - 20000 >20000
Est. Time(days) 20 30 50 Negotiable
Customization:
Customized logo (Min. Order: 1000 Square Meters)
Customized packaging (Min. Order: 1000 Square Meters)

More

Graphic customization (Min. Order: 1000 Square Meters) Less
Report Suspicious Activity
Overview
Quick Details
Material:
Metal, Steel and cement infill
Metal Type:
Steel
Place of Origin:
Jiangsu, China
Brand Name:
ATFLOR, ATFLOR
Model Number:
FS662- FS2000
Certificate:
CE, CISCA, ASTM
Covering:
HPL, PVC, ceramic, carpet
Coating color:
Light grey, dark green or customized
Size:
600*600*35mm
Type:
Anti-static flooring
Concentrated Load:
662- 2000lbs
Application:
Data center, server room, office room
Fireproof:
Class A
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month
Packaging & Delivery

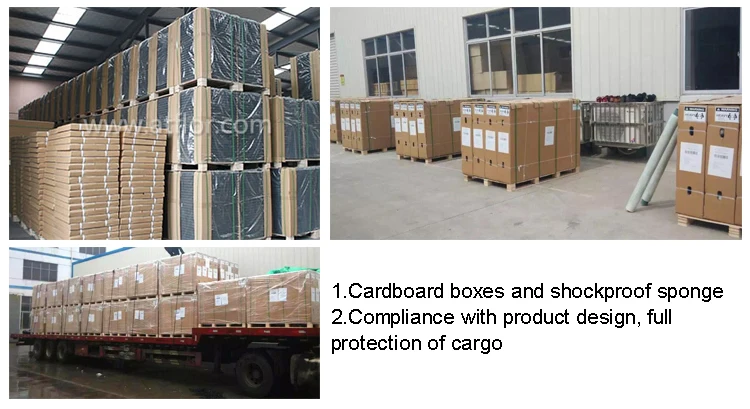

Packaging Details
Pallet for raised floor and cartons for accessory
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Square Meters) 1 - 5000 5001 - 10000 10001 - 20000 >20000
Est. Time(days) 20 30 50 To be negotiated


Introduction:



1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof

2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor

3. Agreeable solution to ground air conditioning system

4. Recyclable, convenient removing, cost saving, long performance life

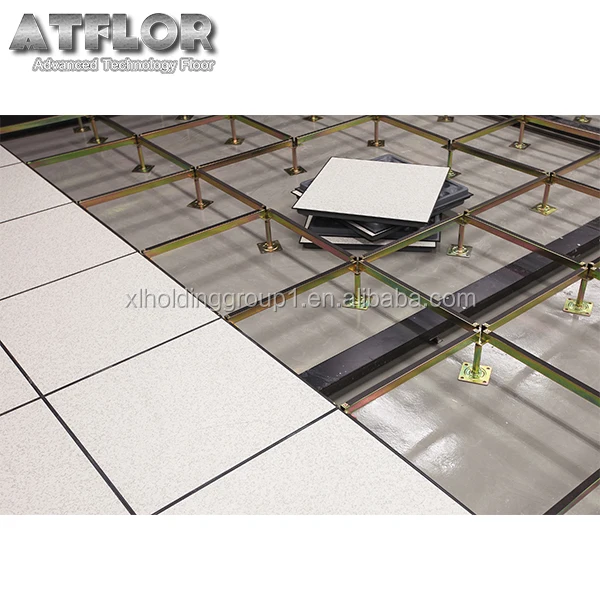

5. Adjustable height of pedestal, stringer connect, assembly agility, large wire and good exchangeability



Application:



All kinds of computer room, network service room, monitoring center, electronic workshop, clean room, dustless chamber etc, and occasions demanding antistatic and air conditioning

5A class office, security union plaza, futures trading building, places demanding cabling and wiring and the aging buildings’ flooring maintenance



Specification:



International

Size(mm)

Concentrated Load

Impact Load (N)

Ultimate Load (N)

Uniform Load (N/M2)

Rolling Load(N)

LB

N

KG

10 Times

10000 Times

FS662

600x600x35

≥662

≥2950

≥301

≥445

≥8850

≥1250

2946

2356

FS800

600x600x35

≥800

≥3350

≥363

≥536

≥11250

≥16100

3560

2670

FS1000

600x600x35

≥1000

≥4550

≥450

≥670

≥13350

≥23000

4450

3560

FS1250

600x600x35

≥1250

≥5560

≥567

≥780

≥16680

≥33000

5560

4450

FS1500

600x600x35

≥1500

≥6675

≥670

≥1005

≥19892

≥34500

6675

5340

FS2000

600x600x35

≥2000

≥8900

≥906

≥1340

≥26700

≥46000

8900

7120

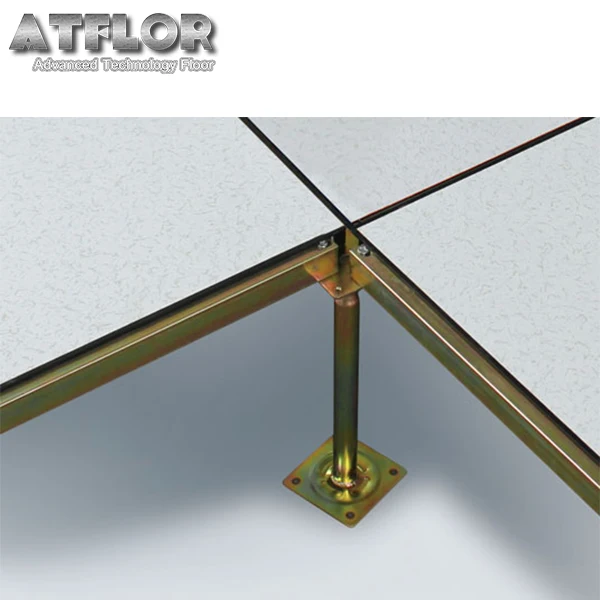

Accessories:



FFH(mm)

Tube Diameter(mm)

Adjustment +(mm)

Adjustment –(mm)

≤600

M25

25

25

700~900

M32

25

25

1000~1500

M45

25

25



Standard Stringer SPEC: 21x32x570mm

Other height could be customized.

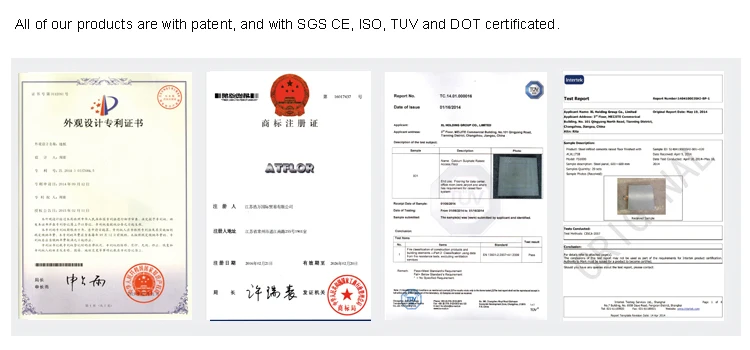

Certificate:

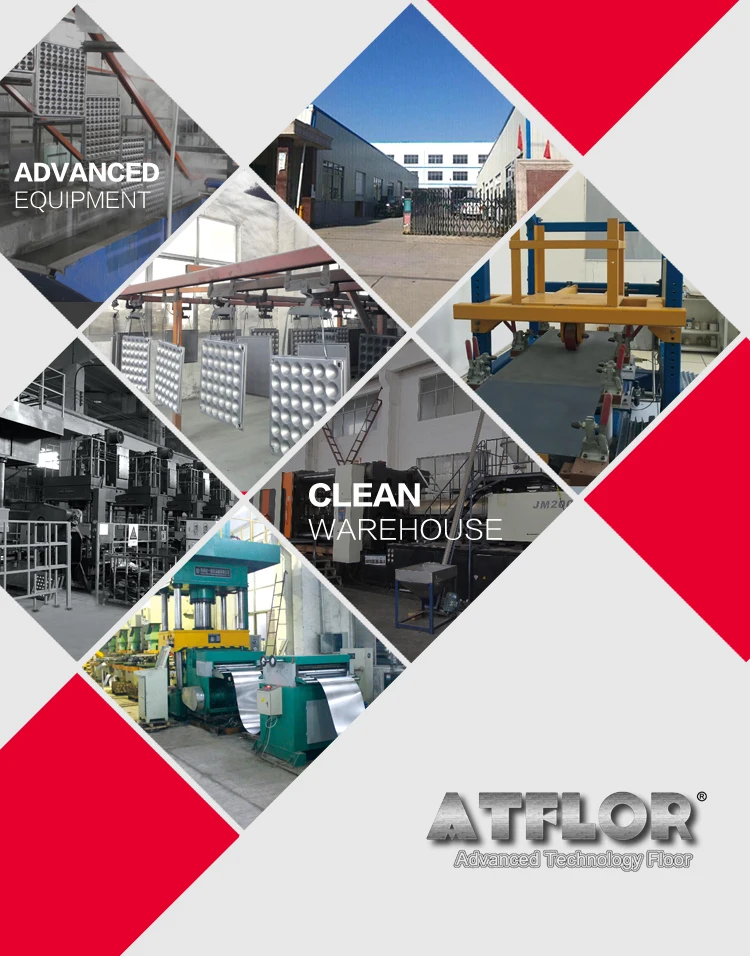

Our factory:

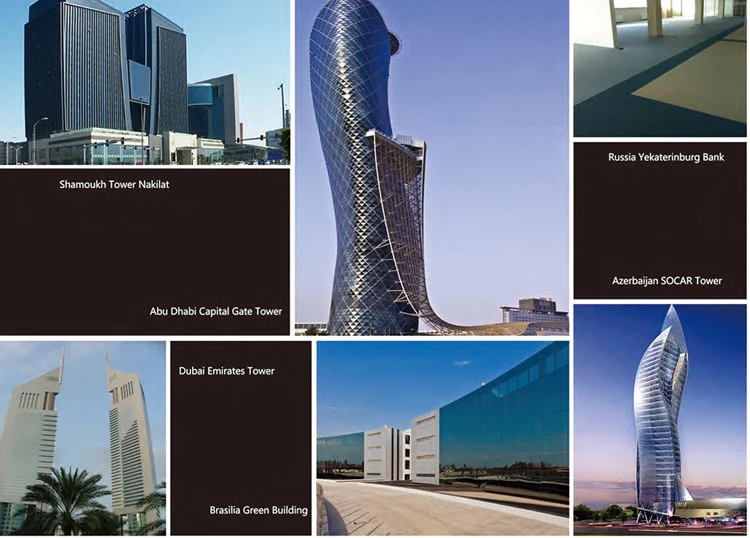

Project:






Our Team:10.jpg
