High quality standard 4mm 6mm 10mm 16mm single core electrical cable wire dc solar cable for solar panel

FOB Reference Price:Get Latest Price
$0.40 - $1.00 / Meter | 100.0 Meter/Meters (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 5000 Meters)
Customized packaging (Min. Order: 5000 Meters)

More

Graphic customization (Min. Order: 5000 Meters) Less
Samples:
$0.01 /Meter | 1 Meter (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
JZD
Model Number:
solar cable
Insulation Material:
Xlpe
Type:
LOW VOLTAGE
Application:
Solar energy system
Conductor Material:
Copper
Jacket:
PVC
Color:
red,black,white
Certificate:
ISO9001
Conductor:
Copper Core
Insulation:
XLPE
Keywords:
dc solar cable
Core:

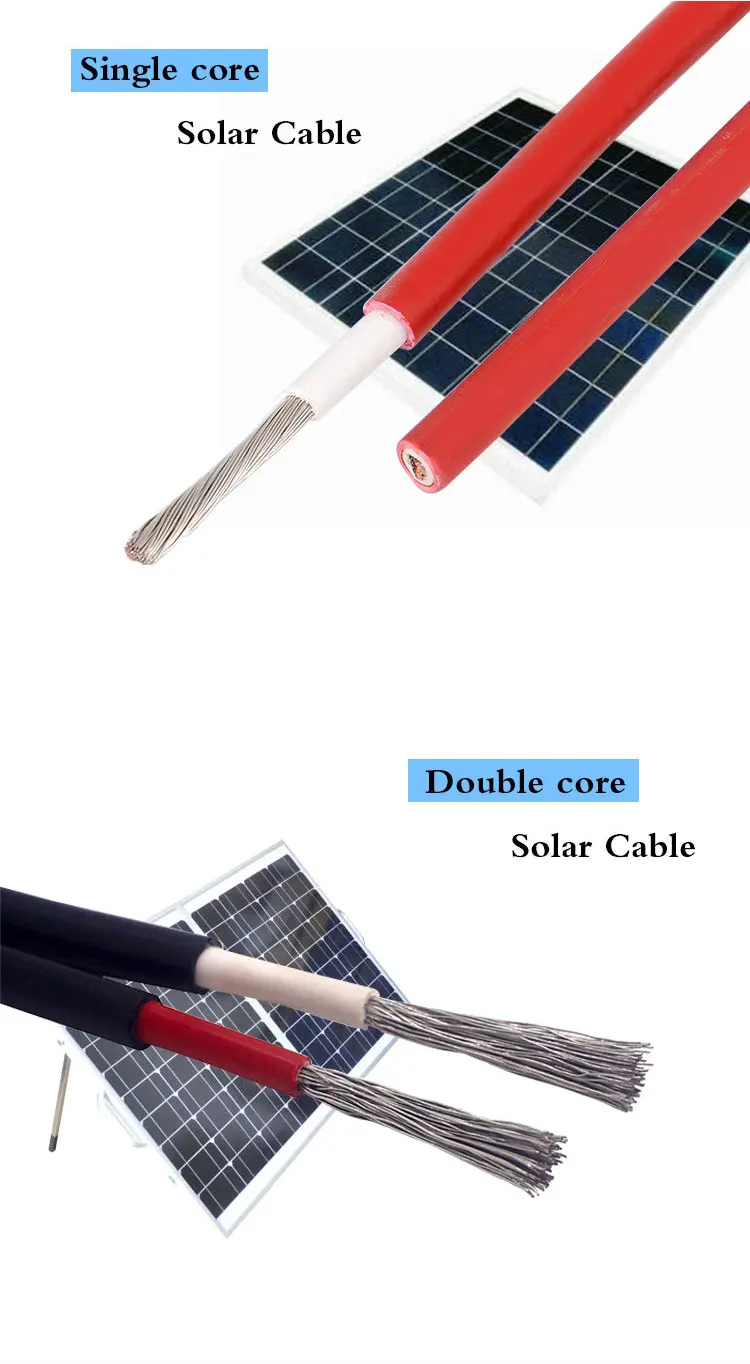

1 Core / 2 Core
MOQ:
100 Meters
Name:
solar cable
Rated voltage:
0.6/1KV
Standard:
IEC60227
Product Certification certification
CCC Certified.
Valid from 2018-05-04 until 2023-05-04
CE Certified.
Valid from 2018-05-04 until 2023-05-07
SAA Certified.
Supply Ability
Supply Ability:
100000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Inner Packing: Wooden reel, Plastic reel, and Paper Reel
Outer Packing: Carton box, Pull out box, Pallet available
Other packing available according to clients' request
Port
SHEN ZHEN
Picture Example:
package-img
package-img
Lead Time :
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 15 To be negotiated
Video Description

Product features

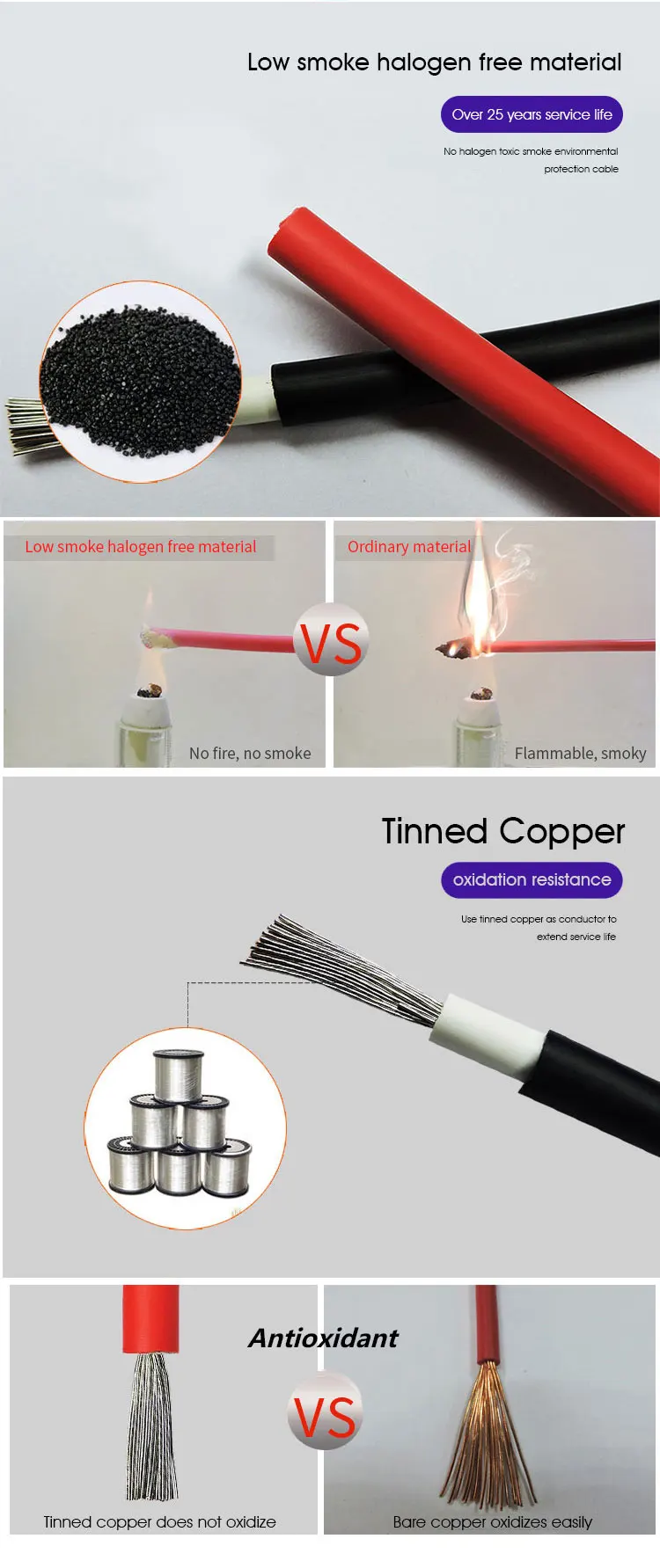

Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified
polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer,
eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical
1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable
insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.

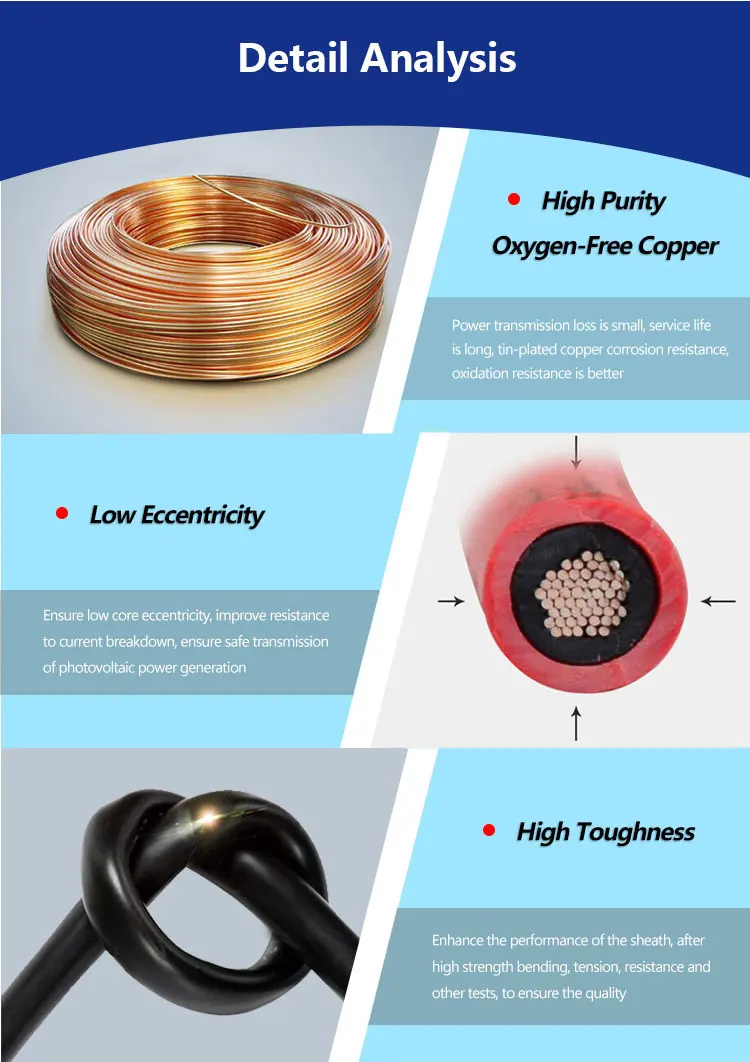

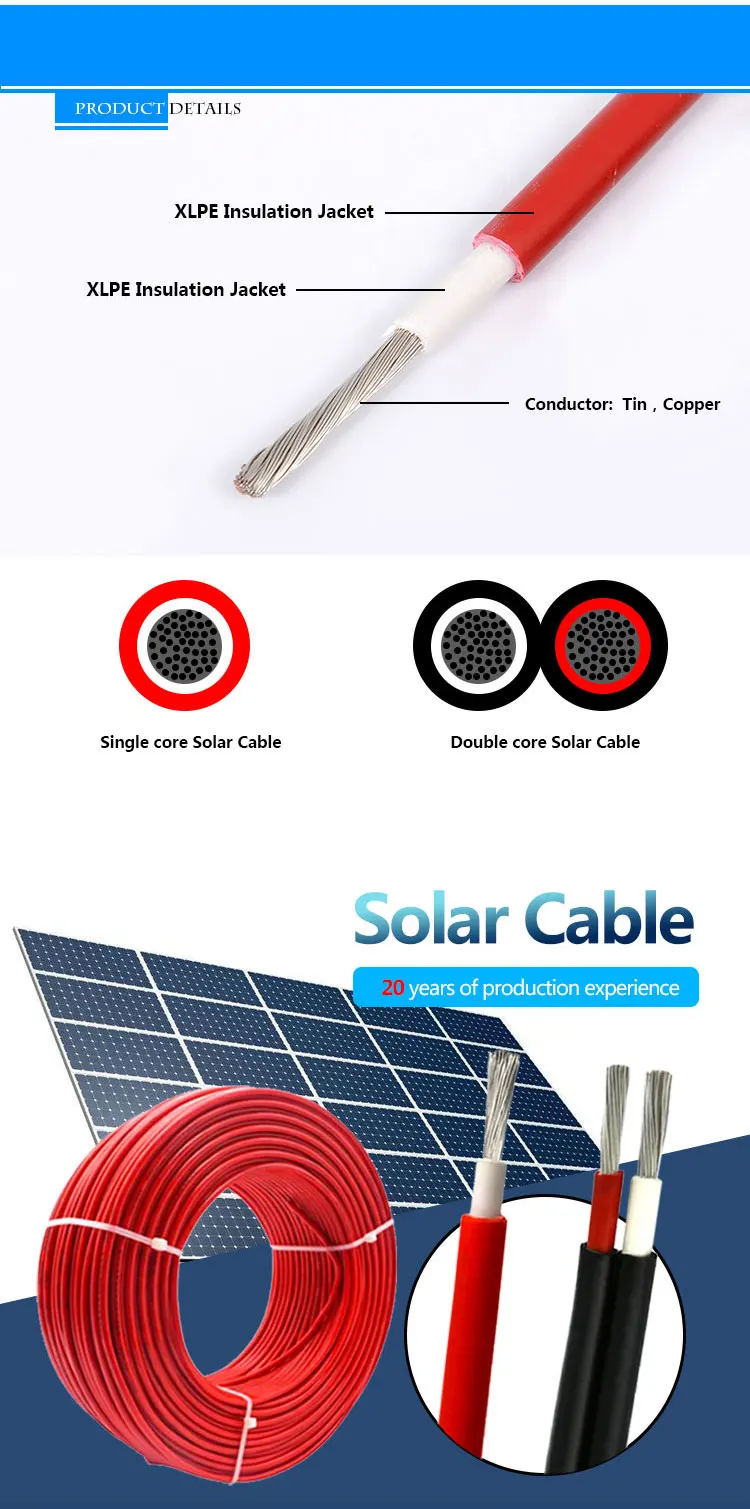

Cable structure

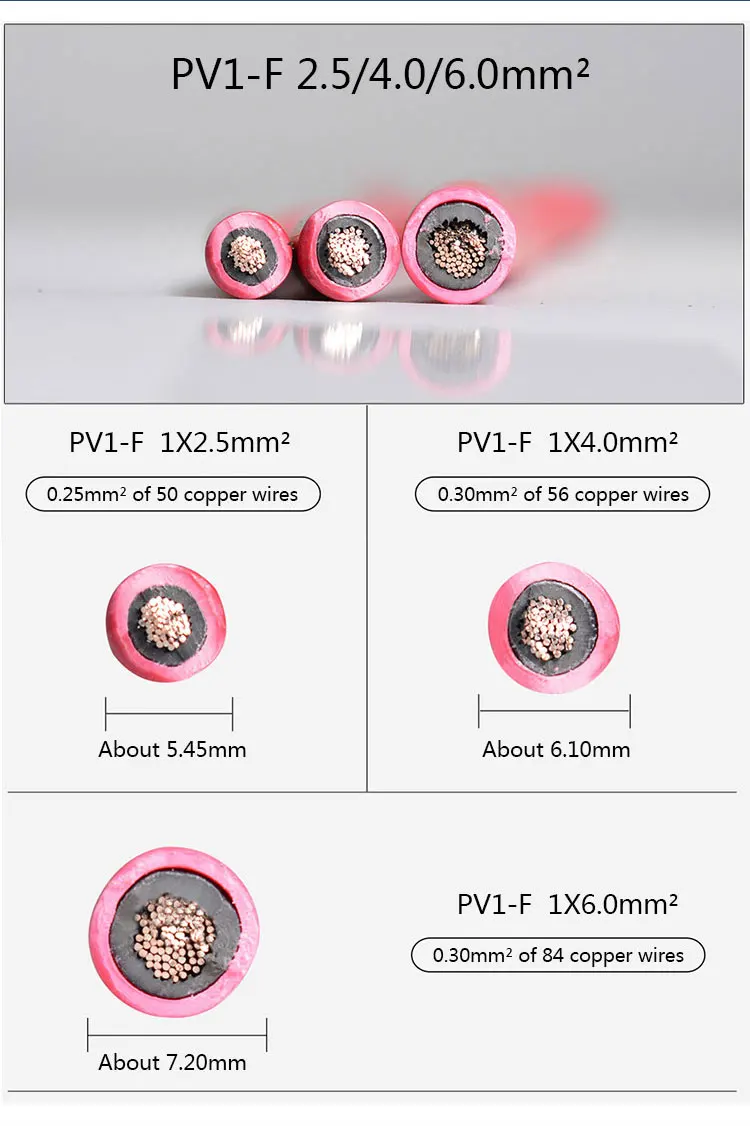

Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
parameters
Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.

TYPE
Cross section
Wire struct
Conductor diameter
Outer diameter
Conductor resistance
Rated voltage
Rated current

mm2
No.OD(mm)
mm
mm
Ω/Km
V AC/DC
A
1x2.5mm²
2.5
48x0.25
2.0
5.2
8.06
1000/1800
30
1x4.0mm²
4.0
56x0.30
2.6
6.4
4.97
1000/1800
50
1x6.0mm²
6.0
81x0.30
3.3
7.2
3.52
1000/1800
70
1x10mm²
10
74x0.40
4.4
8.3
2.12
1000/1800
90
2x2.5mm²
2.5
48x0.25
2.0
6.2x9.9
8.06
1000/1800
30
2x4.0mm²
4.0
56x0.30
2.6
6.9x11.30
4.79
1000/1800
50
2x6.0mm²
6.0
81x0.30
3.3
7.1x14.50
3.52
1000/1800
70
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.


3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
