High quality triangle carbon steel threaded type rubber expansion joint

FOB Reference Price:Get Latest Price
$9.99 - $199.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
HengJia
Model Number:
JGD
Type:
Union
Material:
Carbon Steel
Technics:
Forged
Connection:
Flange
Shape:
Equal
Head Code:
Square
Size:
DN15-DN80
Name:
Carbon steel rubber joint
Keyword:
Threaded union Rubber Expansion Joint
Usage:
Pipe fitting
Standard:
DIN/ANSI/JIS/BS
Rubber material:
NBR/CR/EPDM/IIR/NR
Pressure:
PN10/PN16
Medium:
Water, gas, acid
Product name:
Threaded type flexible joint
Company type:
Factory
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month Threaded union rubber expansion joint produced on request
Packaging & Delivery
Packaging Details
The products are usually packed by plastic film, packed in cartons (different sizes) and external packing is wooden boxes (all sizes can be mixed in one box), usually 1100mm *1100mm*1100mm
Port
Any port in China
Lead Time :
7 days
Video Description
Product Description

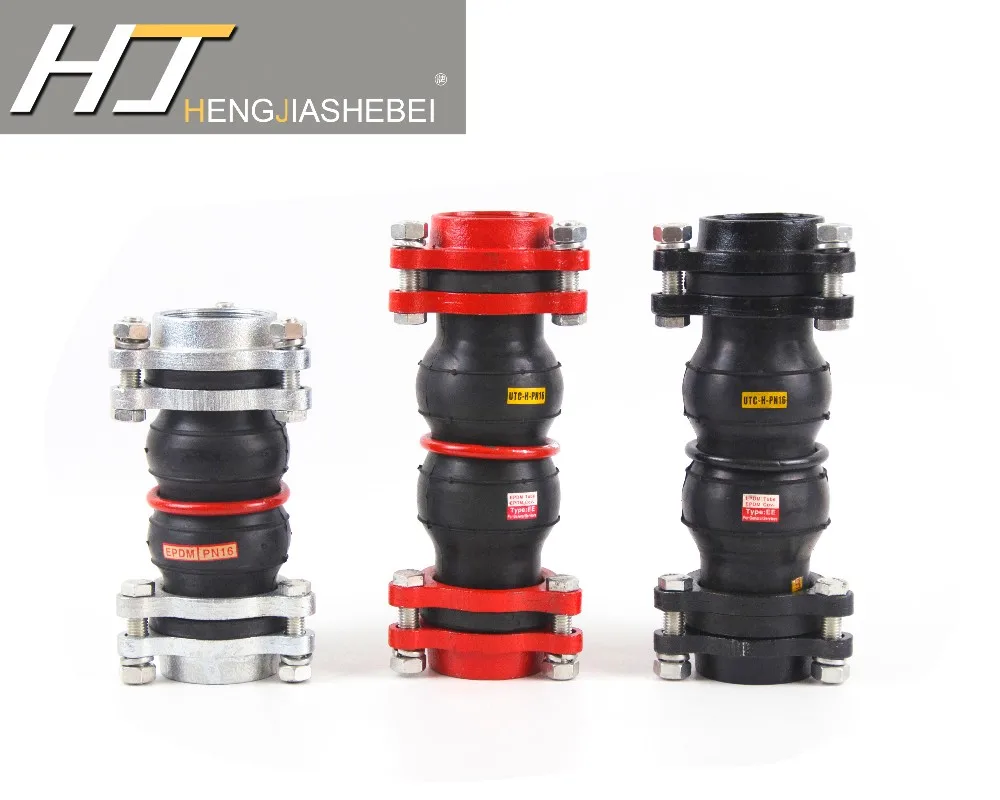

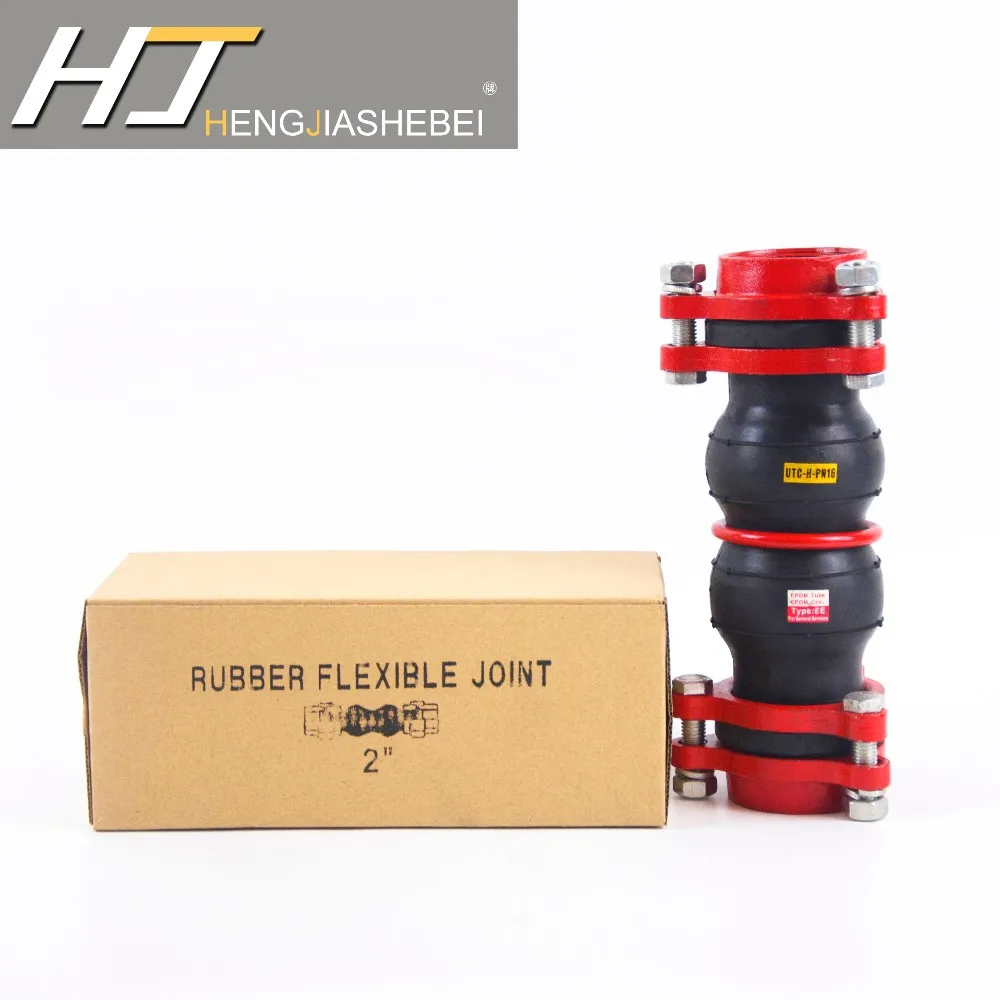

High quality triangle carbon steel threaded type rubber expansion joint

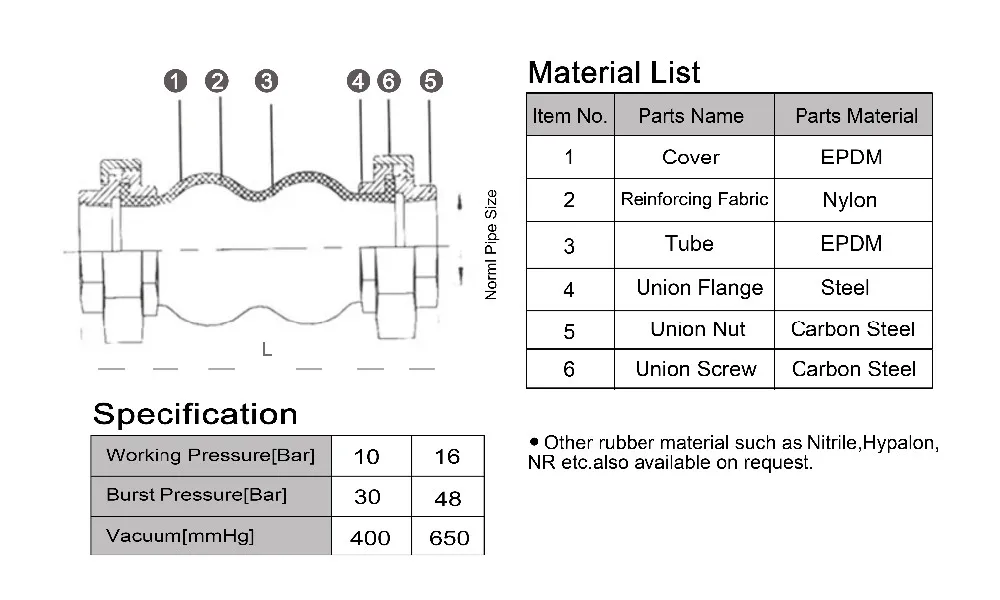

The form: this product consists of rubber pipe ,made of inner glue ,multi-layer proofinf and cord fabric and outer glue abd metal woggle joint.

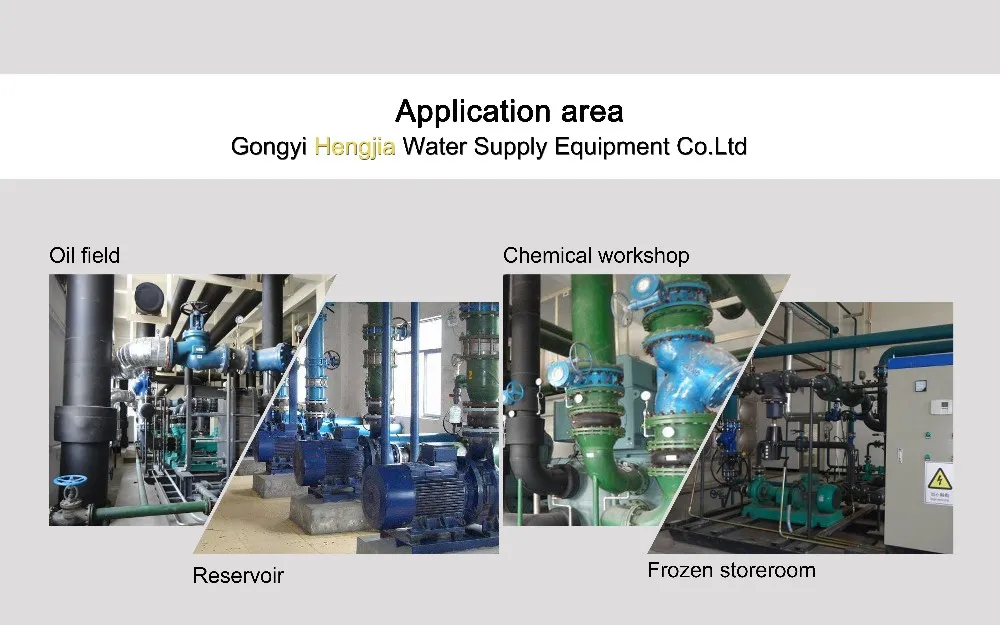

It is applicable for the connection of inlet and outlet pipes of various fancoil sets of air conditionings in the guest rooms of hotels and restaurants.

             Nominal Diameter
  Neutral Length
                                          Movements
DN
NPS
L
Ext.
Copm.
Lateral.
Angular.(°)
15
1/2
200
5-6
22
22
45''
20
3/4
200
5-6
22
22
45''
25
1
200
5-6
22
22
45''
32
11/4
200
5-6
22
22
45''
40
11/2
200
5-6
22
22
45''
50
2
200
5-6
22
22
45''
65
21/2
265
8-10
24
22
45''
80
3
285
8-10
24
22
45''

                High quality triangle carbon steel threaded type rubber expansion joint

1.All expansion joints are finshed with retaining flanges,limit rod units are available on special request.
2.Pressures shows are recommended“operating”,test pressure is 1.5time“operating”,burst pressure is 3 time “operating”.
3.Vacuum rating is based on neutral installed length without external load.Products shall not be installed “elongated”on vacuum applications.
4.Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed .This will either burn or seriously damage the expansion joints.
Hengjia Product Specifications in this catalogues for reference only. Hengjia reserve the right to change design ,
construction,specification and materials without prior notice and without incuring any obligation.Any precise measurements,kindly contact with Hengjia technical service directly.

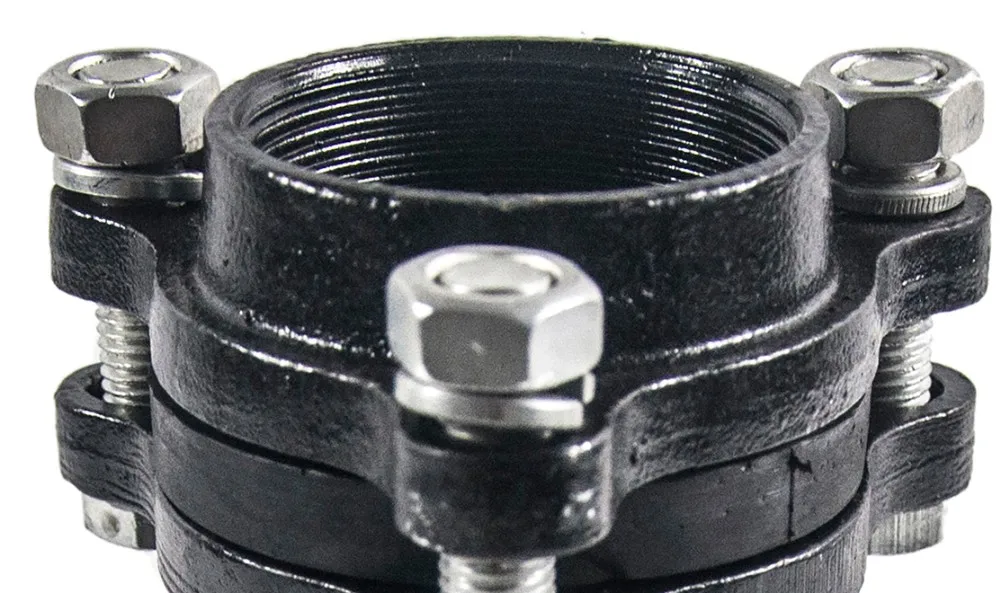

Product Details

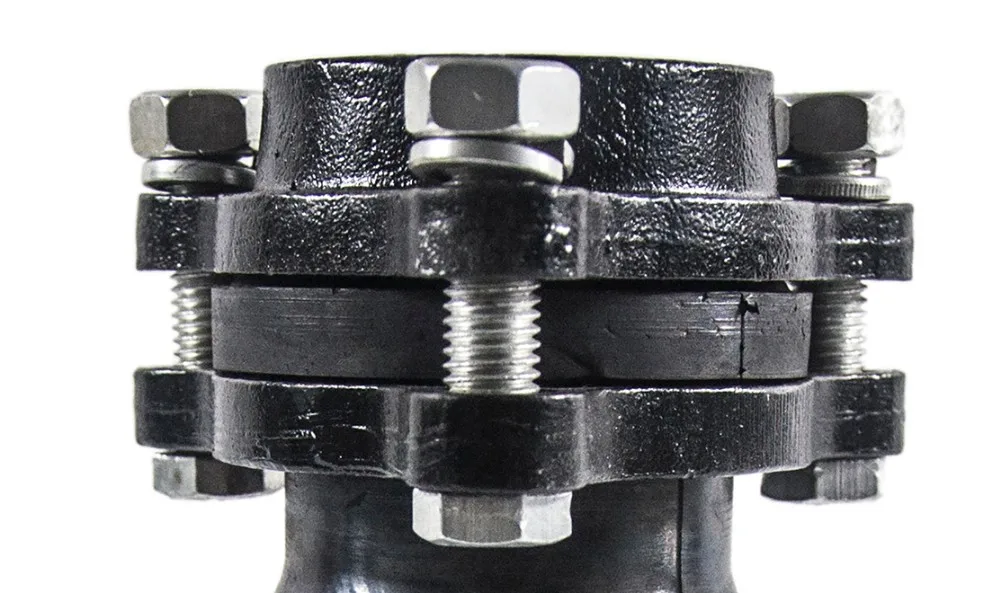

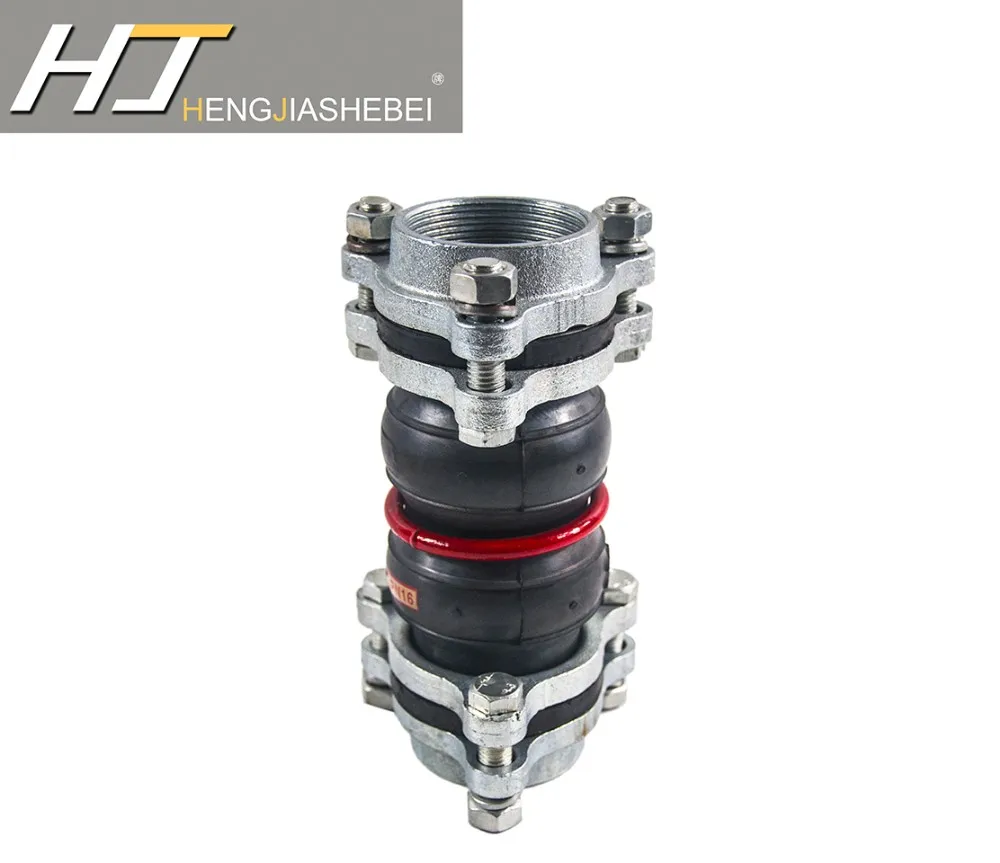

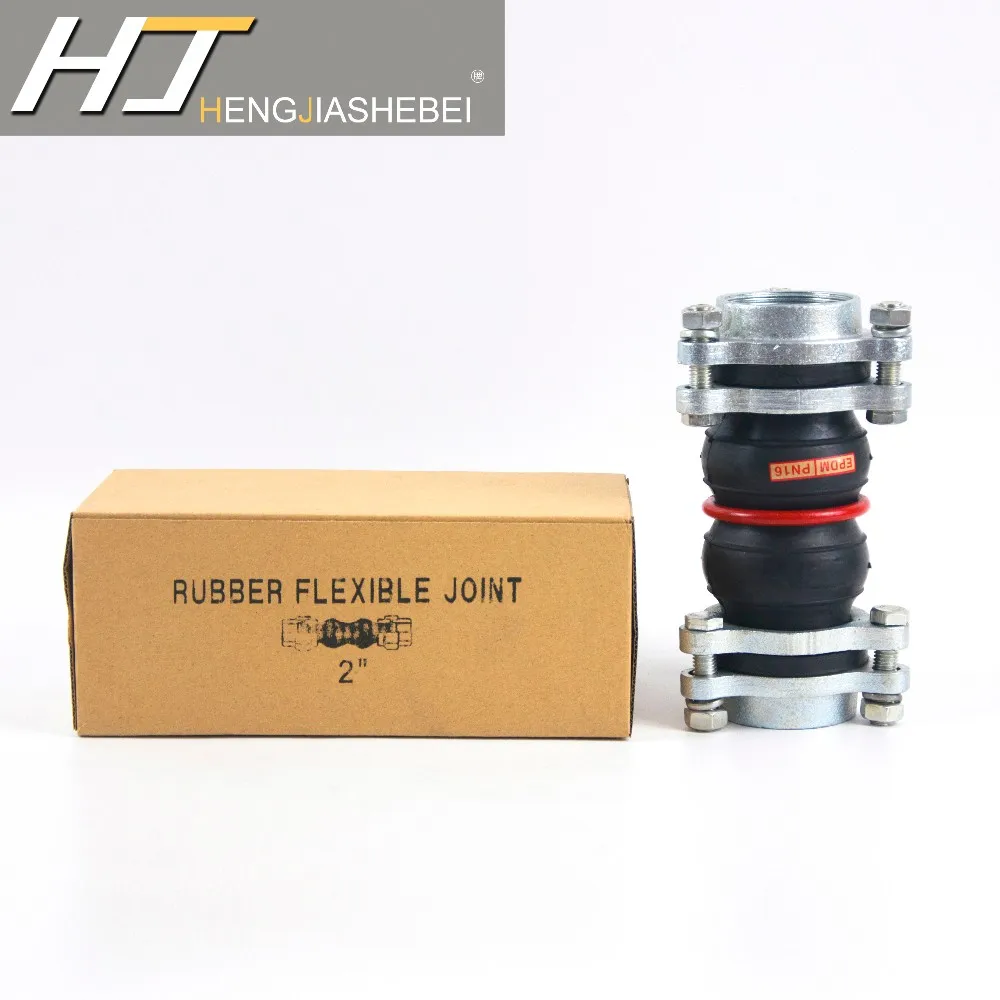

High quality triangle carbon steel threaded type rubber expansion joint is equipped with galvanized.

DIN Standard pipe fitting threaded union type rubber expansion joint can be customized DN15-DN80.

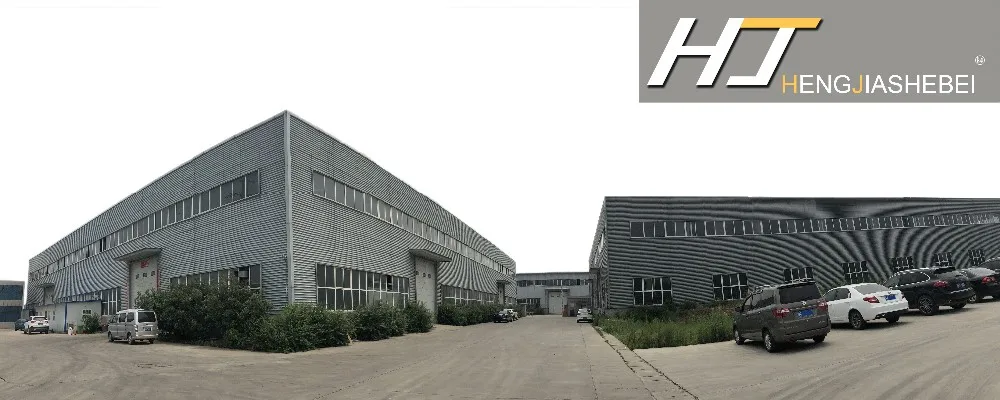

About Us

Heng Jia water supply material Co., Ltd. is located in the Huiguo town venture Avenue, our company has many years of rubber production experience, our company always adhere to the principle of quality first. The main products are:Single sphere flexible rubber expansion joint,non metallic compensator, direct current medium without thrust compensator, dismantling joints, metal expansion joints, flexible waterproof casing, double flanges transmission expansion joint, sleeve compensator, bellows pipe compensator (corrugated pipe compensator), large caliber flange, flexible telescopic pipe, etc,monthly production capacity of 10000 pieces, Customizable according to customer needs


Our raw material is imported natural rubber from Malaysia and Indonesia, with a content of fortyseven percent,according to the different materials, it can be made ofacid, alkali resistant, corrosion resistant, oil resistant, high temperature resistant, radiation resistant, wear-resistant, aging resistant and so on.

Certificate&Customer
FAQ

Q: Can you make the product as per client's requirement?

A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?

A: T/T (30% as despot, the rest 70% will be paid before delivery), L/C at sight

Q: Can I visit your factory before the order?

A: Yes, welcome to our factory to check the quality.

Q: Where is your nearest loading port?

A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.

Q: Do you accept small quantity order?
A: Of course we do.

Q: Can we choose different material?

A: Yes, the material can be chose according to your requirement.


Q: And what is your shipment and delivery time?

A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.

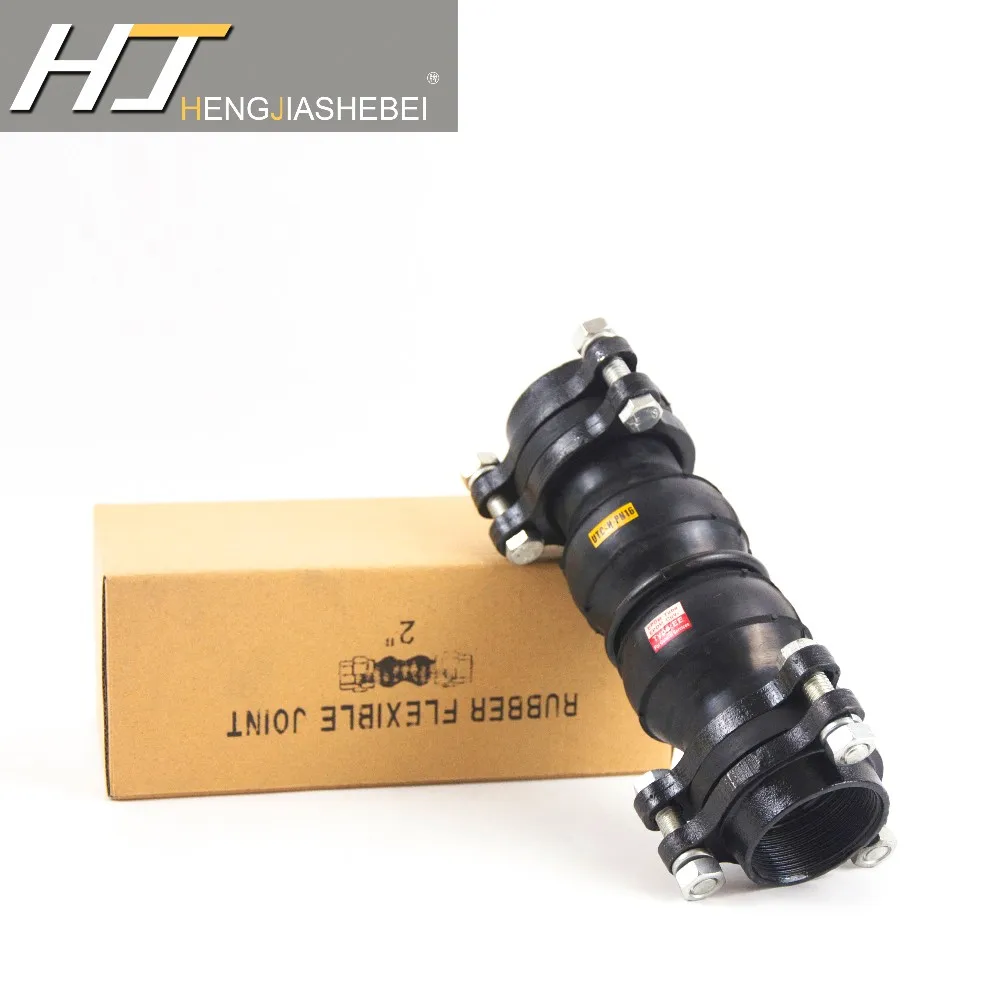

Q: And what's your packing?

A: Carton cases inside, export wooden cases outside.
