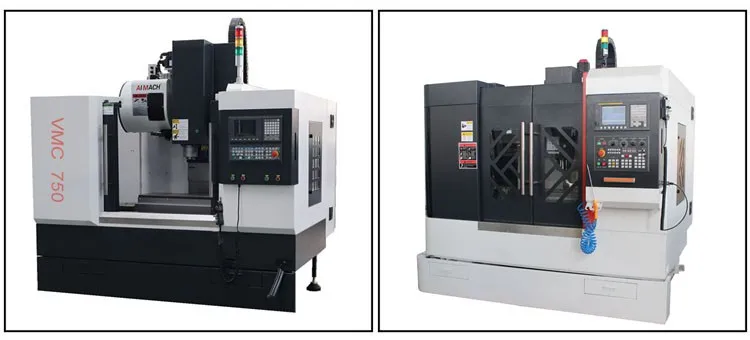

High speed Vertical Machining Center CNC Milling Equipment VMC750

FOB Reference Price:Get Latest Price
$18,500.00 - $27,900.00 / Units | 1 Unit/Units CNC Machining Center VMC750 (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
Place of Origin:
Shandong, China (Mainland)
Brand Name:
YZ CNC
Model Number:
VMC750
Voltage:
3 Phase 220V/380V
Power(W):
5.5/7.5kw
Dimension(L*W*H):
2500x2000x2500mm
Weight:
4000KG
Certification:
CE SGS
Product name:
CNC Machining Center VMC750
Machine Type:
CNC Vertical Machining Center
CNC Controller:
Fanuc Siemens Syntec

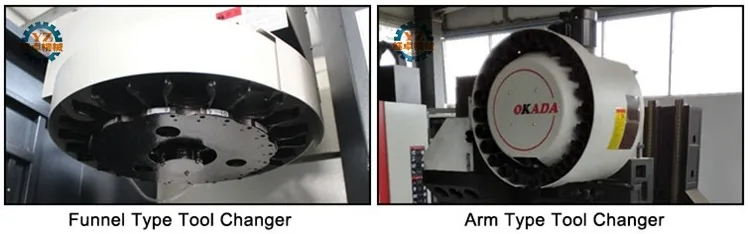

Tool Changer:
Funnel Type/Arm type
Spindle:
Taiwan 8000 RMP Spindle
Lubrication:
Auto lubrication
Color:
Custom-made
Application:
Metal Machining/Training
Warranty:
One year, 1 Year
Guideways:
Taiwan linear guideways
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
80 Unit/Units per Month CNC Machining Center VMC750
Packaging & Delivery
Packaging Details
CNC Machining Center VMC750:
Exporting standard package, water proof, anti-rust and fumigation-free.
Port
qingdao/Shanghai/Guangzhou
Lead Time :
Shipping within 20 working days after deposit payment
Video Description
Product Description

This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.

Main Feature:

1. High quality resin sand , ensure machine driven stability
2. Separated electronic handwheel
3. Taiwan high precision and speed spindle
4. Taiwan arm type ATC
5. Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running
6. Totally enclosed, safety and beautiful

CNC Machining Center VMC750

Item
Unit
VMC750
VMC850
VMC855
X axis travel
mm
750
800
850
Y axis travel
mm
500
500
550
Z axis travel
mm
500
500
550
Spindle nose to table
mm
120-620
120-620
120-670
Spindle nose to column
mm
480
550
550
Max. X rapid feed
m/min
20
24
24
Max. Y rapid feed
m/min
20
24
24
Max. Z rapid feed
m/min
18
15
15
Cutting feed
mm/min
1-10000
1-10000
1-10000
Torque (X/Y/Z)
N.m
10/10/15
10/10/15
15/15/15
Table size
mm
1000x400
1000x500
1000x500
Table max load
kg
400
500
500
T slot
mm
3-18-125
5-18-90
5-18-90
Spindle type
Belt
Belt
Belt
Spindle speed
rpm
50-8000
50-8000
50-8000
Spindle bore
mm
120
120
150
Spindle taper
BT40
BT40
BT40
Pull stud
MAS403-40BT-1
MAS403-40BT-1
MAS403-40BT-1
Spindle motor
synchronizing wheel
Taiwan
Taiwan
Taiwan
Spindle belt
Taiwan
Taiwan
Taiwan
Main motor
kw
5.5/7.5
7.5/11
7.5/11
Positioning accuracy (JIS)
mm
±0.015/300
±0.015/300
±0.015/300
Repeatibility (JIS)
mm
±0.0075
±0.0075
±0.0075
Machine size
mm
2500x2000x2500
2650x2300x2450
2650x2300x2450
Weight
kg
4000
5200
5200

Standard configuration:

1. Synetec CNC Controller
2. Full Enclosure Machine Guard
3. Arm Type Tool Changer
4. Automatic Central Lubrication System With Alarm
5. Work Lamp
6. high precision ball screw and guide

Optional Configurations:

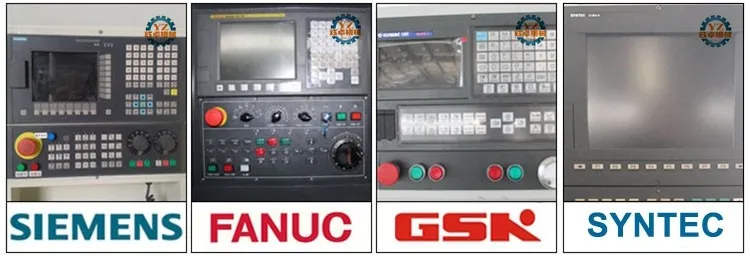

1. GSK KND Siemens Fanuc Mitusbishi
2. Funnel type ATC

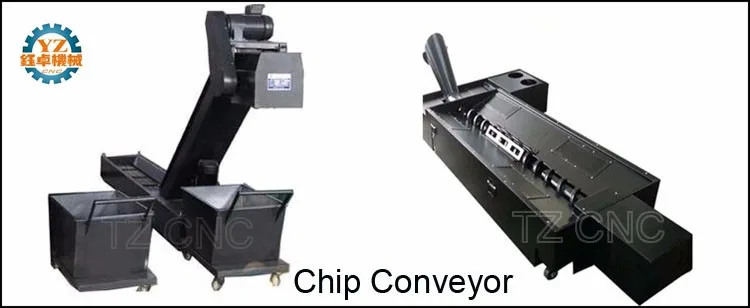

3. Automatic chip conveyor
4. 4 axis and 5 axis
5. Spindle oil coolant,center to water
6. Renishaw probe for workpiece and tool

The machine voltage is optional:

Three phase 380V/220V/415V/480V

Single phase 220V
Important note: Please confirm your local voltage with our sales staff before ordering.

CNC Machining Center VMC750

Color and appearance can be customized

1.There are many kinds of appearance and color for you to choose.
2.Design exclusive appearance for our agent.
3.Plastic spraying technology : wear-resistant, corrosion-resistant and bright in color, protecting the metal from oxidation.

Optional Configurations:

To Choose More Models

CNC Machining Center VMC450

CNC Machining Center VMC850

CNC Machining Center VMC1060

CNC Lathe Machine CK0640

Wheel Repair Lathe WRC26

Pipe Threading Machine CK1322

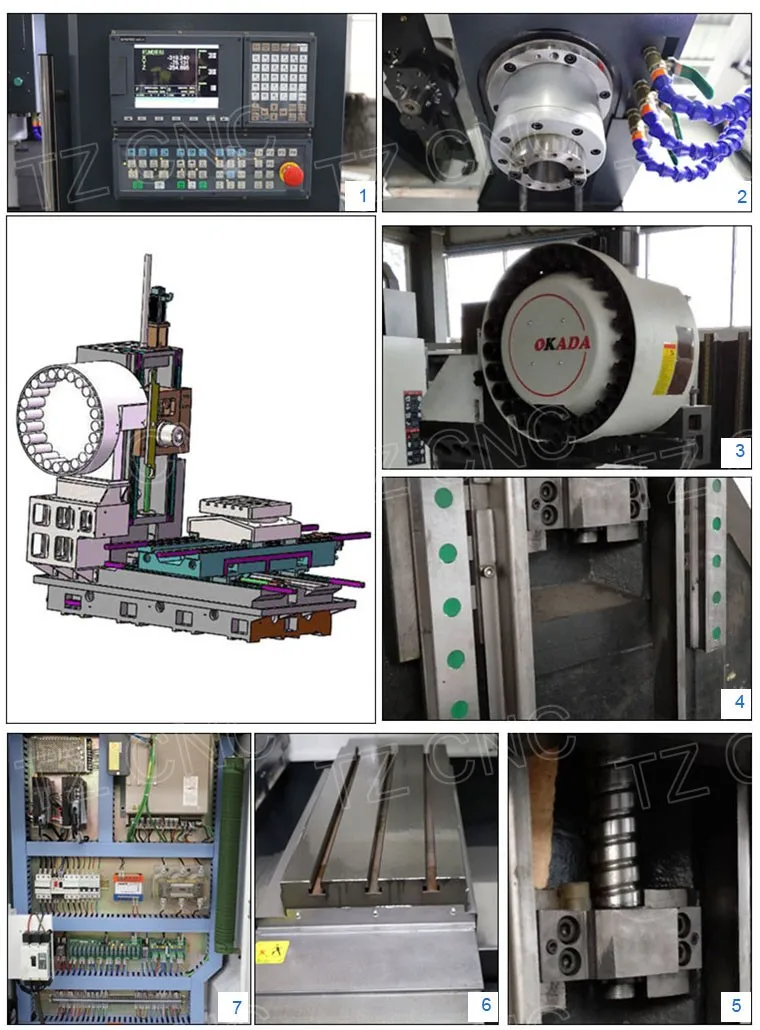

Detailed Images

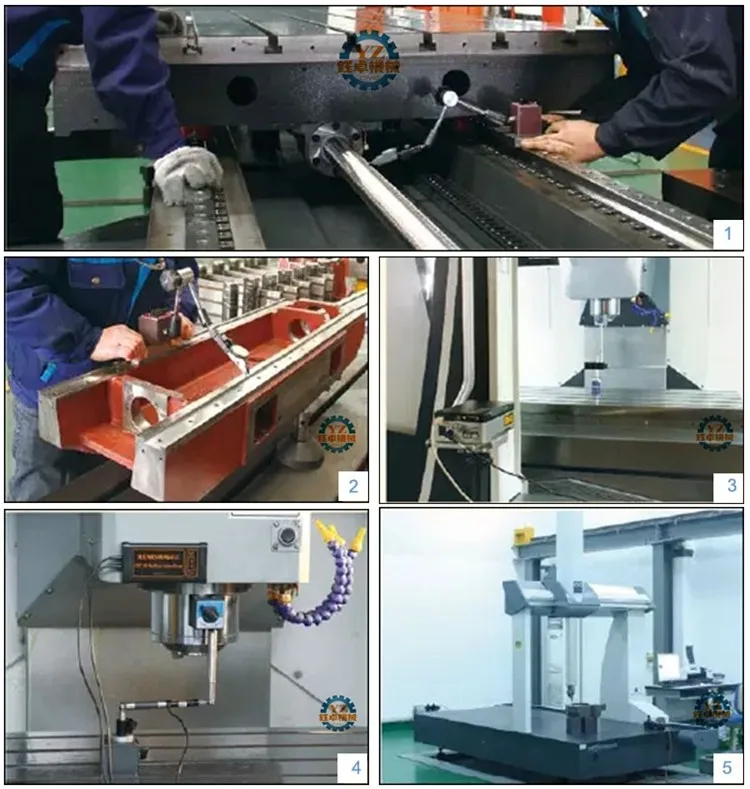

Machine Quality Inspection

1. Finite Element Analysis
The structural parts are analyzed and designed by the advanced Finite Element Analysis.It provides a detailed analysis for structural stress/strain conditions,and ensures excellent machine rigidity and lifetime stability.
2. Pre-tensioned ballscrews on X,Y,Z axes ensure accuracy and eliminate positioning error.
3. The endface of spindle stock,screw support faces and block contact faces are fully Hand --scraped to
increase machining accuracy and feeding smoothness.
4. The machine structure is constructed from high quality Meehanite cast iron and stress released to
ensure great rigidity and precision
5. Over sized column and bed ,assuring extra high rigidity of machine frame

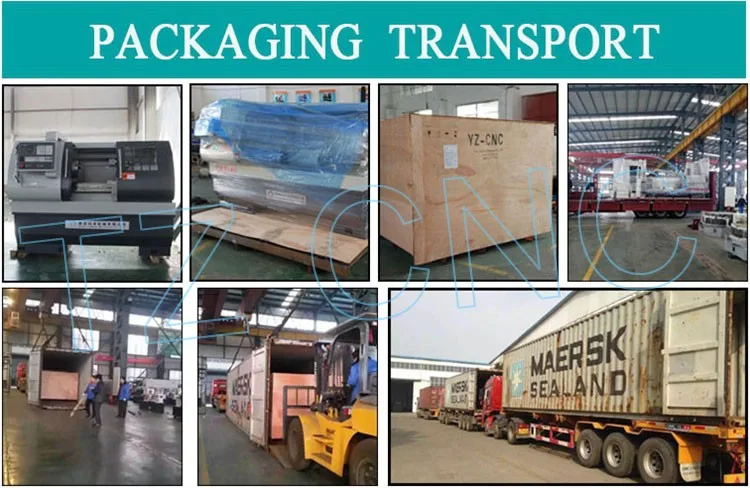

Packing & Delivery

CNC Machining Center VMC750:

Packaging Size: 2550X2050X2650mm
Weight: 4150kg

Packaging Details

Exporting standard package, water proof, anti-rust and fumigation-free.
Using iron base has good bearing capacity.

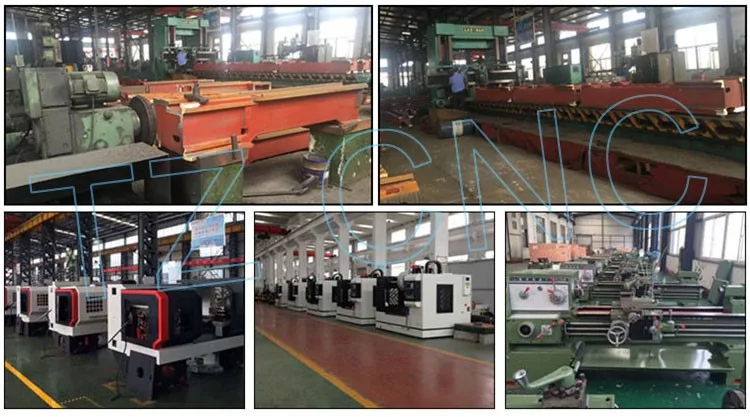

Our Company
Taian Taizhuo Machinery Manufacturing Co., Ltd. ( or “TZ CNC” for short) is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.


Our Customers

Certifications

CE , SGS, Alibaba High-quality Supplier and Made-In-China Gold Supplier.

Our Service

Pre-Sales Service

1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.


After-Sales Service

1. Training how to instal the machine, training how to use the machine.
2. Engineers are available to service machinery overseas.
3. Warranty is one year, we would offer the parts (quality problem) free of charge during this period.

FAQ

Q1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).

Q2. How long can I get feedback after enquiry?
We will reply you within 6hrs in working day.

Q3. How can I choose the most suitable machines ?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer
can help to choose the best model for you.

Q4. What's the main products of your company?
We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.

Q5. Where is the factory located? How can I visit there?
Our factory is located in Tai’an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.

Q6.Delivery time
Machines order takes 20 days after deposit payment received. Please inquiry sales.

Q7. What is the package? Is it suitable for shipment?
Machines will be packed by exporting standard package, water proof, anti-rust and fumigation-free. It is very much strong for oversea transportation.

Q8. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.

Q9. Can I trust you?
Sure, we're Alibaba verified supplier & Alibaba Trade Assurance Suppier.

Q10. How long is the warranty for machines?
Machines warranty is 24 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your YZ CNC sales representative for details.

Q11. How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.

Q12. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.

Q13. If i can't know how to operate. Can your engineer help me programme well on machine ?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.

Contact Us

If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
