Home Grid Tie System 30KW Solar Power system 30KW 50KW on grid solar generator 100KVA 150KVA 200KVA 250KVA PV Plant home use

  • 1-4 Sets
    $13,000.00
  • 5-9 Sets
    $12,600.00
  • >=10 Sets
    $12,000.00
System Type:
On-Grid Solar System Grid tie Solar Power System
Solar Power (W):
30kw
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)
Contact Supplier
Samples - $13,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Bluesun
Model Number:
BSM30KW-ON
Specification:
Normal
Application:
Commercial, Industry or home use
Output Voltage (V):
AC380V/480V
Load Power (W):
30kw
Work Time (h):
24 hours
Solar Panel Type:
Grade A Polycrystalline
Controller Type:
/
Output Frequency:
50/60Hz
solar system:
30KW Solar Power System
output wave:
pure sine wave solar system
protection:
Overloads, Low Voltage and Under Voltage (alarm)
Solar panel rack:
flat ground and roof for optional
solar system technology:
IPM or IGBT of Mitsubishi
Output frequency:
50HZ/60HZ
Use life:
25 years
Inverter type:
grid tied solar inverter
Solar panel:
mono or poly solar panels 340W

Packaging & Delivery

Selling Units:
Single item
Single package size:
300X250X160 cm
Single gross weight:
3300.0 kg
Package Type:
In wooden box with pallet
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 10 >10
Est. Time(days) 15 20 To be negotiated
Video Description
On Grid Solar System

Grid-tied, on-grid, utility-interactive, grid intertie and grid backfeeding are all terms used to describe the same concept – a solar system that is connected to the utility power grid.

Equipments&Details
Bluesun On-grid 30KW Solar System Equipment List (Item No:BSM30KW-ON)
Item
Model
Description
Quantity
1
BSM340M-72
Mono 340 W solar panel
Size:1956*992*40mm
Weight:21Kgs
90pcs
2
30KW On Grid  Inverter
30KW 3 Phase inverter
Output Voltage:380/480V AC 60HZ/50HZ
Size:570*740*235mm
Weight:350.0kgs

1set
3
WIFI Module
Monitoring device
1 pc
4
Mounting Structure
Whole set mounting structure for solar panel for 90pcs solar modules
1 set
5
PV Cables
4mm2 PV cables
500m
6
MC4 connector
 Rated voltage:1000V
 80 Pairs
For More Details, Please Email Me at solar27(at)bluesunpv.com or whatsapp: +86 136 9129 3923


Solar Panels

> 25 years Warranty

> Highest conversion efficiency of 17%

> Anti-reflective and anti-soiling surface power

  loss from dirt and dust

> Excellent mechanical load resistance

> PID Resistant,High salt and ammonia resistance


Grid Tie Inverters

> 5 years standard warranty
> Max.Efficiency 99.6%,European efficiency 99%;
> Integrated DC switch for added safety protection;
> Power factor continuously adjustable
>Transformer-less design and high power density,
  off lighter and more convenient installation
> Flexible communication connection,support RF WIFI


Mounting structure

> Residential Roof(Pitched Roof)

> Commercial Roof(Flat roof&workshop roof)

> Ground Solar Mounting system

> Vertical wall solar mounting system

> All aluminum structure solar mounting system

> Car parking solar mounting system


Accessories

> PV Cable 4mm2 6mm2

> AC Cable

> DC Switches

> AC Breaker

> AC/DC Combine box

Advantages of Grid-Tied Systems.

1. Save more money with net metering
Your solar panels will often generate more electricity than what you are capable of consuming. With net metering, homeowners can put this excess electricity onto the utility grid instead of storing it themselves with batteries.
2. The utility grid is a virtual battery
The electric power grid is in many ways also a battery, without the need for maintenance or replacements, and with much better efficiency rates. In other words, more electricity goes to waste with conventional battery systems.

Project

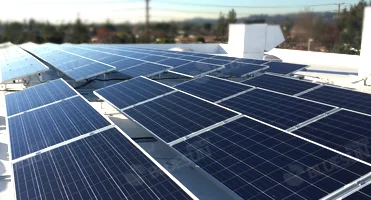

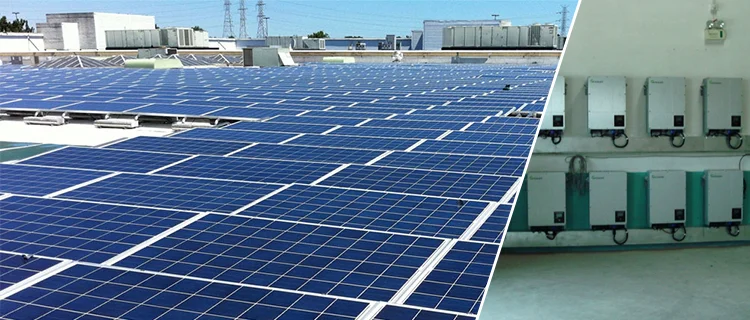

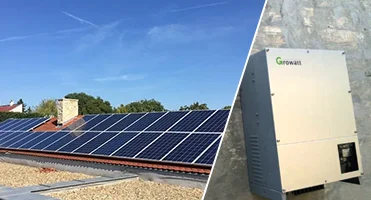

20KW on grid solar system in Europe

200KW on grid solar system in China

1.2MW solar power plant in Malaysia

144KW on grid solar project in California,USA

150KW on grid solar project in Japan

Packing & Delivery
By sea
Delivery from Shanghai or Ningbo seaport
By air
Departure from Shanghai Pudong Airport
By express
By TNT/DHL
Payment





Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Our Company

History .

From 1983, first for silicon business , 2004 beginning produce solar cell ,solar panel . capacity 50MW per year

Capacity .

Full automatic production line ,all machine import from Germany . now capacity 500MW per year

International .

400MW export to more than 80 counties , EPC company in Germany ,Italy ,USA and Canada ,

World Partner.

More than 20 famous international famous company partner in the world , solar city,Solar world ,Q-Cell ,Tesla ...

Office&Warehouse.

more than 4 office in the world ,Germany ,USA ,Brasil ,Canada,Ukraine

Los Angeles& Rotterdam warehouse

Service .

100 international sales, English,Spain,France Language . we support all time all language service.
