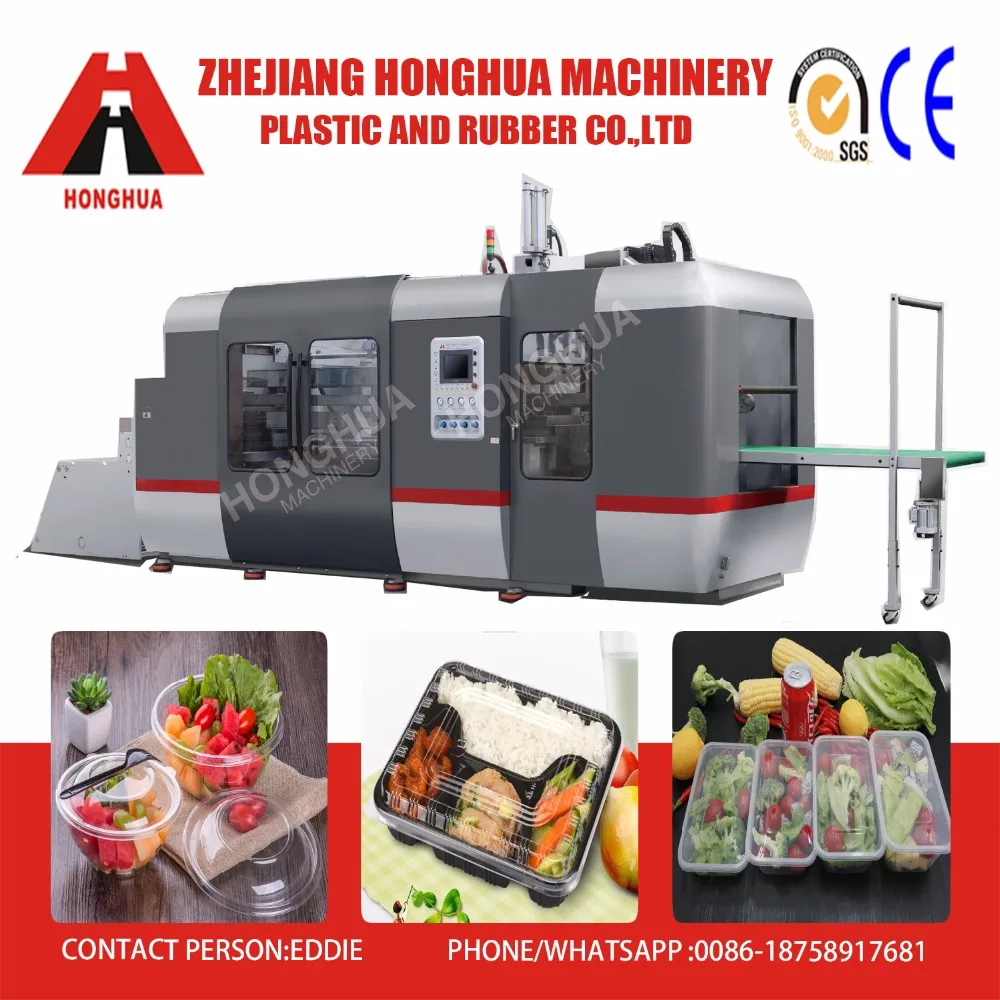

Honghua Full Automatic Plastic Container thermoforming machine

$75,000.00 / Set | 1 Set (Min. Order)
Model Number:
HSC-720
$75,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
60 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Plastic Thermoforming Machine
Condition:
New
Product Type:
Plastic container
Place of Origin:
Zhejiang, China
Brand Name:
HONGHUA
Voltage:
380V/50HZ
Power(W):
98KW
Dimension(L*W*H):
1200*300*300
Weight:
7000KG
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Engineers available to service machinery overseas
Type:
Automatic
Forming area:
320*720mm
Forming depth:
140mm
Width of sheet:
500-780
Thickness of sheet:
0.2-2.0mm
Sheet roller diameter:
800mm
Speed:
10-35cycles/min
Material:
PP/PS/PET/PVC

Packaging & Delivery

Selling Units:
Single item
Single package size:
12000X2200X2500 cm
Single gross weight:
8500.0 kg
Package Type:
wooden packing
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Product Description

Product Application

HSC-720 muti-function vacuum forming machine is designed with most advanced pressure&vacuum forming technology.a combination of mechanical,electrical and pneumatic components,and the whole system was controlled by PLC.the machine has man-interface opertation,feed sheet by chain,mould running by cam,press by sevo-motor,thermoforming and vacuum forming working together.it combines the material-feeding,heating,forming,cutting and stacking into one process.

Main Features

1.Drove by cam,the highest run rate of up to 40cycles/min.
2.Chain drove by servo motor.
3.Pre-forming drove servo motor with two screws.
4.pressure forming & vacuum forming.
5.In-mould cutting.
6.Full-automatic include stacker.
7.Suitable for EPS products forming.
