Horizontal Centrigufal Single Stage Single Suction Cantilever Slurry Pump

FOB Reference Price:Get Latest Price
US $755-2,996 / Sets | 1 Set/Sets Horizontal Centrigufal Single Stage Single Suction Cantilever Sl (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Milestone
Model Number:
MAH
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
High Pressure
Application:
Sewage
Material:
Cr27, Cr15Mo3
Lubrication:
Grease and Oil
Color:
Customer specifications upon request
Bearing:
Imported top brand
Driven Type:
DC, CL, CRz, ZV
Applications 1.:
Mining
Applications 2.:
Mineral sands
Applications 3.:
Power utilities
Applications 4.:
Oil and gas operations
Applications 5.:
Water and sewage utilities
Supply Ability
Supply Ability:
600 Set/Sets per Quarter Horizontal Centrigufal Single Stage Single Suction Cantilever Sl
Packaging & Delivery
Packaging Details
Horizontal Centrigufal Single Stage Single Suction Cantilever Slurry Pump
Packaged by Ply wonden case/ As customer required
Port
Tianjin/ Qingdao/ Shanghai/Guangzhou/As customer required
Lead Time :
Shipped in 15 days after payment

Horizontal Centrigufal Single Stage Single Suction Cantilever Slurry Pump



mst pups

Product Description

 Features

  • Choice of piston ring style labyrinth or other new style of water proof
  • Fully interchangeable with the common brand reducing inventory hold requirements
  • A full range of mechanical seal adaptations available upon request
  • Oil lubrication or packed grease
  • Painted tn customer specifications upon request



slurry pumps



A complete range of build specifications

  • Rubber lined with rubber impeller
  • Rubber lined with metal impeller
  • All metal lined using white iron chrome alloys
  • Urethane lined with optional urethane impeller for special applications

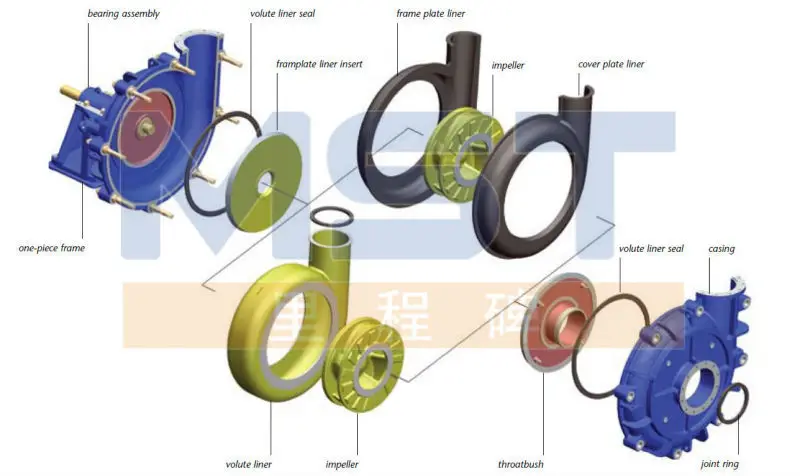

 AH drawing

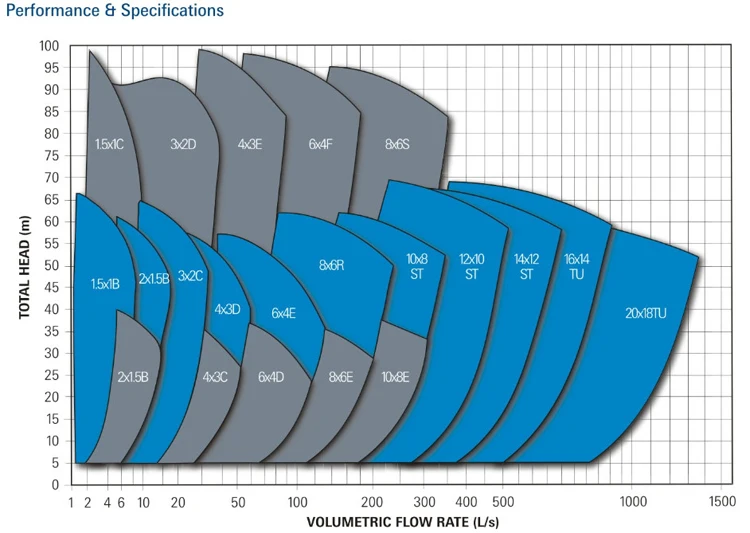

Clear water performance



slurry pump performance







Pump Parts Material

MST rubber and metal pump



Rubber Pump

Metal Pump

No.

Part Description

Material

Specification

No.

Part Description

Material Specification

1

Base

Cast Iron

1

Base

Cast Iron

2

Shaft

4140 High Tensile Steel*

2

Shaft 4140

High Tensile Steel*

3

Bearing Assembly

Timken (Cast Iron Body)

3

Bearing Assembly

Timken (Cast Iron Body)

4

Shaft Sleeve

420 Stainless Steel

4

Shaft Sleeve

420 Stainless Steel

5

Pump Casing

Cast Iron

5

Pump Casing

Cast Iron

6

Frame Plate

Liner Insert Rubber

6

Frame Plate

Liner 27% Chrome White Iron

7

Cover Plate

Liner Rubber

7

Volute Liner

27% Chrome White Iron

8

Impeller

Rubber Coated High Tensile Steel

8

Impeller 27%

Chrome White Iron

9

Throat Bush

Rubber

9

Throat Bush

27% Chrome White Iron

10

Cover Plate

Cast Iron

10

Joint Rings

Rubber

11

Stuffing Box

Cast Iron

11

Cover Plate

Cast Iron

12

Expeller

27% Chrome White Iron

12

Stuffing Box

Cast Iron

13

Expeller

Ring Natural Rubber

13

Expeller

27% Chrome White Iron

14

Bolts

Zinc Plated Steel

14

Expeller Ring

Natural Rubber

15

O-rings

Nitrile Rubber

15

Bolts

Zinc Plated Steel

16

Seals

Rubber

16

O-rings

Nitrile Rubber



17

Seals

Rubber

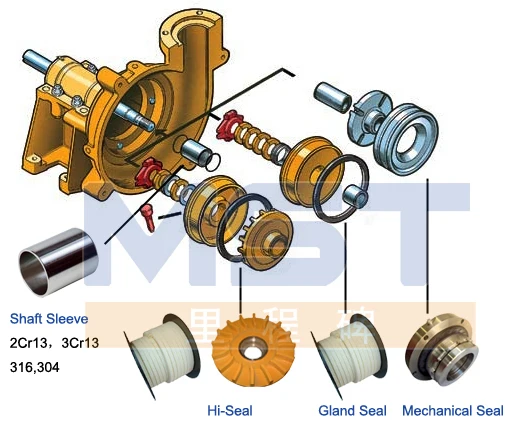

Seal Arrangement

MST Seal Arrangement

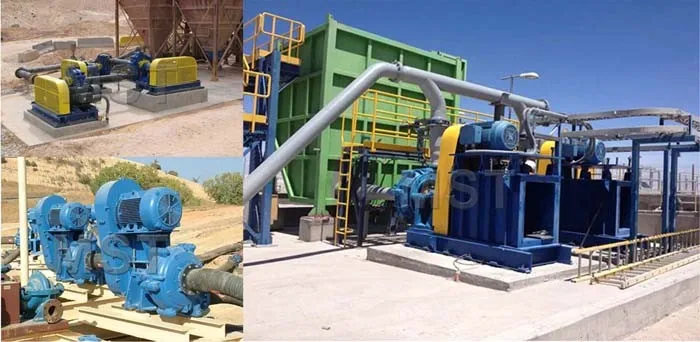

Applications



SLURRY PUMPS APPLICATION
