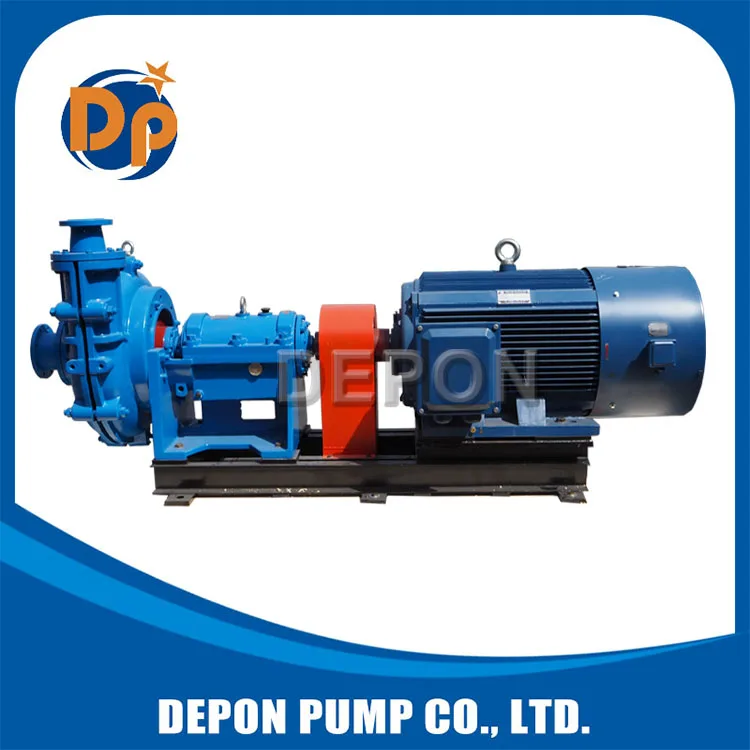

Horizontal single stage centrifugal seasand slurry pump

FOB Reference Price:Get Latest Price
US $534-6,561 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DEPON
Model Number:
DP-AH
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
High Pressure
Application:
Sewage
Max. Power:
60-600kW
Efficiency:
60-65%
No.of Vane:
3
Material:
Cr27, Stainless steel, Cast iron
Seal Type:
Mechanical, Expeller and Packing Seal
Application 1:
Mining
Application 2:
Metallurgy
Application 3:
Power Plant
Applicaiton 4:
Irrigation
Application 5:
Dredging
Supply Ability
Supply Ability:
6000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Packaged by Sandwich Plate/ Ply Wooden Case/ Wooden Box/As customer required
Port
Tianjin/As customer required
Lead Time :
Within 10 working days after the order

Horizontal single stage centrifugal seasand slurry pump

Product Description



The Depon® slurrypump is the world’s standard for the most difficult mill duties. A wide variety of impellers and shaft seals provide a perfect fit for a wide range of applications. The Depon® slurry pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.




Features



1 Bearing assembly:large diameter shaft with short overhang contributes to long bearing life;

2 Liners:Easily replaceable liners are bolted, not glued to the casing for positive maintenance;

3 Casing:Casing halves of cast or ductile iron provide high operating pressure capabilities;

4 Impeller:Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination;

5 Throatbush:Wear is reduced and maintenance simplified by the use of tapered.

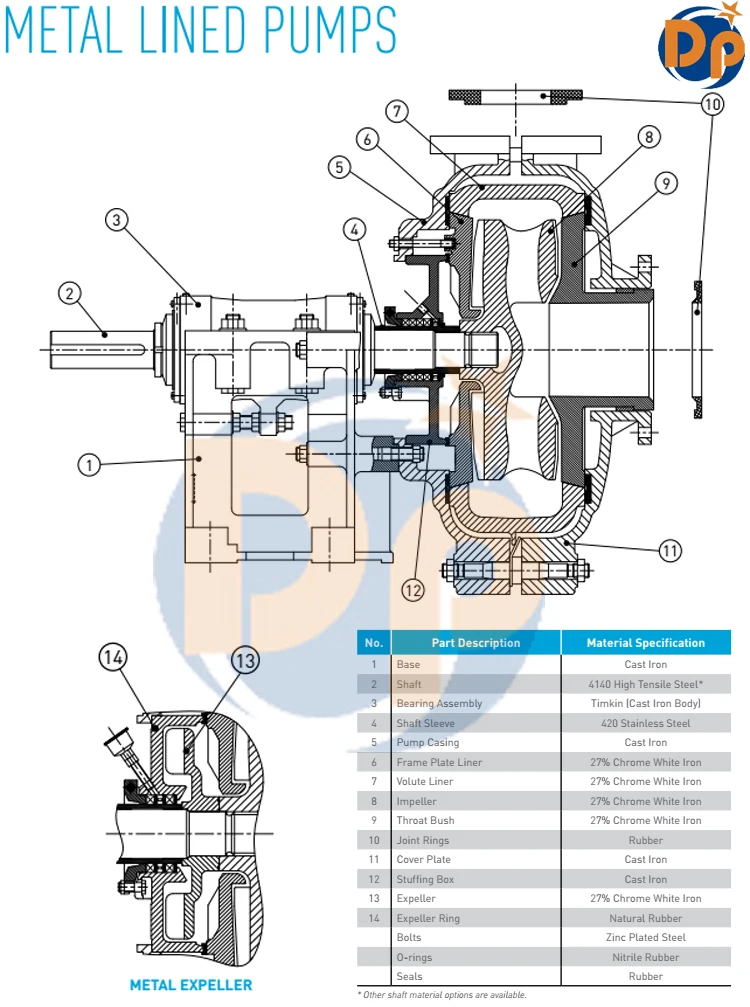

Structure Of Pump



MAH and MHH details

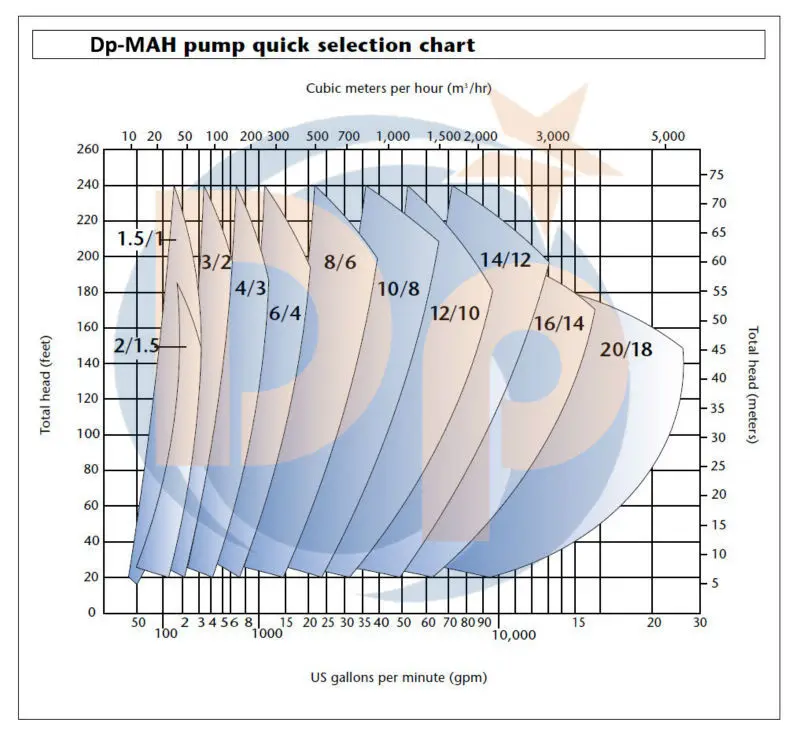

Performance Curve



cruve

Performance Table



Clear water performance of MAH
TypeMax. powerCapacityHeadSpeedMax. EffNPSHIMPELLERMax. particle sizeWeight (KG)
Quantity of vanesDiameter (mm)
kw(m³/h)(l/s)(m)(r/min)%(m)mm
MAH1.5/11512-283.5-86-651200-3800402-451501490
MAH4/33086-19824-559-521000-2200714-6524528260
MAH6/460162-36045-10012-56800-1500685-8536544625
MAH6/4120162-36045-10012-56800-1500685-8536544728

*****More pump models please contact us*****

Company Information



_05



sales net



FAQ



Q: How can I make order online?

A: Send email or skype us.you can ask any question ,after we confirm the detail, we can make order.

Q: Do you have MOQ limit?

A: The MOQ is 1 sets.

Q: Which payments are acceptable?

A: T/T, L/C, Western Union, MoneyGram

Q: Which shipping terms are avaliable?

A: By sea, DHL, TNT( express for spare parts)

Q: How about the delivery time?

A: Delivery time is normally 3-7 working days after confirm the money.Depends on your quantity.

Q: What's your warranties?

A: 1 year after delivery

Q: Can I buy parts separately?

A: Yes,all of the parts can buy separately.
