Hot-Dipped Galvanized Hinge Joint Field Fence for Cattle with Cheap Price

Feedback Ratings
  • 50-199 Rolls
    $19.00
  • >=200 Rolls
    $18.00
Color:
Galvanized
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Rolls)
Customized packaging (Min. Order: 50 Rolls)
Contact Supplier
Samples - $30.00 /Roll, 1 Roll (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Fencing, Trellis & Gates, Hinge Joint/S Knot/Fixed Knot
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Changming
Model Number:
DM-FF-W001
Frame Material:
Metal
Metal Type:
Steel
Pressure Treated Wood Type:
Heat Treated
Frame Finishing:
Not Coated
Feature:
Easily Assembled, Eco Friendly, Renewable Sources
Product name:
Hinge Joint Field Fence for Cattle with Cheap Price
Material:
Low carbon steel wire and other materials
Top/ Bottom wire dia:
2.5mm-3.6mm
Line/stay wire dia.:
1.7mm-2.5mm
Zinc coating:
60-240g/m2
Height:
0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.4m
Certification:
ISO SGS BV CE
Surface treatment:
Hot-Dipped Galvanized Electro Galvanized
Application:
in lawn and breed aquatics

Packaging & Delivery

Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
1.0 kg

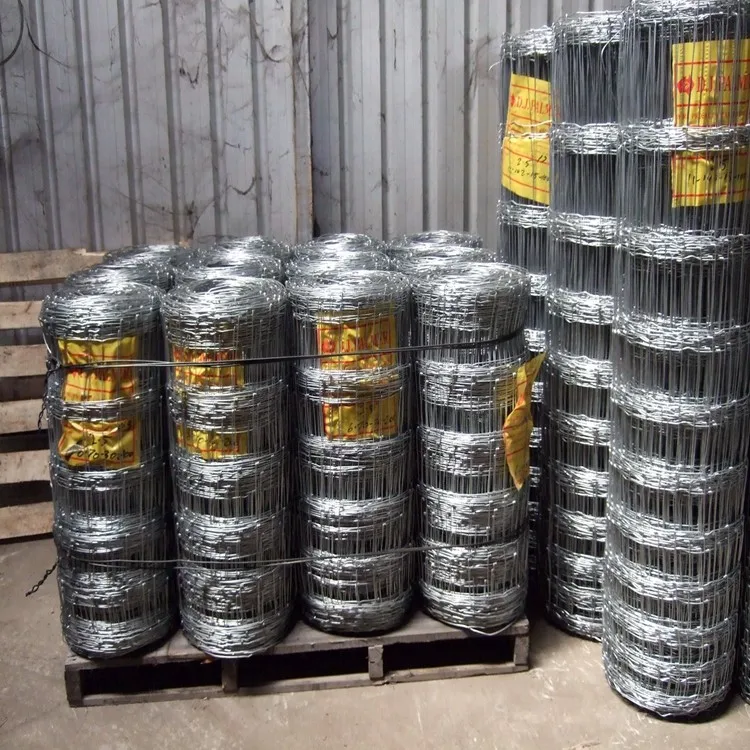

Package Type:
Nude Package or in Wooden Pallet
Picture Example:
package-img
package-img
Lead Time :
Quantity(Roll) 1 - 50 51 - 200 >200
Est. Time(days) 5 10 To be negotiated
Video Description
Product Description

Anping Deming Metal Net Co.,Ltd,offer high tensile field and game fence manufactured with fixed knot mesh. There are a number of benefits of using a High Tensile fence over the more traditional soft product that has been used over the last century. It also has a gradient mesh which the horizontal lines get narrower as it gets lower to the ground. The field and game fence can be used for a variety of applications such as keeping wildlife off of highways, or keeping livestock in designated areas. Wire rods drawn from precision machines and galvanized with state of the art technology.

Detailed Images

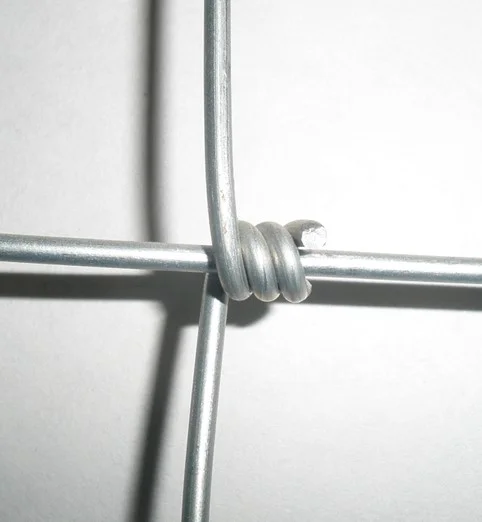

Hinge Joint

This knot is common in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at
each intersection. This design can absorb animal impact without damage. Hinge joint is the economical knot choice.

S Knot

This design uses a separate piece of wire to attach the line wire to the solid stay wire. The S knot is smooth to the touch and strong enough to resist animal impact.

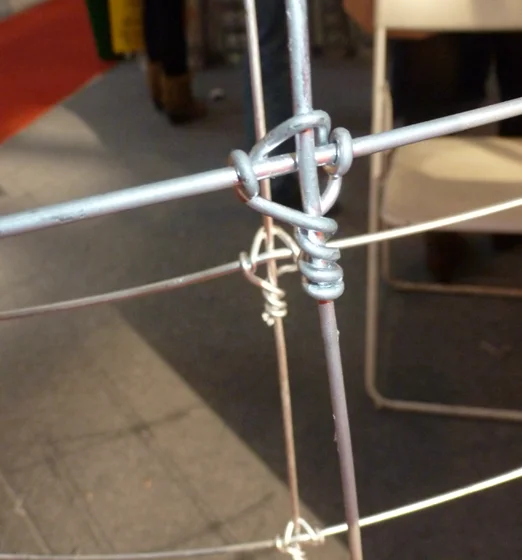

Fixed Knot

Fixed knot utilizes solid vertical stay wires, which increase the vertical strength of the fence and allow for increased post spacing. The knot is a separate piece of wire tightly wrapped around the line wire and stay wire. Fixed knot is very resistant to animal damage.

Specification
Top and bottom Wire Dia.
Inner wire Diameter
7/150/813/50
102+114+127+140+152+178
2.5mm
2.0
8/150/813/50
89+89+102+114+127+140+152
2.5mm
2.0
9/150/991/50
89+89+102+114+127+140+152+178
2.5mm
2.0

Standard Size:

Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.4m

Length: 115 inch (50m) or 330 inch (100m);
Vertical hole size:15-18-20-40-50-60-65(cm)
Horizontal hole size 15-14-13-11-10-9(cm)
Top/ Bottom wire dia: 2.5mm-3.6mm
Line/stay wire dia. Area: 1.7mm-2.5mm
Zinc coating: 60-240g/m2

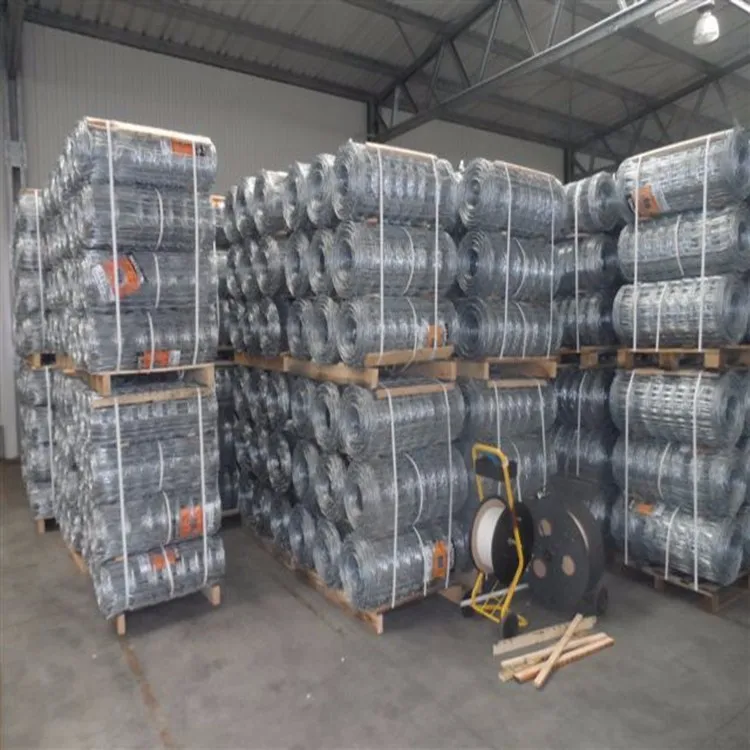

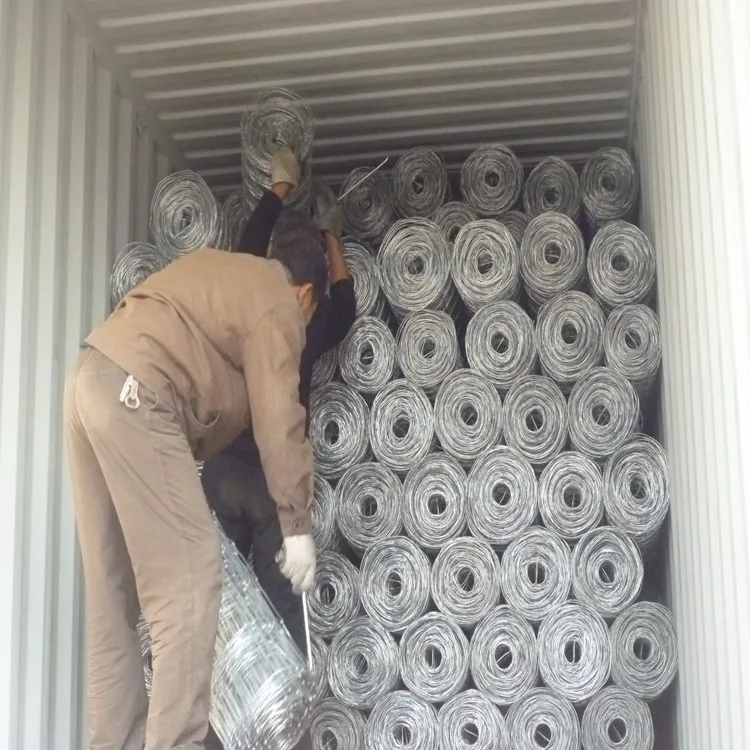

Packing & Delivery

More than 6000+ Customers choose Anping Deming,we have our own quality checker,before shipping,we will do the Test by ourselves.
