Hot Sale 3G 4G WCDMA LTE GPS PoE Failover Router for Platform Monitoring

FOB Reference Price:Get Latest Price
$100.00 - $180.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
UR51-U01X-G-P
Report Suspicious Activity
Overview
Quick Details
With Modem Function:
No
Products Status:
Stock
Type:
Wired and Wireless
Application:
Industrial Applications
Function:
Firewall, QoS, VPN
LAN Ports:
1
WAN Ports:
1
Certification:
CE FCC ROHS
Brand Name:
Ursalink
Place of Origin:
Fujian, China (Mainland)
Installation:
Desktop, wall or DIN rail mounting
Housing:
Metal
Fast Ethernet:
1 x 10/100 Mbps
Weight:
365 g (0.80lb)
Ingress Protection:
IP30
Dimensions:
100 x 96.1 x 30 mm (3.94 x 3.78 x 1.18 in)
Serial Port:
1xRS232 or 1xRS485
Power Input:
9 - 48 VDC
PoE Fcuntion:
Supports
GPS Function:
Supports
Supply Ability
Supply Ability:
3000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard Package
Port
Xiamen
Product Description

UR51 Industrial Cellular Router

The UR51 is a compact and cost-effective industrial cellular router that takes credit for offering reliable and robust network connections to remote devices. With scrutinized security and tested link backup, UR51 allows users to experience wireless connections with peace of mind.

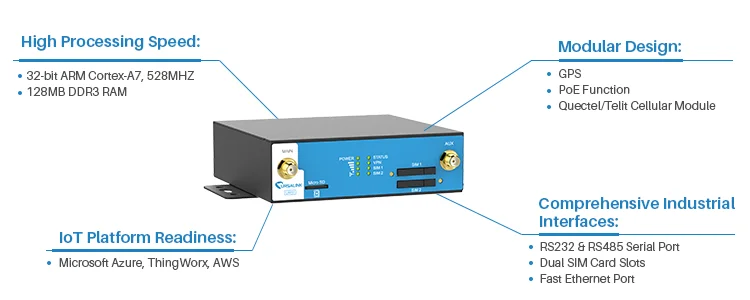

Highlights:

High Processing Speed: embeds 32-bit ARM Cortex-A7 processor, 128 MB DDR3 RAM
Flexible Modular Design:  Serial port, GPS, PoE, etc
IoT Platform Readiness: connects to AWS, Azure, ThingWorx in minutes
Remote Management: features Ursalink Device Management Platform
Custom-Tailored Service: experienced OEM/ODM solution

Multiple Encryption Tunnels: complies with a wide range of VPN protocols

High-Speed Data Transmission: features fast Ethernet port

Device Management Platform

Ursalink DeviceHub is engineered to extend your network reach of remote equipment and allows you to perform further analysis, spot outages and ensure the highly possible uptime. As an intelligent IoT-based strategy, the Platform comes with exciting promises that release operational efficiency and drive commercial success.

UrsalinkVPN

The UrsalinkVPN acts as a secure termination point for all Ursalink routers and offers seamless communication originated by the customers to their machines. It is generally used in the industrial M2M communication sector. Through the web-based UrsalinkVPN portal, you can manage account, routers and devices, etc.

Specifications
UR51
UR52
UR55




Capabilities
CPU
528 MHz, 32-bit ARM Cortex-A7
Flash
128 MB
Memory
128 MB DDR3
Built-in
Watchdog, RTC
GPS
GPS + GLONASS
Micro SD
Supports micro SD card up to 128 GB





Interfaces
SIM Slots
2
Ethernet Ports (Mbps)
1 x 10/100
(Optional: PoE Output)
2 x 10/100
5 x 10/100
Serial Ports
1 x RS232 or
1 x RS485
1 x RS232 + 1 x RS485
or 2 x RS232 or 2 x RS485
Digital (I/O)
N/A
2 x DI + 2 x DO
Antenna Connectors
2 x Cellular Connectors
(Center Pin: SMA Female)
2 x Cellular Connectors
2 x Wi-Fi Connectors, 1 x GPS Connector
(Center Pin: SMA Female)







Network
Network Protocols
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
AAA
Radius, TACACS+, LDAP, Local Authentication
Firewall
ACL/DMZ/Port Mapping/MAC Binding
Wi-Fi
N/A
IEEE 802.11 b/g/n/ac
Serial Port
Transparent ( TCP Client/Server, UDP), Modbus Master Modbus Gateway (Modbus RTU to Modbus TCP)
VPN
DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE
Reliability
VRRP, WAN Failover, Dual SIM Backup
Maintenance
Management
Web, CLI, SMS, Watchdog, On-Demand Dial up
Multilevel Authority
Multiple Levels of User Authority







Hardware
Power Input
9-48 VDC (48V power input is needed for 802.3af PoE output)
9-48 VDC
Power Consumption
Typical 1.8 W
(Max 2.7 W) in non-PoE mode
Typical 2.5 W
(Max 4.1 W)
Typical 2.8 W
(Max 5.0 W)
Ingress Protection
IP30
Housing & Weight
(Metal)
365 g (0.80lb)
460 g (1.01lb)
481 g (1.06lb)
Dimensions
100 x 96.1 x 30 mm
(3.94 x 3.78 x 1.18 in)
132 x 103.8 x 45 mm
(5.20 x 4.09 x 1.77 in)
Mounting
Desktop, Wall or DIN Rail Mounting






Others
Operating Temperature
-40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance above 60°C
Storage Temperature
-40°C to +85°C (-40℉ to +185℉)
Relative Humidity
0% to 95% (Non-Condensing) at 25°C/77℉
Certifications
RoHS, CE, FCC
EMC
IEC 61000-4-2 Level 3
IEC 61000-4-3 Level 3
IEC 61000-4-4 Level 4
IEC 61000-4-5 Level 4
IEC 61000-4-6 Level 3
IEC 61000-4-8 Level 4
Detailed Images



Comprehensive Industrial Interface - Front


Fast Ethernet Port: 1 x 10/100 Mbps

Main Cellular Antenna & AUX Cellular Antenna
PoE: Convenient PoE support

Serial Port & I/O: 1 x RS232 or 1 x RS485





Comprehensive Industrial Interface - Back

Grounding Stud

Power Connector

Fast Ethernet Port

Serial Port

Reset Button

GPS: with high accuracy positioning





3 Years Warranty Included

With 7x24 Real-Time Online Technical Support
Certifications
Partners
Application Example

Idea for Connecting...

Solution...

Meet Us Worldwide
Company Information

About Ursalink

Ursalink is a professional high-tech enterprise specializing in the design and manufacture of best-in-class industrial-grade M2M/IoT hardware and solutions with relentless reliability, reliable security and remarkable performance for the global market. The strong experience of Ursalink's research and development team allows the integration of proven technologies and open customizable functionality to the user for enhanced solutions to an ever-changing world of IoT & M2M challenges, without sacrificing stability and security. With the future in mind, Ursalink designs and delivers customer-tailored products and services with an emphasis on the most minor details that enhance our products longevity.

Factory

We spare no efforts in quality control and product innovation. The strong R&D capability empowers Ursalink to provide remarkable reliability and usability for the global marketplace. With future in mind, Ursalink designs, deploys and delivers custom-tailored services with an emphasis on the most minor details that enhance our products longevity.
