Hot Sale UV Sterilization Unit / DRINKING Water UV Disinfection Cabinet

FOB Reference Price:Get Latest Price
$2,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Gathering UV Sterilizer
Model Number:
UIV Sterilization Unit
Material:
Stainless Steel
Voltage:
85-285V
Capacity:
1.3~60m3/H
Export Markets:
Global
UV Lamp:
8000hours min
Supply Ability
Supply Ability:
1000 Set/Sets per Year UV Sterilization Unit
Packaging & Delivery
Packaging Details
Cartons/Plywood case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 5 To be negotiated

UV Sterilization Unit / DRINKING Water UV Disinfection Cabinet



Application of UV Sterilization Unit

The UIV series UV-sterilizer is designed as a high effective disinfection unit for drinking water, which covers wide capacity for reaching different applications in industry and marine fields.

UV Sterilizer is a widely recognized and proven method of disinfection of water and has several advantage over other disinfection methods such as chlorination, ozonation, etc. UV light does not add anything to the water, such as, undesirable color, odor, taste, or flavor, nor does it generate harmful byproducts. It adds only energy in the UV radiation. Also, UV disinfection requires only a fraction of the contact times required by other disinfection methods.
It is fast, efficient, effective, economical and environmentally-friendly.
Based on the latest technology to create a high effective disinfection unit for drinking water, we developed UIV series UV-sterilizer, which covers wide capacity for creating different applications in industry and marine fields.

Specification of UV disinfection

Principle of Operation for UV Sterilization Unit
UV water disinfection system design has been carefully conceived to provide adequate germicidal dosage throughout the disinfection chamber. The dosage, as it applies to UV disinfection, is a function of time and the intensity of UV radiation to which the water is exposed. Exposure time is related to the flow rate, the higher the flow rate, the lower the exposure time or the lower the flow rate, the higher the exposure time. The UV intensity is the amount of energy, per unit time, emitted by germicidal lamp. The Dosage is the product of UV intensity and the exposure time.

Features of uv sterilizer
- Stainless steel chamber with no corrosion
- Long life UV lamp up to 8000 HRS
- User friendly interface with PLC for easy operation and understanding
- UV lamp status monitoring system indicating clearly which lamp to the change



UV Sterilization Unit Technical Data

ModelUIV-1.3UIV-4UIV-10UIV-20UIV-30UIV-40
Capacity(m3/h)1.3410203040
Length(mm)352385400400400400
Width(mm)320380400450450450
Height(mm)600600600115011501150

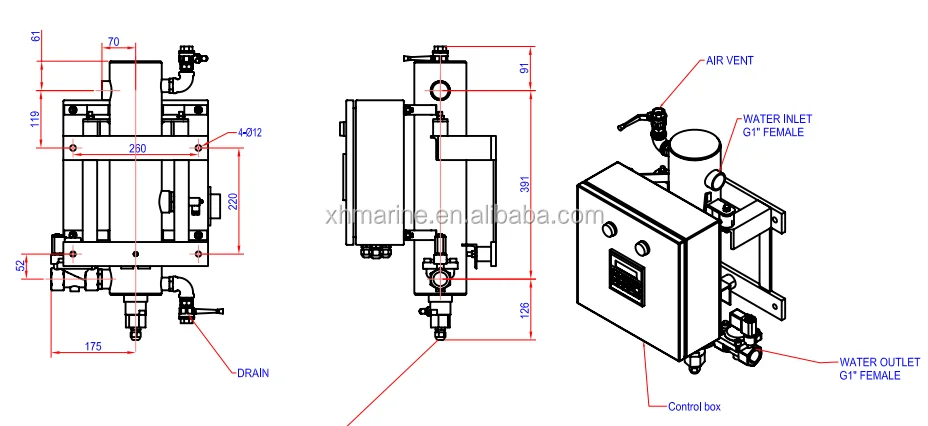

UV Sterilization Unit detail:




 Pls contact us for details and exact cost if you need UV Sterilization Unit or any other water treatment equipment
