Hot sale ZCW MYW-8 Terrazzo Tile Making Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
1440 to 3840 pieces per 8h
Power(W):
5500
Certification:
ISO 9001
Condition:
New
Tile Type:
Concrete
Use:
Floor
Place of Origin:
Henan, China
Brand Name:
Lianke
Model Number:
MYW-8
Voltage:
380 V
Dimension(L*W*H):
2700 x 1500 x 2500 mm (main machine)
Weight:
5 ton (main machine)
Product Name:
Hot Sale ZCW-120 Terrazzo Tile Making Machine
Control System:
PLC from Taiwan Delta
Raw Material:
cement, stone particle, sand, flyash
Color of machines:
any color as you like
Brand Label or OEM:
can be tailor-made for free
Molding Pressure:
128 ton to 350 ton
Normal Terrazzo Size 1:
300x300x15 mm
Normal Terrazzo Size 2:
400x400x15mm
Working Stroke of main oil cylinder:
220 mm
Working Trip of bottom mould console:
700 mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
In plallet with iron wire fixed in standard container
Port
Qingdao
Lead Time :
Shipped in 25 days after payment
Product Description

Hot Sale ZCW MYW-8 Terrazzo Tile Making Machine

The full-automatic concrete terrazzo tile making machine is the most advanced innovative, cost-effective and eco-friendly professional tile forming equipment.

1) Main Technical Information
Main technical parameters of the full-automatic concrete terrazzo making machine:

Main Technical Parameters
MYW-6 Cement Tile Machine
MYW-7 Cement Tile Machine
MYW-8 Cement Tile Machine
Voltage
380 V
380 V
380 V
Molding Cycle
7-8 pieces/minute
5-6 pieces/minute
3-5 pieces/minute
Molding Pressure
128 ton
250 ton
350 ton
Output Per 8 Hours
3360-3840 pieces
2400-2880 pieces
1440-2400 pieces
Normal Floor Tile Size 1
300x300x15 mm
400x400x15 mm
500x500x20 mm
Normal Floor Tile Size 2
400x400x15 mm
500x500x20 mm
600x600x30 mm
Maximum Floor Tile Size
400x400x70 mm
500x500x70 mm
600x600x70 mm
Power of the Main Machine
5.5 KW
7.5 KW
15 KW
Weight of the Main Machine
5 Ton
6.8 ton
7.8 ton
Dimension of the Main Machine
2700x1500x2500 mm
2700x1500x2500 mm
3300x1600x2700 mm

If the tile size is not big enough for you, we could also supply other models to produce tiles at sizes such as 800*800mm, 900*600mm, 900*900mm, 1000*1000mm, 1200*600mm, etc.


2) Main Components

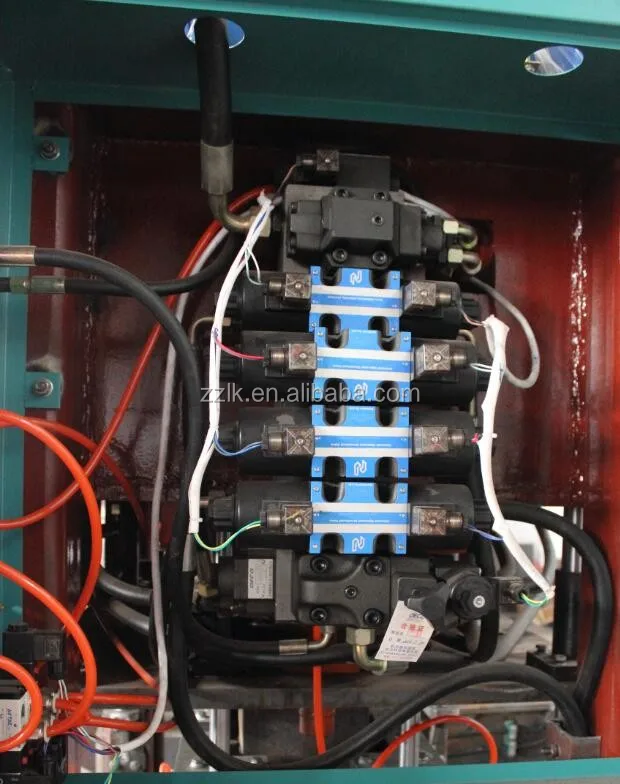

The full-automatic concrete terrazzo tile making machine includes the following parts:

We can get different patterns by changing the upper moulds(Pressure heads).
The machine can also produce the roofing tiles by changing molds.

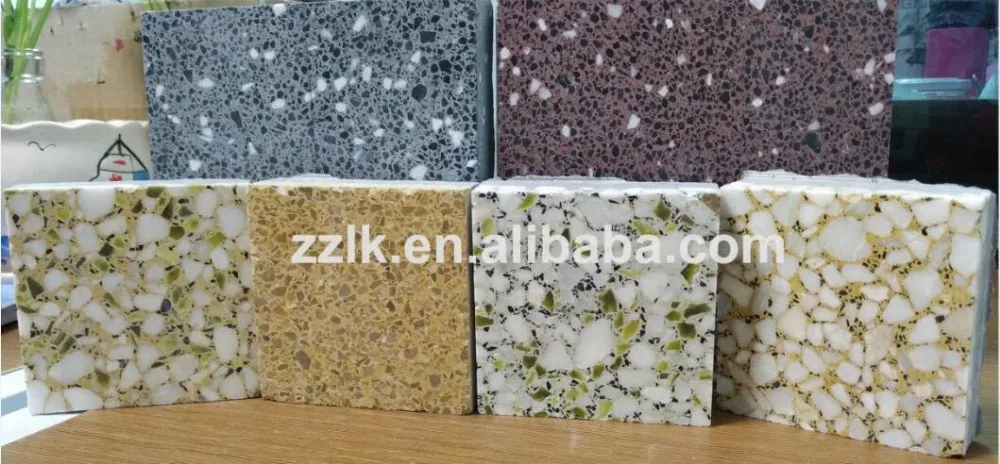

The molds in the following pictures are bought by our Malawian Customer. The cement tiles in the pictures were produced when we testing the machine. We only use the cement, sand and stone powder as raw materials.

Working Principle

A) Machine Video Links on YouTube

1. The machine's running in customer's production site:

Video link 1-- https://youtu.be/JZKpHhZgPYM
Video link 2 -- https://youtu.be/MXZDYtF4PEI
2. (terrazzo polishing machine) https://youtu.be/_hY6zM9L8Vc


B) Raw Material

Mix water, raw material such as cement, stone particles and sand up in proportion and feed the mixture evenly to the main machine of the CNC concrete terrazzo producing machines. If different moulds such as roof tile moulds are applied, roof tiles can be obtained.

C) Working Flow

The working flow of the extrusion type terrazzo tile making machine is as follows:

D) Real Work Flow (terrazzo polishing machine is optional)

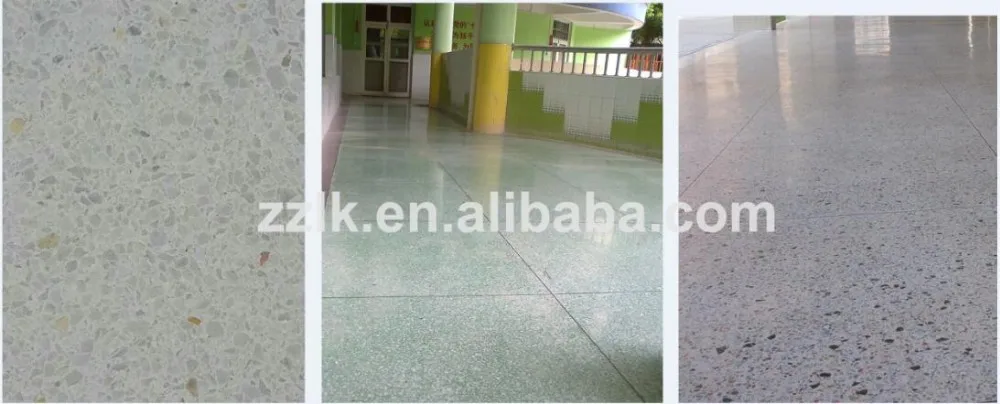

E) Photo of Terrazzo Floor Tiles or Terrazzo Wall Tiles in Buildings

Advantages of the tiles produced by the new type full-automatic concrete tile making machine:

1) Easy to construct
2) Good heat insulation
3) Strong wind resistance
4) Unique water-proof structure
5) Diversified shapes and various colors
6) Freezing-thawing resisting and weathering-resistant

Our Service

A) Our Services

We can provide the following services:
1) Design and help adjust the production flow and equipment layout for free.
2) Supply the layout of the machine production line.

The workshop layout of the MYW-8 full-automatic concrete tile making machine is as follows:

B) Quality Guaranteey is our Promise; Being Trustful is our Responsibility.

1) The quality guarantee is 12 months after installation and commissioning.
2) We will be responsible for malfunctions caused by the automatic tile machine itself or other quality problems.
Any way, we will help solve any problems the customer comes across in the operation and provide life-long maintenance for the machine.

Feature

Main Features

Features  of the new type full-automatic concrete tile making machine:
1) Multi-purposes via moulds changing
2) Easy to operate, environment-protective
3) Extrusion molding by computer numerical control (CNC)

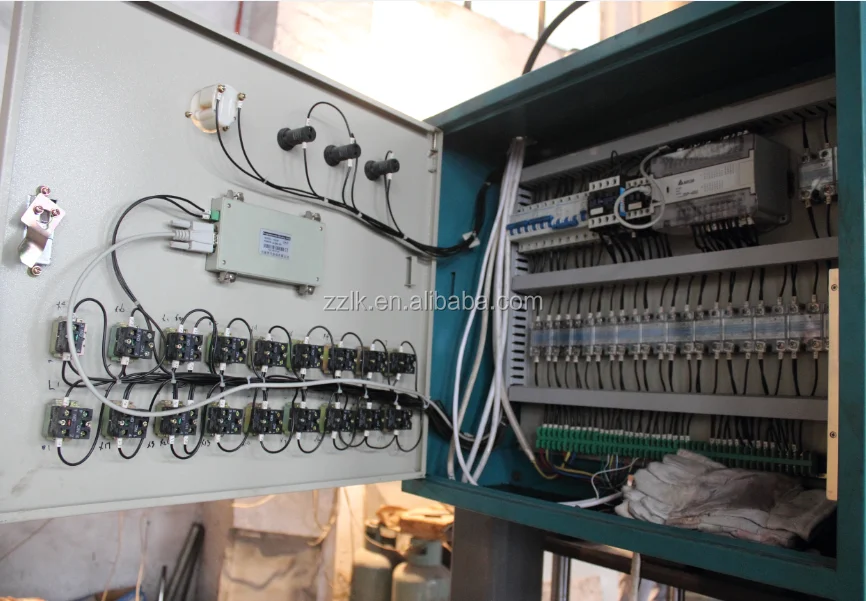

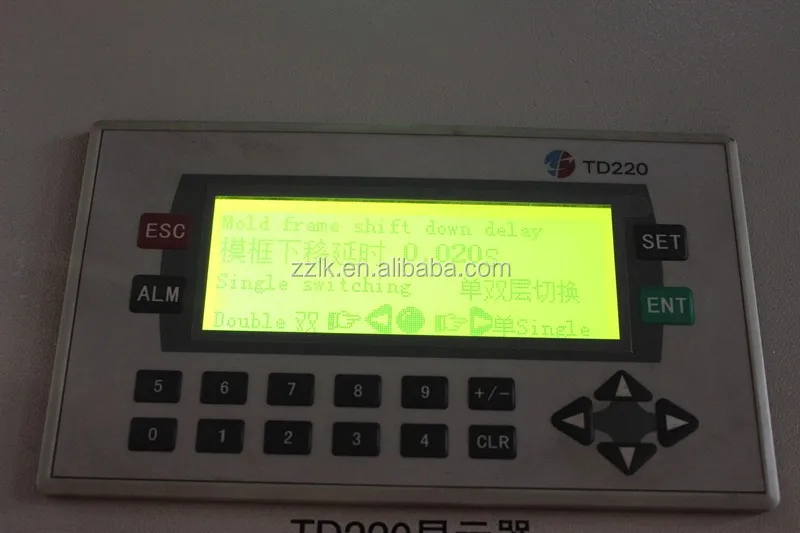

4) Taiwan Delta PLC <Programmable Logic Controller> and HMI <Human Machine Interface> system

Customers' visiting.

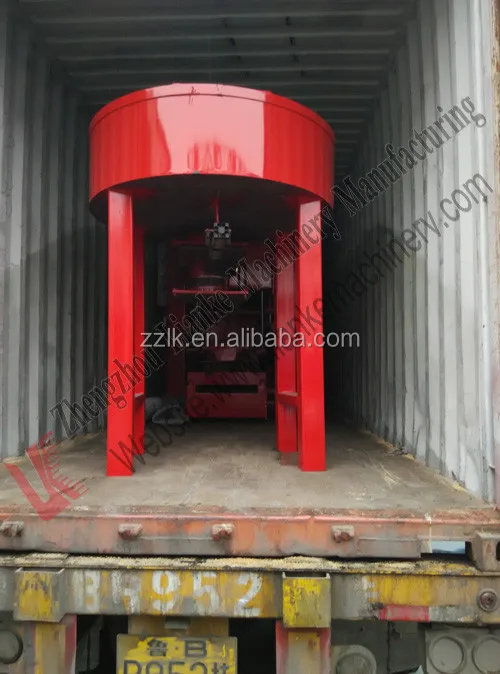

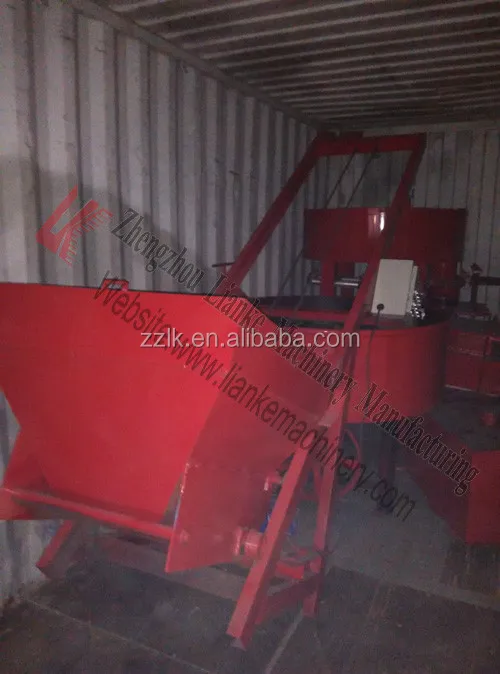

Packing & Delivery
