Hot Sale woodworking machinery MJ1415 Automatic Feeding High Precision Multi blade Rip Saw Machine from China

  • 1 - 1 Pieces
    $3,600.00
  • 2 - 3 Pieces
    $3,300.00
  • >=4 Pieces
    $3,000.00
Model Number:
MJ1415
Lead Time:
Quantity(Pieces) 1 - 5 6 - 15 >15
Est. Time(days) 15 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 2 Pieces)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Rip Saw
Max.Working Width(mm):
150 mm
Max.Working Height(mm):
60
Rip Saw Type:
Multi-blade
Use:
Woodworking
Style:
Vertical
Place of Origin:
Guangdong, China
Brand Name:
PINLIANG
Usage:
Woodworking
Voltage:
380V/50HZ/3PH
Dimension(L*W*H):
1600*980*1480mm
Certification:
ISO9001
Application:
factory
Weight (KG):
900 KG
Power (kW):
12.87
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
None
Showroom Location:
None
Key Selling Points:
High-accuracy
Applicable Industries:
Building Material Shops, Manufacturing Plant
Marketing Type:
Hot Product 2019
Machinery Test Report:
Not Available
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Motor
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
900kg
Power(W):
13.25kw
Warranty:
1 Year
Supply Ability
Supply Ability:
20 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. Normal packing: Thick foam inside and Film outside
2. Special packing: Plywood box packing, this need add extral packing fee
Port
LELIU PORT , SHUNDE DISTRICT , FOSHAN CITY
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5 6 - 15 >15
Est. Time(days) 15 30 To be negotiated
Video Description
Product Description

Product Application

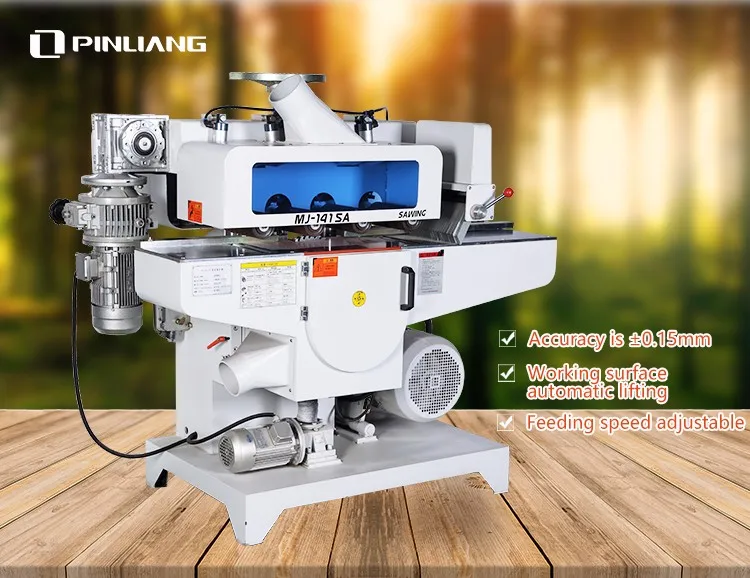

MJ1415 Multi Blade Saw Machine is mainly used for large-scale square wood cutting. The feeding speed of the machine can reach up to 20 meters per minute, and the sawing precision can reach 0.15mm. The use of this multi-blade saw can greatly improve the production efficiency.

SPECIFICATIONS FOR MJ1415 Multi Blade Saw Machine
Spindle Speed
3600r/min
Spindle Diameter
50mm
Max. Processing size
180mm*60mm
Saw Blade
250*50mm
Min. Working Length
230mm
Motor Power
13.25kw
Overall Shape
1600*980*1480mm
Weight
900kg

Main Features

1) The machine uses a heavy-duty frame and weighs 900kg, which is stable and durable.

2) The feed rate of the machine can be adjusted according to the type of wood, up to 20 meters per minute.

3) Equipped with a 11kw high-power brand motor, the hard wood is also easy to saw.

4) Through standardized production and strict factory inspection, the sawing accuracy of the machine can reach ±0.15mm

5) Have anti-backup anti-reverse device to prevent the wood from bounce back during the cutting process. Greatly ensuring the safety of workers

Detailed Images

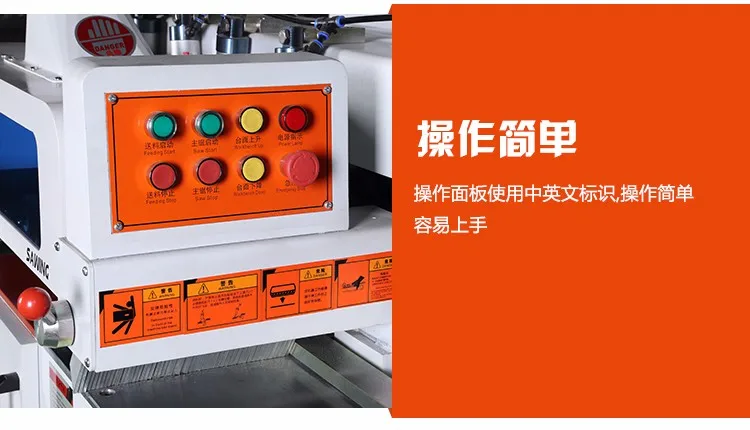

Easy to Operate


The operation panel is marked with Chinese and English, which is easy to use and easy to use.The operation panel integrates overload, power indicator, and various switches for easy operation. The panel is marked with a sketch, the function buttons are clear at a glance, the operation is simple, and it is easy to get started.

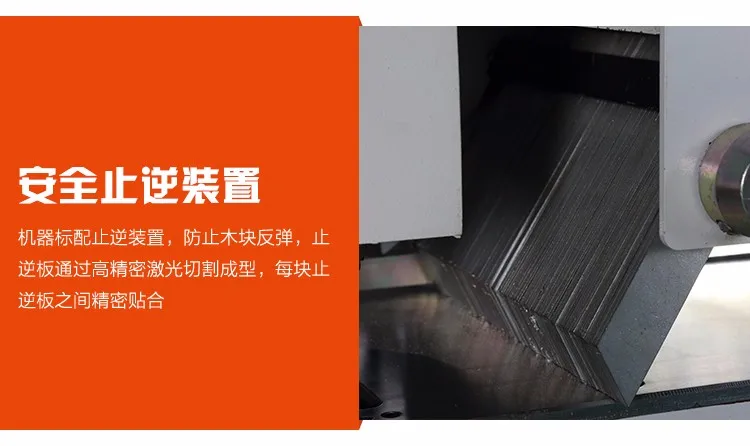

Safety Backstop


The machine is equipped with a non-return device to prevent the wooden block from rebounding. The non-return plate is cut by high-precision laser and each of the non-return plates is precisely fitted.

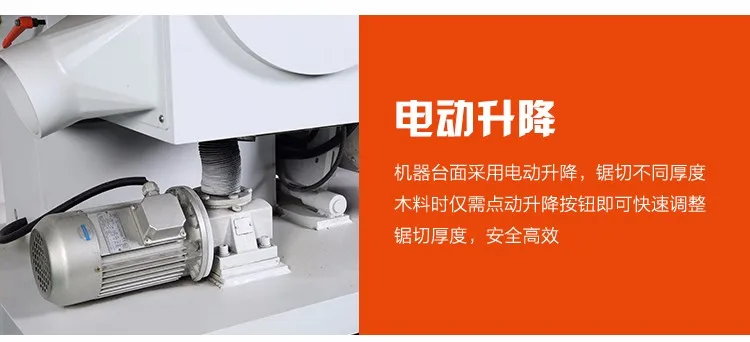

Working table electric control


The machine table is electrically controlled. When sawing different thickness wood, you only need to click the lifting button to quickly adjust the sawing thickness, which is safe and efficient.

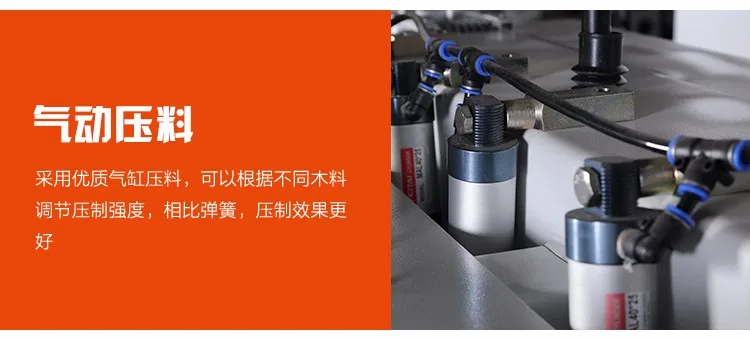

Pneumatic press


The high-quality cylinder is used to press the wood, and the air pressure can be adjusted according to different wood materials. Compared with the spring, the pressing effect is better.

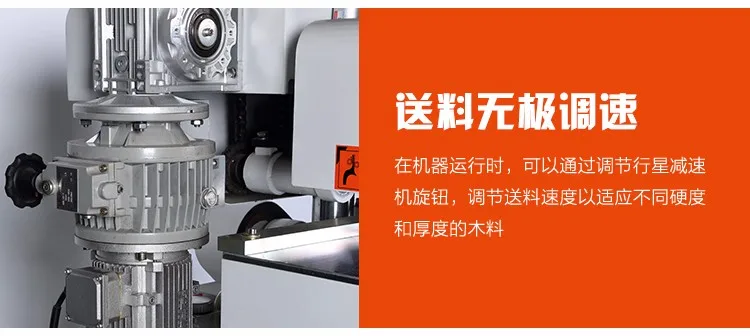

Feeding speed adjustable


When the machine is running, the feed speed can be adjusted by the feed speed regulator to adapt to the wood of different hardness and thickness.

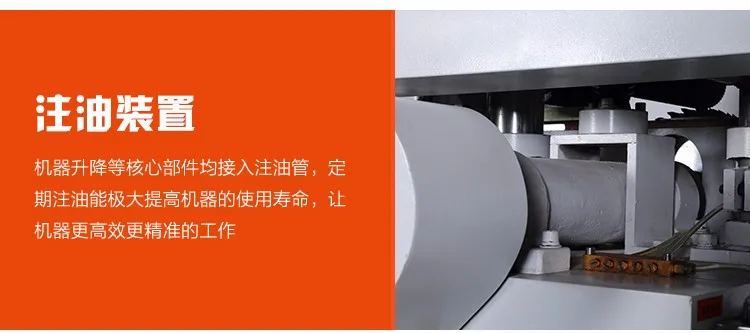

Lubricating device



The core components such as machine lifting are connected to the oil filling pipe. Regular oil filling can greatly improve the service life of the machine and make the machine work more efficiently and accurately.

Packing & Delivery
Size
1600*980*1480mm
Weight
900kgs
Size
1650*1030*1530mm
Weight
910kgs
FAQ

Questions and Answers:

1. How to make an order?
You can order online by Alibaba, Or Email us your details, and we will contact you immediately and help you proceed with the orders.

2. Where is your factory?
Our factory is located in Foshan which is a famous city for producing the machine. It's about one and a half hour from Guangzhou Baiyun International Airport to our factory. Welcome to visit our factory any time. We can pick you up at the airport or Guangzhou hotels.

3. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.

4. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.

5. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.

6. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.

7. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.

8. What payment do you accept?
Normally we can provide TT, LC, PAYPAL, ESCROW, WESTERN UNION ect. Any other ideas, please contact us for better support.
