Hot Selling!!! POWERGEN Air-Cooled Super Silent 3 Phase 15KVA Diesel Generator Price

FOB Reference Price:Get Latest Price
$2,000.00 - $2,500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
POWERGEN
Model Number:
BDG15000SE
Rated Power:
15KVA
Output Type:
AC Three Phase
Rated Voltage:
380/220; 220/110; 208/127
Rated Current:
Depends on the voltage
Speed:
3000/3600rpm
Frequency:
50/60Hz
Color:
Customized Available
Certification:
CE
Engine:
Air Cooled 2-Cylinder 999cc
Alternator:
Brush with AVR Full Copper Winding
Battery:
12V45AH
Optional:
ATS
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export Standard Seaworthy Packing
Port
Fuzhou/Shanghai
Lead Time :
20 working days
Product Description

Product Application

The silent diesel generator model BDG15000SE 15KVA @50Hz or 16KVA @60Hz is usually used in places such as houses, shops without connection to a power grid, or as emergency power-supply if the grid fails.


SPECIFICATIONS OF ULTRA SILENT DIESEL GENERATOR SET
MODEL NO.:
BDG15000SE
Frequency
Hz
50
60
Voltage
V
380/220; 400/230
110/220; 208/127
Alternator type
Three phase, Self-excited, Brush with AVR,  Insulation class F
Rated Output
KVA
15
16
Max. Output
KVA
15.5
16.5
DC Output
V/Amp
12/8.3
Control Panel
Key starter, Digital LCD Panel, Circuit Breaker, Power Outlets
Engine Type
Diesel, Air-cooled, 2- cylinder, 4-stroke, 999cc
Engine Model
292FE
Engine Power
HP
27
Bore x Stroke
mm
92 x 75
Engine Speed
RPM
3000
3600
Fuel Tank Capacity
L
35
Fuel Consumption
L/Hr.
4.25 @ full load
4.35 @ full load
Cranking Battery
Sealed Maintenance-free Lead acid Battery 12V 36AH
Noise Level @7M
dBA
69
Packing Dimensions
LxWxH
1200 x 785 x 900
N.W./ G.W
Kgs
305/310
MAIN PERFORMANCE INFO
1) Rated power: 15KVA @50HZ / 16KVA @60HZ
2) Powerful Diesel engine 292FE 27HP (Patent Technology)
3) Electric/key started(default), or remote started(optional)
4) 35-Liter day tank for 8hrs @ full load
5) Outlets and plugs customized available
6) DC 12V 8.3Amp charging facility
7) AVR deliveres non-fluctuating power
8) Low oil pressure auto shut down system
Detailed Images

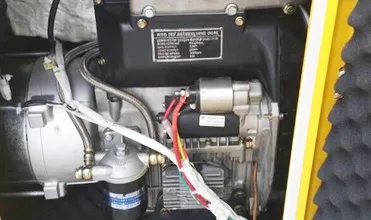

Diesel Engine

Model: BD292FE

Brand: POWERGEN

Power: 27HP

Air-cooled, 2 Cylinder, 4-stroke, 999cc

Electric started by battery 12V36AH

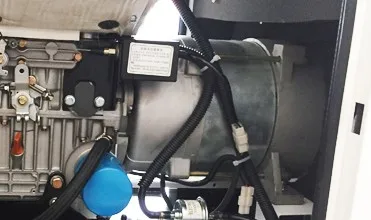

Alternator

Model: PG-15
Brand: POWERGEN

Power:15KVA
2-pole, Brush with AVR, Self-excited, Three phase, Power factor: 0.8

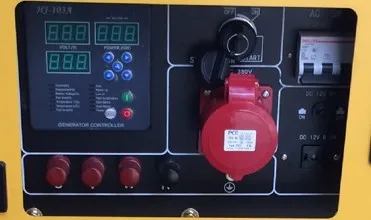

Control Panel

Customized available!!!
1 x Key/Electric starter

1x Digital LCD Panel

 1x Circuit breaker

2 x Power Outlet

1x low oil pressure alarm,

1x 12V/8.3Amp charging DC output.

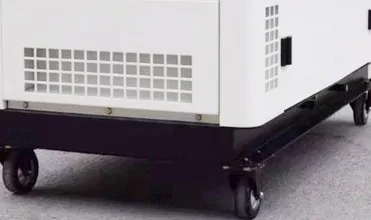

Wheels/Casters

Size: 4 inches

Numbers: 4 x Swivel Casters


The casters are durable and made to withstand a variety of conditions that generators endure, such as bumping road etc.



Optional Device

ATS (Auto Transfer Switch)

With an ATS, the generator will be

auto started or auto shut down while the city power is cut or recovered.

Digital LCD Panel

All the parameters of the generator

such as Volt., KW and Hz will be shown on the LCD.

Remote Start/Off Controller

With a remote controller, you can

start or turn off the generator within a distance of 100meters.

Packing & Delivery
Packaging
Size (mm)
1200 (L) * 785 (W) * 900 (H)
Weight (kg)
305



Packaging Details
1) Inner Packaging: Polybag
2) Outer Packaging: Thick Carton with
small wooden pallet at the bottom.
3) Wrapping tape

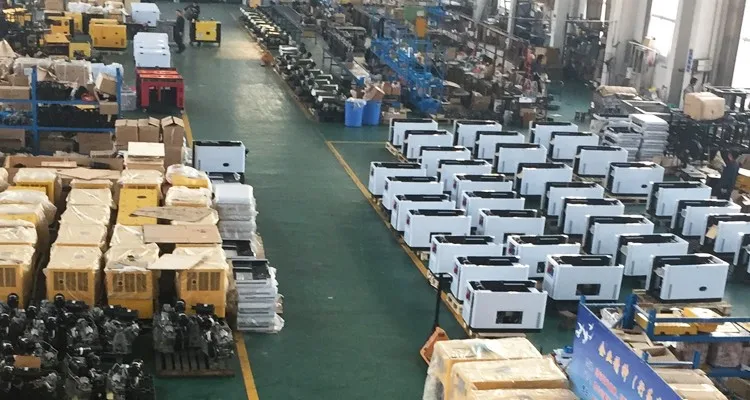

Production Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
