Hot liquid filling machine product essential oil filling equipment/water filler

  • 1 Sets
    $308.00
  • >=2 Sets
    $298.00
Power:
60w
Model Number:
HDC-02
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year, One Year
Packaging Type:
Bottles, Essential oil filling machine
Packaging Material:
Plastic, Glass, Essential oil filling machine
Type:
Filling Machine, Filling Machine
Condition:
New
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Hunan, China
Brand Name:
HDC
Voltage:
220V/380V
Application:
Food, Beverage, Machinery & Hardware, Essential oil filling machine
Weight:
8.5kg
Automatic Grade:
Semi-Automatic
Certification:
CE SGS GMP
Driven Type:
Electric
Dimension(L*W*H):
530*360*210 mm(packaging)
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Key Selling Points:
Easy to Operate
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Name:
Oil Filling Machine
Product name:
liquid Filling Machine
Material:
Stainless steel 304
Filling material:
Honey,Liquid,Water,perfume,oil
Filling Speed:
20-60 times/min
Filling Range:
5-3200 ml
Max Flowing Rate:
3.2 liter/min
Filling Accuracy:
Within 1%

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X36X21 cm
Single gross weight:
8.5 kg
Package Type:
plywood,international standard trading packing,
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Hot liquid filling machine product essential oil filling equipment/water filler



Product Description



Introduction

1) The gear pump is drived by magnetic power, the pump head and the motor is connected without shaft. So there’s no need to worry about the burnout of the motor because of the high load of the pump.

2) Pump head and motor is imported from Japan, other components are manufactured in Taiwan, the function is steady and useful life is long.

3) Pumper head is made from 316L stainless steel, acid alkaline, corrosion-resistant.

4)The motor run is adjusted by potentiometer, the degree of accuracy of filling time can be lower to 0.01 second, so that can guarantee the filling accurately, the deviation is under 2%.

5) Filling capacity is from 5ml-3200L volume according to your need.

6) Fully functional, can be operated by hand, intermittent pedal filling, automatic intermittent filling. Intermittent time can be adjusted.

7) Widely applied in various industrious, almost can be used to filling any flow liquid, especially suitable for oil, washing fluid, acid base solution, High corrosion resistance liquid.L





working process
A.turn on the filler
B: set the filing time depend on your bottle volume(adjust by the add button ) and set the filling speed.
C: adjust the waiting time depend on the gap time you need(adjust by the add button )
D: there are two models for the "counter, model one is: when the red light
is on, and the filler will work until the number you have set, that means, if you set 20, the filler will stop after filling 20 times. Model two is: the red light is off, the counter will record the filing times.

E:the decimal point can be moved by press the" " button.
F:settingt Use this button can let you set the filing range easily, press this button before flling, and the it will fill when you press that, and then wait the filing. when your bottle is full, then press that button again, then the filling range is been setted and the filler will remember this data and you can use for next flling

Detailed Images

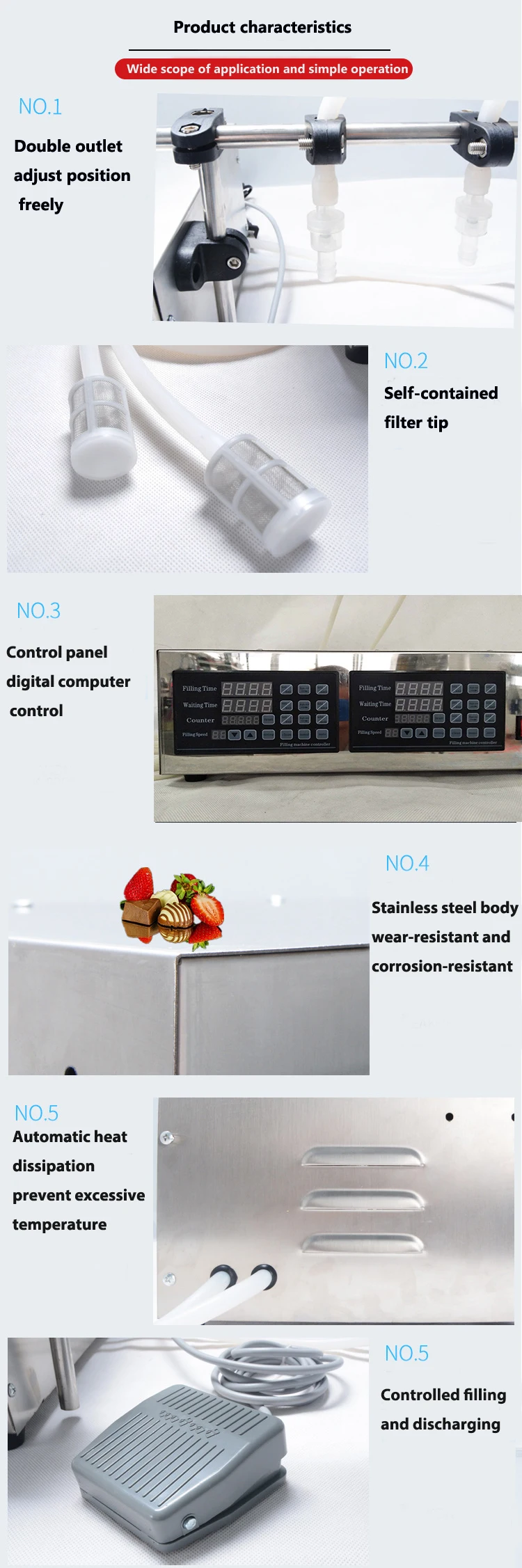

Details show:











Products parameter:

Voltage:

AC220V±5% 50HZ /110V

Cooling byair cooling
Max Power Rate:     60WFilling Range:5-3200ml
Deviation  within 1%Mainframe Size:

530×360×210(mm)



Main Purpose

Widely used in cosmetic, drinks, medical, chemical, medical, food industry etc, highly improve production capacity and product quality. Ideal equipment to fill low viscosity liquid oil, perfume, juice, milk, beverage, ink, water in the bottle, jar and can.


Related Products



Other filling machine:

cooking oil filling machine

photobank (4)

aerosol gas filling machine

1



Terms and Conditions:

1. Payment: T/T 30% advance-payment, 70% balance before shipment

2. Delivery Time: Within 7 days after receiving payment

3. Shipping Term: by Express, Air or Sea based on customers' requirements and lowest cost .FOB, CFR, CIF or according to your request

4.Packing Details: PE film cover inside and wooden case

5.Delivery details: within 15 days after the payment

Packaging & Shipping



packing



Our factory



OUR WORSHOP


1

Certifications



FAQ



FAQ

Q1: How does your factory do regarding quality control?

A1: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.

Q2: What’s the guarantee if we purchase from you?

A2: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.

Q3: How about the after service?

A3: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
