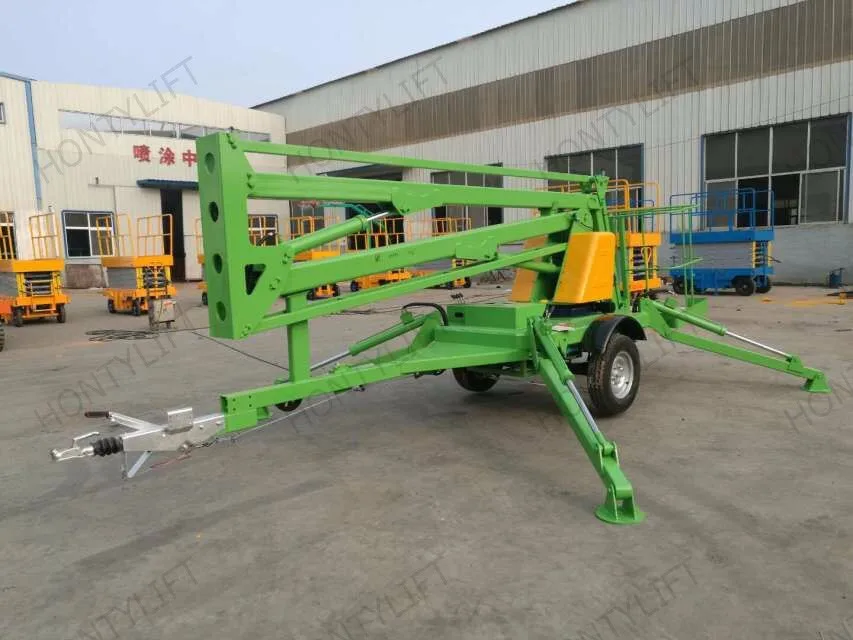

Hot sales towable boom lift trailer mounted cherry picker folding arm lift with CE

FOB Reference Price:Get Latest Price
US $1,000-15,999 / Set | 1 Set/Sets MIN 1 folding arm lift (Min. Order)
Supply Ability:
300 Set/Sets per Month trailer boom lifts
Port:
QingDao
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Honty
Model Number:
SJD
Lift Mechanism:
Articulated Lift
Lift Drive / Actuation:
Hydraulic
Power:
2.2kw
Rated Loading Capacity:
200kg
Min. Lifting Height:
1.9m
Max. Lifting Height:
20m
Table Size:
1.2*0.8m
Overall Dimensions:
54.2*1.6*1.9-7.2*1.8*2.4m
Weight:
1500-2200kg
Certification:
CE ISO9001
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
towable boom lift trailer mounted cherry picker folding arm lift
Max working radius:
9.5m
Max. travel speed-stowed:
90km/h
Power source:
diesel, DC AC for option
Turntable:
360°
controller:
double controller on ground and platform
Oil pipe:
high pressure pipe
Guardrail:
1m, optional
Out riggers:
4pcs automatic hydraulic riggers
Walking way:
trailer move
Packaging & Delivery
Packaging Details
wooden case
Hot sales towable boom lift trailer mounted cherry picker folding arm lift with CE
Delivery Time
Shipped in 7 days after payment
Product Description

Hot sales towable boom lift trailer mounted


 cherry picker folding arm lift with CE



1. Portable towable boom lift for cherry picker driving force

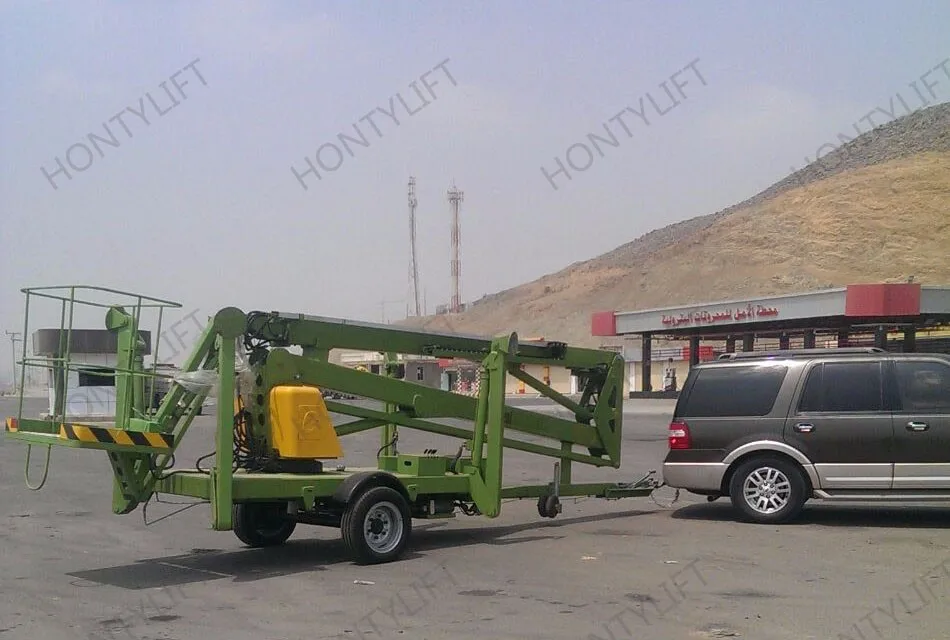

1) trailered by the pick up . this boom lift is made by high strength steel with light weight and good quality . the compact size is convenient to be trailered by cars .
2) pull by man force . it's light weight make man pulling and pushing are possible , the ground should be smooth .
compact size , save your space when stowed .

2.Portable towable boom lift for cherry picker lifting up and down force
1) AC power plug in , its voltage will be made as your local voltage .

No noise and air pollution

its very convenient with AC you can use it to lifting up or lifting down in a fast speed .


2) Battery Powered / DC powered

No noise and air pollution . when it be used outdoors , you can use it without electrical wire .


3) diesel power

once you have diesel you can use it always .


4) diesel power +DC battery

When diesel is run out off , you can use DC ; vice versa .
this trailer boom lift is for DC+diesel power trailer boom lift

3.Portable towable boom lift for cherry picker features
1) horizontal moving also be called jib rotation .
working cage could make rotation 82° , at the same height you can turn left or turn right as your work requirements . easily crossing the obstacle reach the working site.
2) Vertical moving vertical
working cage could lifting up or lifting down .
3) Working cage has control panel
takes more convenience when operating the lift .

4.The hydraulic cylinder system
1. Hydraulic pump station providing power
2. Pressure less valve : adjust and control the pressure , keep it in balance .Prevent the oil pipe broken .
3. overflow valve : control pressure and overloading protection .
4. Phase lack and phase dislocation protection : monitoring the electrical , if occur breakage , power will be cut off automatically , avoid broke the motor .
5. Safe protection : emergency stop button . When you meet emergency press it the lift will stop

5.Portable towable boom lift for cherry picker model sheet

model
platform size(m)
platform height(m)
load capacity
  dimension (m)
working radius
HTZB-8
1.2*0.8
8
200kg
5.2*1.6*1.9
4.5m
HTZB-10
1.2*0.8
10
200kg
5.45*1.6*1.9
5.7m
HTZB-14
1.2*0.8
14
200kg
6.2*1.73*2.1
8.5m

Hot sales towable boom lift trailer mounted cherry picker folding arm lift with CE

Detailed Images

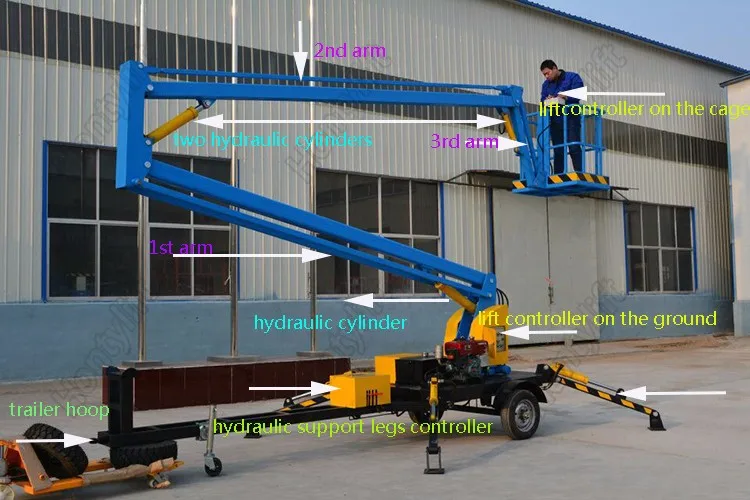

Three lifting arms
Every lifting arm adopts different thickness rectangular steel tube to fit their lifting capacity , marking sure the working safety. Total three sections .
hydraulic cylinder
three sections , every lifting arms has it's own hydraulic cylinder.

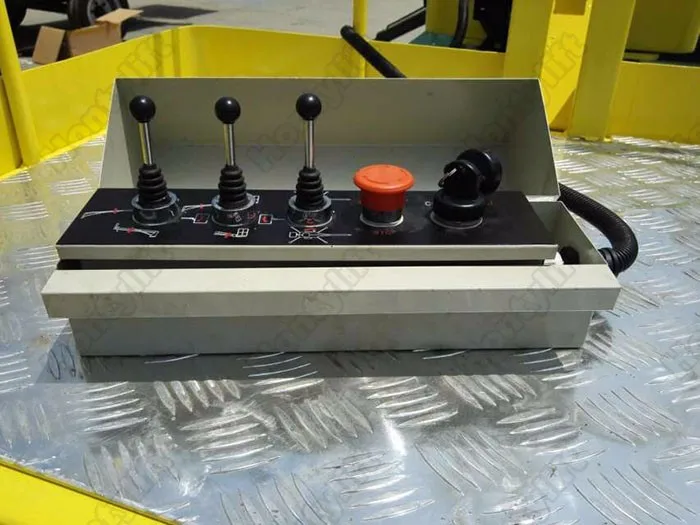

Controllers
two controllers for controling the lift , one at the ground , its a control box ; another at the working cage , its a control panel .
all of they have following buttons : lifting up button, lifting down button, emergency stop button , lock (this without button with a key).

one controller for controling the four hydraulic supporting legs .

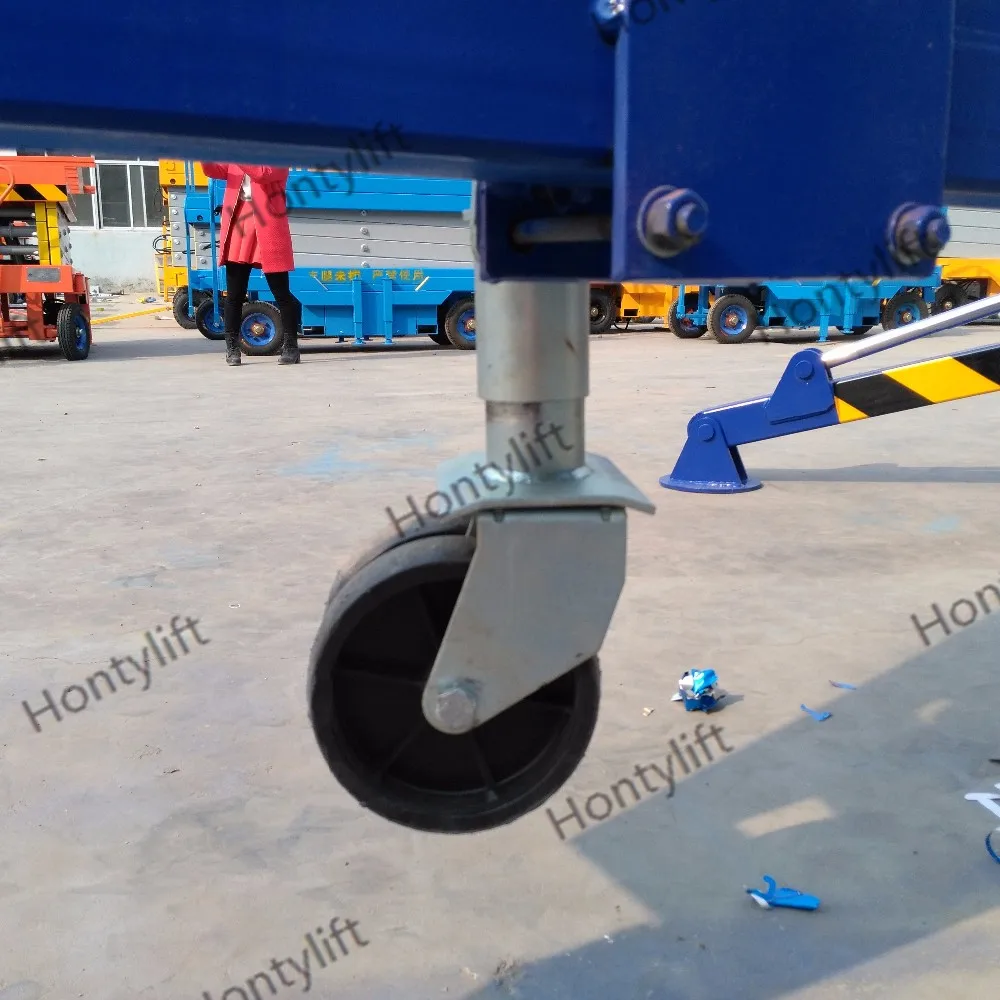

wheels nos
Total three nos . two for moving , small one for steering.

Our Company

1. Established early
Jinan Honty lift factory was founded in 1999, which is one of the main manufacturer of hydraulic equipments
2. Mature technology
we took the development on the technology of hydraulic lifting table as well as elevator,We have excellent equipment,advanced technology, perfect detection method and skilled technicians
3. Good reputation
we are also given the honor of “Company with good credit” by the Chinese Government. and
now we are the main number of the manufacturer of Lifting, Transportation, Stocking and Logistics of China as well

4. Many kinds of products
we have 12 series, more than 100 models products, main business is to design and manufacture non-standard product.
5. CE&ISO
Our products approved -CE&ISO,
6. Exported to many countries
Products are exported to Europe ,North America ,South America, Mid-east, Southeast Asia ,Easten Asia,etc.and got good reputation.
7.OEM service
