Hot sell SC APC fiber optic quick assembly fast connector 3.0mm

FOB Reference Price:Get Latest Price
$0.42 - $0.46 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SPRING
Model Number:
fast connector
Model unmber:
Hot sell SC APC fiber optic quick assembly fast connector 3.0mm
Connector:
SC/LC/ST/FC
Applicable for:
3.1x2.0mm Drop cable,3.0/2.0cable
Return loss:
≤-40dB
Insert loss::
≤0.3dB(1310nm &1550nm)
Cable diameter:
0.9mm 2mm 3mm
Grade:
Telecom Level
Supply Ability
Supply Ability:
50000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
nutual pakage
Port
shenzhen
Lead Time :
After payment 5~7 days



Product Description



Hot sell SC APC fiber optic quick assembly fast connector 3.0mm

The Field Assembly Connector products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibres in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.

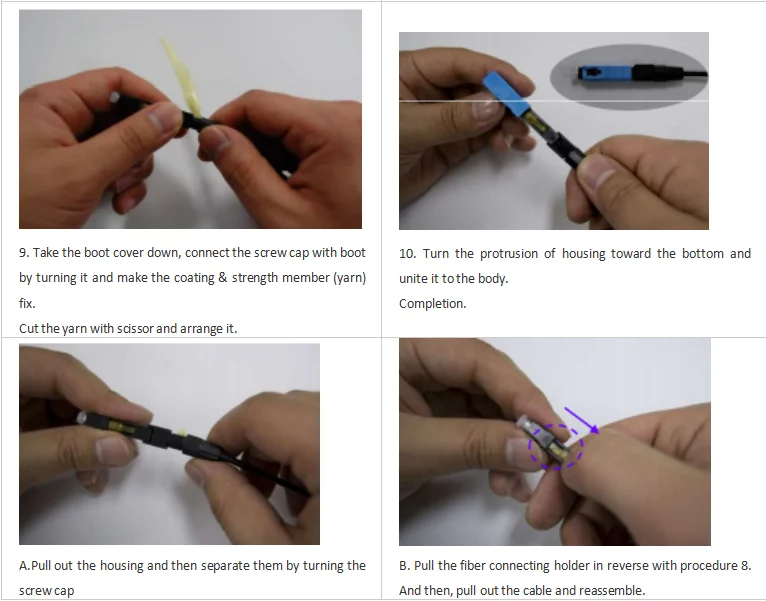

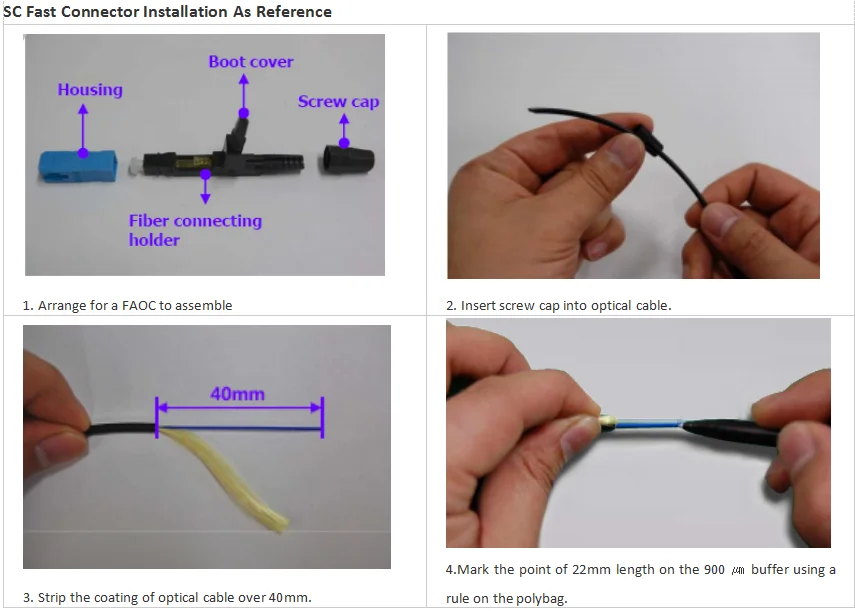

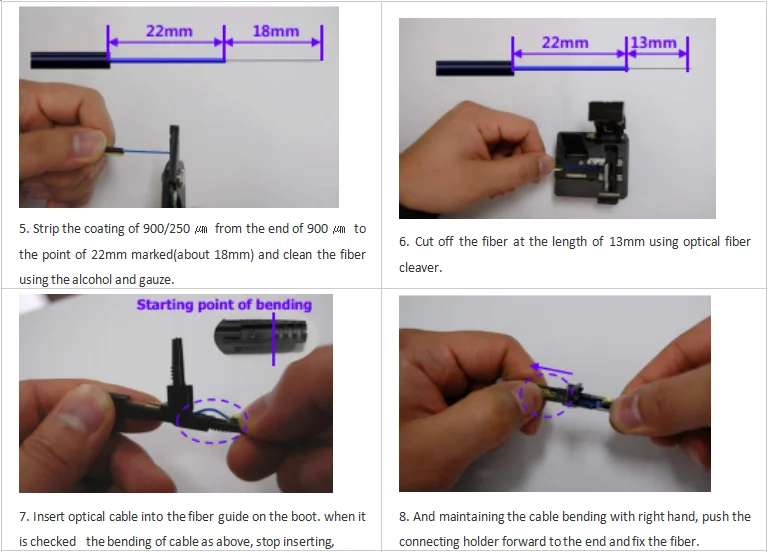

Assembly of the FC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed. Just Strip the buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector.Installation takes just minutes and couldn't be easier.
The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.



Applications:

Fiber Optic Communication System and Telecommunication networks

Fiber Optic Data Transmission

CATV network

Optical Access Network

Fiber to the Subscriber (FTTX) applications

Optical Cable Interconnection

Maintenance or emergency restoration of fiber networks

Repair/Replacement requirements

Fiber Optic Equipment

Features:



1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB Max 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-CORE

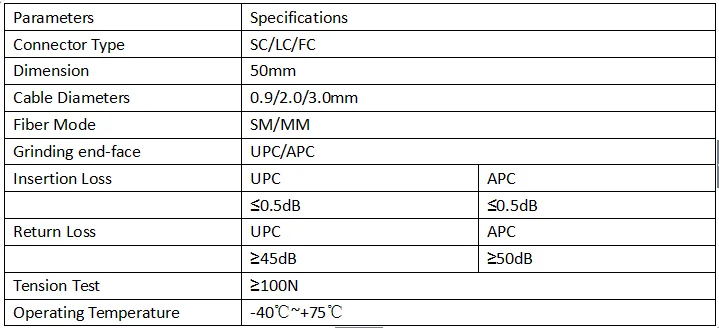

Specifications:



Quality Certification:

1. Good Anti-electromagnetic interference (EMI)

2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.

3. Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates



More Pictures



Related Products











Company Information







FAQ



1.About the price
We usually quote within 24 hours after we confirm the technical data of your products. if you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


2. About the quality?
After price confirmation, you can require for samples to check our quality.


3.About receiving the time of the sample ?
After the confirmation of your sample order, the sample will be finished in 7~10 days. and the sample will be sent to you via express and arrive in 3-5 workdays.

4.Can you supply OEM products under our brand?
yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.





Contact Us



     If you are interested in the Hot sell SC APC fiber optic quick assembly fast connector 3.0mm ,please feel free to contact me on skype,elva.springoptic.i will support you better online.
