Hot selling Comfortable LED Lexan Membrane Control Panel Switch for PCB and LCD Display Assembly

FOB Reference Price:Get Latest Price
$0.80 - $3.80 / Pieces | 10 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MBR
Model Number:
MBR_137
Application:
Telecommunication Equipment
Keypad Button Material:
PET(polyester), PC(polycarbonate)
Certification:
ISO9001:2015 & SGS
Feature:
Water-proof

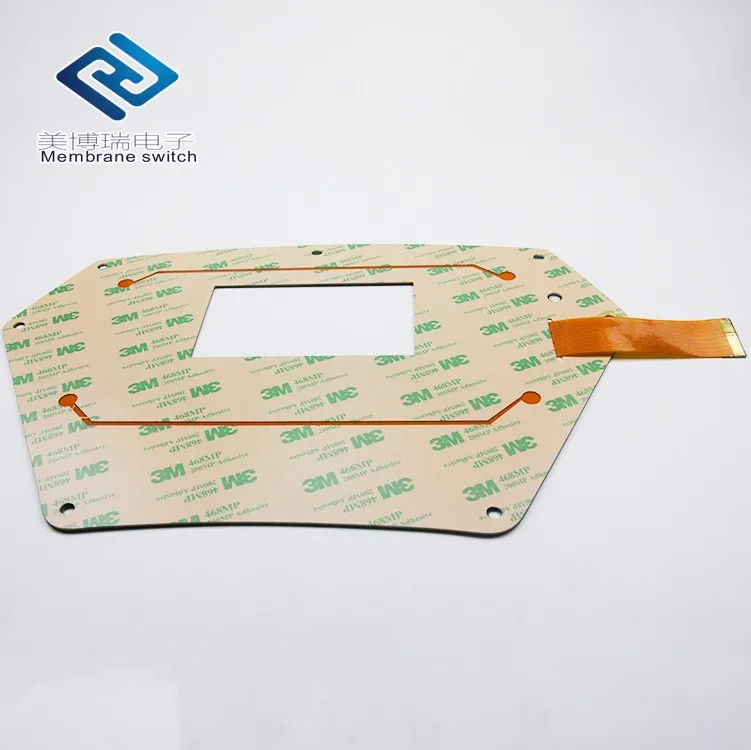

Back adhesive:
3M467,3M468
Tactile feeling:
metal dome/poly dome
Cable:
flexible,custom cable length,tracks pitch
Circuit:
printing silver ink on PET material
Connector:
2.54mm Female/Male Connector and Zip Connector
Material:
PET(polyester) PC(polycarbonate)
Name:
LED Lexan Membrane Control Panel Switch
Color:
Pantone or RAL color
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Custom Membrane Switch Keypads and Keyboards in Electronic Components & Suppliers
50 pieces in a plastic bubble bag then put in big size paper carton, or regarding to customers requirement.
Port
Beijing
Product Description

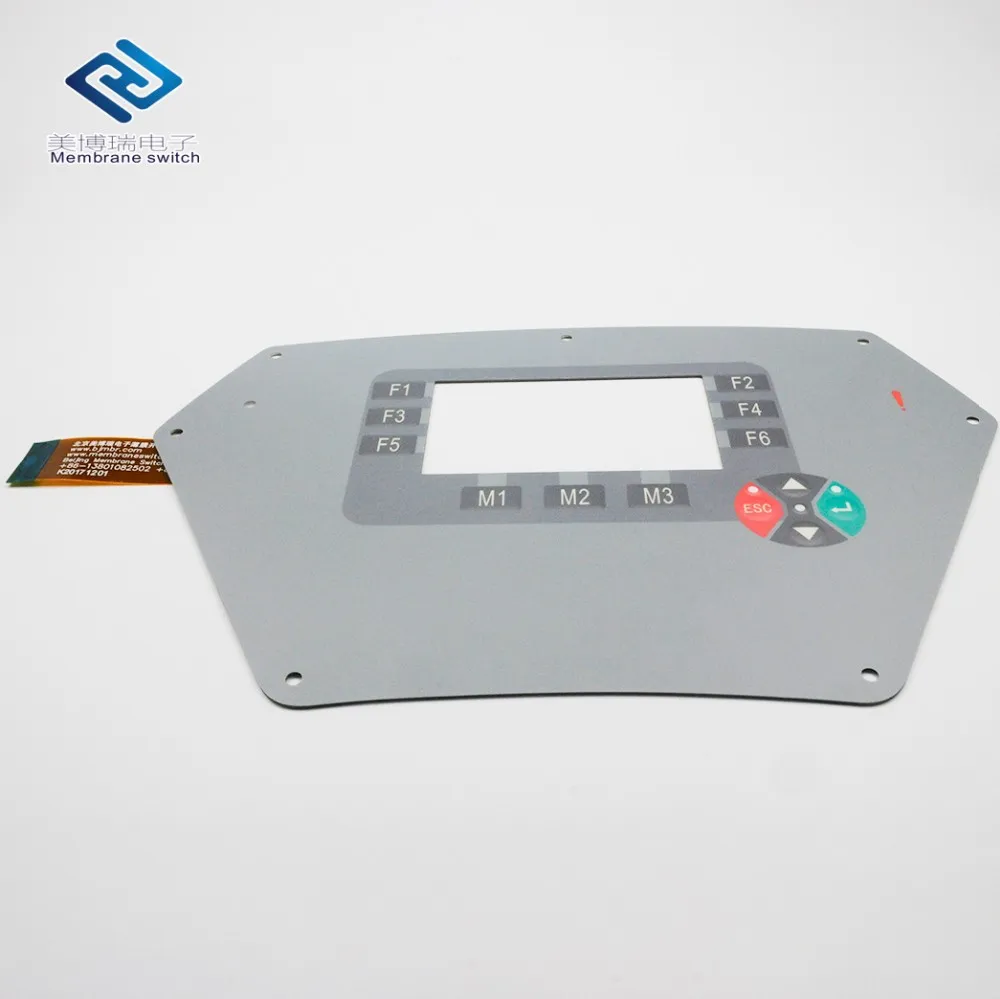

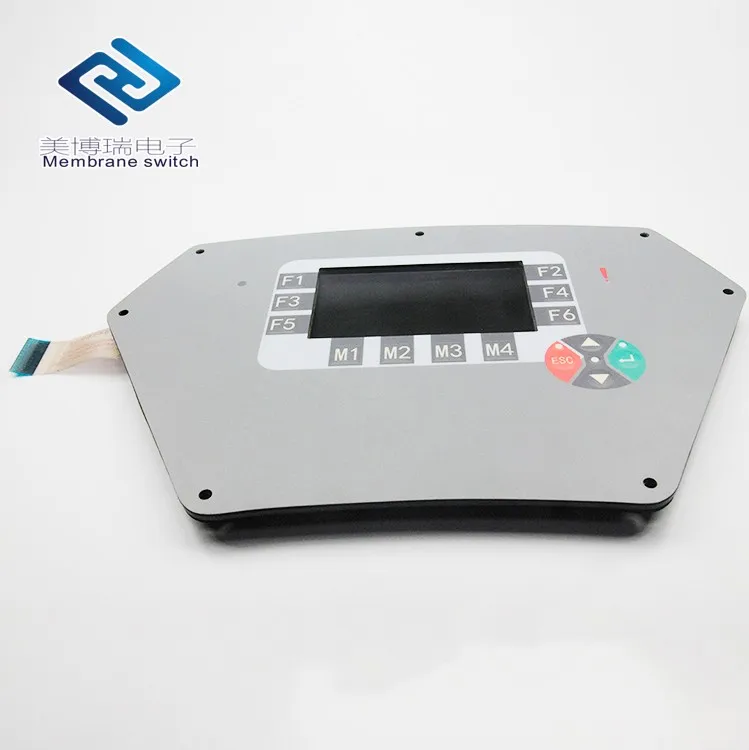

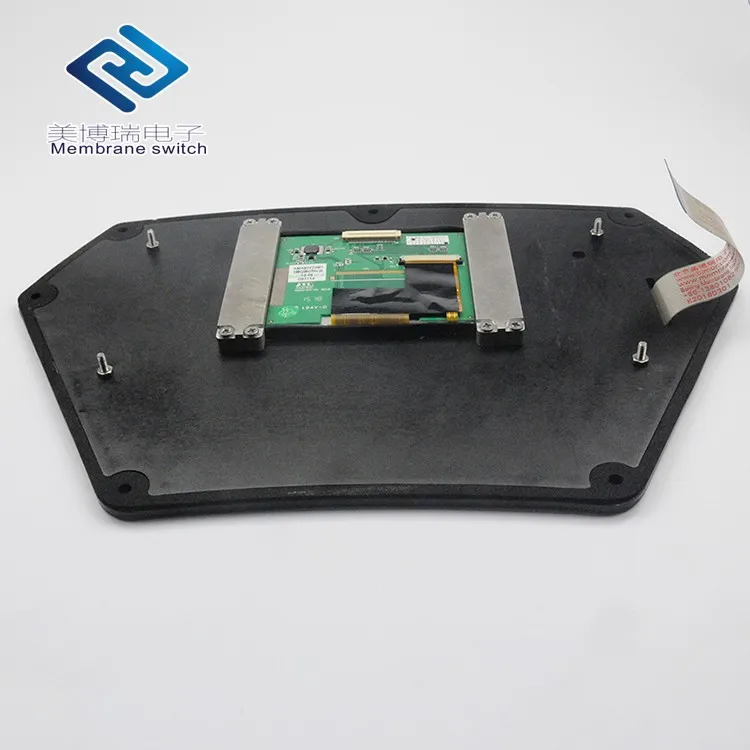

Hot selling Comfortable LED Lexan Membrane Control Panel Switch for PCB and LCD Display Assembly

Membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.


As a major partner with firms in Asia, Europe and North America, we also own and operate state-of-the-art manufacturing plants throughout Asia. Paired with our extensive research and development group, we provide precise, accurate and experienced engineering and graphics design capabilities to meet the standards and desires of your business. We are certified to ISO 9001:2000 and SGS, further proving the quality worksmanship of our products.

Related Products

Custom design membrane keypads, membrane keyboards and membrane switches for use in a wide range of industries. Get in touch today! - MeiBoRui(MBR)

Glossy Polycarbonate/Polyster

 Embossed Keys Membrane Switch Keypad/keyboard Control Panel

Customized PC/PET Membrane    Switch Keyboard with PCB/PCBA


Single/Double Side Flexible Printed Board FPC Membrane Switch

Control Panel

Membrane switches are essentially a sandwich of thin layers that are bonded together using pressure sensitive adhesives. Depending on the application requirements, a membrane switch will consist of as few as 4, and as many as 9 layers. In contrast to mechanical switches, membrane switches offer the advantage of lower cost, they consume less design space with their low profile, are easy to clean, and they offer a sleeker, ergonomic, and aesthetically pleasing appearance.

The visible top layer of a membrane switch is the graphic overlay, with printed circuitry underneath the overlay. The circuitry can also incorporate different layers such as polyester (silver flex), polyimide (copper flex), and rigid PCB layers. Activation of a switch occurs when a printed shorting pad or metal dome makes contact with the bottom circuit layer thus, closing the circuit.

Technical Parameters
1.
Components
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
2.
Dimension
According to customers demand,OEM service
3.
Surface material
PC(polycarbonate), PET(polyester)
4.
Embossed type
Pillow emboss, Dome emboss, Frame emboss

5.

Keys Options
For a tactile response and indicate the location of switches
1.Tactile Keys: metal domes or poly domes
2. Non-tactile keys: flat button, printed silver spot on the circuit
6.
Cables
The extension of circuit and communication with your device

7.

Circuitry option
1. Silver printed conductive inks
2.Copper etched circuit /Polyimide Kapton circuit ( FPC)
3.PCB circcuit board


8.


Connector Tail
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
2. Female connector with 2.54MM pitch
3.Male connector
4.Solder Pins
9.
Window
Clear or Transparent
10.
Surface
Glossy or matte
Our Company

MeiBoRui(MBR) Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, membrane keypad/keyboard and control panel as well as other correlate products. MeiBoRui(MBR) has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEIBORUI passed the international ISO 9001 certifications and we have been a member of it till now.Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

From establishment, our company is continuously expanding, so our products won the international market's recognition including Siemens, ABB, Haier and some well known enterprise. We took part in high speed railway locomotive control, three gorges project, aerospace industry and other state-owned project, and formed our own stable client base. The products exported to Germany and America reached 1 million pieces annually.

Nowadays, MeiBoRui(MBR) owns sixty professional mold-making machines controlled by digital computers, which successfully transformed silkscreen printing to digital printing. There are 4 Japanese Mimaki heat-setting digital printers and 11 cold light printers of various models. We have independent laser cutting workshops and 18 laser cutting machines of different models. The equipment of all departments includes 7 pressure machines, 4 cutting mould machines, 37 silkscreen printing machines, 3 drying tunnels, 8 curing machines, 6 punching machines, 7 digital engraving machines, 5 linear cutting machines and others machines.

eVonne
MEIBORUI Electronic Information Technology Co., Ltd.
Skype:+86 17098258983

QQ:1872823448
Mail: evonne(at)mbrxh.com
Website: https://mbrxh.en.alibaba.com

http://en.mbrxh.com

Application
Certifications
Packing & Delivery

Packing

1.Big paper carton for all membrane switches and graphic overlay (outer) .
2.White or red plastic bubble bag for tactile membrane keyboard (inner) .

Delivery


Delivery Time: small order 7--10 days, Mass production: 10-20 days
Payment Terms:T/T,Western Union,Visa, E-checking, PayPal
Supply Ability:100000 pieces per Month
FAQ
1. What about the sample policy?
(1)Free Samples: If you paid the shipment fee, we can provide free samples for you.
(2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a quotation.

2. What is the production time?
(1)Custom sample: About 7 days.
(2)Mass production: About 2--3 weeks

3. Can you do the design for us?

Yes.
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.

4. What information you need for quotation?
(1)Drawings, photos, requirement, quantity
(2)Overlay Dimension:
Material: PET/PC
Finish:Matte/Glossy
Adhesive:3M467/3M468
Button Embossed Or Flat
Button No. :3
LED No. :
Pin:
Pitch:2.54mm
Cable Length:30mm
Connector: Female /Male/DoPont Connector
Hole: None
5.How to control quality?
(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.
