Huali 20 Years Manufacturer Made Corrugated Carton Box Cutting Making Machine

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $158,000.00
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Automatic carton printing machine
Product name:
Corrugated Carton Box Cutting Making Machine
Automatic grade:
Full-Atuomatic
Voltage:
220V/380V/440V
After-sales Service Provided:
Engineers Avalible Overseas
Place of origin:
Dongguang Hebei China
Colors:
1-8 Color Units
Certificate:
CE/ISO-9001
Speed:
180pcs/min
Brand name:
Huali
Power:
30kw
Supply Ability
Supply Ability:
10 Set/Sets per Month for carton printing slotting machine
Packaging & Delivery
Packaging Details
Plastic Film for Huali 20 Years Manufacturer Made Corrugated Carton Box Cutting Making Machine
Port
Tianjin
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Product Description

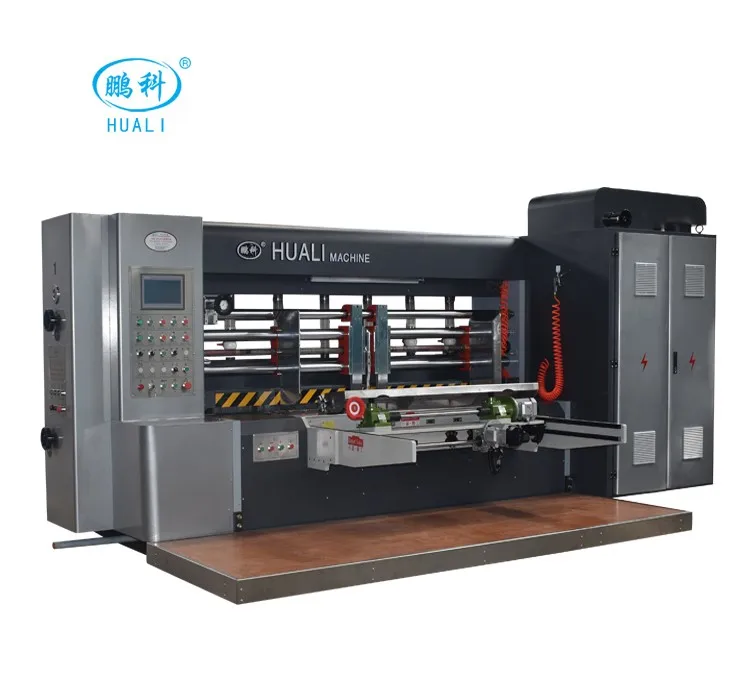

Huali 20 Years Manufacturer Made Corrugated Carton Box Cutting Making Machine

Function and characteristic

(Huali 20 Years Manufacturer Made Corrugated Carton Box Cutting Making Machine)

★Lead edge feeding system , vaccum adsorption transmission, suitable for all kinds of corrugated cardboard. Increase tissue paper board and bend cardboard transmission stability, high speed and precision.

★Main motor. fan motor phase motor controlled by inverter, adjust speed smooth, save electricity, accurated and reliable.

★High precision gear transmission, accurate and durable:  20CrMnTi high-frequency quenching, hardness HRC58-62, up to the national level 6 precision, use for a long time, high overprinting accuracy.

Total machine automatic reset zero system,storing common order, change order quickly, operation is convenient.

★Main drive bearing Japan NSK, other bearing brands for domestic HRB, ensure the transmission stability.

★Mechanical automatic uo oil lubrication system, equiped with automatic balancing device, increase the service life of gear.

Project
920
1224
1426
1628
Max Speed(pcs/min)
300
250
180
160
Feeding Precision(mm)
±1
Min Sheet Size(mm)
300*600
420*600
450*600
450*600
Max Sheet Size(mm)
860*2100
1150*2500
1350*2700
1500*2900
Skip Sheet Size(mm)
1200*2100
1500*2500
1800*2700
2000*2900
Max Printing Area(mm)
900*2000
1200*2400
1400*2600
1600*2800
Printing Precision(mm)
±0.5
Plate Thickness(mm)
7.2
                                Positive Knife(mm)
Min Slot Distance
                                Negatice knife(mm)
130*130*130*130

230*65*230*65
140*140*140*140

230*70*230*70
150*150*150*150

240*75*240*75
Max Slot Depth(mm)
230
300
360
400
Slotting Precision(mm)
±1
Max Die Cutting Size
900*1950
1200*2400
1400*2600
1600*2800
Die Cutting Precision(mm)
±1

Increase The Blade , Increase  the slot depth.

Mention: We Can make the Huali 20 Years Manufacturer Made Corrugated Carton Box Cutting Making Machine machine as your needs.(1-8 color optional)

Also we have economical automatic machine .

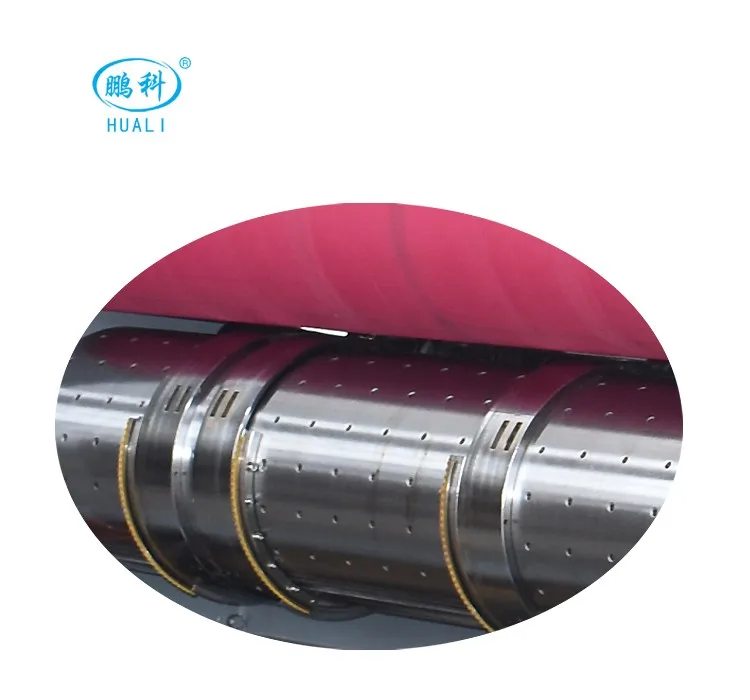

Feeding Unit

1,Roller type front feeding structure,rounds,multipoint suction feeding,high friction,high speed,paper feeding
smoothly and accurate.
2,Frequency conversion of suction can adjust the wind volume,and the wind pressure can be adjusted by the
size of the paperboard,increase the thin board and the bend board convey stability and accurately

Printing Unit

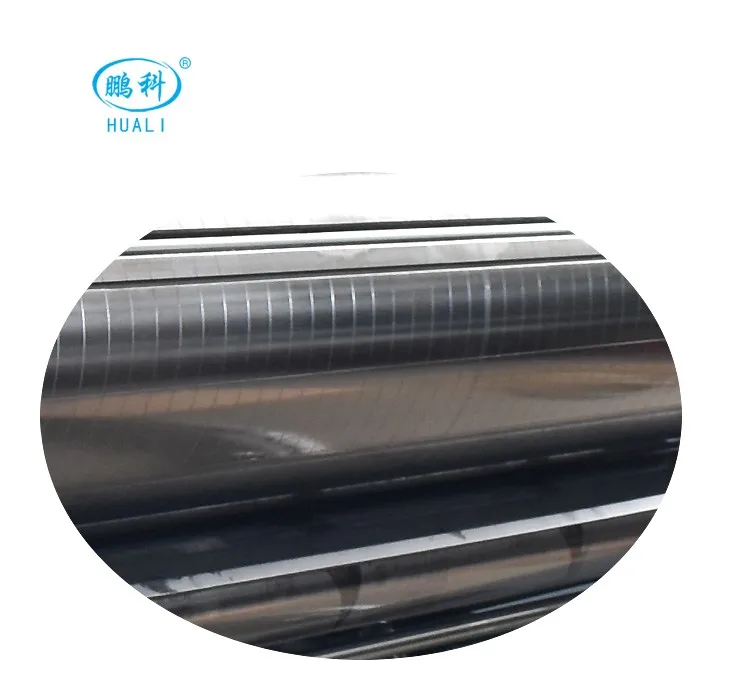

1.The printing roller and trace pressing roller adop good quality without gap steel roller ,surface is treated by lapping finish, after balance correct and hard chrome plating, smooth operation.
2.Adopting the hang printing plate system,it is easy to change printing plate ,and installed switch by feet ,which is convinent to hang printing plate

Slotting Unit

1.All the carton size , include the carton height and Phase is finished by computer , human machine Interface ,save time and labor , improved work Efficiency
2.Adopt double roller configuration , large Diameter Pressing line wheel , with good Pressing line effect .
3. Four knife linkage synchronous device:Refers to the knife, the knife, on line pressing theory, the line pressing roller, and at the same time synchronous mobile, the convenience of our customers operation, quick, which can improve the work efficiency, and saves the cost of production.

Die Cutting Unit

1. mechanical type horizontal 40 mm, move device, die-cutting equalizer automatic compensation linear speed , can make the die cutting rubber gasket even wear, prolong service life.

2.repair adopt electric repair device, improve the rubber gasket repeat utilization rate, can repair 3-4 times.

3. die cutting roller automatic pneumatic separation device, reduce wear maxduia rubber gasket , thus improve the service life.

Detailed Image

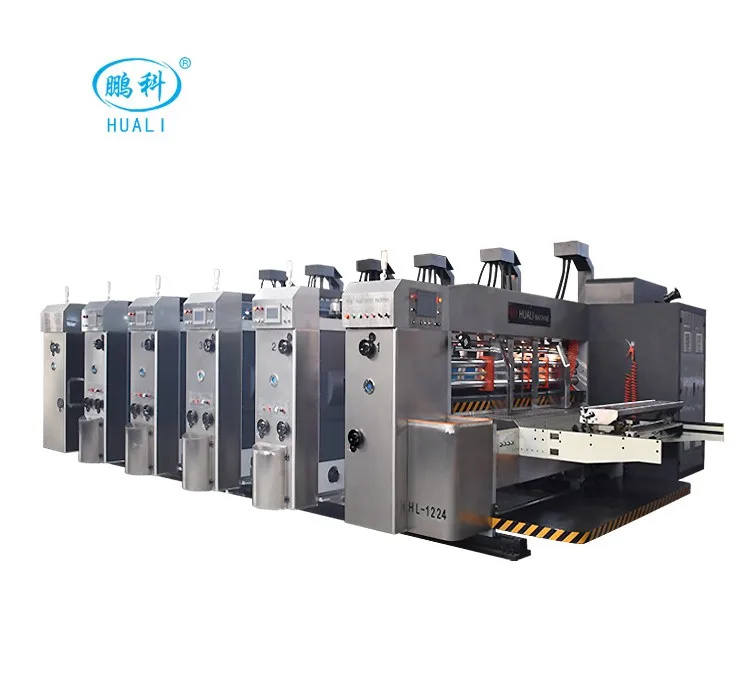

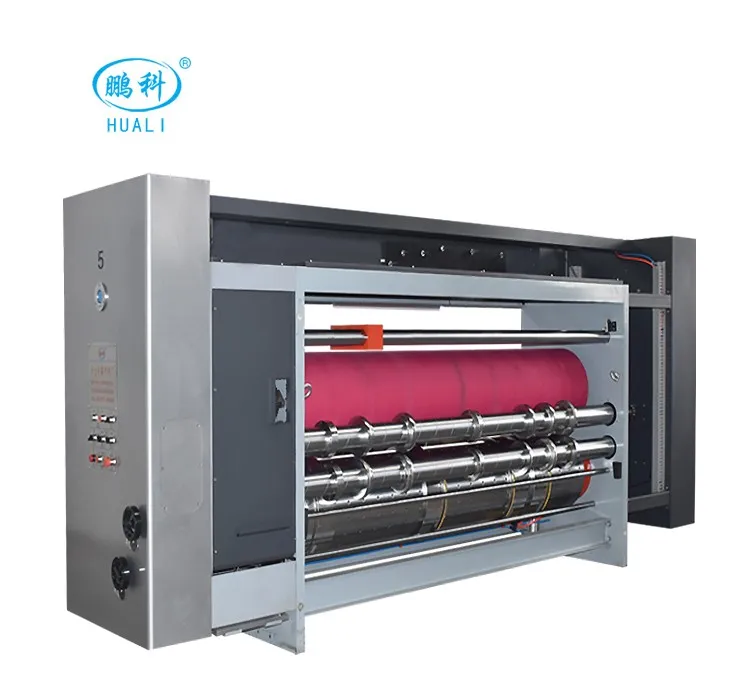

Huali 20 Years Manufacturer Made Corrugated Carton Box Cutting Making Machine

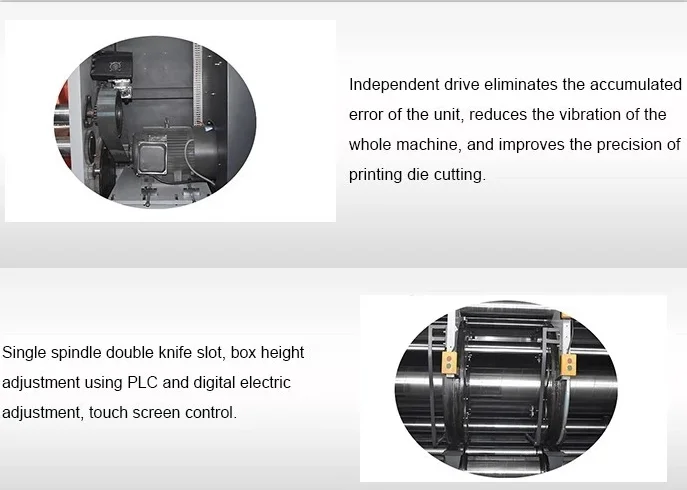

Advantages

We designed the machine all according to the customers ' convenience

Our exhibition

2019 Exhibition in Shanghai

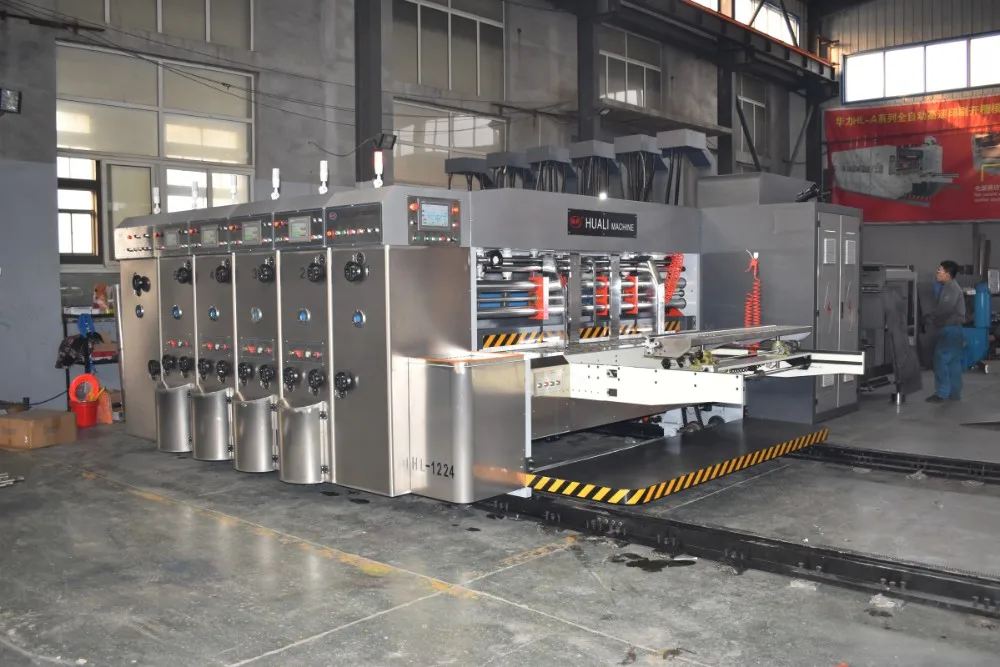

Our Customer

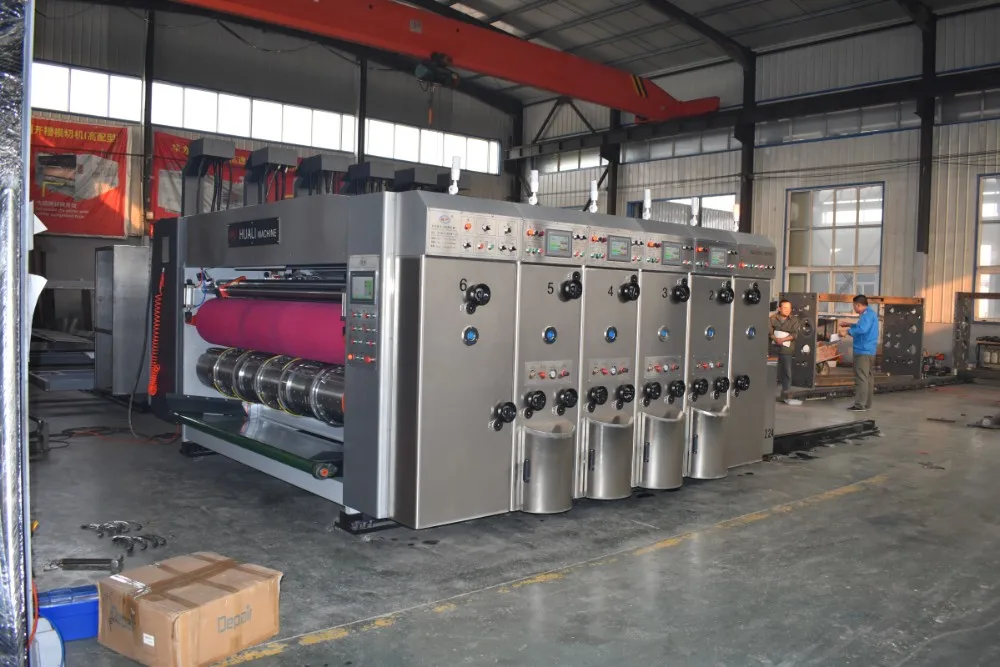

Our customer visit our exhibition and factory ,  and my engineer test machine in my

customer factory .

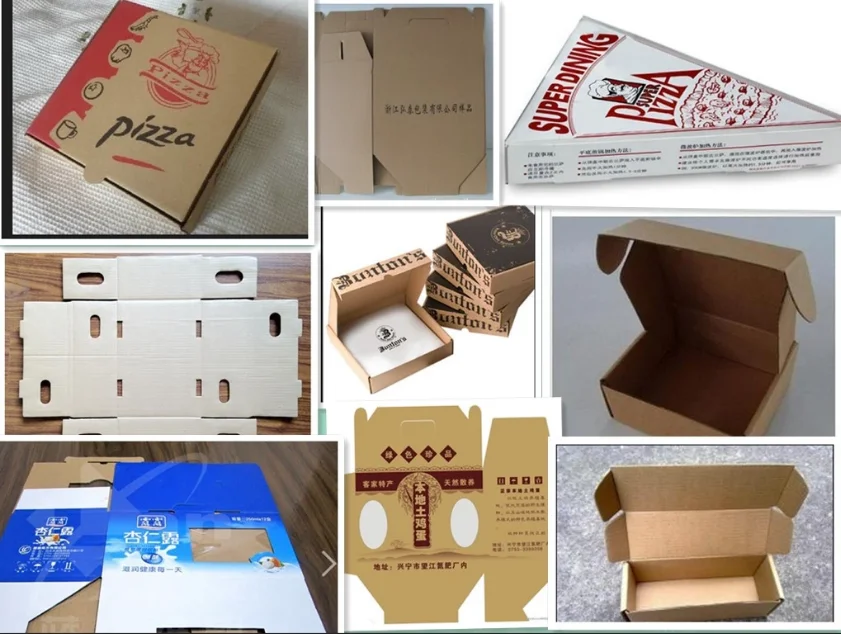

Our printing sample show

This our printing sample in carton machinery exhibition.

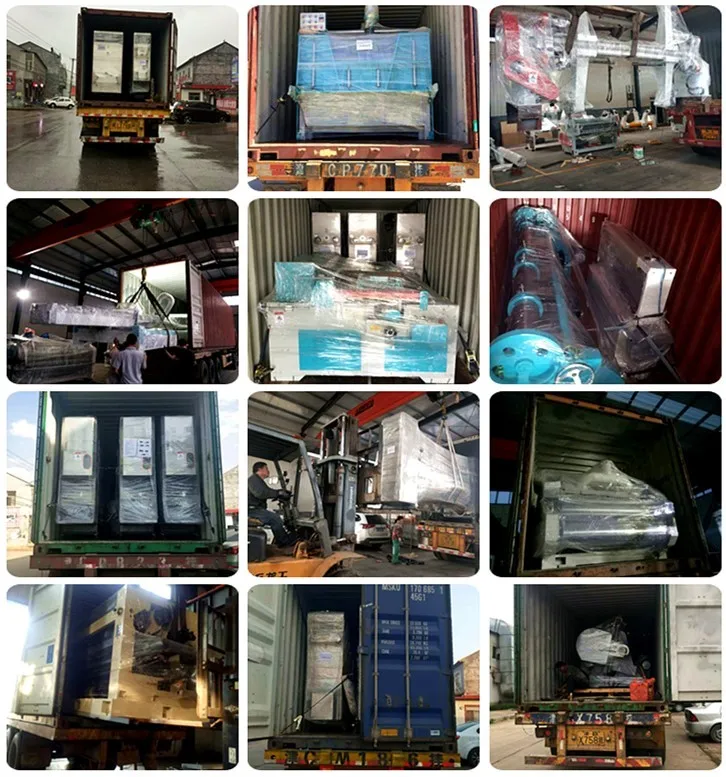

Packing & Delivery

Many kinds corrugated carton machinery export to all over the world

FAQ

We Are Manufacturer Not Trading Company!!!

Give You The Most Proffessional Service And Suggestion
