Huawei IP Dslam GPON EPON ADPE ASPB VDGE VDLE ASRB SHLH DSLAM SmartAX MA5616

FOB Reference Price:Get Latest Price
$100.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
HUAWEI
Model Number:
HUAWEI MA5616 DSLAM
Color:
Black
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package
Port
Any ports of China



Huawei IP Dslam GPON EPON  ADPE ASPB VDGE VDLE ASRB SHLH DSLAM SmartAX MA5616



Product Description

 The DSLAM SmartAX MA5616 (the MA5616 for short) is an industry-leading remote multi dwelling unit (MDU) launched by Huawei, which supports flexible configurations and provides broadband services on Fiber To The Building (FTTB) and Fiber To The Curb (FTTC) networks. The MA5616 is a box-type device measuring 2-U high and 19-inch wide and providing two GPON or GE uplink ports and ADSL2+,VDSL2, SHDSL, POTS, ISDN, FE and GE ports. The MA5616 features a high access density, high processing capability, high reliability, easy maintenance, environment-friendlily and energy conservation, and future-oriented architecture design and can be used in corridors, cabinets, indoor, and outdoor usage scenarios.



 Characteristics


High access density
Flexible configurations
Support for the P2P optical access board
Perfect voice features
Plug-and-play (PnP) service provisioning
Efficient management and maintenance

 High reliability
Prudent security measures:
Environmen friendly and energy conservation
Future-oriented architecture design

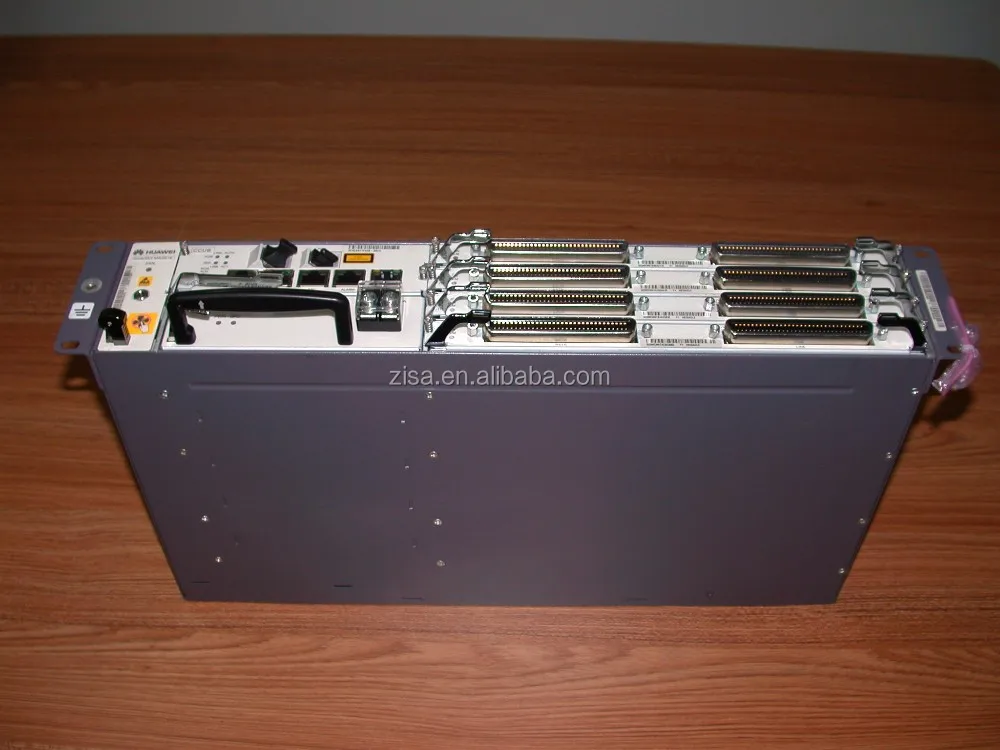

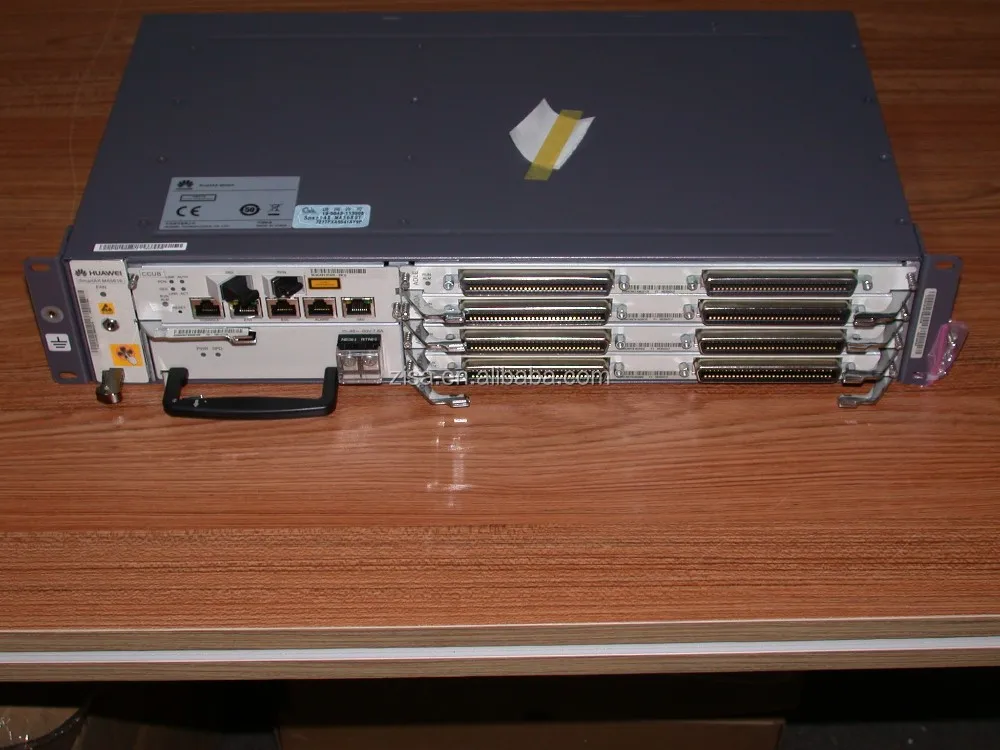

Pictures













Specifications



Features CCUB control board CCUC control board
Dimensions (H×W×D) 88.1mm × 442mm × 245mm 88.1mm × 442mm × 245mm
Network-side port The MA5616 supports the following configurations:
• 1 × GPON + 1 × GE
• 2 × GE The MA5616 supports the following configurations:
• 1 × GPON + 1 × GE
• 2 × GE

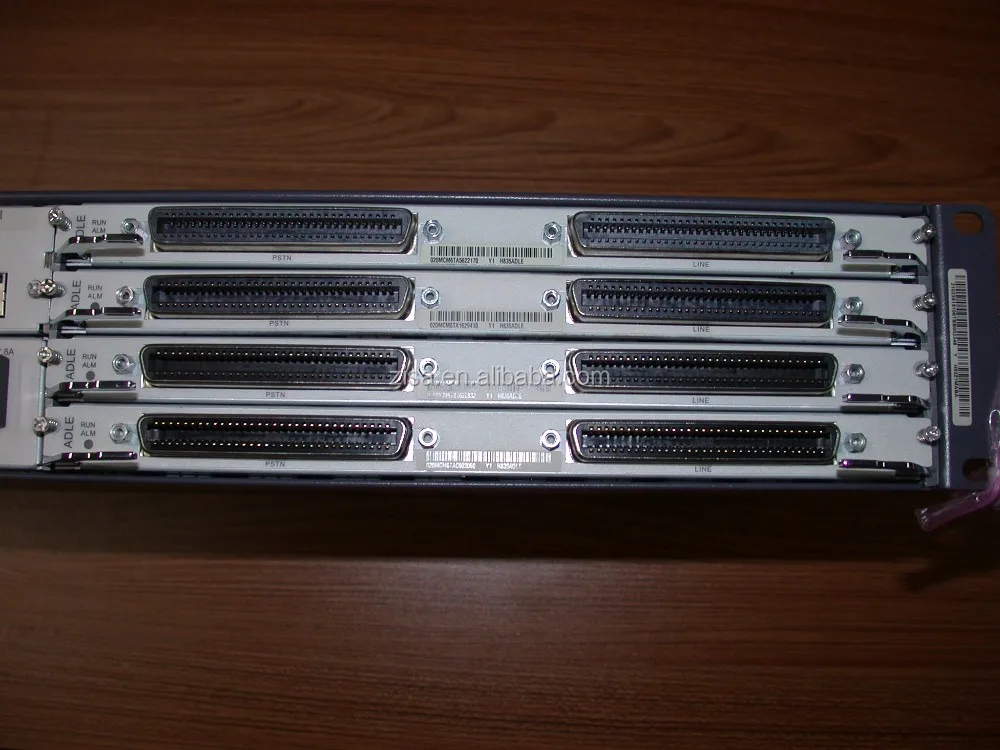

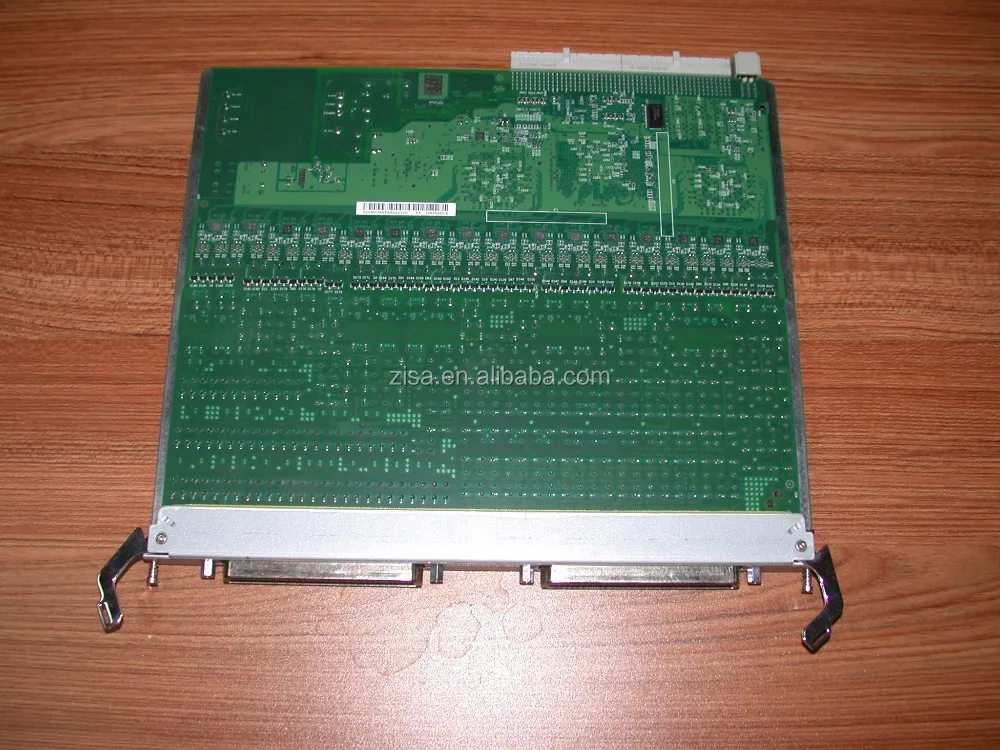

User-side port The MA5616 provides four slots and the following 10 service boards:
• 24-channel VDSL2 board (17a, over POTS, built-in SPL)
• 24-channel VDSL2 board (17a, over POTS, external SPL)
• 24-channel VDSL2 board (17a, over ISDN, external SPL)
• 16-channel VDSL2 board (30a, over POTS, built-in SPL)
• 32-channel ADSL2+ board (built-in SPL)
• 32-channel combo board (32 × POTS + 32 × ADSL2+)
• 64-channel POTS board
• 32-channel POTS board
• 8-channel ISDN board
• 16-channel G.SHDSL board (supporting ATM and PTM) The MA5616 provides four slots and the following 13 service boards:
• 24-channel VDSL2 board (17a, over POTS, built-in SPL)
• 24-channel VDSL2 board (17a, over POTS, external SPL)
• 24-channel VDSL2 board (17a, over ISDN, external SPL)
• 16-channel VDSL2 board (30a, over POTS, built-in SPL)
• 32-channel ADSL2+ board (built-in SPL)
• 32-channel combo board (32 × POTS + 32 × ADSL2+)
• 64-channel POTS board
• 32-channel POTS board
• 8-channel ISDN board
• 16-channel G.SHDSL board (supporting ATM and PTM)
• 16-channel FE (electrical) board
• P2P board with 4 GE (combo of optical port and electrical port) + 4 FE (optical port)
• 48-channel VDSL2 board (17a, over POTS, external SPL, supporting MELT)
Operating temperature -40℃ to 65℃; startup at -25℃ -40℃ to 65℃; startup at -25℃
Humidity 5% to 95% (non-condensing) 5% to 95% (non-condensing)
Heat dissipation mode Providing fans for heat dissipation. The rotating speed can be automatically adjusted. Providing fans for heat dissipation. The rotating speed can be automatically adjusted.
Power supply AC: 220 V/110 V
DC: -48 V AC: 220 V/110 V
DC: -48 V
Backup power Support for 48-V backup power Support for lead-acid batteries and LiFePO4 batteries Support for 48-V backup power Support for lead-acid batteries and LiFePO4 batteries
Weight 4.8 kg (empty chassis)
7.2 kg (full configuration) 4.8 kg (empty chassis)
7.2 kg (full configuration)

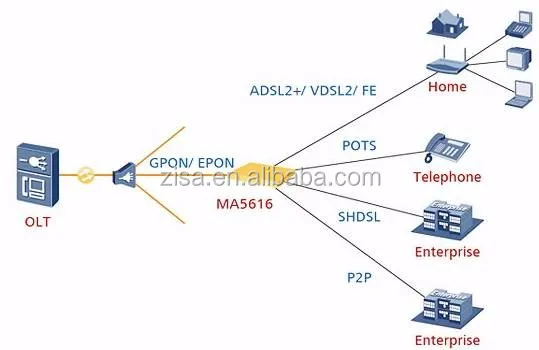

DeploymentScenarios

The MA5616 provides two GPON or GE uplink ports and providesmultiple services by supporting flexible board configurations. The MA5616provides broadband, voice, and video services through ADSL2+/ VDSL2/FE boards, voicesservice through POTS boards, leased line services through SHDSL or P2P boards.

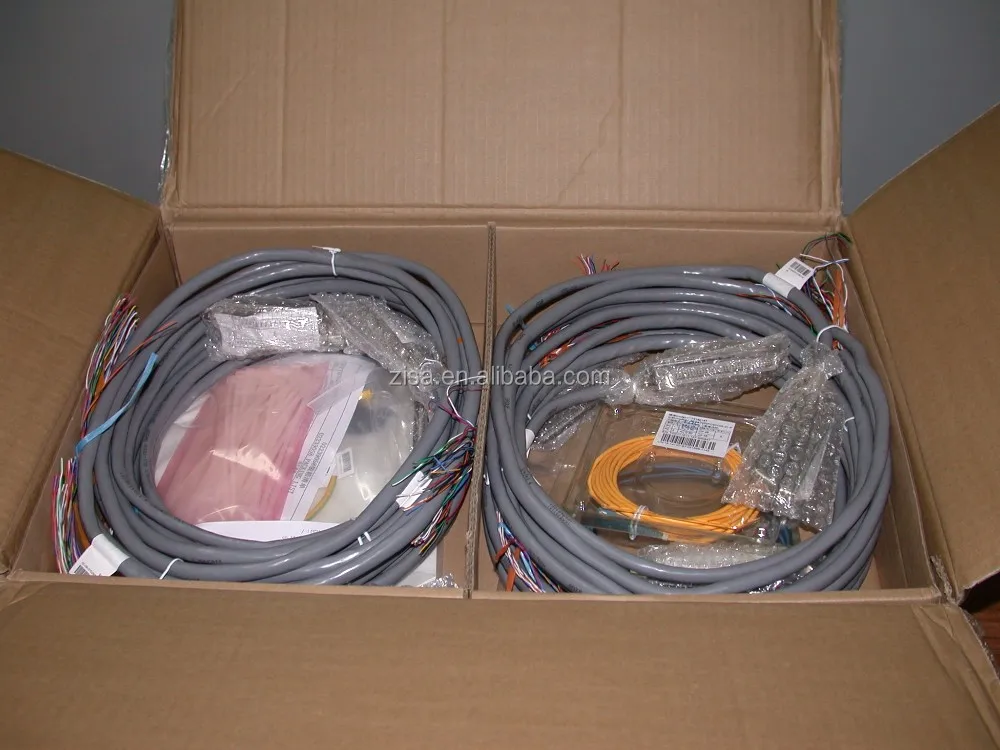

Packaging & Shipping
