FOB Reference Price:Get Latest Price
$1,800.00 - $3,000.00 / Pieces | 4 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
482.6 mm x 245 mm x 88.1 mm
≤ 9.1 kg
Working environment temperature:
-40°C to +65°C
Working environment humidity:
5% RH to 95% RH
Atmospheric pressure:
70 kPa to 106 kPa
≤ 4000 m
DC Working voltage range:
-38.4 V DC to -72 V DC
AC Working voltage range:
90 V AC to 264 V AC
DC Maximum input current:
AC Maximum input current:
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard packing or according to customer's requirements.
Lead Time :
Within 35 working days after receiving full payments.


1.128 ports mini VDSL ADSL DSLAM..
2.It provides four service slots for flexible board configurations.

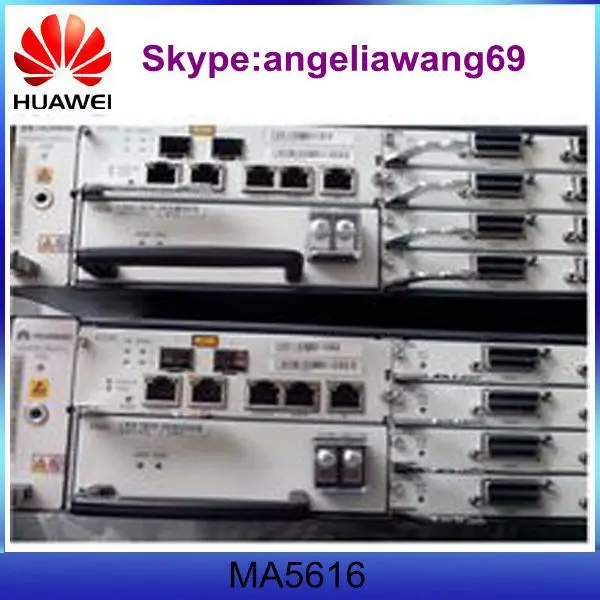

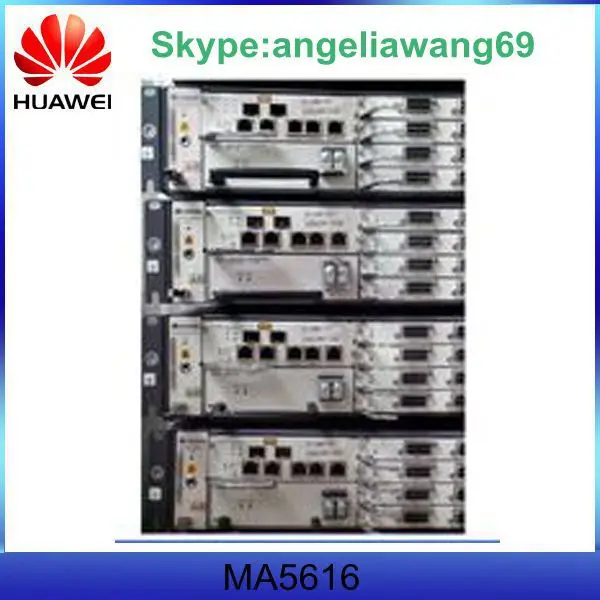

Huawei MA5616 Mini VDSL ADSL  IP DSLAM

The SmartAX MA5616 Multi-service Access Module (MA5616 for short) is a 2-U high and 19-inch wide board-inserted device. It provides four service slots for flexible board configurations.

The MA5616 applies in fiber to the building (FTTB) and fiber to the curb (FTTC) scenarios. It can also function as a mini-digital subscriber line access multiplexer (DSLAM) or multiservice access node (MSAN). The MA5616 can be installed in corridors or cabinets (indoor or outdoor).

Each MA5616 provides user-to-network interfaces (UNIs), such as ADSL2+, VDSL2, SHDSL, POTS, FE, P2P, ISDN, or combo ports, and two network-to-network interfaces (NNIs) that support GPON and GE.

The SmartAX MA5616 Multi-service Access Module (MA5616) is a board-pluggable box-type device of 2 U high and 19-inch wide. It provides access services with ultra-high bandwidths and flexible capacity expansion capabilities.


  • The MA5616 provides the following user ports: asymmetric digital subscriber line 2 plus (ADSL2+), very-high-speed digital subscriber line 2 (VDSL2), single-pair high-speed digital subscriber line (SHDSL), plain old telephone service (POTS), integrated services digital network (ISDN) and fast Ethernet/gigabit Ethernet (FE/GE).
  • It provides GPON/10G GPON/GE upstream transmission modes. It can be used in fiber to the building (FTTB), fiber to the curb (FTTC), and dedicated line access scenarios.
  • The MA5616 can also be used as a mini digital subscriber line access multiplexer (DSLAM) or a multiservice access node (MSAN) to provide traditional voice, data, and video services.

Figure 1 Position of the MA5616 on the network

Table 1 Feature list



Layer 2 management

  • MAC address management
  • VLAN management
  • Flow bundle
  • Layer 2 forwarding policiesLayer 2 isolation
    • Outer VLAN+MAC forwarding
    • Service VLAN (S-VLAN)+customer VLAN (C-VLAN) forwarding
  • Layer 2 bridging
  • Transparent transmission of protocol packets
  • 1:1 virtual MAC address (VMAC)
  • N:1 VMAC

Quality of service (QoS)

  • Traffic classification policies
  • Priority processing
  • Traffic policing
  • Congestion control
  • Access control list (ACL) policies

Emulation services

  • PPPoE dialup emulation
  • Dynamic Host Configuration Protocol (DHCP) dialup emulation
  • Call emulation
  • Multicast service emulation

Layer 3 features

  • DHCP Client
  • Address Resolution Protocol (ARP)
  • Domain name service (DNS) client
  • Static route


  • Internet Group Management Protocol (IGMP) version 2 or version 3 proxy and snooping
  • Multicast users
  • Multicast logs
  • Port-based multicast connection admission control (CAC)


  • IPv6 traffic classification
  • IPv6 ACL
  • DHCPv6 layer 2
  • IPv6 basic protocol stack
  • IPv6 basic routing
  • IPv6 neighbor discovery (ND)
  • IPv6 security
  • IPv6 multicast listener discovery (MLD)
The CCUB control board does not support IPv6 features.

Voice services

  • H.248
  • Session Initiation Protocol (SIP)
  • Semi-permanent connections (SPCs)
  • Voice signal processing
  • Voice service test and maintenance
  • Reliability of voice services


  • H.248
  • SIP
  • ISDN attendant system (H.248 is used)

Networking features

  • Multiple Spanning Tree Protocol (MSTP)
  • Link Aggregation Control Protocol (LACP)
  • Layer 2 virtual private network (L2VPN)
  • PON type B protection
  • GPON type C protection

User security

  • Policy Information Transfer Protocol (PITP)
  • DHCP option 82
  • Relay agent info option (RAIO)
  • MAC address anti-flapping
  • MAC address anti-spoofing
  • IP address anti-spoofing
  • Access user isolation
  • Ring check
  • 802.1X authentication
    The CCUB control board does not support 802.1X authentication.

System security

  • Source MAC address filtering
  • Destination MAC address filtering
  • Denial of service (DoS) anti-attack
  • IP packet anti-attack
  • Internet Control Message Protocol (ICMP) packet anti-attack
  • Source route filtering
  • Firewall
  • Blacklist
  • Permitted or denied address segment
  • Service overload control

Operation and maintenance security

  • SNMP
  • SSH
  • User management
  • Remote connection security
  • Log management

Line security

  • Advanced Encryption Standard (AES) 128 encryption for GPON downstream transmission
  • AES 128 encryption for 10G GPON downstream transmission
    Only the CCUD and CCUE support AES128 encryption.

Operation and maintenance features

  • Ethernet operations, administration and maintenance (OAM), including connectivity fault management (CFM) and Ethernet in the first mile (EFM)Access Node Control Protocol (ANCP)
    • Enabling or disabling ETH OAM 802.1ag globally
    • Y.1731-defined CFM
    • Y.1731-defined bidirectional diagnosis tests, including bit error rate (BER) tests
  • Single-ended loop test (SELT)
  • Metallic loop test (MELT)
    Only the VCMM and VDMM service boards support MELT.
  • Batch dynamic line management (DLM) performance statistics measurement
  • Line optimization
  • Startup time optimization
  • Local operation and maintenance
  • Remote operation and user management
  • Version and data management
  • Device exception management
  • GPON MxU authentication
  • Remote DHCP software commissioning for GE upstream transmission
  • Remote network access control (NAC) software commissioning for GE upstream transmission
  • N2510 intelligent diagnosis

Clock features

  • Network time synchronization
  • Line clocks recovered on upstream ports

Environment monitoring

  • Providing one environment monitoring port that supports four digital parameters (default: smoke, door status, surge protection, and main distribution frame)
  • 4830 power monitoring
  • SMU
  • MiniESC


  Figure 1 ONU management using the U2000


  • Inband network management mode: In this mode, the interaction messages between the U2000 and an ONU are transmitted over the service channel of the ONU and no additional device is required. This mode is cost-effective and supports flexible networking. However, the maintenance operations cannot be performed if the device service channel becomes faulty.
  • Outband network management mode: In this mode, the interaction messages between the U2000 and an ONU are transmitted through a non-service channel. This mode provides a more reliable device management channel. When a fault occurs on the device, users can use the dedicated management channel to locate the fault and monitor the device in real time. This mode requires an additional device to provide a management channel that is independent of the device service channel.
