Huawei MA5628 Outdoor 4 Ports GPON EPON ONU China Supplier

FOB Reference Price:Get Latest Price
$1.00 - $600.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Huawei
Model Number:
MA5628
Type:
ONU
Dimension:
450 mm x 305 mm x 110 mm
User-side port:
4 GE/FE (electrical) + 4 E1 ports
Network-side port:
2 EPON/2 GPON ports
Heat Dissipation mode:
Not providing fans; passive cooling
Lightning Protection capability:
6 KV
Power supply:
AC power supply: 110 VAC or 220 VAC
Humidity:
5% to 95% (non-condensing)
Operating temperature:
-40℃ to +55℃
Supply Ability
Supply Ability:
200 Set/Sets per Week
Packaging & Delivery
Packaging Details
Original HUAWEI carton package
Port
Shanghai
Lead Time :
Within 3~5 working days after receiving the full payment

Huawei MA5628 Outdoor 4 Ports GPON EPON ONU China Supplier



Product Description

Huawei MA5628 Outdoor 4 Ports GPON EPON ONU China Supplier















  • The SmartAX MA5628 (the MA5628 for short) is an industry-leading remote multi dwelling unit (MDU) , which provides leased line services on a passive optical network (PON).
  • The MA5628 is a box-type device measuring 1-U high and 19-inch wide and providing two GPON uplink ports, four GE or FE ports, and four E1 ports. The MA5628 features a broad temperature range, low power consumption, mute design, high stability, environment friendlily and energy conservation, and can be used on workbenches and installed in corridors and cabinets, meeting leased line service deployment of customers.













Features

GPONITU G.984-compliance
32 T-CONTs
1024 GEM ports
Broadband4096 VLANs, supporting QinQ and stacking VLANs
4096 MAC addresses,supporting VMAC
802.1p, supporting PQ and WRR flow control, and ACL
Leased line serviceNative TDM
Clock source recovery of the E1 port
Loopback, blocking and unblocking of the E1 port
MulticastIGMPv2 and IGMPv3
IGMP proxy and IGMP snooping
A maximum of configurable 1024 multicast programs in the system
A maximum of 48 multicast users
A maximum of 16 concurrent multicast programs for each user
SecurityPPPoE+ and DHCP option82
Static and dynamic MAC address binding
Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering
Anti-DoS attack and firewall
Maintenance
and
management
SNMPv1, SNMPv2, and SNMPv3
Telnet and SSHv2
Remote and batch pre-deployment
Remote upgrade and monitoring







Highlights

  • Support for multiple clock synchronization technologies, such as synchronous Ethernet, E1 line clocks and GPON line clocks.
  • Operable IPTV services: Strong service switching capability, packet forwarding capability, and high integration (data exchange and user management) enable the MA5628 to have carrier-class multicast operation capability.
  • Plug-and-play (PnP) service provisioning: The MA5628 allows remote issuing of configuration. A management channel and service channel are created after the MA5628 is powered on and registers successfully. Manual onsite configuration is not required.
  • Efficient management and maintenance: free of field software commissioning, remote acceptance, remote upgrade and patch installation, and remote fault location.
  • High reliability: The MA5628 supports the working temperature from -40℃ to 55℃, 6 kV lightning protection, and corrosion-proof design of boards.
  • Prudent security measures: The MA5628 meets security requirements of telecom services to ensure system and user security.





 Characterstics
  • Support for multiple clock synchronization technologies, such as synchronous Ethernet, E1 line clocks and GPON line clocks.
  • Operable IPTV services: Strong service switching capability, packet forwarding capability, and high integration (data exchange and user management) enable the MA5628 to have carrier-class multicast operation capability.
  • Plug-and-play (PnP) service provisioning: The MA5628 allows remote issuing of configuration. A management channel and service channel are created after the MA5628 is powered on and registers successfully. Manual onsite configuration is not required.
  • Efficient management and maintenance: free of field software commissioning, remote acceptance, remote upgrade and patch installation, and remote fault location.
  • High reliability: The MA5628 supports the working temperature from -40℃ to 55℃, 6 kV lightning protection, and corrosion-proof design of boards.
  • Prudent security measures: The MA5628 meets security requirements of telecom services to ensure system and user security.

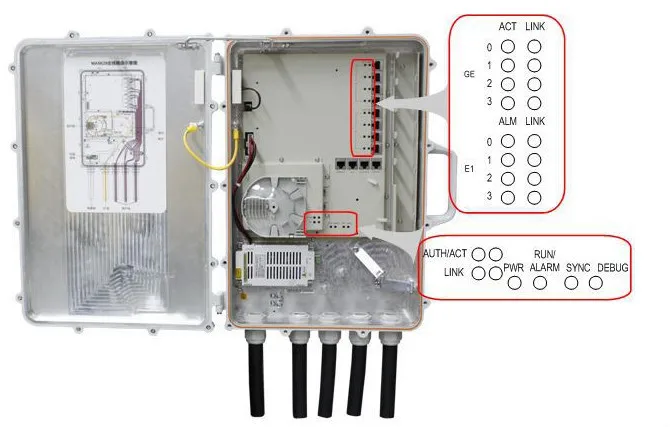

Structure





indicators

Indicator

Status Description

Status indicator of

the upstream transmission port (GPON)

LINK: steady on in green

The upstream transmission port receives optical signals.

LINK: off

The upstream transmission port does not receive optical signals.

AUTH/ACT: steady on in green

The MA5628 has successfully registered.

AUTH/ACT: blinking in green

The MA5628 is registering.

AUTH/ACT: off

The upstream transmission port does not receive optical signals.

Status indicator of the

GE/FE electrical port

Steady on in green

A connection is being set up on the port.

Off in green

No connection is set up on the port.

Blinking in yellow

The port is transmitting or receiving data.

Off in yellow

The port is not transmitting or receiving data.

Status indicator of the E1 port

Off

The port is unused

Steady on in green

The port is normal

Steady on in yellow

The LOS or other critical alarm on the port

PWR: status indicator of the power supply

Steady on in green

The MA5628 is powered on normally.

Off

The MA5628 is powered off.

RUN/ALARM: running status indicator

On for 0.25s and off for

0.25s repeatedly in red

The MA5628 is starting up.

On for 1s and off for 1s

repeatedly in green

The MA5628 is working in the normal state.

Steady on in red

The MA5628 is faulty.

SYNC: clock synchronization indicator

It is steady green.

The output of clock time port is normal.

It is steady red.

The output of clock time port is abnormal.

DEBUG:

debugging indicator

This indicator is only provided by MA5628 integrated device.

The debug indicator is reserved in the system and has no output status.










Specifications

Dimensions (H×W×D)450 mm x 305 mm x 110 mm
Network-side port2 × EPON
2 × GPON
User-side port4 × GE/FE (electrical) + 4 × E1
Operating temperature-40℃ to +55℃; startup at -25℃
Humidity5% to 95% (non-condensing)
Heat Dissipation modeNot providing fans; passive cooling
Lightning Protection capability6 KV
Power supplyAC power supply: 110 VAC or 220 VAC
Weightat most 9kg






Packaging & Shipping



Trade Info:



          ·   Trade terms: FOB,CIF,CFR,etc
          ·   Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
          ·    Payment Terms: T/T in advance
          ·    MOQ:1 pcs
          ·   FOB Price:US $1 - 1,000 / Piece
          ·   Port: Shanghai
          ·   Lead time: Within 5 working days after receipt payment.
          ·   Shipment: Express, Air, Sea
          ·   Supply capability: 200 Piece/Pieces per Week
          ·   Sample availability: Yes( not free)
          ·   Package information: carton package with Huawei original package







Company Information



Shanghai Combasst Industry Development Co,.Ltd. is a professional trading company which commits to import and export business.
Main products: communication equipment, machinery equipment, household appliances, electronic products, daily necessities.


Main agency business: declare at customs or clearance, commodity inspection, warehousing, international transport, receipt and payment of foreign exchange, international insurance, pay for export drawback, etc.


We regard “innovation, high quality, good faith, service” as our company’s purpose. And we also stick to our company’s spirit that “self-confidence, harmonious, pragmatic, up-and-coming”. We are willing to sincerely cooperate with both domestic and foreign customers, develop trade as well as friendship.



Our Services



  • We can provide detail documents and remote help for device installation and configuration.
  • Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
  • Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days ,returned goods must keep original state and it’s accessories are complete.
