Huawei Mini IP DSLAM MA5616 ADSL DSLAM with 256 Port

FOB Reference Price:Get Latest Price
$600.00 - $1,000.00 / Sets | 1 Set/Sets Huawei Mini IP DSLAM MA5616 ADSL DSLAM with 256 Port (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HUAWEI
Model Number:
Huawei MA5616
Type:
ADSL DSLAM
Slot:
4
Dimensions:
88.1mm*442mm*245mm
Network-side port:
1*GPON + 1*GE/2*GE
Operating temperature:
-40oC to 65oC; startup at -25oC
Humidity:
5% to 95% (non-condensing)
Power supply:
AC: 220 V/110 V;DC: -48 V
Weight:
4.8 kg (empty chassis)
Weight-2:
7.2 kg (full configuration)
User-side port:
ADSL/VDSL/SHDSL
Supply Ability
Supply Ability:
200 Set/Sets per Week Huawei Mini IP DSLAM MA5616 ADSL DSLAM with 256 Port
Packaging & Delivery
Packaging Details
original carton package
Port
shanghai
Lead Time :
within 5 working days after the receipt of the payment

Huawei Mini IP DSLAM MA5616 ADSL DSLAM with 256 Port



Product Description



The SmartAX MA5616 Multi-service Access Module (MA5616) is a board-pluggable box-type device of 2 U high and 19-inch wide. It provides access services with ultra-high bandwidths and flexible capacity expansion capabilities.

The MA5616 provides the following user ports: asymmetric digital subscriber line 2 plus (ADSL2+), very-high-speed digital subscriber line 2 (VDSL2), single-pair high-speed digital subscriber line (SHDSL), plain old telephone service (POTS), integrated services digital network (ISDN) and fast Ethernet/gigabit Ethernet (FE/GE). It provides GPON/10G GPON/GE upstream transmission modes. It can be used in fiber to the building (FTTB), fiber to the curb (FTTC), and dedicated line access scenarios, and can also be used as a mini digital subscriber line access multiplexer (DSLAM) or a multiservice access node (MSAN) to provide traditional voice, data, and video services.





Product Positioning



The SmartAX MA5616Multi-service Access Module (MA5616) is a board-pluggable box-type device of 2 U high and 19-inch wide. It provides access services with ultra-high bandwidths and flexible capacity expansion capabilities.
•The MA5616 provides the following user ports: asymmetric digital subscriber line 2 plus (ADSL2+), very-high-speed digital subscriber line 2 (VDSL2), single-pair high-speed digital subscriber line (SHDSL), plain old telephone service (POTS), integrated services digital network (ISDN) and fast Ethernet/gigabit Ethernet (FE/GE).
•It provides GPON/10G GPON/GEupstream transmission modes. It can be used in fiber to the building (FTTB), fiber to the curb (FTTC), and dedicated line access scenarios.
•The  MA5616can also be used as a mini digital subscriber line access multiplexer (DSLAM) or a multiservice access node (MSAN) to provide traditional voice, data, and video services.





Appearance












Specifications



Differences between control boards



Parameter

H831CCUB

H831CCUC

H831CCUE

Supported Daughter Board

Upstream daughter board:

  • GP1A
  • GE1A

Voice daughter board:

  • ADSA
  • ADSC
  • ADSM

Upstream daughter board:

  • UP2A
  • UP2C
  • XP1A

Voice daughter board:

  • ASDA
  • ADSC
  • ASDM

Upstream daughter board:

  • UP2A
  • UP2C
  • XP1A

Voice daughter board:

  • ASDA
  • ADSC
  • ASDM

Port on the Front Panel (on the Bottom Plate)

  • CONSOLE
  • ESC
  • ETH
  • ALARM
  • GE0
  • CON/ESC
  • ETH
  • CLK/TOD
  • ALARM
  • GE
  • CON/ESC
  • ETH
  • CLK/TOD
  • ALARM
  • GE

Upstream Port (on the Daughter Board)

  • When the GP1A daughter board is configured:
    • GE0 (SFP port)
    • PON (SFF port)
  • When the GE1A daughter board is configured:
    • GE0 (SFP port)
    • GE1 (SFP port)
  • When the UP2A or UP2C daughter board is configured:When the XP1A daughter board is configured: 10G GPON (SFP port)
    • 0 (SFP port)
    • 1 (SFP port)
  • When the UP2A or UP2C daughter board is configured:When the XP1A daughter board is configured: 10G GPON (SFP port)
    • 0 (SFP port)
    • 1 (SFP port)







Applications



An MA5616 applies to FTTB(C) Network, Enterprise Private Line Access Network and Mini DSLAM or MSAN network.

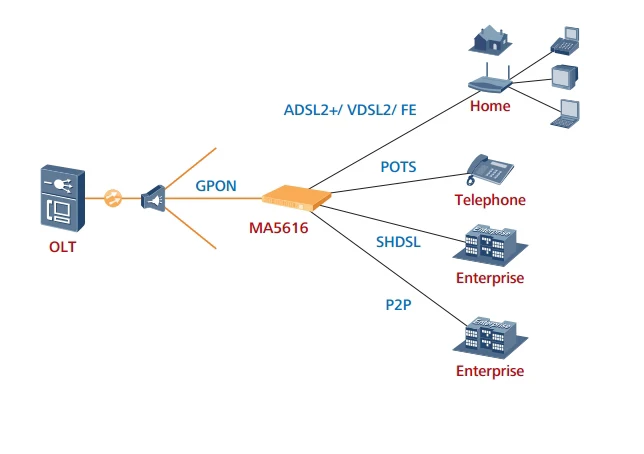

Figure 1 shows the position of the MA5616 in three typical networks.

Figure 1 Position of the MA5616 on the network


DSL: digital subscriber line

FE: fast Ethernet

GE: gigabit Ethernet

IMS: IP multimedia subsystem

LAN: local area network

NGN: next generation network

OLT: optical line terminal

POTS: plain old telephone service

  • Fiber to the building (FTTB) or fiber to the curb (FTTC) network application: The MA5616 can be used in FTTB or FTTC scenarios to provide voice, data, and video services for residential area users.
  • Enterprise private line access network application: Functioning as a single business unit (SBU), the MA5616 provides broadband, plain old telephone service (POTS) access services. The CCUB control board does not support the network of this type because it does not support fast Ethernet (FE) or gigabit Ethernet (GE) access.
  • Mini digital subscriber line access multiplexer (DSLAM) or multiservice access node (MSAN) network application: The MA5616 can function as a traditional mini DSLAM or MSAN to provide traditional voice, data, and video services. One MA5616 or multiple MA5616 devices (cascaded) can form a tree network suiting various service requirements. They can also form a Multiple Spanning Tree Protocol (MSTP) network to provide a load sharing function for redundant links and protect services.
    NOTE:
    • The CCUC or CCUE supports local area network (LAN) access.
    • The CCUE control board supports vectoring broadband service speedup.
    • The MA5616 supports cascading.
    • In mini DSLAM or MSAN scenarios, you are advised to cascade a maximum of three layers of devices to the MA5616 in a tree network. In a Multiple Spanning Tree Protocol (MSTP) ring network, you are advised to deploy a maximum of four MA5616s on the ring.
Features



This topic describes the features of the MA5616.

10G GPON Upstream Transmission

  • 10G gigabit-capable passive optical network (GPON) is a next-generation PON standard defined by International Telecommunication Union - Telecommunication Standardization Sector (ITU-T). It provides asymmetric upstream and downstream rates. 10G GPON provides a higher bandwidth to meet service requirements.
  • 10G GPON networks can coexist with the current GPON networks to fully use the existing optical distribution network (ODN) resources.

Vectoring Broadband Service Speedup

The MA5616 supports the vectoring technology to increase the very-high-speed digital subscriber line 2 (VDSL2) line rate.

VDSL2 is a mainstream mode for last kilometer access and shows increasing importance in bandwidth usage. VDSL2 uses high frequency bands and therefore the inter-line crosstalk has an evident impact on line quality. The bandwidth in multi-pair access scenario is much lower than the bandwidth in single-pair access scenario. Crosstalk becomes a major factor affecting the VDSL2 performance.

The MA5616 supports the vectoring technology, which uses vectoring groups to jointly transmit signals in the downstream direction and receive signals in the upstream direction of a VDSL2 line. This function of the MA5616 helps cancel the far-end crosstalk (FEXT) and improve VDSL2 line performance.

The vectoring function brings the following values for carriers:
  • Increases the bandwidth over a single cable within 500 m by 50% to 90%, reaching 95% of the theoretical value (without crosstalk).
  • After rate increasing, carriers can provide higher rates and more types of services for users, such as high-definition video.
Packaging & Shipping

1.Trade terms: FOB,CIF,CFR,etc

2.Price Terms: L/C,D/P,T/T,Western Union,PAYPAL

3.Payment Terms: T/T in advance

4.MOQ:  1 pcs

5.FOB Price:US $1 - 1,000 / Piece

6.Port: Shanghai

7.Lead time: Within 5 working days after receipt payment.

8.Shipment: Express, Air, Sea

9.Supply capability: 200 Piece/Pieces per Week

10.Sample availability: Yes( not free)

11.Package information: carton package with Huawei original package
