Hydraulic Control New Chinese Heavy Duty Lathe Machine Price

FOB Reference Price:Get Latest Price
$40,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CWZ61160
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Swing Diameter:
1600mm
Condition:
New
Type:
Horizontal
CNC or Not:
Normal, Normal
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
HITECH
Voltage:
Customer's Requirement
Power(W):
80kW
Dimension(L*W*H):
Depends
Certification:
ISO9001
Name:
hydraulic control new chinese heavy duty lathe machine price
Key words:
hydraulic control chinese heavy duty lathe machine price
Color:
optional
Product type:
Heavy Duty Horizontal Lathe
Max swing over bed:
1600mm
Max swing over cross slide:
1250mm
Max weight of workpiece:
32T
Rapid feed motor:
1.5kW
Middle slide travel:
600mm
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
Depends
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
The package of hydraulic control new chinese heavy duty lathe machine: wooden box.
Port
QINGDAO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description

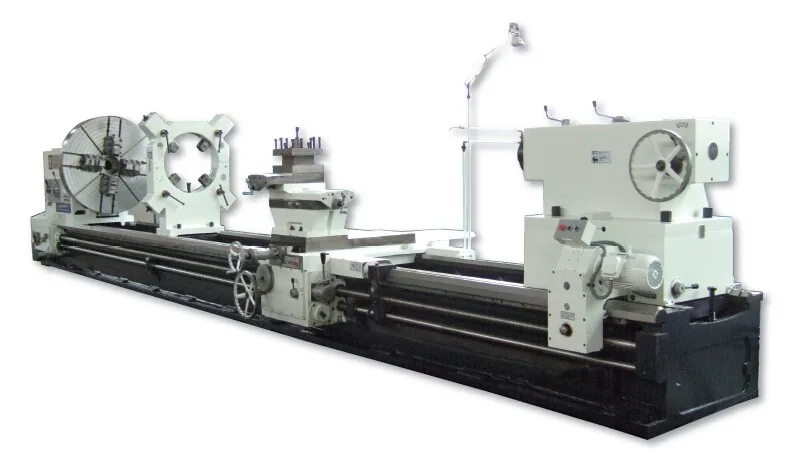

Hydraulic Control New Chinese Heavy Duty Lathe Machine


Product overview


This hydraulic control new chinese heavy duty lathe machine is common lathe suitable to use the high speed steel and carbide cutting tools to do the turning processing of the cylindrical, end face, ring groove, inner hole and inside and outside cone for different material shaft workpiece, cylindrical and disc type workpiece and so on. And could use upper toolpost (through change gear mechanism ), turn many kinds of threads and so on process which the length shorter than 600mm.
The spindle adopts double support structure, is dragged by DC motor, and spindle could stepless regulate among the range of 0.8-160r/min.
The bed adopts 3 guide rails, the whole bed is box structure, the bed has high rigidity, high efficiency, safety and reliability, convenient operation and beautiful structure and other feathers.

Main technical parameters
Item
Specification
CAPACITY
Max swing over bed
1600mm
Max swing over cross slide
1250mm
Center distance
8M
Max weight of workpiece
32T
Width of bed
1600mm
HEADSTOCK
Spindle hole
85mm
Spindle taper
Ø120mm Taper1:7
Spindle speeds
0.86-160r/min 3- files hydraulic mechanical speed
GEAR BOX-TREADS&FEEDS
Metric threads range(pitch)
2-40mm
Inch threads range(inch)
1-14
Worm gear threads range(module)
1.5-20mm
Longitudinal feeds range
0.125-4.8mm/spindle each turn
Cross feeds range
0.063-2.4mm/ spindle each turn
Rapid feed:long/cross
3000mm/min,1500mm/min
TOOL-POST
Tool section
70*70mm
CARRIAGE
Cross slide travel
725mm
Middle slide travel
600mm
TAILSTOCK
Sleeve diameter
300mm
Sleeve taper
Ø100 taper1:7
Sleeve travel
300mm
STEADY REST
Close-type steady rest
Ø400-750mm
Open-type steady rest
Ø650-1200mm
MOTOR
Main motor
80KW(DC)
Rapid feed motor
1.5KW
Tailstock motor
1.5KW
Detailed Pictures
Inspection work
We are caring about the work before producing and delivery.

Inspection work including checking the factory strength, processing site, assebly site, finished production site and so on.then we talk with customers about detailed request for machines, and if need, we could take our freinds to our customr's site for checking, knowing more about the machines.

Packing & Delivery

Packaging


Size

 According to hydraulic control new chinese heavy duty lathe machine size  bought by client.


Weight

According to hydraulic control new chinese heavy duty lathe machine bought by client.



Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

FAQ

Q:Are you manufacturer?
A: Yes, we are manufacturers of heavy horizontal lathe equipments, we have our own technical team, and about 80,000 sq.m workshop, welcome to visit us!

Q:What payment terms do you accept?
A: We are flexible on payment terms,we can aslo help you on financing,please contact us for details!

Q:What information will you need to make the proposal?
A: The max swing over bed, max weight and length of workpiece, and your special requirements.

Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.

Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the heavy horizontal lathe has arrived at the importer' s port.
Our company will send engineers to installing the heavy horizontal lathe machine and responsible for training the worker of customer until they can operating the machine skillful.
During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send
engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
Each heavy horizontal lathe leaving the factory will be along with related English instructions including maintenance manual and operation manual.

Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 20 years.Our heavy horizontal lathe machines are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.

Related product

For heavy horizontal lathe machine , we also have some related machine, such as double column vertical lathe machine, horizontal lathe machine.

 .
