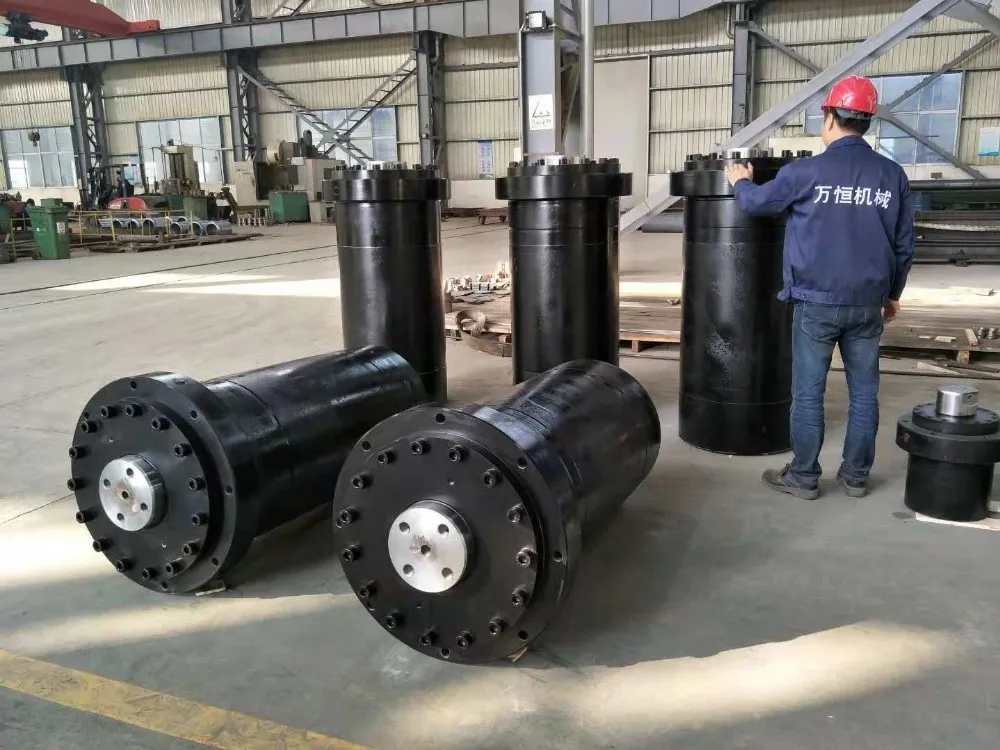

Hydraulic cylinder for construction forging pressEH500-250-1000 Z214

FOB Reference Price:Get Latest Price
$6,900.00 - $7,500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Maximum Stroke:
1000
Shaft Diameter:
250
Model Number:
EH500-250-1000
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 45 Negotiable
Customization:
Graphic customization (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Customized logo (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Energy & Mining
Standard or Nonstandard:
Nonstandard
Structure:
Piston Cylinder
Power:
Hydraulic
Body Material:
Steel
Place of Origin:
Jiangsu, China
Brand Name:
ETERNAL
Color:
black
Bore Size:
500mm
Rod:
250mm
Stroke:
1000mm
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden boxes
Port
Shanghai Port
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 45 To be negotiated
Product Description

Product Application

ETERNAL company design and manufacture hydraulic cylinders for different applications:
1.Construction machinery
2.Mining machinery
3.Hydraulic press, including Forging press, Die casting machine, Injection Molding Machine, etc.

4.Extrusion press
5.Metallurgical machinery, like Rolling Mill Servo
6.Hoisting machinery, including marine jib crane,marine crane,hydraulic knuckle boom marine crane,etc.
7.Excavating machinery, used in telescopic boms, knuckle booms, fixed double taper booms,etc.
8.Petroleum drilling machinery
9.Hydraulic lifting platform
10.Marine equipment
11.Hydro power project

Design

Not only we could manufacture all kinds of heavy duty hydraulic cylinder on hydraulic press according to the drawing from customers,but also we could make a design according to customers'requirements. If you require our engineer to make a design, please advise us thefollowing specification :
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example chromating film thickness , Surface hardness etc .
11. Painting and other spare parts requirements .

Manufacturing capability and cylinder size range

Max bore diameter: Ø1200mm
Max stroke: 12Meter
Max text pressure: 50MPa

Detailed Images

Cylinder tube

According to the cylinder pressure and inside diameter size, different steel tube Would be choosed.
ID ≤300mm, choose cold rolled precision seamless tube
300mm≤ID ≤500mm, choose hot rolled seamless tube
500mm≤ID ≤1000mm, choose forged tube
Steel grade : SAE1020, SAE1045, 27SiMn , S355JR, S355J2G3, St52-3, SUS304, SUS316L etc .
Inside boring and honing , roughness R0.2-R0.3
Inside chromating : if necessary ,tube inside chromating could be applied

Piston rod

steel grade : SAE1045, 42CrMo4, SUS410 ,SUS420, SUS304, SUS316L

Eternal company ensure that every piece piston rod would be surface hardened before chromating, surface hardness is HRC55~60 , Chromating film thickness is 0.03~0.04mm if there is no other specific requirements.

Seal ring and O ring

According to the customers' requirements and working condition, eternal company would choose suitable
seal ring kit, seal ring brand include: Parker, Merkel, NOK, Guangzhou Rubber institute, Taiwan brand etc. Eternal company would supply suitable seal solution for their customer so that hydraulic cylinder has more lifetime, easy maintenance and simple repairing.

Tube and flange welding

The welding on cylinder tube and flange would be Ultrasonic tested every time, the welding seam would be
cleaned before machining. Eternal company ensure that every welding seam has no any leak during lifetime.

Assembly and pressure test

Before hydraulic cylinder is assemblied, every spare parts would be measured and cleaned. After hydraulic cylinder is assemblied, pressure test would be carried out one By one, eternal company ensure that testingpressure is higher 30%-50% than working pressure, and pressure holding time 30~60 minutes is necessary. Every piece hydraulic cylinder must be tested completely without any leak.

Packing & Delivery
Related Products

1000 TON hydraulic press cylinder

Forging press hydraulic cylinder

Petroleum drilling machinery cylinder

Our Company

Company Profile

Jiangyin Eternal Heavy Industry Co., Ltd was established in 22, Apr. 2008. Our products mainly including: hydraulic baler, hydraulic shear, hydraulic cylinder and metallurgical Equipment. We could manufacture all kinds of hydraulic baler and hydraulic shear, pressure up to 1000 tons, and our machines have been exported to many countries.
Our hydraulic cylinders are widely used in construction machinery, mining machinery, hydro power project, offshore drilling platform, steel plant equipment, marine machinery, hydraulic lifting system, metallurgical equipment, forging equipment etc. Max cylinder bore size reach 1,000 mm, max cylinder stroke reach 12 meter, max test pressure could reach 50Mpa. Our cylinder has passed through BV certification.
We could also manufacture all kinds of metal extrusion press, pipe upsetting machine, including all kinds of steel plant spare parts.
Our factory has 15,000 square meters and have heavy duty workshop with area 8,000 square meters. There is double layer crane in the work shop. The lifting height could reach 16 meter while lifting capacity could reach 75 tons.
Our company passed the ISO9001: 2015, ISO14001: 2015, OHSAS18001: 2007, BV marine certification, API certification etc. Till now, our products have been exported to nearly 50 countries and own good reputation from our customers. You are welcome to visit our company.
