Hydroelectric Hydro Power Generator Water Turbine Electric Generator From Forster

  • >=1 Sets
    $76,800.00
Type:
hydro power generator
Rated Power:
80kw 90kw 100kw 110kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$76,800.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China
Brand Name:
forster
Model Number:
XJ13
Designer head:
110-160 m
Traffic:
0.0709-0.0856m/s
Design speed:
600-1000 r/min
Power:
62.9-110kw
Driving mode:
Straight league,Between the united
Diameter:
200mm
color:
orange
type:
water power
keyword:
Hydroelectric Generator Water Turbine Electric Generator From Forster
Certificate:
ISO9001/CE/TUV
Supply Ability
Supply Ability:
50 Set/Sets per Month Hydroelectric Hydro Power Generator Water Turbine Electric Gener
Packaging & Delivery
Packaging Details
Hydroelectric Hydro Power Generator Water Turbine Electric Generator From Forster is packed with Wood Box
Port
shanghai/shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description

Hydroelectric Hydro Power Generator Water Turbine Electric Generator From Forster

Product Description

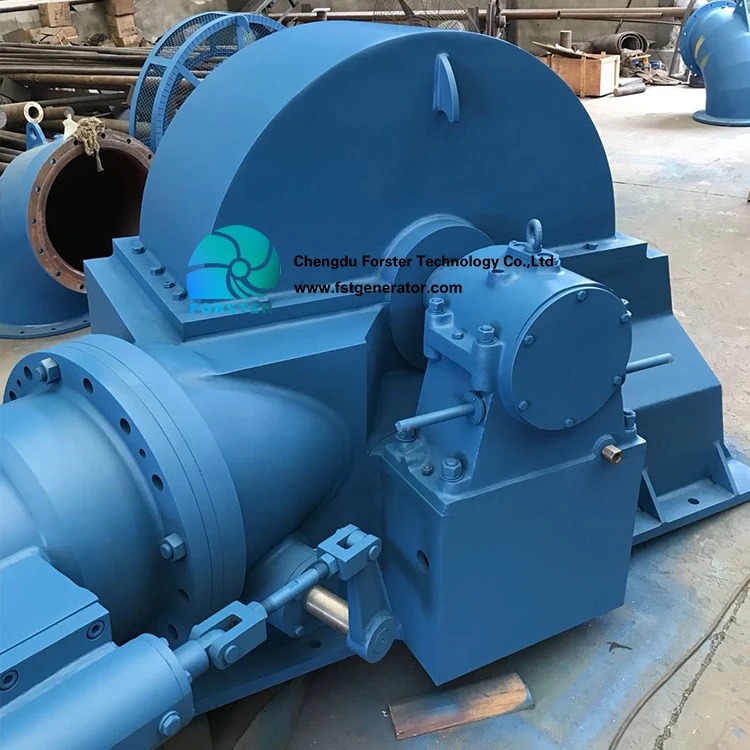

Turgo Turbine

Turgo turbine is one of impulse turbine, applicable water head 30 to 300 meter. The center of jet flow with runner gyration plane angled 22.5°. the water flow contracted by the spray nozzle , flows entering one side of runner and comes out from other side.
Horizontal unit has the advantages of simple structure,convenient repair,reduce the plant height,advantages in reducing excavation depth.
The vertical unit with plant plane size small,a runner can be provided with a plurality of nozzles,(at most can be installed six nozzles),high specific speed,the same size as units of capacity is relatively small,light weight and so on.

Working Principle

When water flows from the pressure foray into the turbine nozzle through pipe, its potential energy is converted to kinetic energy by the nozzle. The high speed water jet comes out from the nozzle strikes at the buckets (blades) at a certain angle (not in a tangential direction) against the rotating surface of the runner. The water flows into the propeller (turbine runner) from one side and flows out from other side.

In a Turgo, the runner is less expensive to make than a Pelton Wheel and does not need an airtight housing like the Francis. It also has a higher specific speed, handling a greater flow than the Pelton Wheel. This leads to a reduced generator and installation cost. Turgos operate in a head range where the Francis and Pelton overlap.



Application Situation

River Dam(Low Head) Mountain Foot(High Head)



Hydro turbine and Generator

Key components or supporting equipment

1.Wear-resistant Stainless Steel Runner 2.Automatic Valve
3.  High Hydraulic Microcomputer Governor

4.  5 in 1 Integrated Control Panel



Product Parameters

 Technical Specifications

 Power range
 75KW-2500KW
 Water head
 60m - 270m
 Water Flow
 0.166 m3/s - 1.840 m3/s
 Material
 Steel plate/Stainless steel
 Speed range
 600rpm-1000rpm

 Installation method

 Horizontal installation / vertical installation
 Frequency
 50hz/60hz
 Efficiency
87%-93%
 Application
 On-grid/Off-grid
Other Products
Low Head High Flow Francis Turbine  High Head Low Flow Turgo Turbine

Power                       100KW to 5000KW Power                    300KW to 5000KW
Water Head               12m to 290m Water Head            150m to 700m
Water Flow                0.98 m3/s - 36.26 m3/s Water Flow            0.1005 m3/s - 2.884 m3/s
Advantage Advantage
1. The difference in operating head can be extra simply controlled in Francis turbine than in
Pelton wheel turbine.
2. Ratio of utmost and least operating head can be even be two in case of Francis Turbine.
3. Mechanical efficiency of pelton wheel decrease faster by wear than Francis turbine.
4. Francis turbine variation in operating head can be more simply controlled.
5. No head failure occurs still at low discharge of water.
1.Pelton turbine has simple construction
2.Pelton turbine is east to maintain
3.Intake and exhaust of water takes place at atmospheric pressure hence no draft tube is required
4.No cavitation problem
5.Its overall efficiency is high
6.Pelton turbine can be both axial and radial flow
7.Pelton turbine can work on low discharge
Company Information

Main Product

Our main products included:

1, Axial flow type turbine generators series

2,Turgo turbine generators series, e.g. vertical type and horizontal type.

3,Tubular turbine generators series, e.g. Bulb type and shaft extension type

4,Francis turbine hydro generators series

5,Impulse turbine generators series and double turbine generators series and so on.

Our Workshop



FAQ

1. You are a trading company or a manufacture?

We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Zigong City, pay a visit to our factory you will know more about us.



2. How to choose a right turbine? There are so many models offering on your website. And how to calculate the turbine capacity?

Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).



3. What information shoul I provide for getting the quotation?

We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.



4. When my turbine shut down, who can help me solve the problem?

You are free to call me day or night at my cellphone number +8613540368205. I am sure our engineer able to fix the problem either by changing spare parts or remove something.



5.Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.



6.  How can I trust you?

Pay us via trade assurance is not a problem. And we also accept L/C. To build mutul-trust we think pay a visit to our facility is the best way.



Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.   website address: www.fstgenerator.com



Hydro Turbine belongs to customized products. We could design products according to your requirement. Could you give us the following parameters so that we could make a professional solution for your project.



1.Flow rate (   lit/sec or   m³/sec?)
2.Water head (    m?)
3.Total power you need(    KW?)
4.Frequency ( 50 hz or  60 hz?)
5. Voltage(      V?)
6. On grid or off grid?
7. Voltage of transmission line if it is on grid(    V?)
8. Elevation(MSL)
9. Is it clean fresh water(with our sand, stone and silt ect,.)
