IEC 61984 Standard M16 Aviation Push Pull 2Pin Power Military Connector

  • 10-99 Pieces
    $5.18
  • 100-499 Pieces
    $4.92
  • >=500 Pieces
    $4.41
Cross Reference:
The whole other series
Supplier Type:
Original manufacturer
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Connectors With Cables (Min. Order: 500 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Model Number:
LP-16 2pin, China
Type:
Circular Connectors, Terminal Connectors, Contact Connector, Power connector, Pin Connector
Brand:
CNlinko
Application:
Machine, Stage Lights, Device, etc
Interface Type:
Push Pull
Packaging:
Bulk
Place of Origin:
Guangdong, China
Certificate:
ISO9001/CE/ROHS/UL
Material:
Zinc Alloy, gold plated based on copper for contact pin
Terminal Way:
Soldering
Current Rating:
10A
Vlotage Rating:
500V
Temperature Range:
40C~+80C
Assemble Method:
Push Pull
Shipping by:
DHL\UPS\Fedex\EMS\HK Post
Warranty:
365 Days
Shielding:
Possible

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X7X8 cm
Single gross weight:
0.1 kg
Package Type:
Export carton, Size 17cm(L) x 8cm (W)x 7 cm (H), 10pcs/Carton, 0.0008M3 per carton, Net weight: 0.5KG, Gross weight: 0.54KG If the quantity is more than 100 sets, they will be put in a bigger box within size36*26*26cm after the smaller box packing
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 10 11 - 100 101 - 500 >500
Est. Time(days) 10 10 10 To be negotiated
Product Description

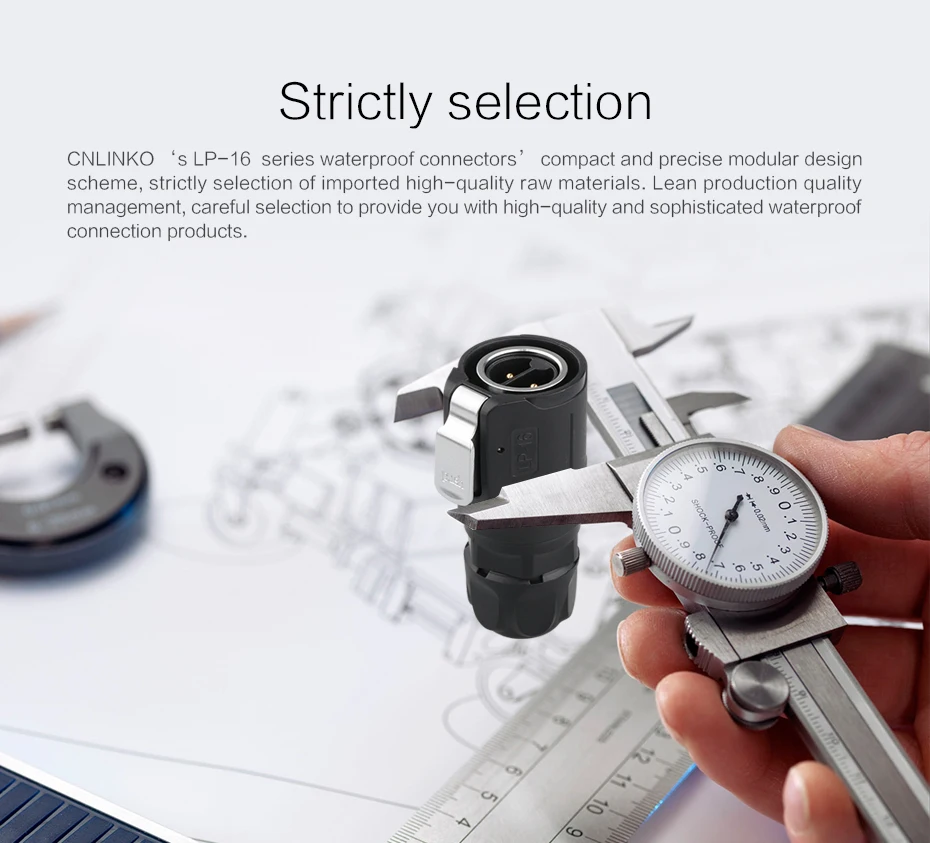

Patent products LP-16 Series with multi-core(2-12 core) design to fit with different industrial needs within below key features:

 *Humanization male plug female socket assemble design ------ push pull achieved blind operation.

*Gold-plating;high strength corrosion resistance and electrical conductivity.

*Shell made of material PBT/Zinc Alloy,stable electrical performance, which is much better than the material of Nylon material no matter from water absorption, aging, flame retardant rating

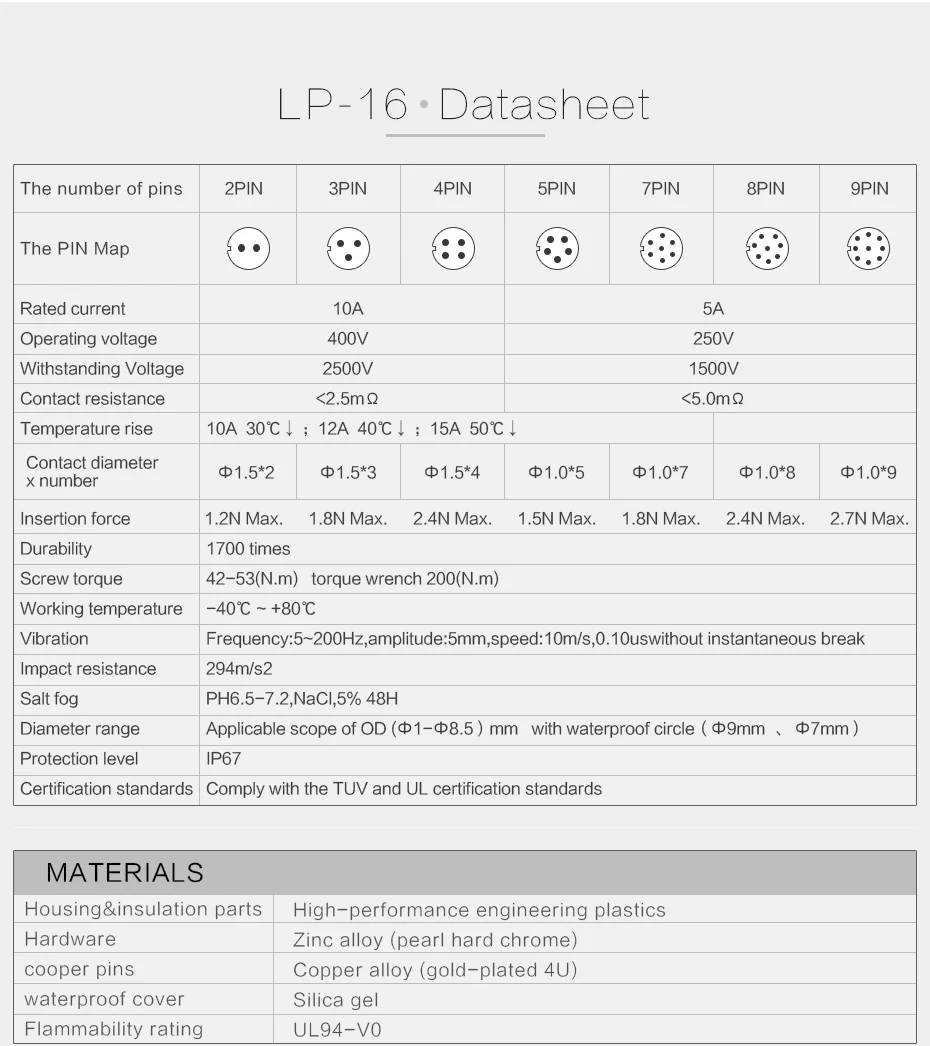

Pin Number
2 pin
Rated Current
10A
Operating Voltage
500V
Insertion Force
1.2N Max
Durability
1700 times
Terminal Method
Soldering
Salt Spray
PH 6.5-7.2, NaCl, 5%, 48H
Male Female Assemble Way
Push Pull
Cable OD
3-6mm

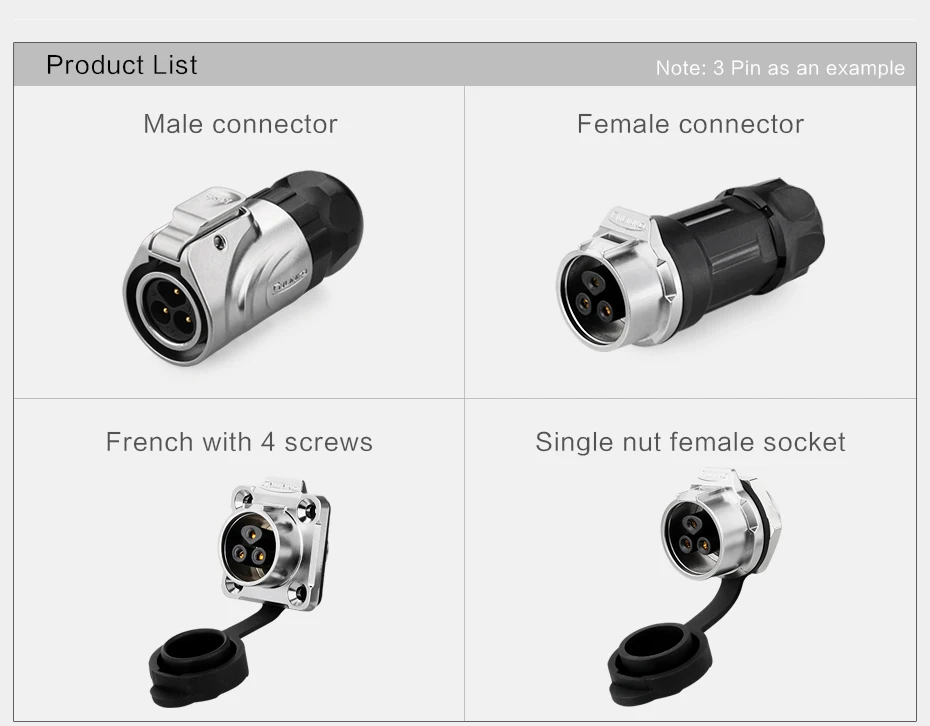

Different Assemble Ways for More Selection

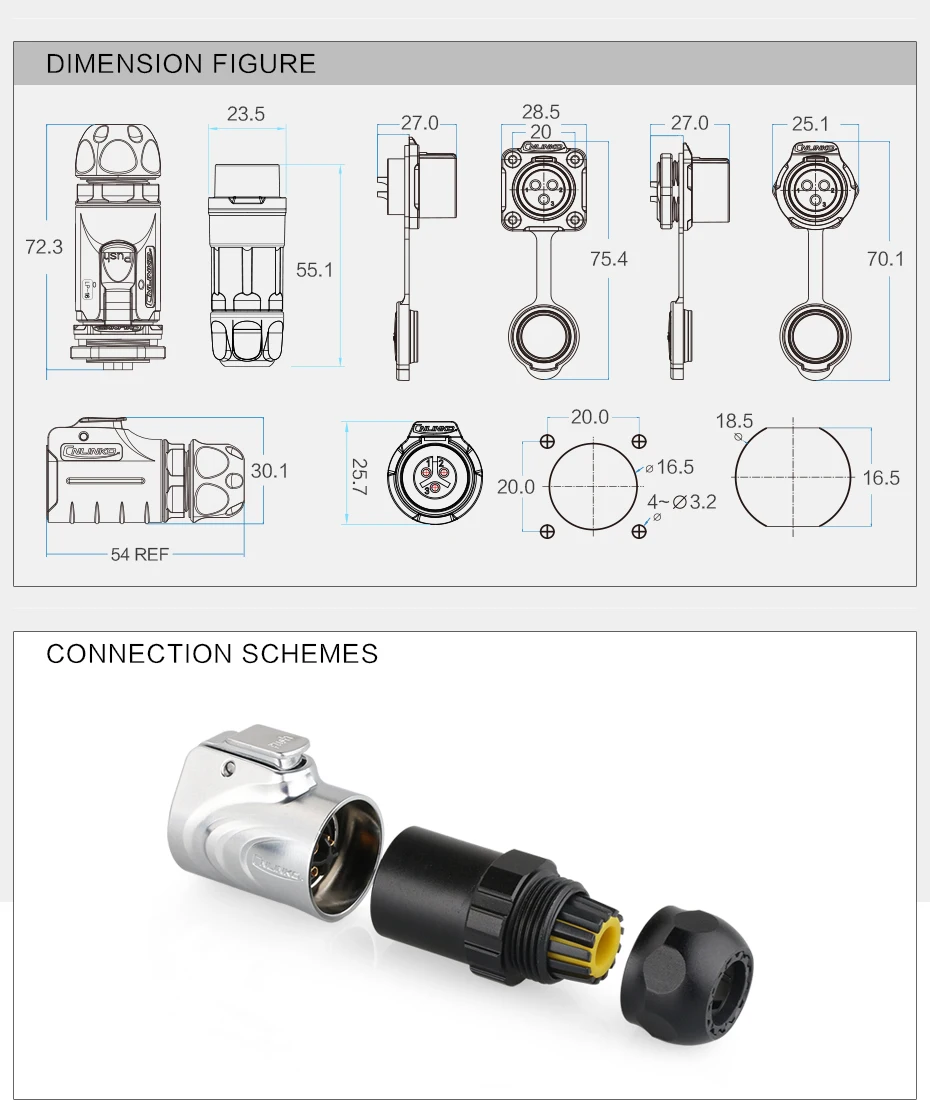

Dimenstion of the Connectors





You are welcome to contact me directly if you can not zoom in via Wechat: micai19801029, Whatsapp: +86 159 8086 8243
Detailed Images

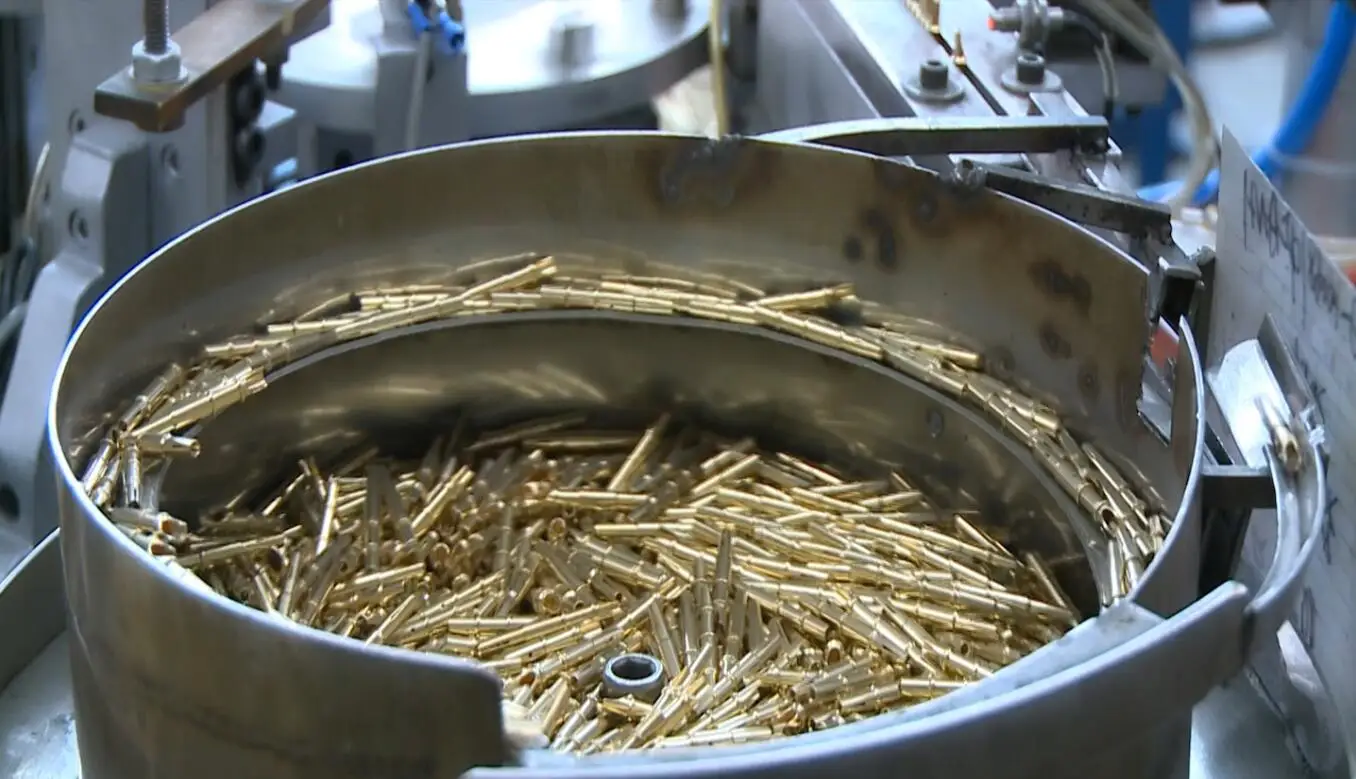

Raw Material of the pin

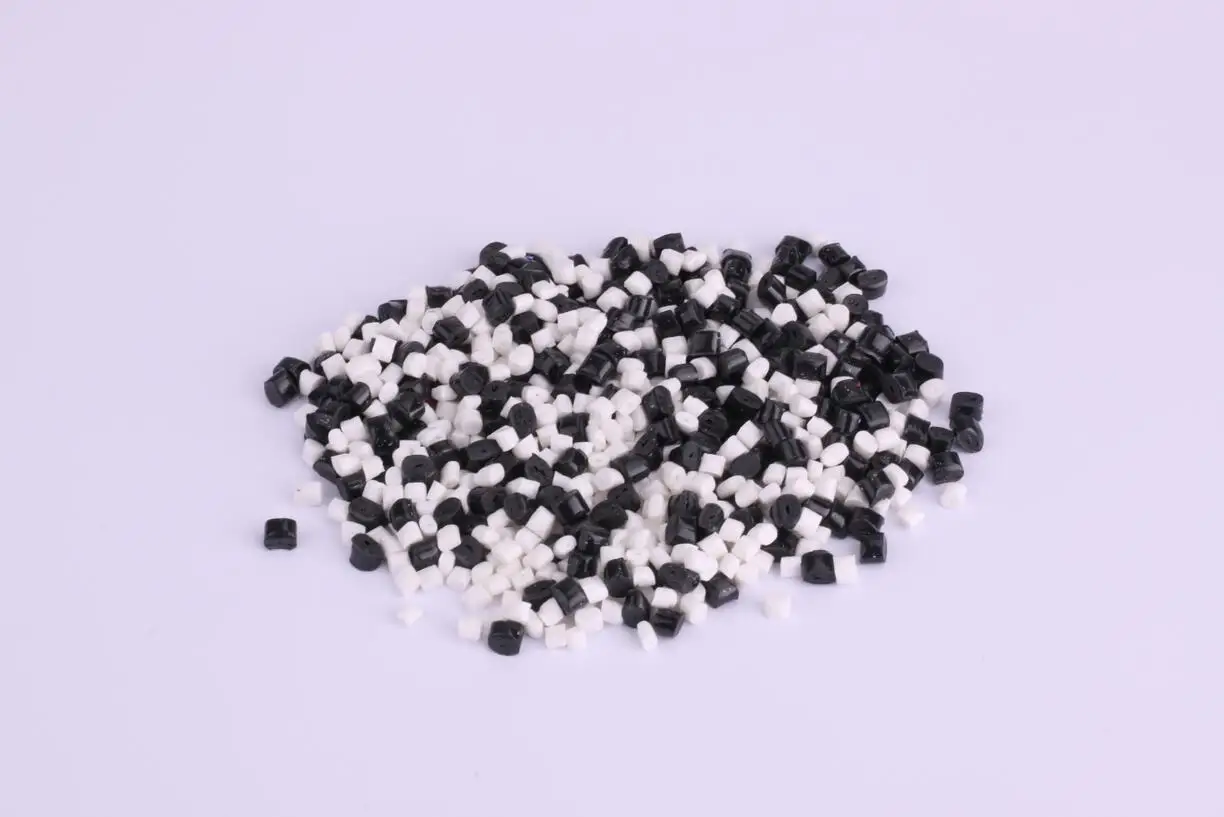

Raw Material of the Plastic

Sabic Imported from the USA

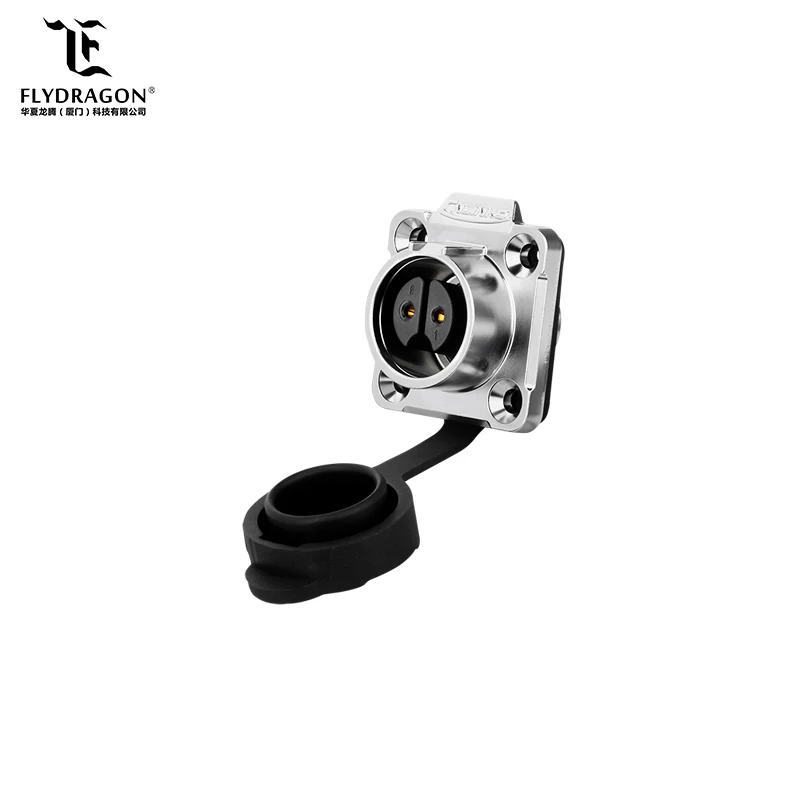

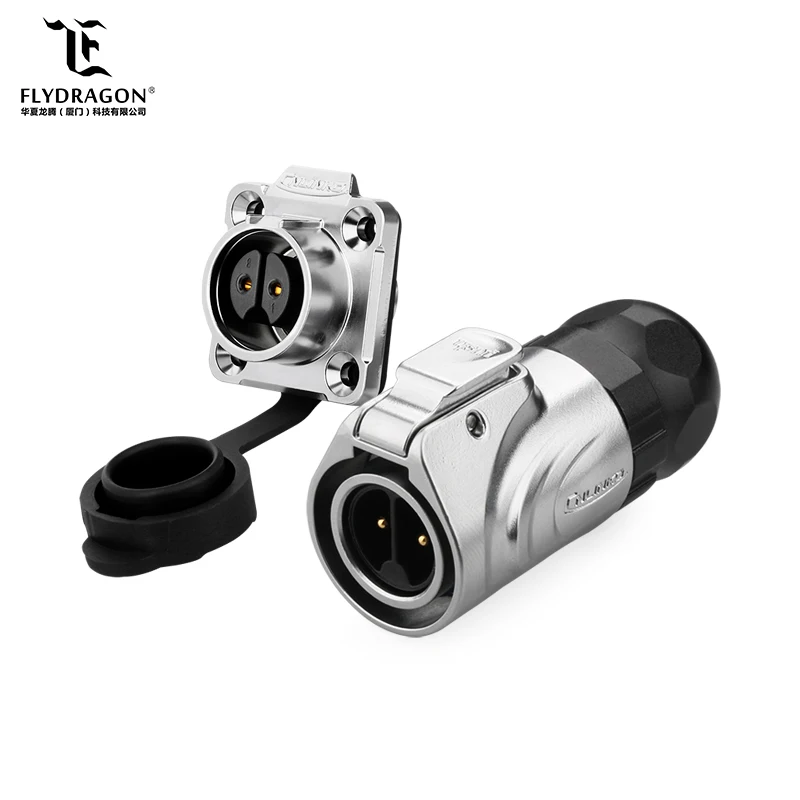

Flange Female Socket

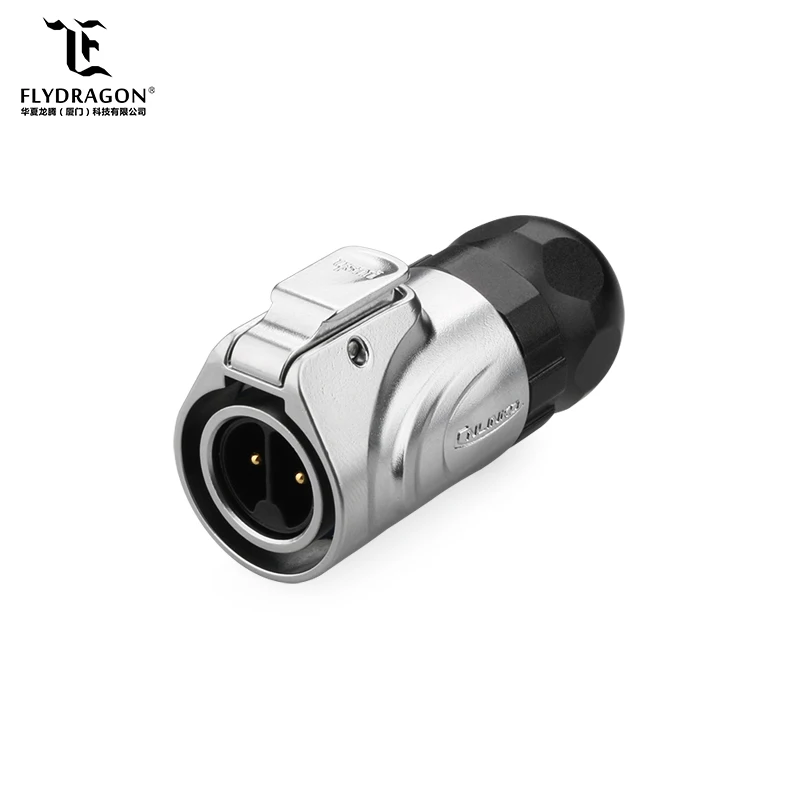

Male Plug

Set

Connectors on Device

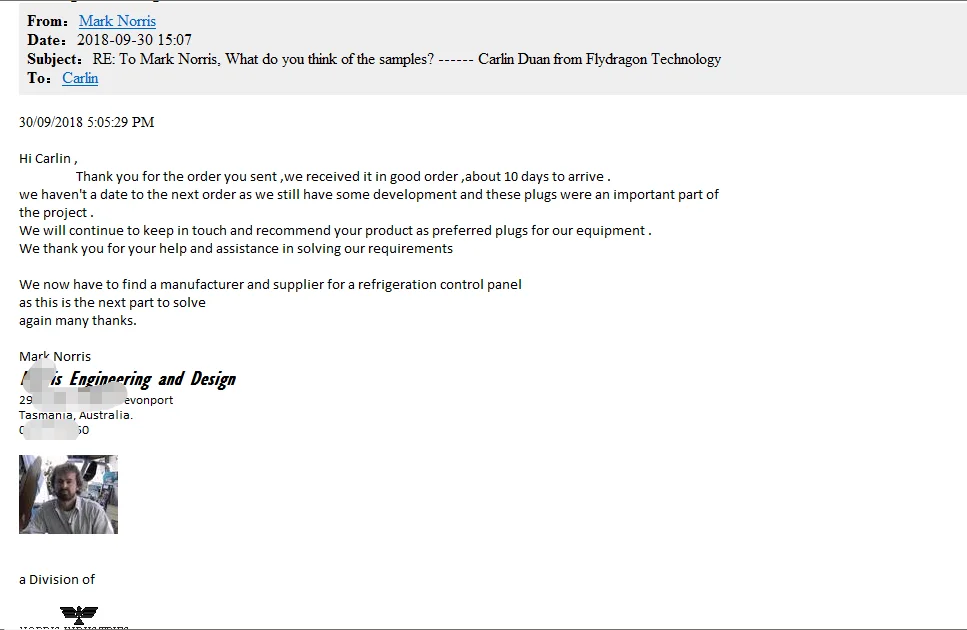

Customers' feedback
Size Information

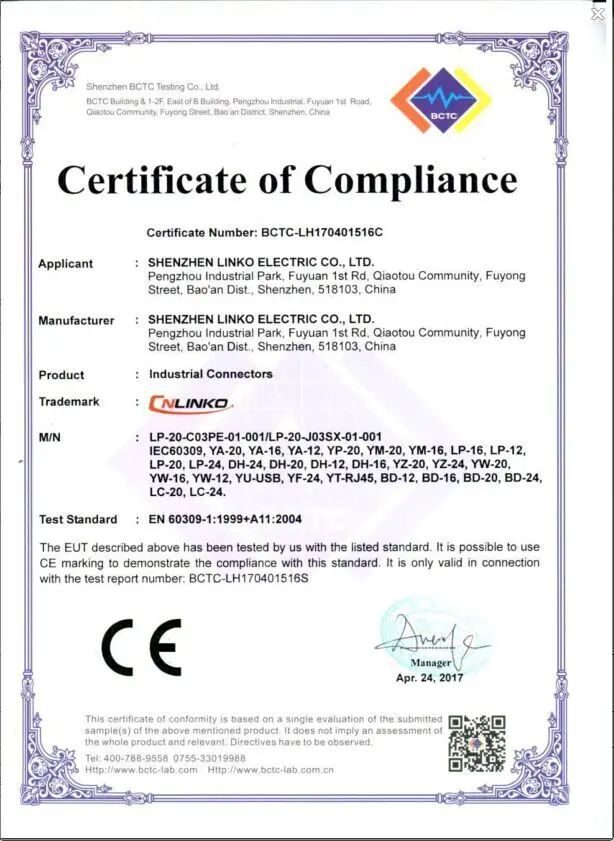

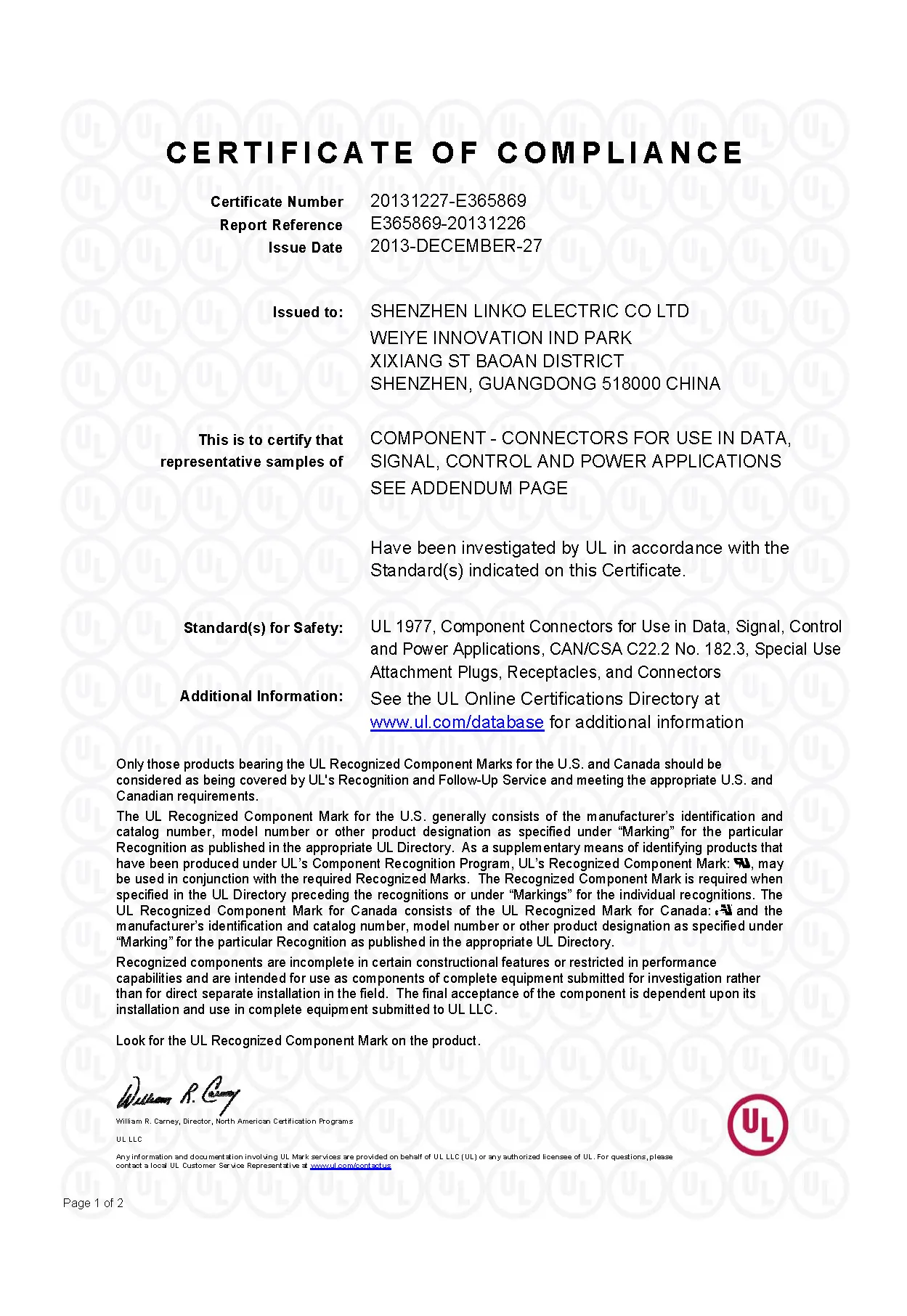

Certifications
Packing&Shipping

Professional Packing

1. Every two connectors be wrapped in a small plastic bag.
2.10 bags of connectors be packed in a small carton box with size 17*8*9cm
3. 24 boxes be packed in the bigger carton box with size 36*26*26cm

Different Shipping Method to Suit Different Requirements

Express for emergency needs.
EMS for cheap shipping cost needs.
Shipping by air for bulk goods.
