IMX8 SyStem on Module Android9.0 Linux4.14
- Lead Time:
-
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 7 Negotiable
- Package:
-
board-to-board connect with carrier board
- Model Number:
-
FETMX8MM-C
- Type:
-
development board
- Brand Name:
-
Original Brand
- Place of Origin:
-
China
- CPU:
-
i.MX8M Mini
- Frequency:
-
1.8GHz
- Architecture:
-
Cortex-A53+ Cortex-M4
- Structure:
-
carrier board+ SoM
- RAM:
-
2GB DDR4
- Flash:
-
8GB eMMC
- CPU module size:
-
56* 36mm
- carrier board size:
-
56x 36mm
- OS:
-
Android9.0/ Linux3.14.78+ QT5.10
- Temp Width:
-
0℃~70℃
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- one pc/box
- Port
- Hongkong/Shenzhen/Beijing/Tianjian
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 7 To be negotiated
Online Customization

IMX8 SyStem on Module Android9.0 Linux4.14

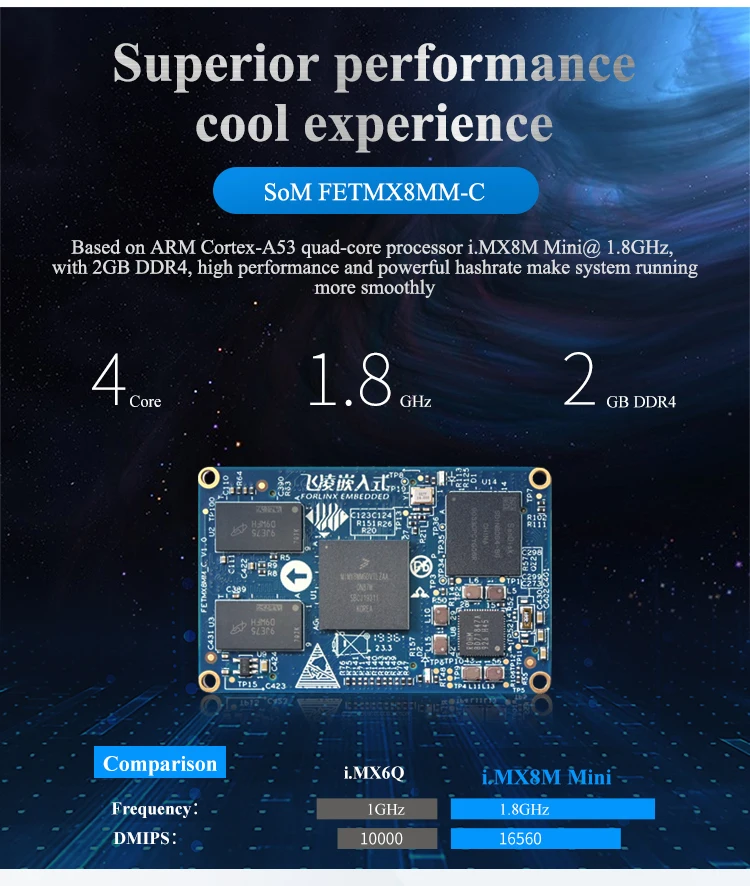

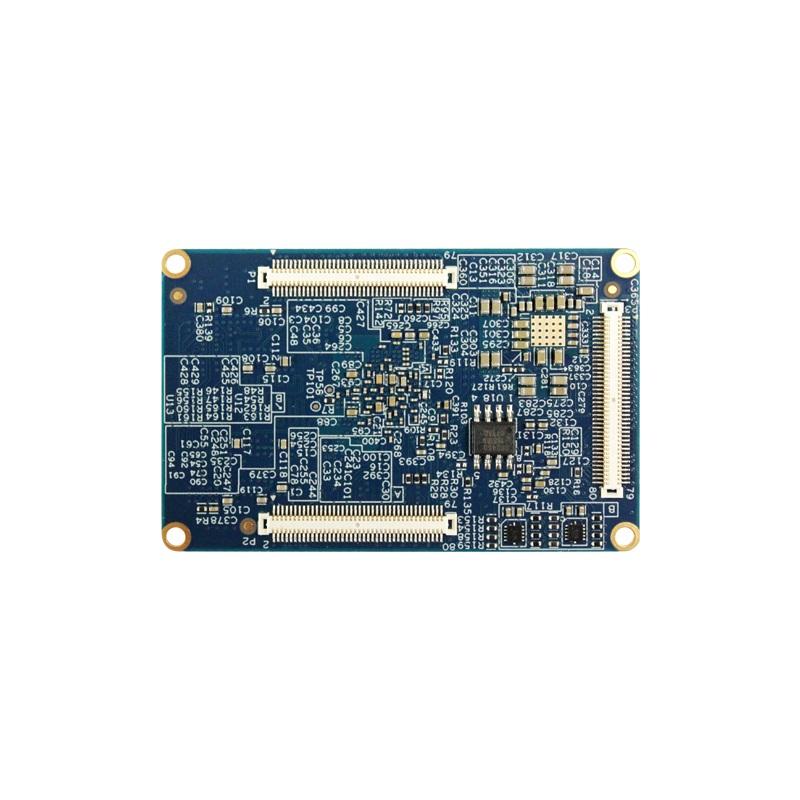

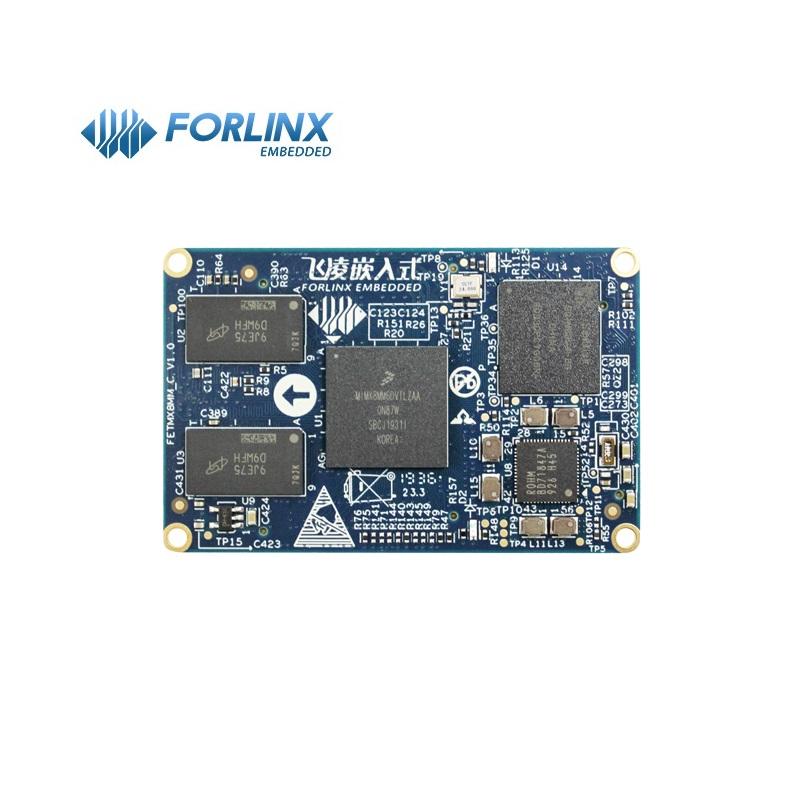

FETMX8MM-C system on module is designed based on i.MX8M Mini quad-core and 64-bit processor with frequency up to 1.8GHz, the SoM is designed with three ultra-thin connectors on its back for connection with carrier board, each connector has 80 pins with pitch of 0.5mm. It has on-board 2GB DDR4 RAM, can support a general Cortex-M4 processor with frequency up to 400MHz. It can support multiple audio interfaces, such as IIS, AC97, TDM, PDM and SPDIF. And also it can support multiple peripherals, such as MIPI-CSI, MIPI-DSI, USB, PCIe, UART, eCPSI, IIC and Gigabit.












SoM FETMX8MM-C Features | ||||||

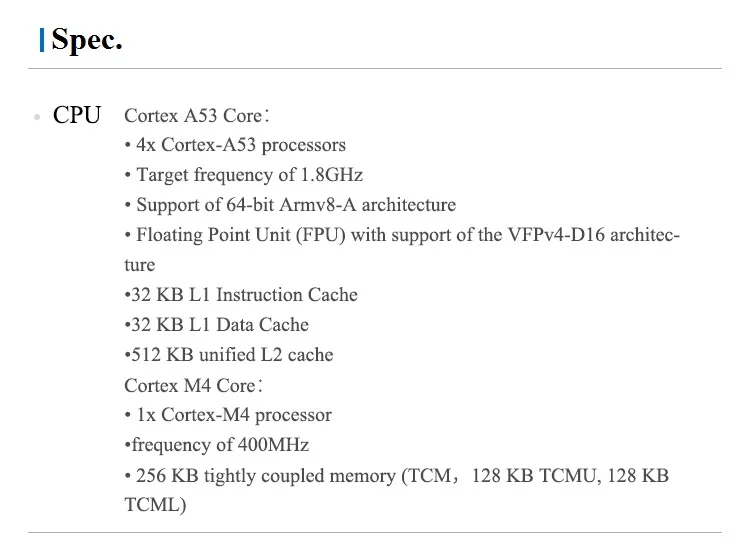

CPU | i.MX8M Mini@ 1.8GHz | Architecture | Cortex-A53+ Cortex-M4 | |||
OS | Android9.0, Linux3.14.78+ QT5.10 | Dimensions | 56mm* 36mm | |||

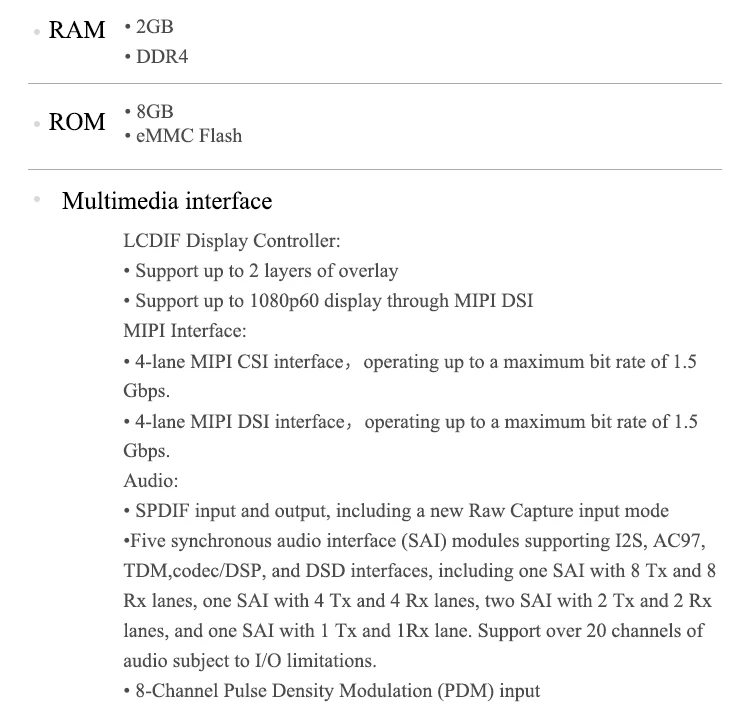

RAM | 2GB DDR4 | Voltage Input | 5V | |||
Flash | 8GB eMMC, | Package | board-to-board connection | |||
Working Temp | 0℃~+70℃ | RH | 10%~ 90% non-condensing | |||
Peripheral | QTY | Spec. | ||||
Camera | 1 | 4-lane, up to 1.5Gbps | ||||

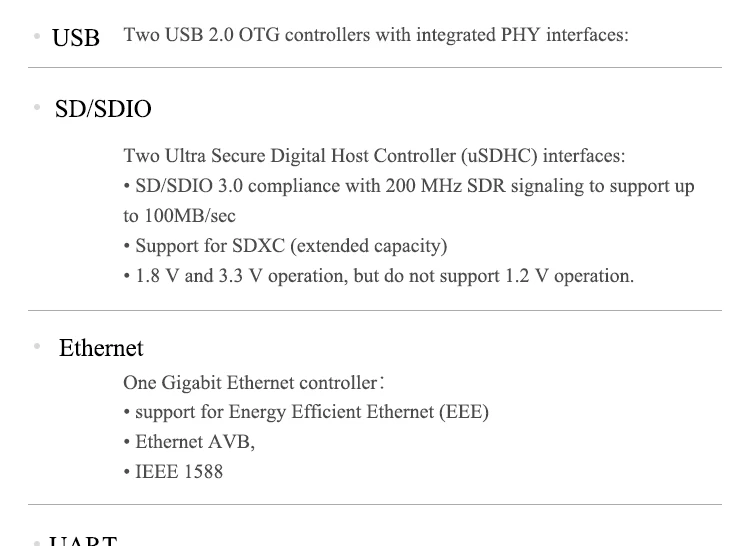

SD/ SDIO | ≤2 | 1.8V and 3.3V modes | ||||
USB | 2 | USB2.0 (up to 480Mbps), can be configured to OTG | ||||
SAI | ≤5 | |||||

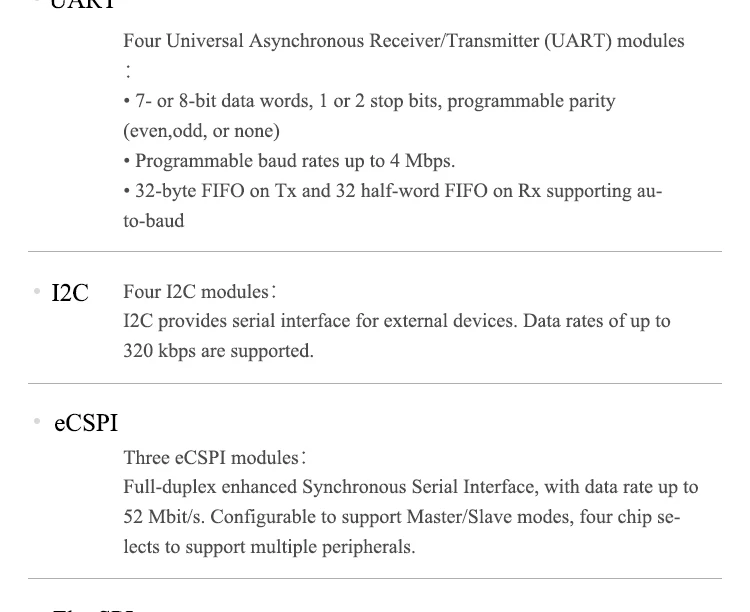

UART | ≤4 | each can support up to 4.0Mbps | ||||
eCSPI | ≤3 | up to 52Mbit/s, can be configured to host/ slave mode | ||||
IIC | ≤4 | 320Kbps | ||||
≤1 | 10/ 100/ 1000Mbps auoto-negotiation | |||||
PWM | ≤4 | 16-bit | ||||
JTAG | supported | |||||

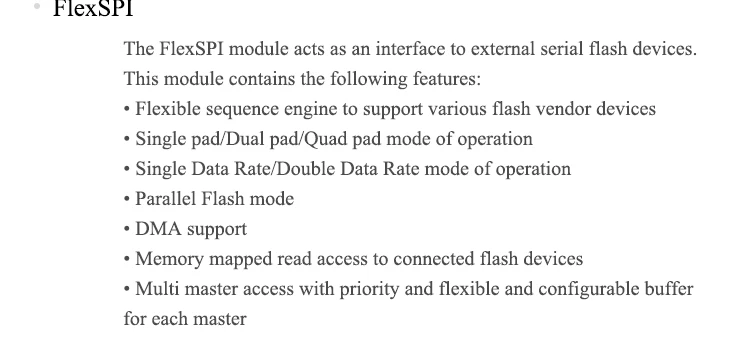

FlexSPI | 1 | single pad/ dual pad/ quad pad mode | ||||
Display | 1 | 4-lane MIPI, up to 1.5Gbps | ||||
PDM | ≤1 | up to 4-lane 8 channels | ||||

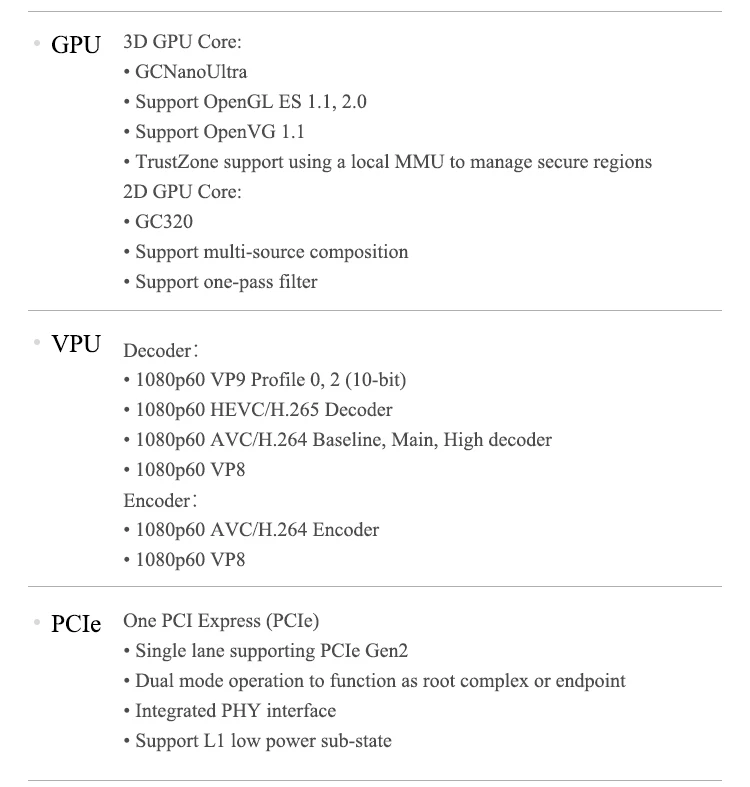

PCIe | 1 | PCIe2.0 |
Accessory of a development board including power adapter, debug cable
generally, the packing will be a development board a box (23*19*9cm)

Founded in 2007, Forlinx Embedded Tech. Co., Ltd. is a leading provider of trusted technology based embedded products and solutions. Forlinx offers comprehensive hardware design, system integration and product selling with global logistics support.
Aiming at providing customers with good-quality, high-performance products and service, Forlinx set up an R&D center in Beijing except in its headquarter city and got IDH authority of TI and Freescale in China mainland. With an excellent and experienced R&D team, stable supplying chain and powerful sales force, Forlinx has launched TI AM335x series, i.MX6 series based single board computers and system on modules, and also Samsung processors based development platforms to take users ready-to-use and easy-going development platforms, which help clients to shorten their product time-to-market.
In the future, we will spare no efforts to continue to take customers' demand as the guidance and in a spirit of innovation and enterprising to take customers more professional and efficient products and service.
