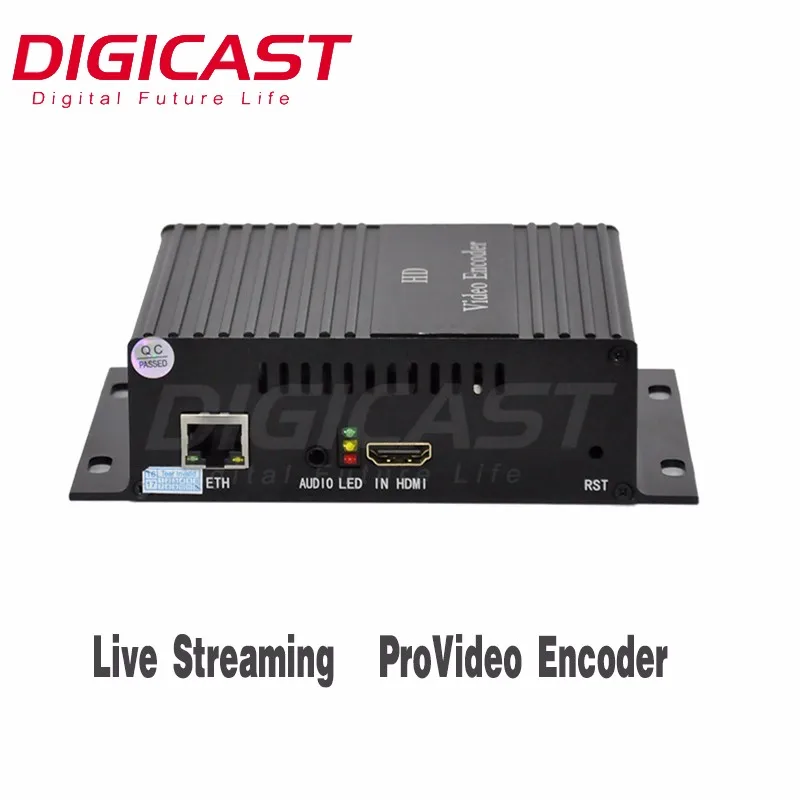

IPTV OTT IPTV Encoder MINI One Channel HD MI to IP Converter RTMP Live Streaming Encoder IPTV H.265

$299.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DIGICAST/DTVANE
Model Number:
DMB-8800A
Nature:
Encoder IPTV H.265
Video input:
HD MI input
IP Protocol output:
HLS/RTMP/RTSP/HTTP/UDP
Video Encoding:
H.265 HEVC/H.264(MPEG4/AVC)
Audio Encoding:
AAC, MP3
Resolution:
Up to 1080P Full HD
Bitrate:
VBR/CBR
Configuration Interface:
Web operation

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X25X8 cm
Single gross weight:
1.0 kg
Package Type:
carton box
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

MINI IPTV Encoder Highlights.

*Support 1channel HD MI input
*Support up to 4TS over IP stream out per module
*H.265 HEVC, H.264/ MPEG-4 AVC High Profile Level 4.0
*Bitrate mode: CBR/VBR

*Providing username, password matching function which required from destination server.
*Support multiple equipments display at the same time on a computer

*Full-duplex mode 1000M.
*Web-based management

MINI IPTV Encoder Highlights.

*Capable of image parameter settings

*Switchable of audio output mode: Left, right and Stereo
*Configurable of Multi-rate, Multi-resolution, Multi-protocol
*Providing RTSP/HTTP/UDP /HLS or RTMP protocol
*Support HDCP protocol
*Support ONVIF Network Video Protocol
*System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

                                                                                        Specification
VIDEO SPECIFICATIONS
Video compression:H.265 HEVC, H.264/ MPEG-4 AVC High Profile Level 4.0
Video inputs: HD MI(HDCP supported)
Resolution: support customize resolution
AUDIO SPECIFICATIONS
Audio compression: AAC, MP3
Sampling rate: Adaptive, selectable of re-sample.
Sampling accuracy: 24-bit
Bit Rate:48000,64000,96000,128000,160000,192000,256000
Re-sample:32000,44100
OUTPUTS(IP output)
Transport protocol: TS over IP output, RTSP/HTTP/UDP/HLS or RTMP protocol
For HD MI to IP output, 4*TS over IP stream out(HTTP/RTSP/UDP/HLSor RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application)

Connector: RJ45, 1000M
Resolution: (Resolution: support customize resolution)
HD MI main stream:
1920x1080,1680x1056,1280x720,1024x576,850x480,
720x576,720x540,720x480,720x404,704x576,640x480, 640x360,auto
HD MI sub-stream:
1280x720,800X450,720x576,720x540,720x480,720x404,
704x576,640x480,640x300,352X288,320X240,320X180, auto

Bit-rate: 16kbps ~ 12Mbps, CBR/VBR
Video pre-processing: Noise reduction, Sharpen, Filtering
GENERAL OPTIONS
SYSTEM
Configuration Interface: Web-based management.
Upgraded: via network
Connector: RJ45, 1000M Ethernet interface.
PHYSICAL AND POWER
Voltage: AC220V±10%, 50/60 Hz
Consumption: 80W
Operating temperature: -20~80°C
Dimensions: 250mm(W)*250mm(D)*80mm(H)
Weight: 1kg/pc

Application

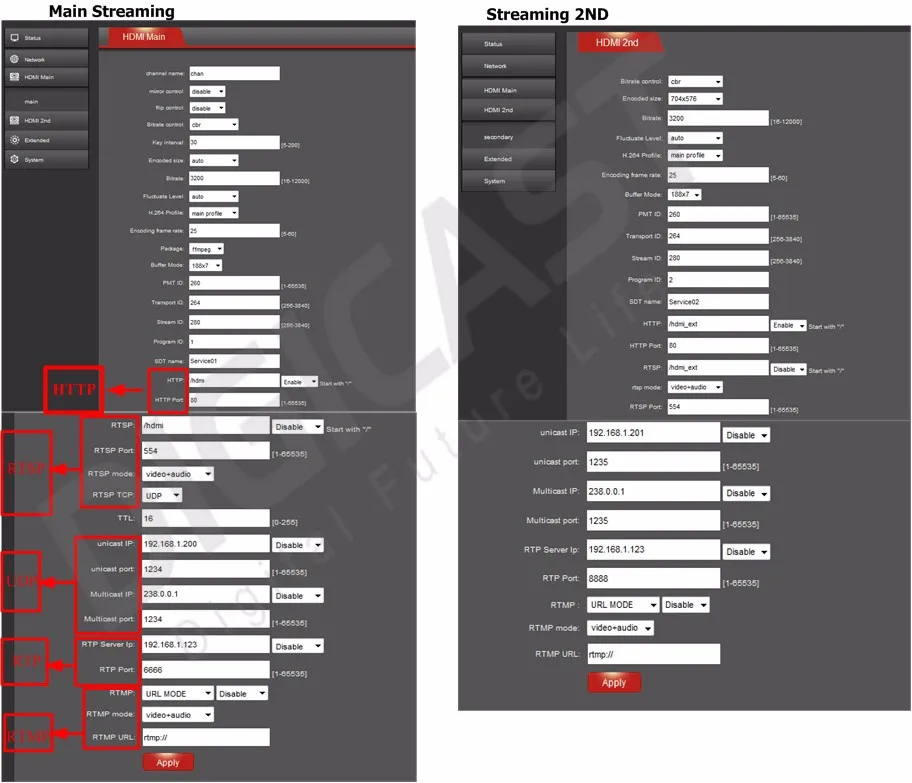

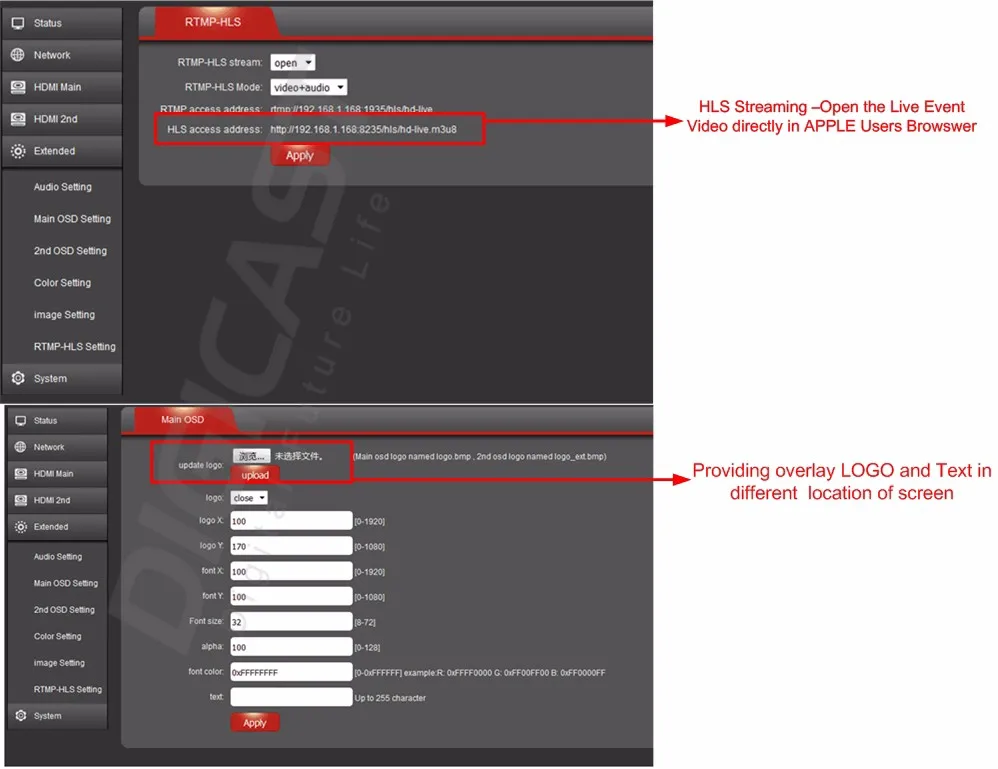

Web Managment
Pictures

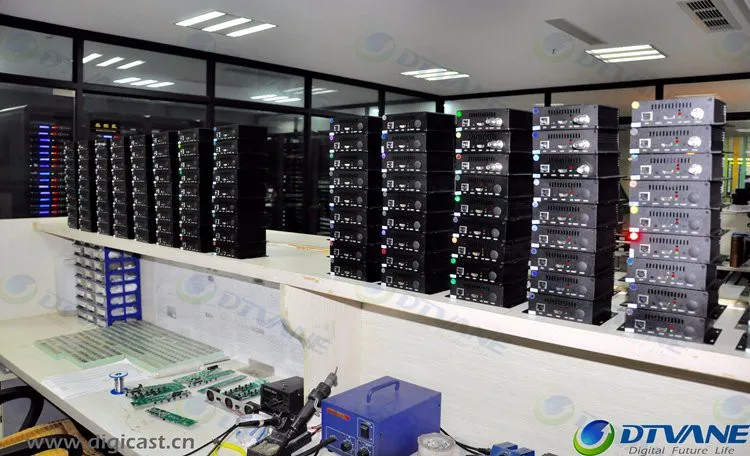

Why choose DTVANE
FAQ

Q1: Where is your Factory located? How can I visit your company?

A1: Our factory is located in Hangzhou City, Zhejiang Province of China.
From Shanghai, 1.5 hours by Train, 30mins by intercity high-speed rail.
From Shenzhen, 11 hours by Train,2 hours by Aircraft


Q2: Can I get some Samples for testing? Is it free?

A2:We are honored to offer you samples,but samples will be charged because of it's high value.

While to ensure the products are bought correctly and safely, we will offer online test for customers' evaluation.

Q3: Can you provide OEM service as per our request? Is it free?

A3: With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.

Please consult the sales for detailed requirements.

Q4: What about your Warranty?

A4: All products has 5 years' warranty.
We offer technical supports online/phone, repair services by our experienced after-sales specialist.
Service time: 9:00AM~23:59PM(GMT+8)

Q5: What is your Lead time and method of Shipment?

A5: All goods are in stock, just need 100% QC testing and Aging before sending out.
Usually it takes 3~7 working days after the full payment received.

Note:
1: There will be a little delay at busy season.
2: Sometimes the hot-sales products will be out of stock.

Q6: Your Method of shipment?

A6:Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-6 days from China to world,
we will choose the best way for you based on our history data, ensure the package will be received safely and smoothly.

Q7: What's your Payment method supported?

A7: We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram ,Alibaba Trade Assurance,etc.

Q8: Can I order Online(on alibaba website )?

A8:Firstly,make sure you have an alibaba account registered with your frequency-used email address.
Then find the product you want to order.Click the "Buy now" or "Start order" button.
Follow the steps alibaba guided or contact supplier directly for Guidance.

Q9:How can I Pay on Alibaba?

A9:You can pay whether to the appointed Citibank account by Bank Transfer or by Credit Card online.
Note: Credit card: Takes 2 days for the payment to be received. (MasterCard or Visa supported for now)
Citibank transfer: Takes 1~5 days for the payment to be received.
