ISO 10243 Die Springs

FOB Reference Price:Get Latest Price
$0.10 - $39.89 / Piece | 1 Piece/Pieces (Min. Order)
Load Capacity:
Load capacity varies with spring specifications
Wire gauge:
b*h changes with the specification of the springs
Load Type:
compression
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 5000 5001 - 10000 >10000
Est. Time(days) 10 15 30 Negotiable
Customization:
OEM (Min. Order: 1000 Pieces)
Customized logo (Min. Order: 1000 Pieces)

More

Customized packaging (Min. Order: 1000 Pieces) Less
Samples:
$1.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China
Brand Name:
DURSP
Model Number:
DIF,DIL,DIM,DIH,DIB,DIG10x25 - 63x305
Style:
Die Spring & Customized Spring
Material:
High grade chromium alloy steel
Usage:
Industrial
Color:
Light green, Green, Blue, Red, Yellow, Grey
Quality Control:
100% Inspection
Surface treatment:
Epoxy polyester resin coating
Standard:
ISO 10243
OEM:
Available
MOQ:
1 Piece
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inner packing: Plastic bag.
Outer packing: Carton box.
Port
Dalian
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 5000 5001 - 10000 >10000
Est. Time(days) 10 15 30 To be negotiated
Video Description
European ISO 10243 Standard Die Springs
Our die springs are manufactured to ISO 10243 standards and are designed to be interchangeable with many major manufacturers of the same type, size, and color. They are available from stock in a wide range of sizes for immediate delivery.
All of the manufacturing steps are closely monitored by rigid quality control, inspection and testing to ensure long service life engineered into every die spring is constant.

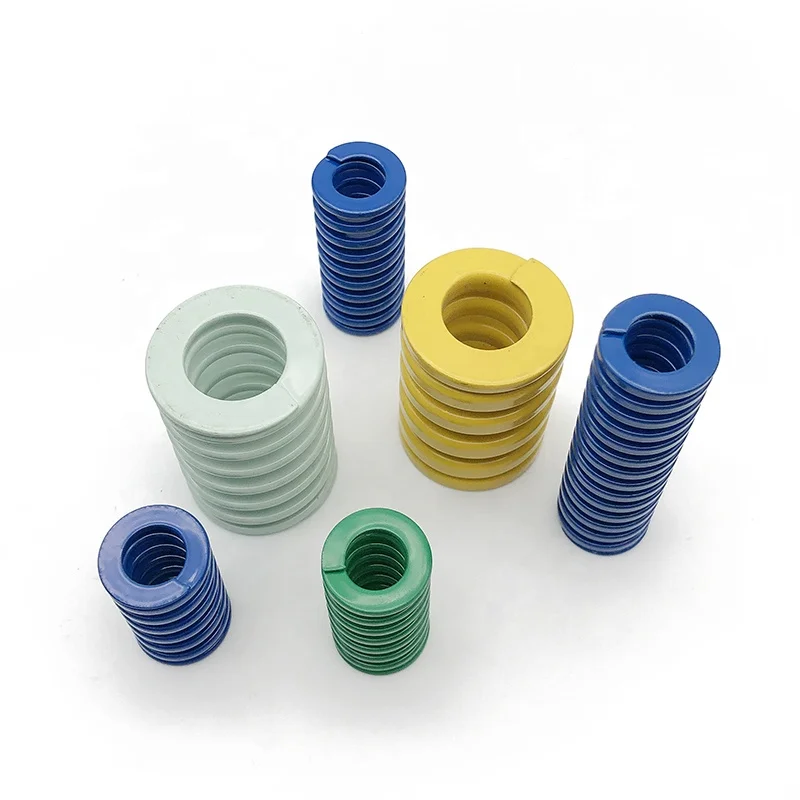

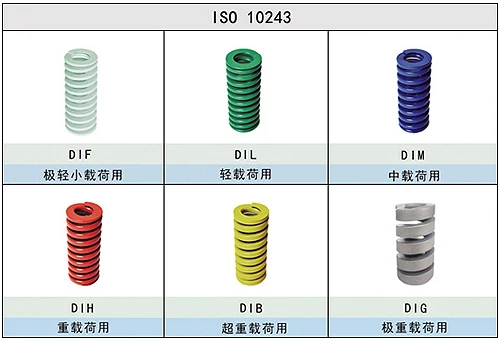

DURSP die springs are made of chrome alloyed spring steel, divided into a rising load range and color coded for easy identification, shown in the table below.
DIF
Light Green Die Spring – Extra Light Load
DIL
Green Die Spring – Light Load
DIM
Blue Die Spring – Medium Load
DIH
Red Die Spring – Heavy Load
DIB
Yellow Die Spring – Extra Heavy Load
DIG
Grey Die Spring – Ultra Heavy Load

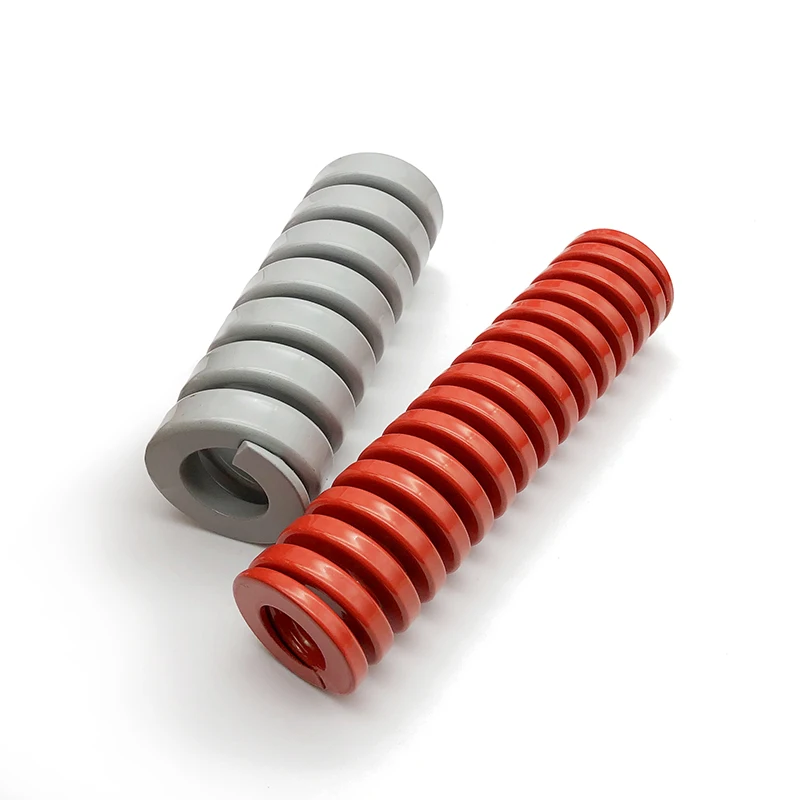

Product Show
Product Catalogue

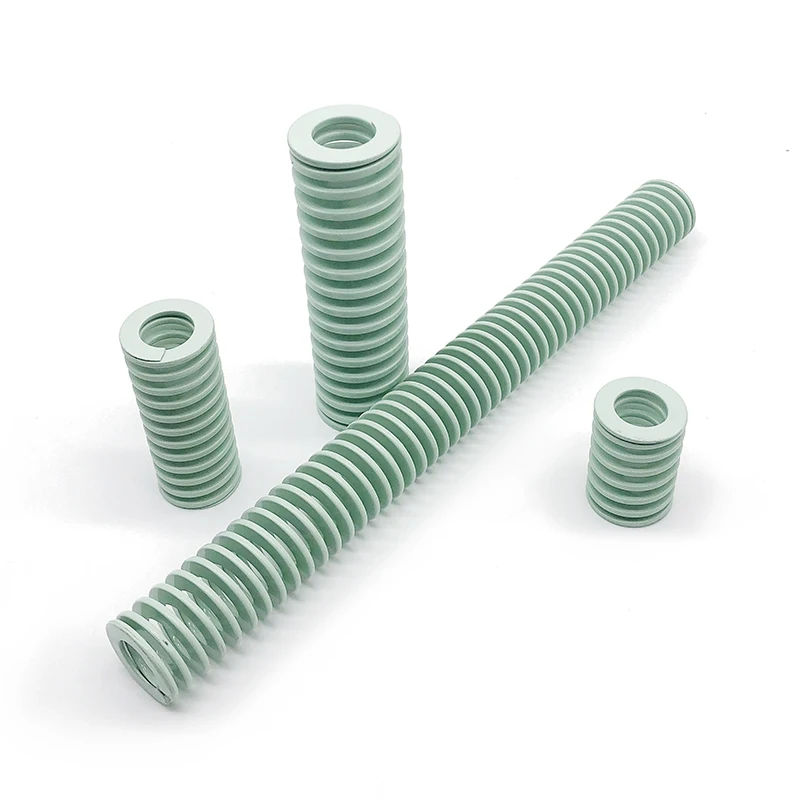

DIF – Light Green Die Spring ISO10243 – Extra Light Load
Dh [20] [25] [32] [40] [50]
L0 [32] [38] [44] [51] [64] [76] [89] [102] [115] [127] [139] [152] [178] [203] [254] [305]
Our extra light load die springs. Rectangular wire spring, made to ISO 10243 standards. High quality and long lasting, the working temperature of these springs is ≤ 80°C.
This range of die springs is composed of 5 groups by diameter. In this way, it is possible to select springs of different load characteristics for the same tooling already adapted for pressed parts, resulting in a longer operating lifetime for your dies and die sets.

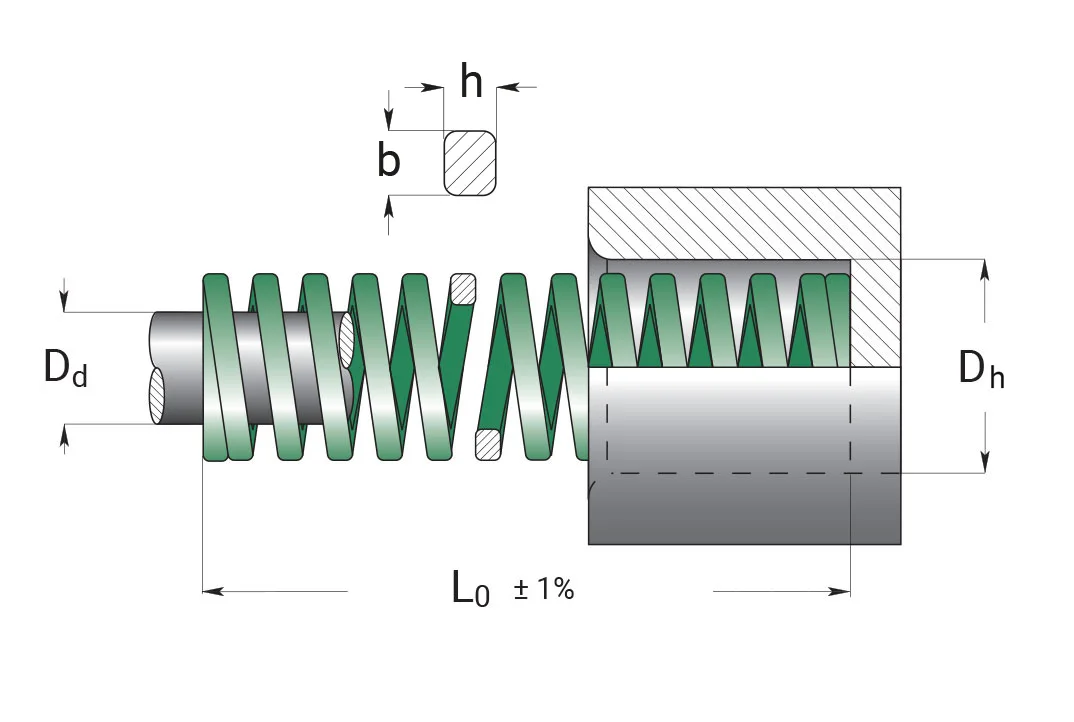

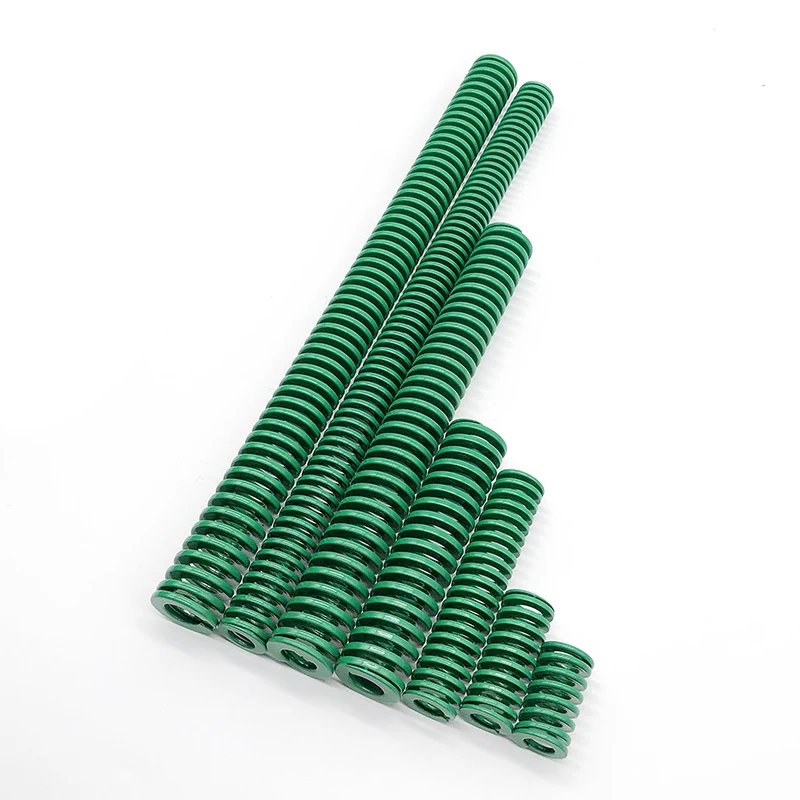

DIL – Green Die Spring ISO10243 – Light Load
Dh [10] [12.5] [16] [20] [25] [32] [40] [50] [63]
L0 [25] [32] [38] [44] [51] [64] [76] [89] [102] [115] [127] [139] [152] [178] [203] [254] [305]
Our light load die springs. Rectangular wire spring, made to ISO 10243 standards. High quality and long lasting, the working temperature of these springs is ≤ 80°C.
This range of die springs is composed of 9 groups by diameter. In this way, it is possible to select springs of different load characteristics for the same tooling already adapted for pressed parts, resulting in a longer operating lifetime for your dies and die sets.

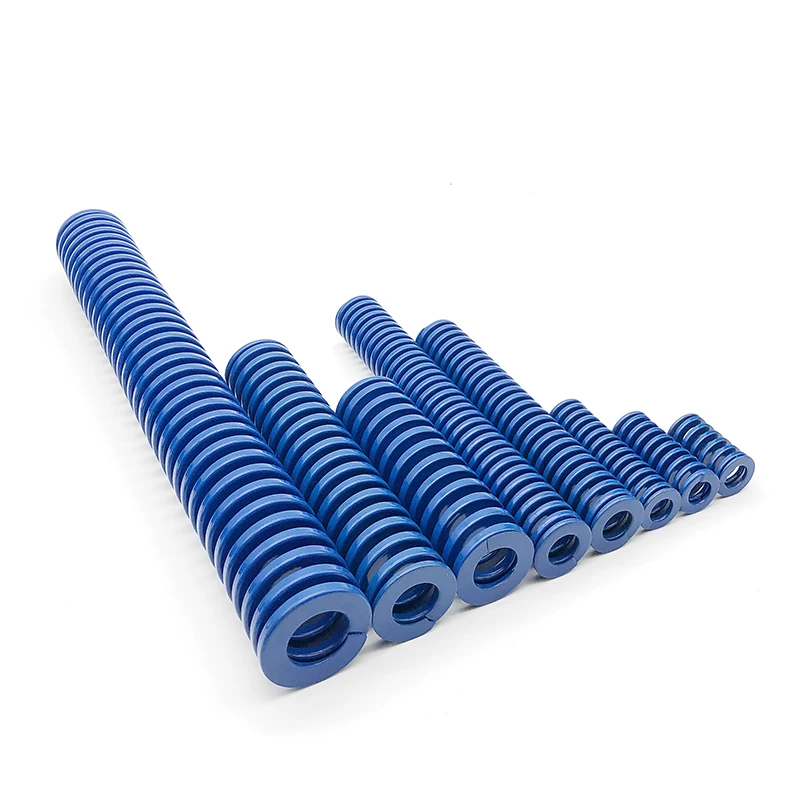

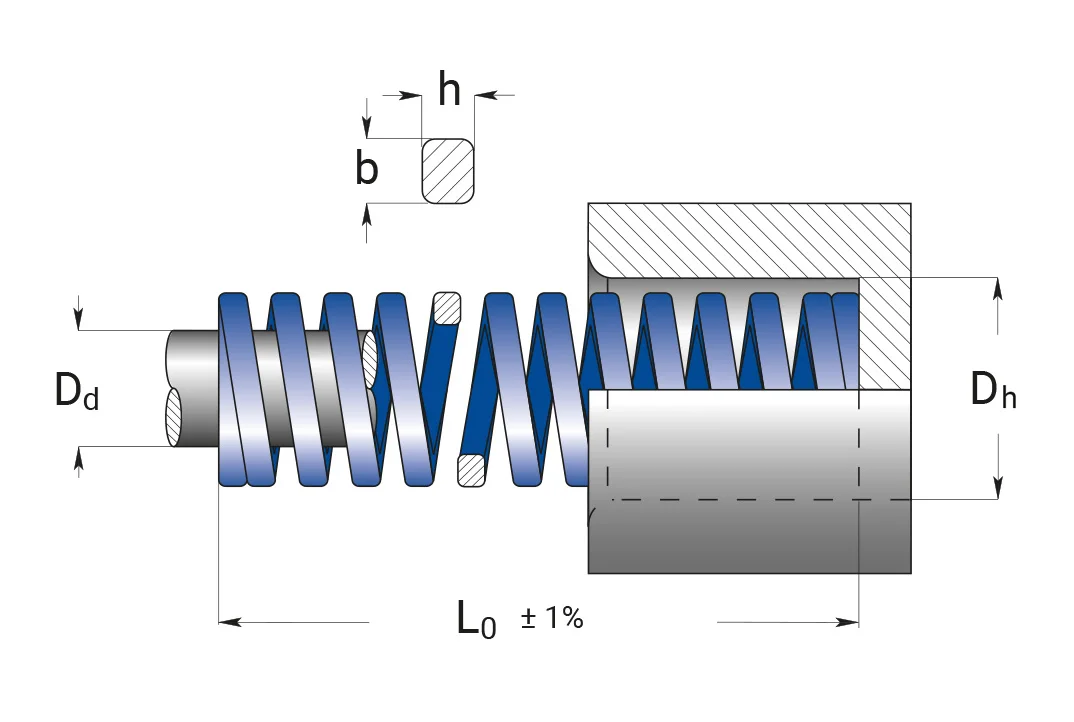

DIM – Blue Die Spring ISO10243 – Medium Load
Dh [10] [12.5] [16] [20] [25] [32] [40] [50] [63]
L0 [25] [32] [38] [44] [51] [64] [76] [89] [102] [115] [127] [139] [152] [178] [203] [229] [254] [305]
Our medium load die springs. Rectangular wire spring, made to ISO 10243 standards. High quality and long lasting, the working temperature of these springs is ≤ 80°C.
This range of die springs is composed of 9 groups by diameter. In this way, it is possible to select springs of different load characteristics for the same tooling already adapted for pressed parts, resulting in a longer operating lifetime for your dies and die sets.

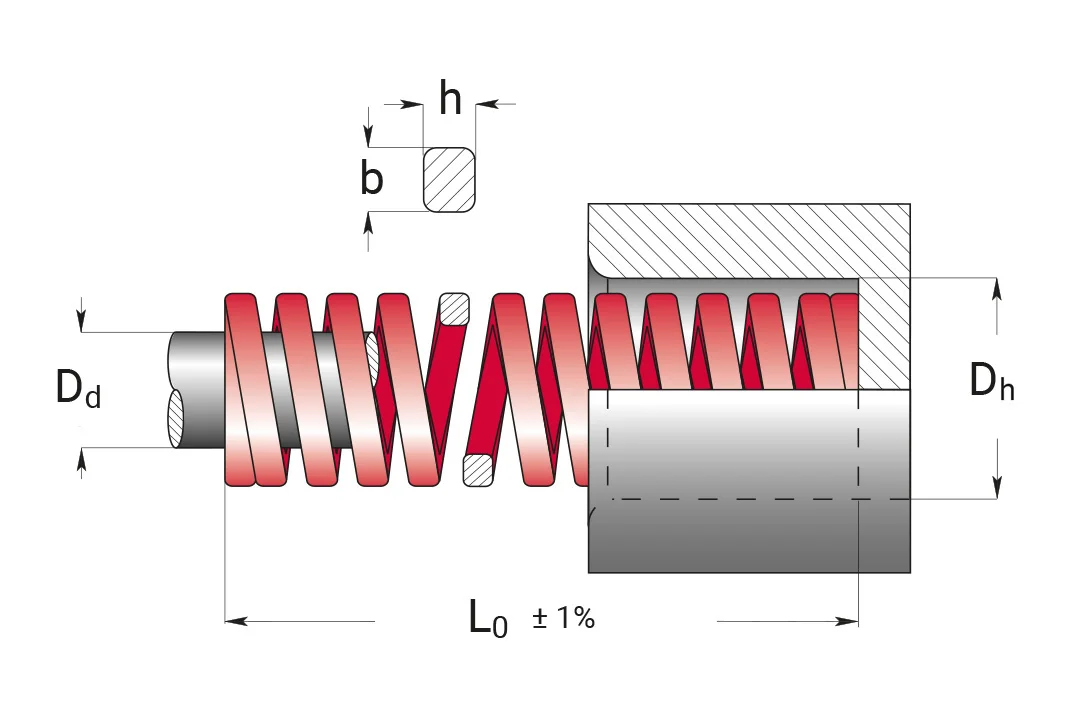

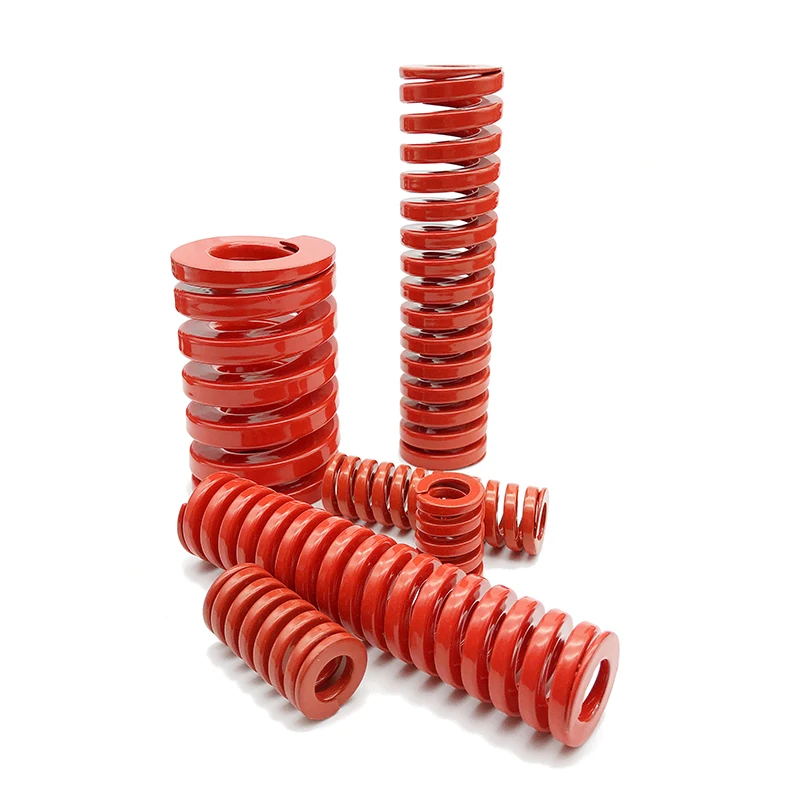

DIH – Red Die Spring ISO10243 – Heavy Load
Dh [10] [12.5] [16] [20] [25] [32] [40] [50] [63]
L0 [25] [32] [38] [44] [51] [64] [76] [89] [102] [115] [127] [139] [152] [178] [203] [254] [305]
Our heavy load die springs. Rectangular wire spring, made to ISO 10243 standards. High quality and long lasting, the working temperature of these springs is ≤ 80°C.
This range of die springs is composed of 9 groups by diameter. In this way, it is possible to select springs of different load characteristics for the same tooling already adapted for pressed parts, resulting in a longer operating lifetime for your dies and die sets.
DIB – Yellow Die Spring ISO10243 – Extra Heavy Load
Dh [10] [12.5] [16] [20] [25] [32] [40] [50] [63]
L0 [25] [32] [38] [44] [51] [64] [76] [89] [102] [115] [127] [139] [152] [178] [203] [254] [305]
Our extra heavy load die springs. Rectangular wire spring, made to ISO 10243 standards. High quality and long lasting, the working temperature of these springs is ≤ 80°C.
This range of die springs is composed of 9 groups by diameter. In this way, it is possible to select springs of different load characteristics for the same tooling already adapted for pressed parts, resulting in a longer operating lifetime for your dies and die sets.

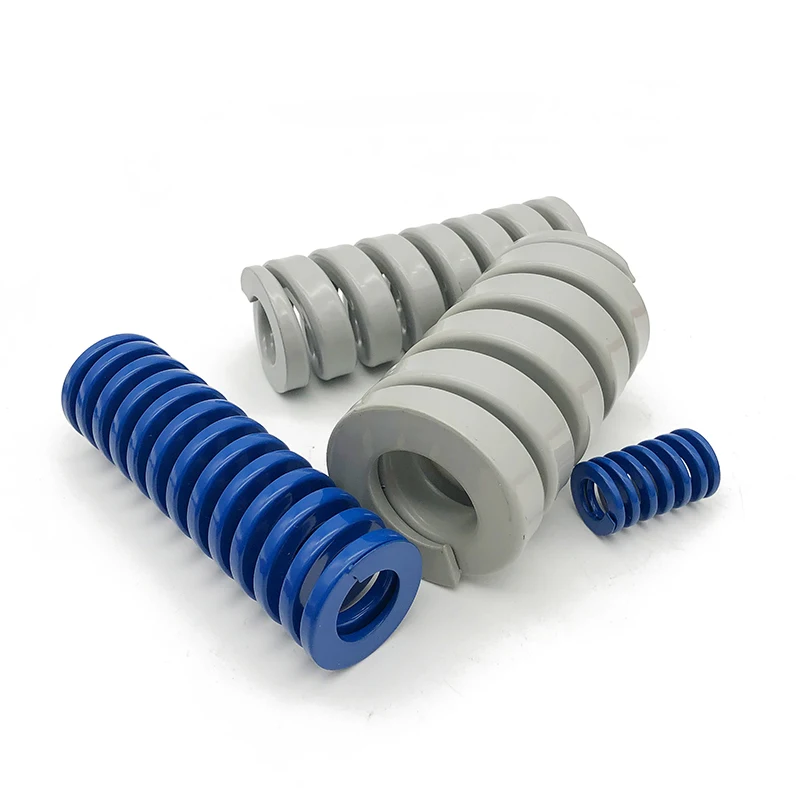

DIG – Grey Die Spring ISO10243 – Ultra Heavy Load
Dh [25] [32] [40] [50]
L0 [64] [76] [89] [102] [115] [127] [152] [178] [203] [254] [305]
Our ultra heavy load die springs. Rectangular wire spring, made to ISO 10243 standards. High quality and long lasting, the working temperature of these springs is ≤ 80°C.
This range of die springs is composed of 4 groups by diameter. In this way, it is possible to select springs of different load characteristics for the same tooling already adapted for pressed parts, resulting in a longer operating lifetime for your dies and die sets.

Specification

●High grade chromium alloy steel
●Special cross section wires reduce stress levels
●Closed & ground square ends
●Close controlled heat treatment
●Shot peening and setting
●Epoxy polyester resin coating
About Us

Company Profile

Founded in 2012, Dalian Serviceable Industrial Equipment provides thousands of products to industry, including die springs, helical disk springs, industrial wipes, and other MRO products.
We produce and distribute springs for dies according to international standards. Although our spring brand has only recently made its appearance on the market, the know-how behind it comes from a years-long experience in die spring production.
In addition to our dedication to quality, Dalian Serviceable Industrial Equipment Co., Ltd. is distinguished by its search for innovative solutions, with the goal of providing specific answers to a range of usage conditions.
We highly appreciate the confidence of our current and future partners. As a young company we work within a framework which guarantees you, the customer, our personal attention at all times.

————————————————————————————————————————————————————————————————————————————————

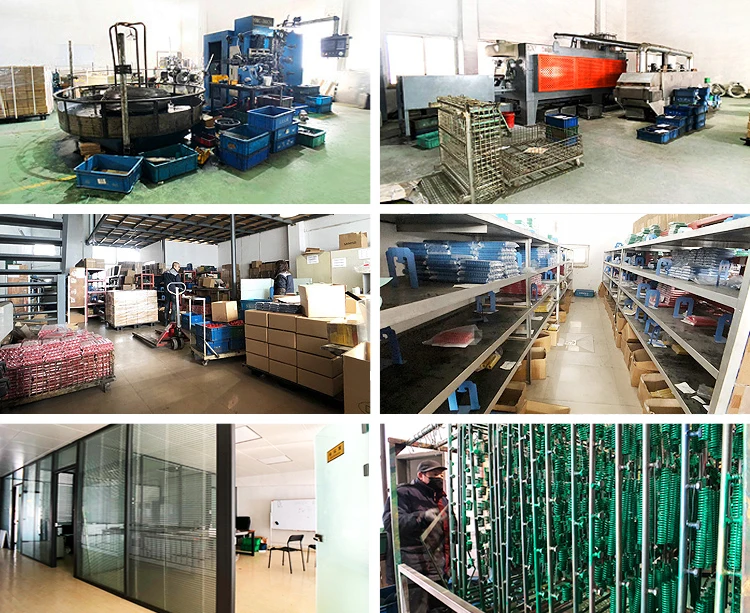

Production Processes

Our precision spring manufacturing process is aimed at guaranteeing the best dimensional and functional characteristics for our springs, as well as performance.
To this purpose, special manufacturing techniques, advanced heat treatments, shot peening installations, good inspection and test equipment are used.
The whole process is closely monitored and allows for complete traceability. The spring ends are closed and ground to create a reliable, flat, maximum load bearing surface. Careful engineering ensures continuity and provides uniform spring performance. Dimensional requirements remain consistent and measurably the same from one batch of springs to the next giving certainty that the OD will work freely in the prescribed hole and the ID will work over the prescribed rod. Continual research and development result in the best quality and longest life springs available. The springs are manufactured to European Standard ISO 10243 where applicable and we keep a large range of sizes in stock, ensuring that fast, off-the-shelf delivery is available for most items. We are also able to quote to drawing for non-standard items.

——————————————————————————————————————————————————————————————————————————————
● Quality Assurance

DEPENDABLE PERFORMANCE IS QUALITY ASSURED
We have always been committed to achieve consistent dimensional accuracy within narrowest tolerances. Each production run is thoroughly inspected and documented to maintain strict quality, in order to ensure our products meet the strict specifications and requirements of our customers.
Our Products can bring you:
Longer Life - Less downtime means greater productivity.
Better Value - You'll buy fewer die springs and lower your operating costs.
We are the die spring experts in our country. Try our DURSP Die Spring, and you'll see the difference for yourself!

ISO 9001 CERTIFICATION                         ISO 14001 CERTIFICATION                                   LETTER PATENT

——————————————————————————————————————————————————————————————————————————————

● Our Clients
Packing & Delivery

Packing Details

Inner packing: Plastic bag.
Outer packing: Carton box.
Other packing: Wooden or plastic pallets, and according to customers' requirements.

Delivery Details

5-30 woring days, depends on customers' order quantity and other requirements.

Port: Dalian

1. Special logistics packaging

2. Suitable carton size

3. Shock-proof bubble film

Various express delivery methods:

1.Express by air  (UPS, DHL, FedEx, TNT, EMS etc.)
2.Ship by sea.
3.Customer's requirements are welcome.



FAQ
1. Q:Are you a manufacturer or a trader?
A: We are a manufacturer for die springs and helical disc springs. We also do trading business for other MRO products such as industrial wipes, working gloves, etc.
2. Q: Can we get free samples?
A: Yes, some of our stock samples are free. You only need to bear the courier fee.
3. Q: Can we get discount?
A: According to customers' order quantity, we will give a reasonable discount.
4. Q: How about your lead time?
A: For stock products, we will send goods to you within 5-10 days after receiving the payment. For large number of products, lead time is about 20 days or more, depends on the quantity.
