ISO 179 Digital Charpy Impact Tester for plastic

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $1,850.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China
Brand Name:
Anytester
Model Number:
HY4251DA
Power:
Electronic
Usage:
Plastic Testing Machine
Display:
LCD
Controll:
Large Touch Screen
Warranty:
12 Months
Standard:
ISO 179
Impact velocity:
2.9m/s
Impact energy:
(0.5J), 1J, 2J, 4J, 5J
Impact center distance:
230mm
Pendulum angle:
150°
Radius of striking edge:
R=2±0.5mm
Dimensions:
420*260*630mm
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Wooden Case
Port
shanghai
Lead Time :
2 weeks
Product Description

Product Application.

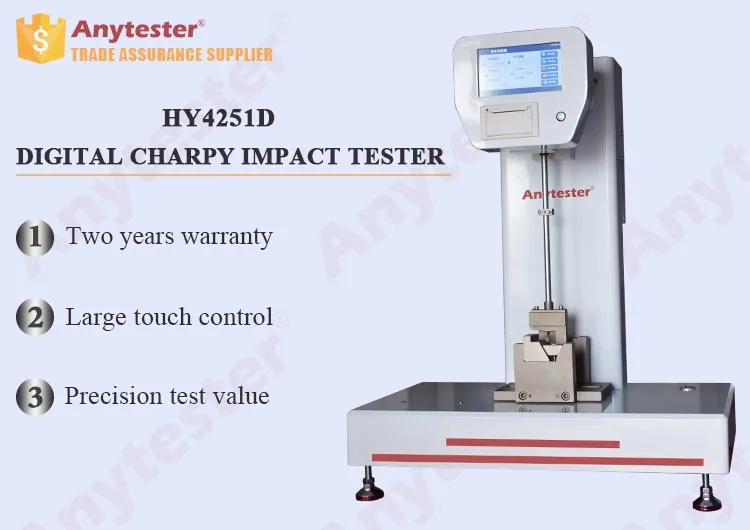

HY4251D Series Digital Charpy Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, fibre reinforced composite material, nylon, glass, ceramics, cast stone, asbestos board, electrical insulating material, etc. It is suitable for notched and unnotched specimen.

STANDARDS
ISO 179
GB/T 1043, 18743, 3808
JB/T 8762
JJG 145
Note: This Digital Charpy Impact Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
SPECIFICATIONS FOR HY4252D DIGITAL IZOD IMPACT TESTER
Model
HY4251DA
HY4251DB
Impact velocity
2.9m/s
3.8m/s
Impact energy
(0.5J), 1J, 2J, 4J, 5J
7.5J, 15J, 25J, 50J
Impact center distance
230mm
380mm
Pendulum angle
150°
160°
Radius of striking edge
R=2±0.5mm
R=2±0.5mm
Radius of jaw
R=1±0.1mm
R=1±0.1mm
Inclined angle of striking edge
30±l°
30±l°
Energy display resolution
0.01J
0.01J
Weight
60kg
70kg
Power supply
AC220V 50Hz
AC220V 50Hz
Dimensions
60Kg
70kg
Details & Features

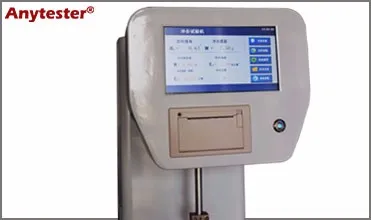

Touch Screen Control

> Ln arge LCD display

> Touch screen control make the operate simple

> Modularization desigmake after sale service easy






Modularization Design

> English and Chinese language changeable
> Remote control for software update anytime
> Historical date date query and print available
> Test report can be output and store on PC



High Quality Material

> Building in mini printer

> Reserved port for Stylus printer

> Historical date can be printed



High quality material

> High quality stainless steel make the machine long life
> Good machinery technology perform nice appearance

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Certifications
Packing & Delivery
Packaging
Size
85 (L) * 51 (W) * 94 (D)
Weight
60Kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
