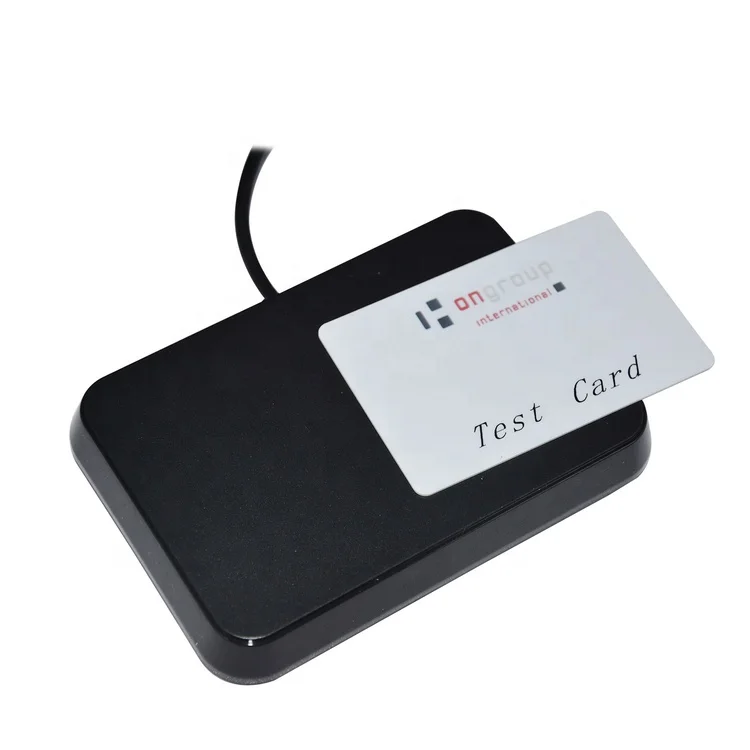

The HD8N NFC Reader is a PC-linked reader compliant with Full Option NFC features, developed based on 13.56MHz contactless technology. It has 4 SAM (Secure Access Module) slots which can provide multiple high-level securities in contactless transactions. Post-deployment firmware upgrade is also supported, eliminating the need for additional hardware modification.
The HD8N NFC reader is capable of the three modes of NFC, namely: card reader/writer, card emulation and peer-to-peer communication. It supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 50mm (depending on tag type used).
Compliant with both CCID and PC/SC, this plug-and-play USB NFC device allows interoperability with different devices and applications. It is thus ideal for unconventional marketing and advertising applications like smart posters.
Ø USB 2.0 full speed
Ø RS-232 serial interface (Optional)
Ø Contactless smart card interface
ISO 14443-Compliant, Type A & B Standard, parts 1 to 4, T=CL protocol
