ISP ink mill,three roller mill,ink production machine

FOB Reference Price:Get Latest Price
$10,000.00 - $80,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
SQ/JRS
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Place of Origin:
Jiangsu, China
Brand Name:
IDA
Voltage:
customizable
Certification:
CE ISO
Type:
Grinder
Product Type:
oil, electronic paste, plant gum, soap,powder
Dimension(L*W*H):
920*880*1150--3430*2010*1500mm
Range of Spindle Speed(r.p.m):
91 - 181
Power (kW):
15
Application:
Medicine Processing, Chemicals Processing, oil, electronic paste, plant gum, soap,powder type material like peanut, guar gum,etc.
Applicable Industries:
Manufacturing Plant
Key Selling Points:
High Safety Level,Competitive Price,High-accuracy,High Productivity
Output (kg/h):
15 - 140
Weight (KG):
2500 KG
Output Size (mesh):
2 - 500
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Roller diameter:
150-400mm
Length of roller:
300-810mm
Discharge:
660-730mm
Output:
15-140 L/h
Roll rotating speed:
high speed roll 91-181r/min
Main motor power:
3-55kw
Machine weight:
500-6000kg
Supply Ability
Supply Ability:
30 Unit/Units per Month
Packaging & Delivery
Packaging Details
The machine will be covered with anti-abrasion film and then packed in plywood cases.
Port
shanghai

1Product Description.jpg

SQ  series three roller mill is  welded by  high quality steel plate.  The  transmission gear adapts oil-immersed type and  the operative handwheel is transmitted by gear. It features beautiful appearance, convenient to operate, long life and so on. Particularly it is suitable for grinding the product that has high dispersive viscosity and fine size.

JRS series three roller mill machine widely uesd in pencil leads,colorant,which need very strong force. The machine with a speed reducer gear box.


Working principle

The equipment consists of three rollers fixed on the frame and driven directly by the motor. The rotation direction between rollers is generally different, the front roller rotates forward while the rear roller rotates backward. The speed of front roller is quicker while speed of rear roller is slower. The middle roller is fixed, and the front and rear rollers are mounted on the slide with spring device. Adjust the distance between three rollers by adjusting the hand wheel. The material discharged from space between rear roller and middle roller, are squeezed by the rollers to obtain smaller particle size Then the material are rolled out by the fast roll(Roll rotates at high speed). The scrapper at the end of the fast roller separate material from the roller and fall into the collection barrels. Since it produces a lot of heat in the grinding process, the center of each roller is hollow. Input water for cooling to ensure finished products with good quality.

Main Features

1.IDA SG series Three Roller Mill machine is a new generation product.

2.Chain gears driving, Oil tank gear box, fewer noise, longer life time.

3.Hydraulic piston driving, pressure guage.

4.SUS304 Stainless steel discharge hopper.



2Product Paramenters.jpg

ModelSQ6"
JRS150
SQ9"
JRS260
SQ12"SQ16"
JRS405
SGX16"
Roller diameter (mm)150230/260305400
Length of roller working surface (mm)300380/675514810
Distance from discharge hole to ground (mm)660720680730
Output(L/h)15-3030-6060-90100-140
Roll roating speed
(r/min)
Low speed roll3413.414.811.5
Middle speed roll7839.443.921
High speed roll181116.3129.891.9
Main motor power (kw)3153055
Overall dimension (mm)920x880x11502060x1420x12002400x1680x12503430x2010x1500
Machine weight (kg)500250048006000
Packing dimension (mm)1000x1000x14002200x1550x15002500x1800x16003550x2150x1900

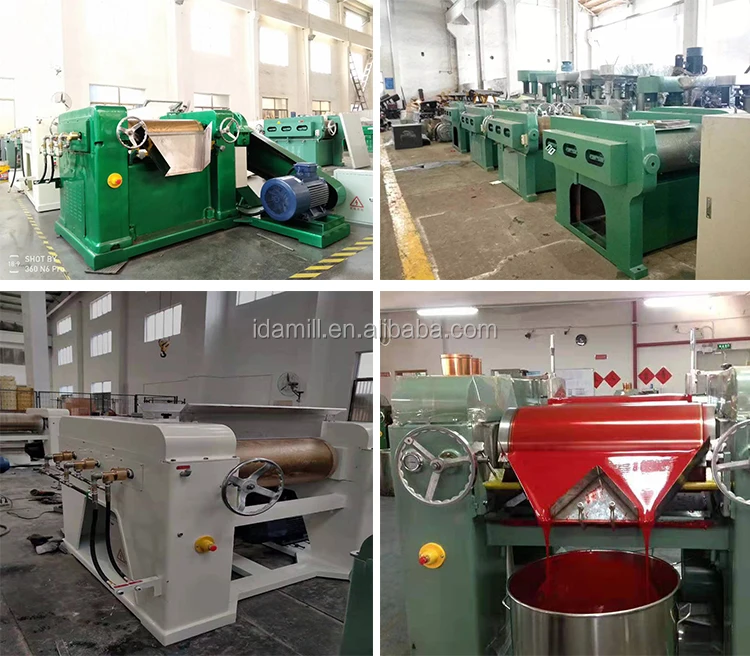

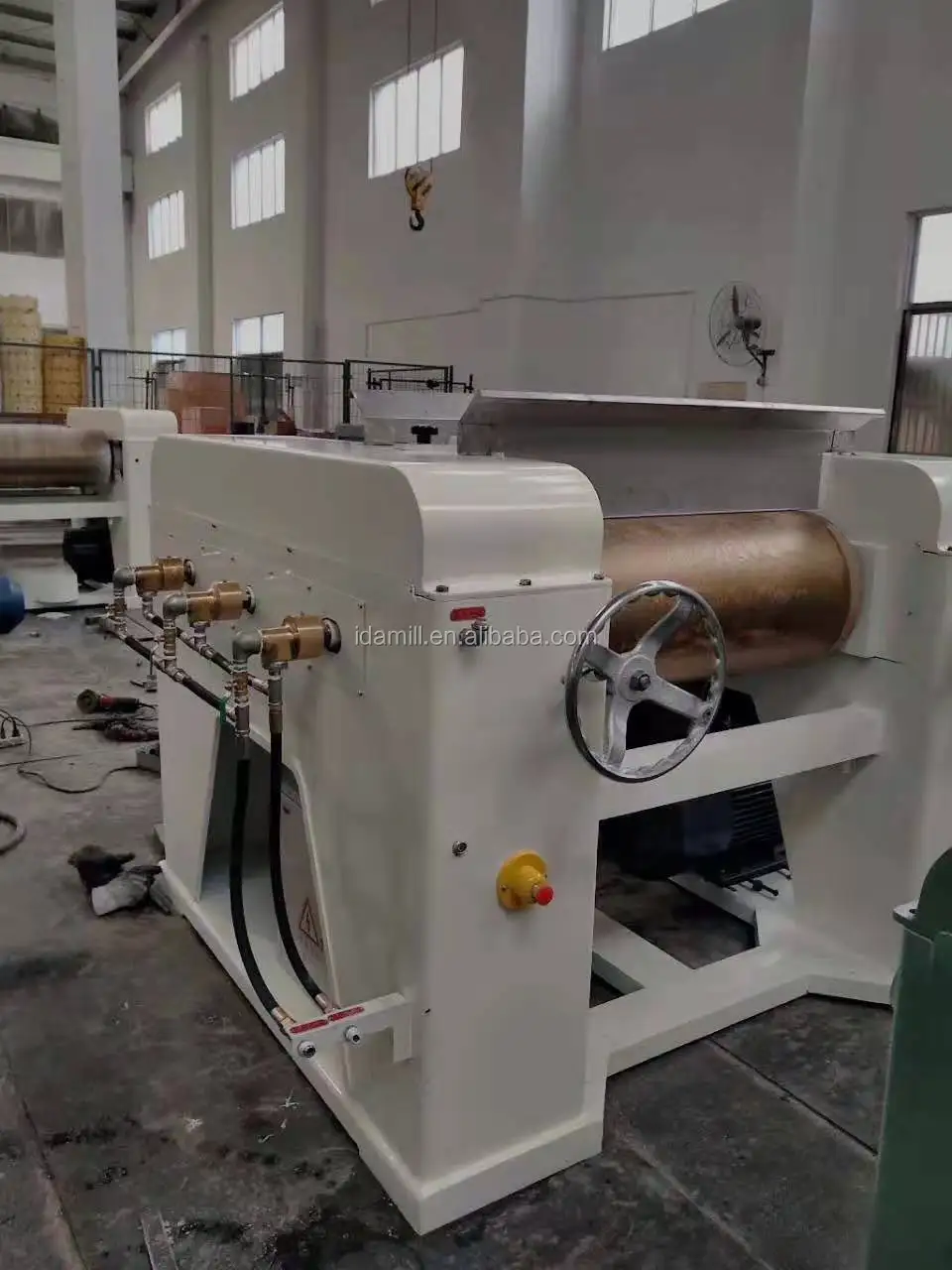

 3Detailed Images.jpg







Maybe IDA three roller mill already usde in grinding & dispersing Soap, oil,  cosmetics,lubrication,grease,CSA new material,Carbon fiber,etc.

.png



Company Introduction
IDA machinery is a professional engaged in fluid & powder equipment Research and development , design, manufacturing, sales and service as one of the integrated high-tech enterprises. Our company's main products are dispersing equipment, mixing equipment,grinding equipment, emulsifying equipment and complete sets of production lines, to provide our customers with industrial grade high standard of professional products and quality services. Widely used in industries and fields as follows : Paint & coatings, inks, dyes and pigments, flavors and fragrances, food, papermaking chemicals, medicine, cosmetics, pesticide, resin, rubber, lithium battery materials, building materials, lubricants, adhesives, surfactants, hard material & ceramic materials, electronic chemicals, oil field chemicals. IDA machinery for various process has a variety of grinding equipment has to meet your special requirements for products and processes are different. Many domestic and foreign customers choose us because IDA machinery technology is mature and reliable and advanced, with the rest assured!
Company information.jpg
Packing&Shipping
packing and shipping

Our Service
Pre-Sale Service: IDA engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.

On-Sale Service: IDA factory will manufacture the good quality machine.

After-sale Service: IDA engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the disperser and sand mill, train your workers to operate and help with the debugging.

All wear parts of IDA disperser and sand mill is available at any time you need. Our engineer will provide you with spare parts scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
