Industrial 10/100/1000M Gigabit PoE Media Converter with 30w PoE

  • 1-9 Pieces
    $80.00
  • 10-99 Pieces
    $70.00
  • >=100 Pieces
    $65.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Samples: $80.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $80.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
E-link
Model Number:
LNK-AF3011P-SFP
Fiber Ports:
1xSFP 1000Base-X
Interface Connector:
1 x RJ45
Address Table Size:
2048K MAC Addresses
Input Power:
48~57VDC, DC-Jack
Power Consumption:
36W 0.7A@52VDC
Casing:
Aluminum Case
Mounting Options:
Desktop / Wall Mount
Packet Buffer Memory:
1Mbit
Max Packet Length:
9K Bytes
Processing Type:
Store-and-Forward

Packaging & Delivery

Selling Units:
Single item
Single package size:
8X7X3 cm
Single gross weight:
2.0 kg
Package Type:
Industrial 10/100/1000M Gigabit PoE Media Converter with 30w PoE Standard export package
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 To be negotiated

Industrial 10/100/1000M Gigabit PoE Media Converter with 30w PoE

Product Description



Model: LNK-AF3011P-SFP Series



Overview

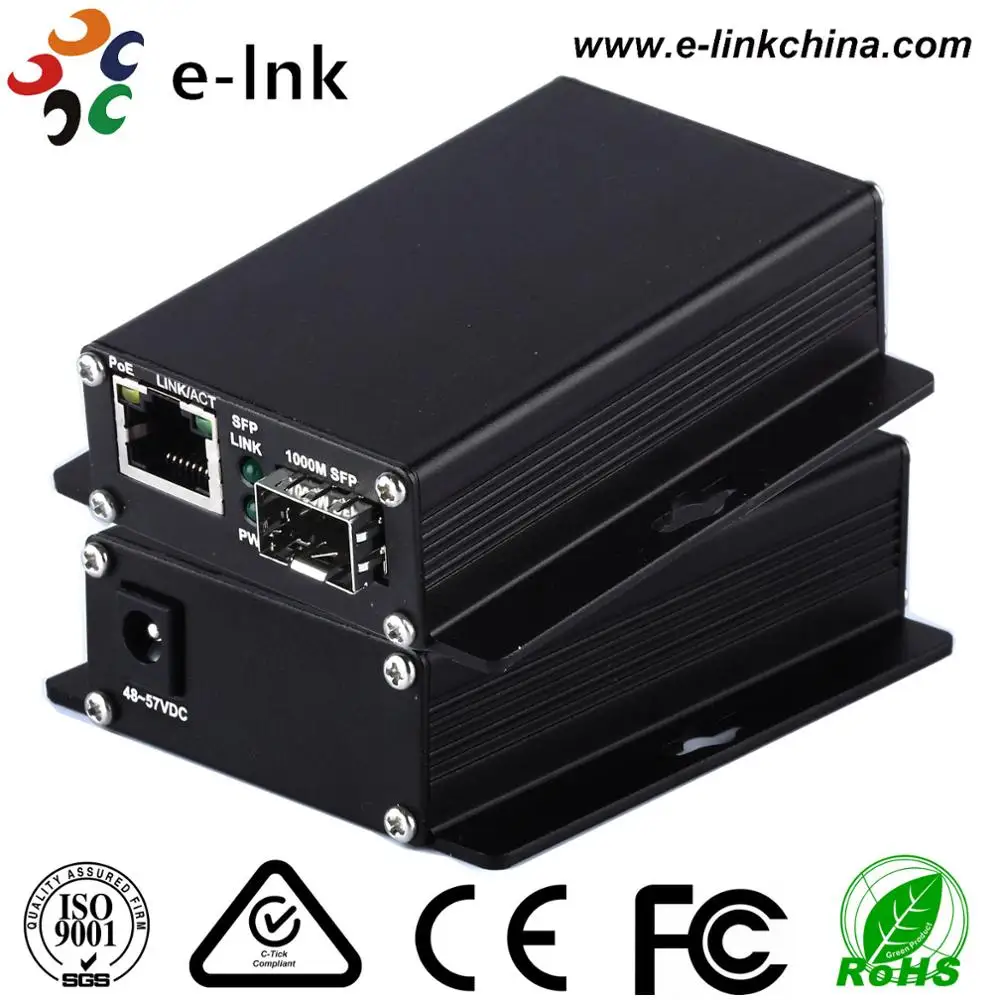

LNK-AF3011P-SFP is a Entry-level industrial 10/100/1000Base-T(PoE+) to 1000Base-X PoE media converter. The Ethernet port support 30W high power PoE PSE(Power Sourcing Equipment) which complies with IEEE 802.3at standard. The converter provides SFP ports to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can chose different types of SFPs (1000M only). The converter supports 1 or 2 core Single-mode or Multi-mode fiber. The product operates at temperatures ranging from -10°C to 70°C (14°F to 158°F) and support wall-mount installed or desktop installed.





Features







Technical Indexes



Specifications

Standards

 IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory

1Mbit

Max Packet Length

9K Bytes

Address Table Size

2048K MAC Addresses

Interface

Connector

1 x RJ45

Optical Port

1 x SFP 1000Base-X

Electrical and Mechanical

Input Power

48~57VDC, DC-Jack

Power Consumption

36W 0.7A@52VDC

LED Indicators



Power

Power Status

PoE

PD plug Status

Ethernet (Per Port)

LINK/Activity

SFP

LINK

Dimensions (WxDxH)

83 x 70 x 23.6mm

Weight

0.2 Kg

Casing

Aluminum Case

Mounting Options

Desktop / Wall Mount

Environmental



Operating Temperature

-10°C to 70°C (14°F to 158°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs
