Industrial Air Blast plate contact freezer For Fish

FOB Reference Price:Get Latest Price
$9,800.00 - $18,800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
OB
Report Suspicious Activity
Overview
Quick Details
Cooling Capacity:
1000kg
Power(W):
15kw
Dimension(L*W*H):
3000*1500*2500MM
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Engineers available to service machinery overseas
Condition:
New
Type:
Plate Freezer
Place of Origin:
Shandong, China
Brand Name:
Oceanblue
Voltage:
380V
Weight:
2-5 Tons
Certification:
CE ISO
Item Name:
Industrial Air Blast Plate Freezer For Fish
Case Material:
Stainless steel
Plate Material:
Aluminum Plate
Refrigerant:
Ammonia & Freon
Frozen Temp.:
-35
Freezeing Capacity:
300-1500Kg/h
Usalbe Layer:
10
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy packaging for the container
Port
Qingdao Port
Product Description

Product Application  (Industrial Air Blast Plate Freezer For Fish)

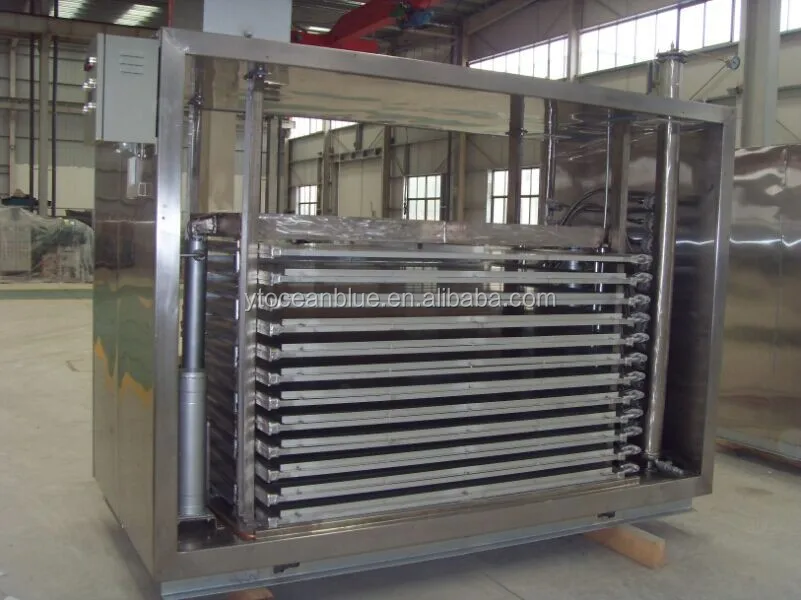

Industrial Air Blast Plate Freezer For Fish makes the product into pieces, which is an economic and high efficient freezing method. It can adjust the distance of plates and compaction grade base on product. It suits for packed fish, shrimp, seashell, meat, and mixed food, vegetable, fruit, boxed cooked food, any bag and tray packed cake and easy molding products.

The plate freezer's standard composition is as follows:
Cabinet, base frame, multilayer plate evaporator, liquid supply pipe, gas out pipe, hauling carriage hydraulic device and electric control system.

Model
Freezing Temp.
Size(L*W*H) mm
Weight(kg)
Plate Layers
Freezing Capacity  (kg/h)
OB 500
-35
3000*1500*2000
2800
10
500
OB 750
-35
3250*1500*2250
3400
10
750
OB 1000
-35
3450*1750*2250
4000
10
1000
OB 1500
-35
3560*1750*2450
4600
10
1500
OB 2000
-35
3850*1750*2450
5000
10
2000
OB 2500
-35
3950*1750*2650
5400
10
2500

Main Features  (Industrial Air Blast Plate Freezer For Fish)

(1) Short freezing time and high freezing quality, it is the best choice for massive food quick-freeze.
(2) High heat exchange efficiency, quick freezing speed, the energy conservation effect is prominent.
(3) Ensure food obtains the high quality as well as lower the cost to minimum.
(4) The unit is high flexibility and vast range of application.

Industrial Air Blast Plate Freezer For Fish

Design & Features
Remarks
Explanation of Data:

1. Cooling capacity is related to the shape,size,water content and physical properties of the foods.
To be work in room with temperature under 20℃ is recommended.
Configure cooling system individually for the IQF;
high and low pressure compressors work together is recommended.
2. Nominal capacity & cold consumption is based on boiled dumplings size: 20g/piece; dumplings arrangement: 10kg/m2; packed in a plate for freezing.
3. Length of inlet & outlet and food passing height are adjustable according to different foods to be frozen.
