Industrial Grade HMI 800x600 dots matrix 10.4 inch intelligent tft lcd module support RS232 RS485 TTL

Feedback Ratings
US $93.50 / Piece | 100 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
CJS10401
Type:
TFT
Item name:
HMI H800x600 dots matrix 10.4 inch intelligent tft lcd module
Color:
TFT color
Voltage:
5V or 9V~26V
Interface:
RS232.RS485.TTL
Viewing area:
247X177mm
backlight:
LED backlight
Brightness:
250cd/m2
Weight:
0.85kg
Picture download:
USB download mode
Grade:
Industrial grade

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X17X5 cm
Single gross weight:
0.5 kg
Package Type:
Paper box
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(day) 45 To be negotiated

Industrial Grade HMI H800x600 dots matrix 10.4 inch intelligent tft lcd module support RS232 RS485 TTL

Product Description

Model No.: CJS10401

Size:10.4 inch

Resolution: 800x600 dots matrix

View display area: 212.35x159mm

Active view area: 211.2x158.4mm

Module sizes: 247.4x177mm

Height: 27.5mm

Display color: 64K colors

LED backlight type: LED

Brightness: 250cd/m2

View angle L/R/U/D: 70°/70°/50°/70°

Operate temperature range: -20~+70℃

Storage temperature range: -30~+80℃

Interfaces: RS232.RS485.TTL UART

Picture download mode: USB download mode

Function: set current palette, set the character display spacing, take a color from specific location, cursor display

Text display, choose the character library display, character zoom in display, set/ cancel the limitation for textbox,

Display point, line display, line chart display, ellipse and ellipse area operate, circular curve display

Rectangle and rectangular region display, dynamic curve display, clear full screen, picture/icon display and so on



Selling Point

Supporting RS232, RS485, USART (3.3V TTL) interfaces, baud rate from 1,200 to 115,200bps wide input range VDD (9-26V)

RTC real-time clock

Embedded 4-wire touch panel controller

USB picture download

Multiple pages DDRAM

Color depth TFT: 65K colors

2/4GB flash

PWM for backlight

Management of datasheet file

Efficient development tool for PC, most development work can be done on the PC

Hardware acceleration, transferred image quickly

With touch screen

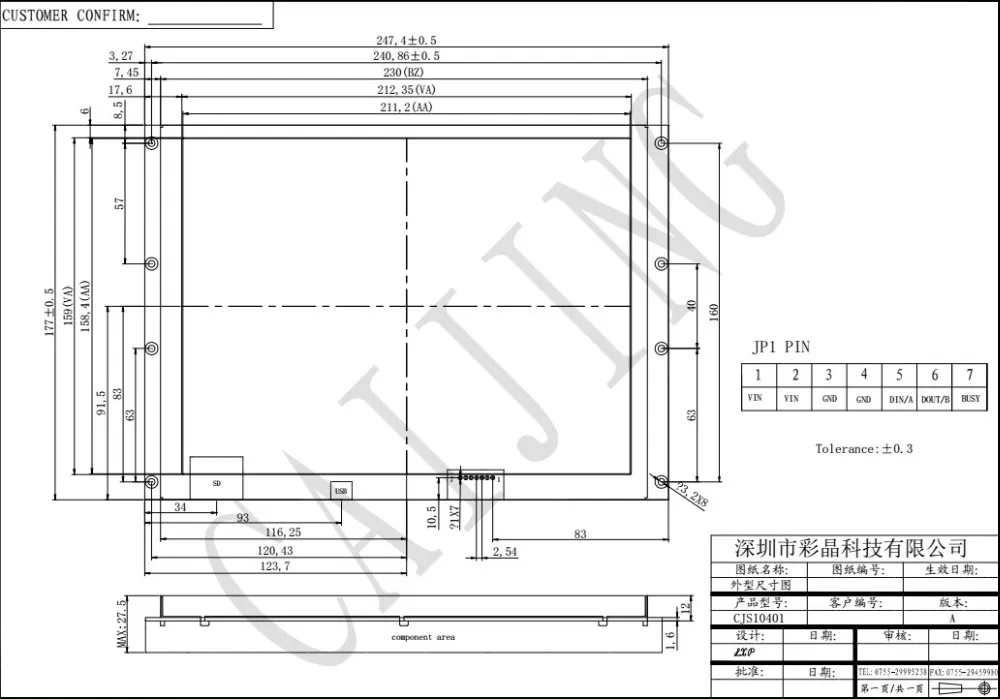

Drawing for Industrial Grade HMI H800x600 dots matrix 10.4 inch intelligent tft lcd module support RS232 RS485 TTL

10.4 inch.JPG

Product Certificates

10.4 inch TFT color  smart terminal lcd module support RS232.RS485.TTl and SD card

8 characters 2 lines lcd module certificates.png

Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Our equipment.png

Product usage

Shenzhen Brilliant Crystal Technologic Co.,ltd  lcd module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .




Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

Related Product

Industrial Grade HMI H800x600 dots matrix 10.4 inch intelligent tft lcd module support RS232 RS485 TTL

10.4 inch TFT color smart terminal lcd module support RS232 RS485 TTL UAR

Other related size is below

10.1 inch TFT intelligent LCD Module with touch panel and SD card

8 inch TFT color lcd module display support RS232 RS485 TTL

7  inch HMI smart terminal  tft lcd module display

5.6 inch TFT color lcd display module

5 inch tft color lcd module display

4.3 inch tft lcd module

We also have two kind style command list style and CGUS style .

To know more about us ,contact us ,please .
