Industrial carbonated water making equipment / commercial soft drink filling capping machine / juice bottling plant

  • 1 - 1 Sets
    $38,000.00
  • >=2 Sets
    $23,000.00
Power:
7.5KW
Model Number:
DCGF24-24-8 6000-7000BPH
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year, One Year
Packaging Type:
Bottles
Packaging Material:
Plastic, Plastic bottle / aluminum cans
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Jiangsu, China
Brand Name:
BAIJI
Voltage:
380V 50HZ 3P
Application:
Beverage, Chemical, Food, Machinery & Hardware, Medical
Weight:
8500KG
Automatic Grade:
Automatic
Certification:
CE ISO9001:2000, CE,ISO
Driven Type:
Electric
Dimension(L*W*H):
3780x2800x2300mm
model:
DCGF
working speed:
2000 - 15000bph
mixer:
3 tanks / 5 tanks mixer
beverage:
carbonated water / juice / soda water
Co2 percentage:
3-4 g/l
Control:
PLC+touch screen
name:
carbonated water making equipment / filling capping machine / plant
Supply Ability
Supply Ability:
6 Set/Sets per Month carbonated water making equipment / filling capping machine
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

Industrial carbonated water making equipment / commercial soft drink filling capping machine / juice bottling plant

Feature of carbonated drink filling machine:

1. This series of filling machines are used in production of PET bottled carbonated beverage, such as carbonated water, sprite and so on.
2. This series of products are the integrated rinsing, filling and capping machine, suitable for producing various PET bottled carbonated beverage.
3. The main machine adopts advanced PLC control technology.
4. The key electric elements adopt international famous products.
5. We will give you the highest quality and the best service.

Flow Chart:

If you want to know more,please click here.

Detailed Images

Washing part

Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck,avoiding the second contamination.


Filling part

High speed and mass flow filling valve ensures the high filling speed and exact fluid level.



Capping part

capping head have itself scale.Easier adjust and count.



Auxiliary Equipment

Water Treatment System

The Reverse Osmosis process uses a semi-permeable membrane to separate and remove dissolved solids, organics, pyrogens, submicron collodial matter, viruses, and bacteria from water. The process is called "Reverse" Osmosis since it requires pressure to force pure water across a membrane, leaving the impurities behind. Reverse Osmosis is capable of removing 95 - 99% of the total dissolved solids (TDS) and 99% of all bacteria, thus providing safe, pure water.

Carbonated Beverage Mixer

1. suitable beverage types: Cola and lemon.
2. mixing ratio range: 3:1 - 6:1
3. CO2 content: 4 times
4. volume: CO2 consumption of about 4 M3/h
5. CO2 supply pressure: 0.8-1 Mpa
6. CO2 Purity: 99.9%
7. consumption of ethylene glycol solution: water=30M3/h
8. ethylene glycol solution pressure: 1.0Mpa
9. ethylene glycol solution inlet temperature: -2 C.

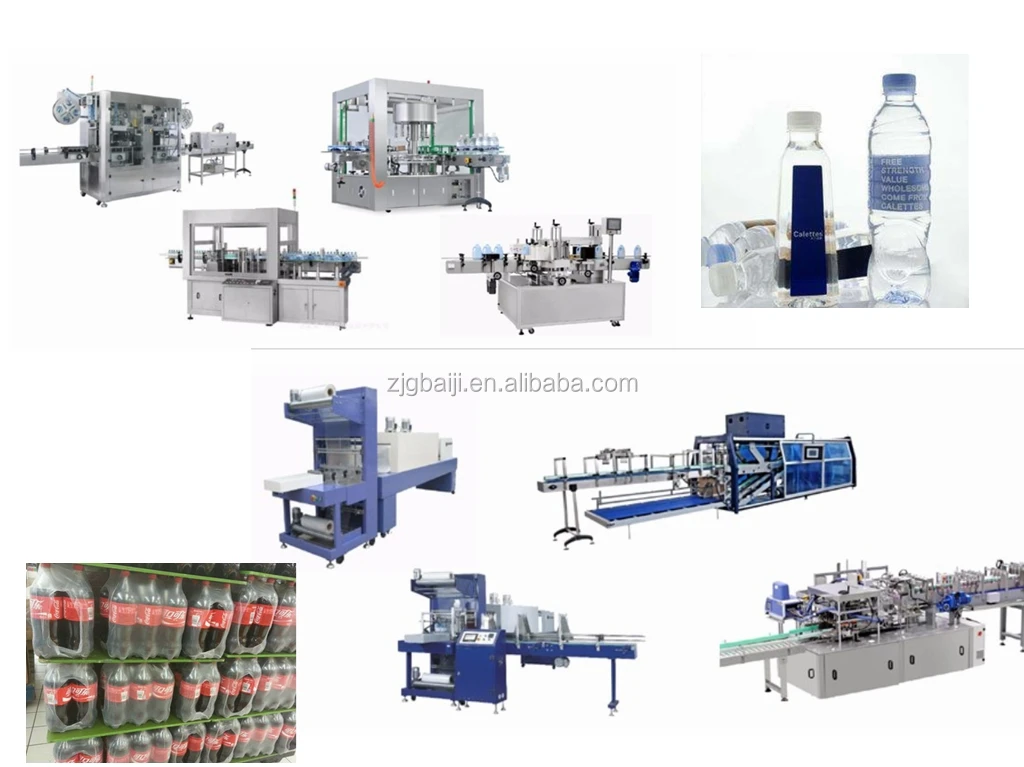

Bottle blowing machine

Here we can supply both semi auto and full auto bottle blowing machine according to your needs.
Full auto machine we do 2 cavities, 4 cavities, 6 cavities and 8 cavities.

Automatic labeling machine

1/Heat shrink sleeve labeling machine
2/OPP Hot melt labeling machine
3/PVC label stick labeling machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

PE film packaging machine

1/PE film shrink wrapping machine
2/Half-tray shrink wrapping machine
3/Carton box packaging machine

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

PE film

Half-tray

Carton box

Model
DCGF14-12-4
DCGF18-18-6
DCGF24-24-8
DCGF32-32-10
DCGF40-40-12
Capacity(500ml)(B/H)
2000-3000
3000-5000
5000-7000
7000-10000
10000-15000
Filling precision
<=+5(liquid level)
Filling pressure
<=0.4Mpa
Bottle height
160-320mm
PET bottle specification
Bottle diameter 50-115mm,Height160-320mm
Suitable cap shape
Plastic screw cap or crown cap
Total power
4.4
5.2
6.2
6.2
7.5
Overall dimensions
2250*1650*2250
2600*1965*2250
2980*2200*2250
3880*2200*2250
4000*2250*2500
Weight(kg)
2500
3500
4500
6000
7200

Inquiry us:

If you are interested in our product, please feel free to click the picture to inquiry us!

Certifications

Notes: A quality department has been set up to control the product quality during every process of production. For years, we are strictly implementing International Quality Management System ISO 9001.

Our Services

Pre-Sales Service

*Inquiry and consulting support.
*Sample testing support.

*24 hours online answer your confusion.

*Welcome to view our factory.

TAfter-Sales Service

*We provide useful instructions of machine.

*Engineers available to service machinery overseas.

*Training how to instal the machine,training how to use the machine.

Packing & Delivery

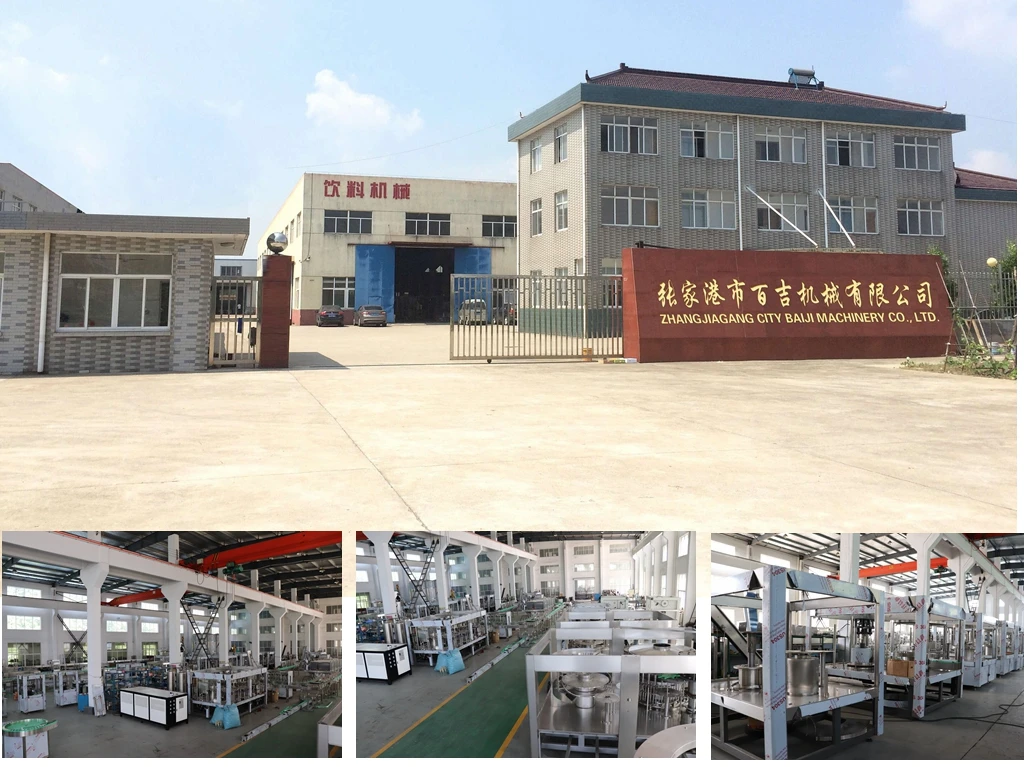

Our Company

About Us

Our company is specialized in manufacturing all machines in carbonated drink, mineral water, pure water, juice, tea drink, soy milk, wine production line. The drink can be PET bottled, 5 gallon barreled, easy open canned, glass bottled and so on.
Our beverage filling equipments export to Japan, Russia, Indonesia, Malaysia and many others countries. Professionalisthe foundation of an enterprise.
