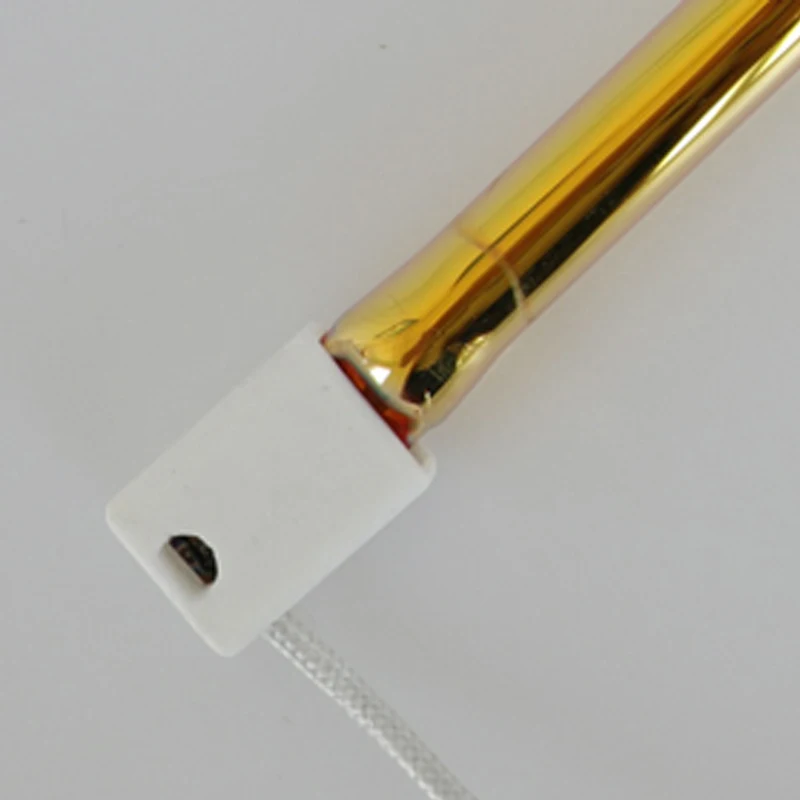

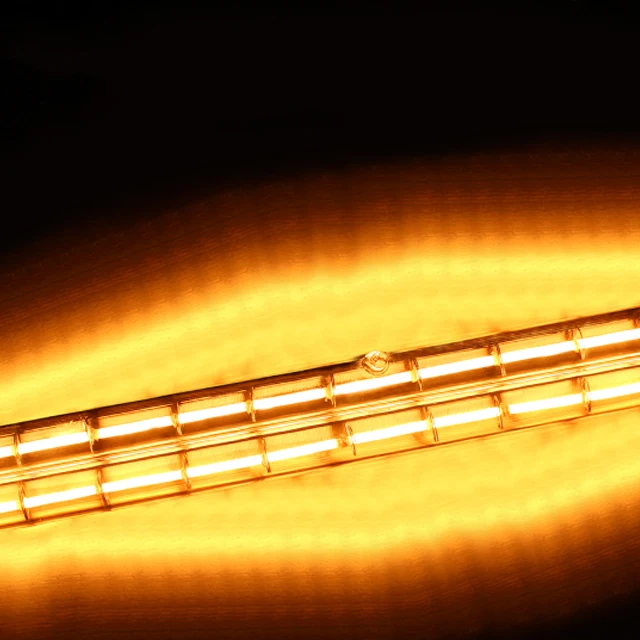

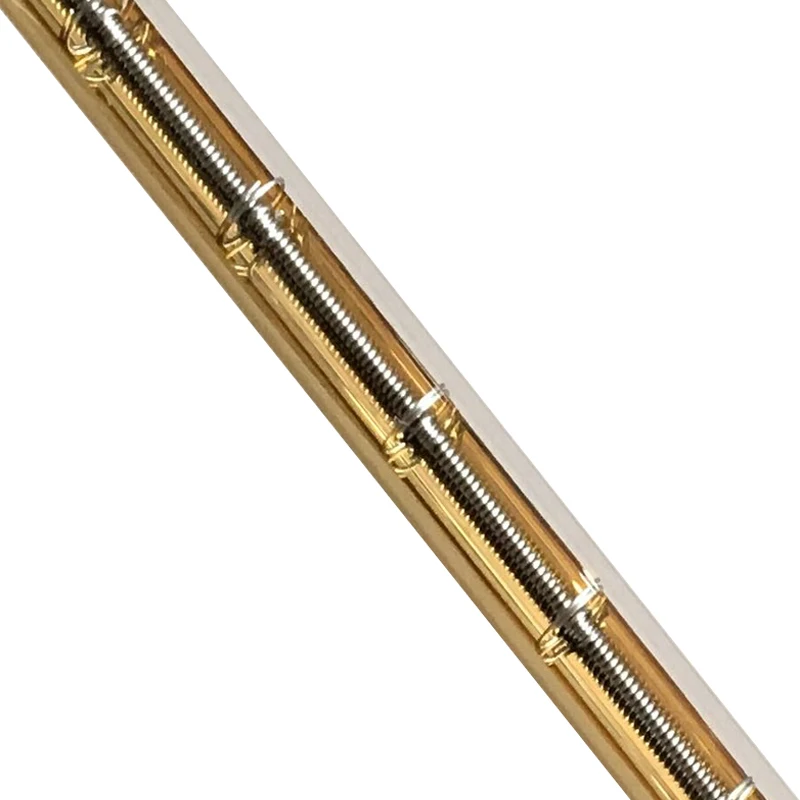

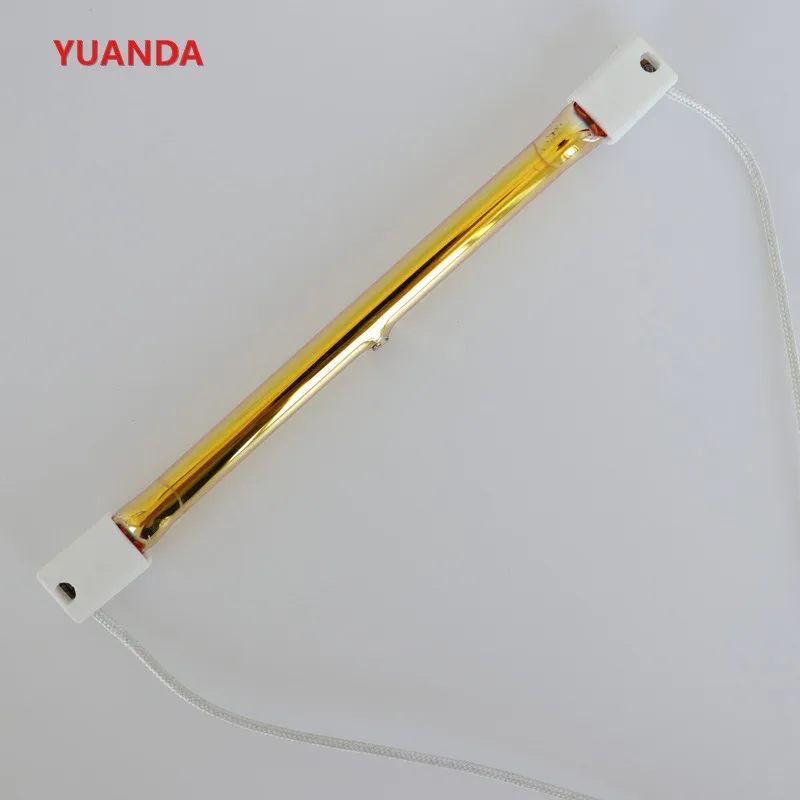

Infrared Halogen Heating Quartz Shortwave Gold Coated Infrared Lamp Prices

  • 25 - 99 Pieces
    $5.00
  • >=100 Pieces
    $4.50
Model Number:
Short Wave
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YUANDA
Color:
Yellow
Specification:
OEM
Material:
Quartz, Halogen gas, filament, Quartz, high-calss imported quart
Certification:
CE
Average Lifetime:
5000 hours
Color temperature::
2450K
Volts(V):
110V, 220V, 240V, 380V, 400V, 415v
Watts(W):
300-9000W
Wavelength:
0.8-1.4um
Shape:
Linear, U, racquet shape, ring shape etc

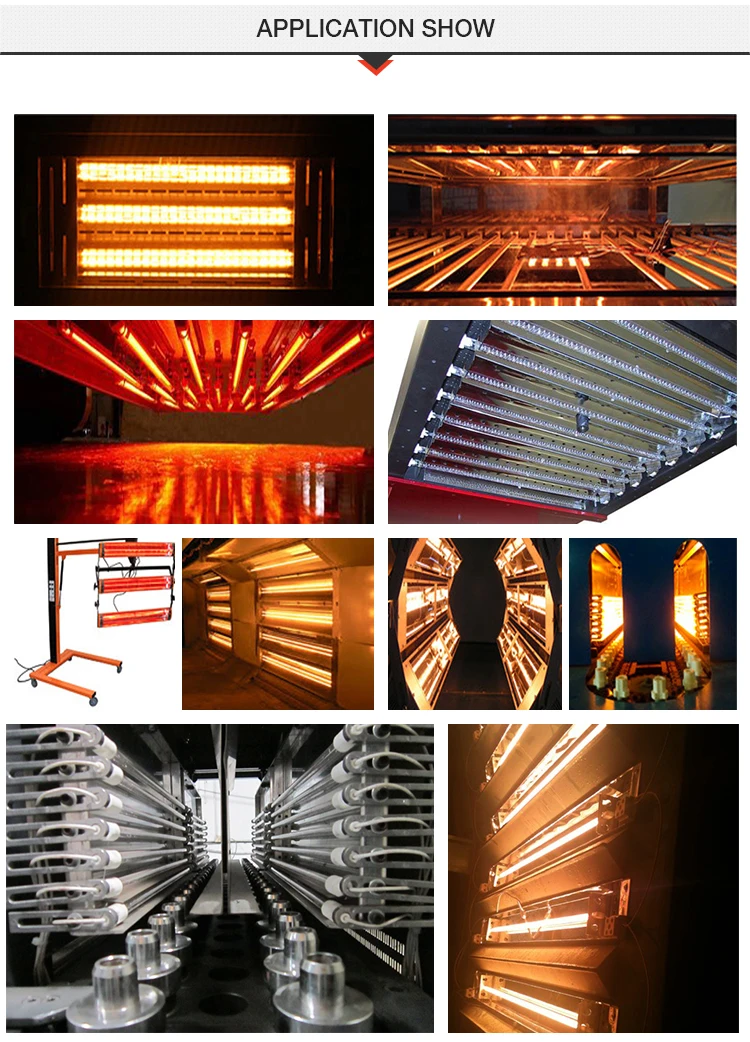

Applications:
Heating / drying/pet blowing machine
Customized:
Yes
Installation:
Horizontal / Vertical
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week Infrared Halogen Heating Quartz Shortwave Gold Coated Infrared L
Packaging & Delivery
Packaging Details
Each infrared lamp in a small white box.Then in a professional wooden box.
21kgs Wooden box can be load 35mm lamp 200pcs.
21kgs Wooden box can be load 50mm lamp 100pcs.
21kgs Wooden box can be load 1000mm lamp 50pcs.
21kgs Wooden box can be load 1000mm lamp 50pcs.
Port
Qingdao,lianyungang,shanghai

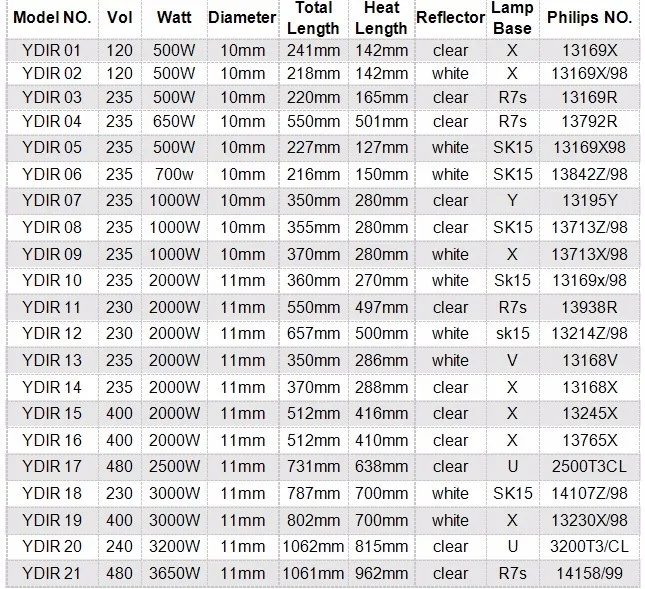

Product Description

Voltage
Wattage
Length
Min
110V
100W
100MM
Max
480V
5000W
3000MM
Quartz glass Tube diameter
10,11,12,14,18,20MM

Advantage:

Lamp materials: manufactured from foreign imported high-end quartz tube.
Longer serving life:the mid-temp and low-temp ones 5000 hours.
Hight efficiency:more than 85% heat efficiency of full power.
More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
Clear heating means:Don't worry about surface corrosion and dropping off.
Quick controllable heat:the heating time is controllable as it is needed.
Clean and adorless:no risk of contamination over environment or target object to be heated.
Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
Energy Saving:less energy consumption,smaller footprint and better heating results.
We can customized for you wanted.

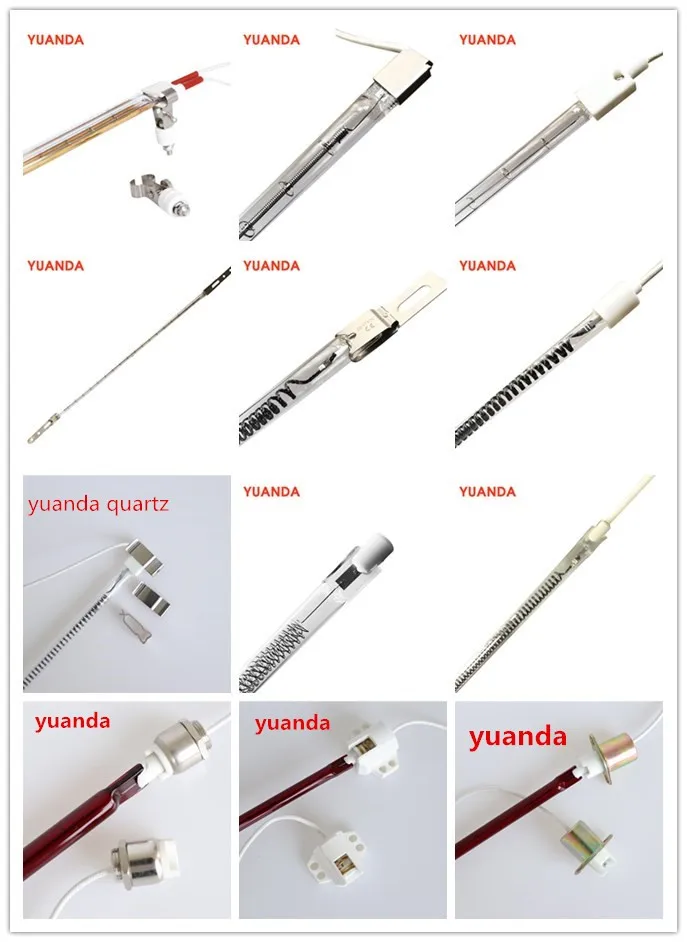

Ceramic structure

Normal size

SAFETY PRECAUTIONS

1. Components are allowed to work under the following conditions:
A. The relative humidity of the air is not more than 95 percent.
B. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
C. Without violent impact and vibration;
D. The working voltage should not be greater than 1.1 times the rated value, and it can also be effectively grounded.
E. Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min.
2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
When the operating temperature exceeds 200 degrees Celsius, a high-temperature wire and screw connection that withstands 400 degrees or more is used.
3.Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage.
