Infrared short wave heating lamps quartz IR tubes

Feedback Ratings
  • 1-19 Pieces
    $15.50
  • 20-49 Pieces
    $14.50
  • 50-99 Pieces
    $13.50
  • >=100 Pieces
    $12.80
Support Dimmer:
Yes
Color:
Clear
Wattage:
Other
Emitting Color:
Yellow
Model Number:
IRX23.5-10-370
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Pieces)
Contact Supplier
Samples - $12.50 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
E-DEN
Color:
Transparent
Specification:
10mm/11mm/12mm/14mm/15mm/19mm
Material:
High quality quartz glass tube
Certification:
CE
Application 1:
cloth dyeing and printing
Application 2:
plastic film stretching
Application 3:
plastic packaging
Application 4:
rubber drying
Application 5:
mold drying
Application 6:
bottle blowing machine
Application 7:
water drying
Application 8:
textile fiber drying
Application 9:
painting or inks drying
Application 10:
leather curing

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X10X10 cm
Single gross weight:
0.05 kg
Lead Time :
Quantity(Piece) 1 - 500 >500
Est. Time(days) 7 To be negotiated
IR Heat Advantages

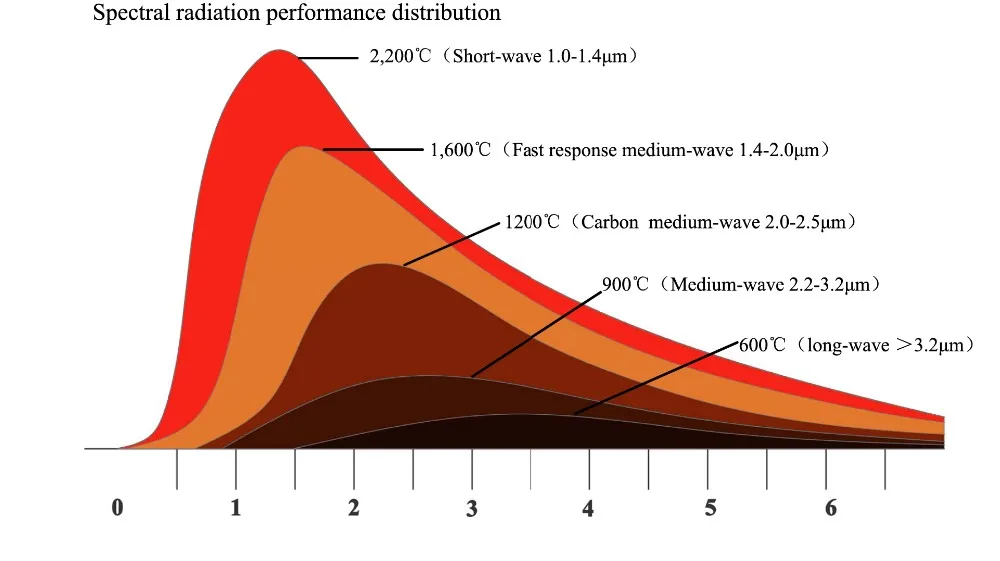

▪Matched IR radiation wavelength: Short wave(1.0~1.4μm)、Fast medium wave( 1.4~2.0μm )、Medium wave(2.2~3.2μm)
▪Higher density power output:
short wave max. to 200KW/M2. Fast medium wave max. to130KW/M2. Medium wave max. to 60KW/M2.
▪Special reflectors:
Gold reflector、White reflector
▪Quick heating:
1~2 seconds,
▪Accurate temperature control:
little temperature fluctuations
▪Long life:
We can promise the working life of short wave and fast medium wave lamp 5000hrs and medium wave lamp over 8000hrs.

Short Wave IR Lamp

Short wave infrared heating lamp is designed with high heating power, the range of radiation wave is 1.0-1.4μm, it is particularly suited for fast response heating processes. This short wave infrared radiation penetrates more deeply into materials, as they can obtain their full-efficiency within seconds. In addition, a white or gold reflector can be fixed directly on the short wave infrared lamp to improve the energy radiation on the heating materials. The longest short wave single tube infrared lamp can be designed up to 2.5 meter.

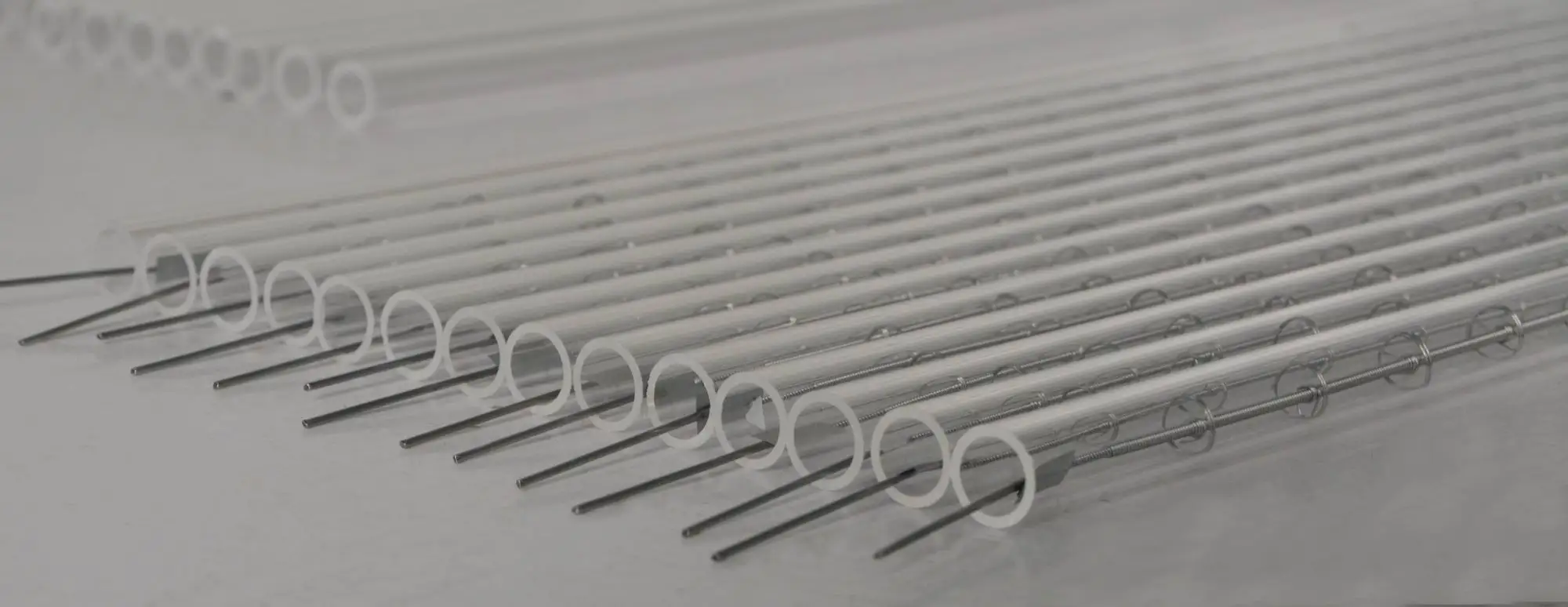

Short wave single tube IR lamp
Peak wavelength
1.0-1.4 μm
Heating filament
Tungsten
Filament working temperature
1800℃-2200℃
Response time
1 second
Diameter
10mm
11mm
12mm
14mm
15mm
19mm
Max. Length
1.1m
1.1m
1.5m
2.0m
2.0m
2.5m
Reflector
White ceramic or Gold reflector
Burning position
Horizontal or Vertical
Standard Design

According to the different ending caps, single tube infrared lamps can be produced in the following different types.

Standard Product

   We have the ability to design and manufacture infrared heating lamps according to your requests.

Alternative model

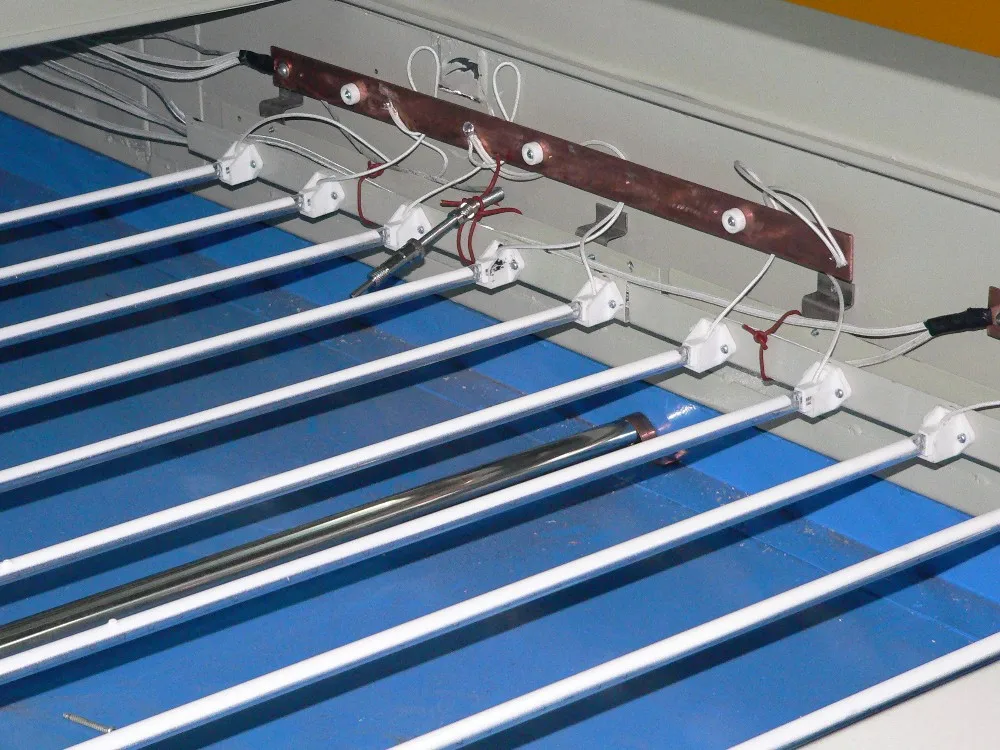

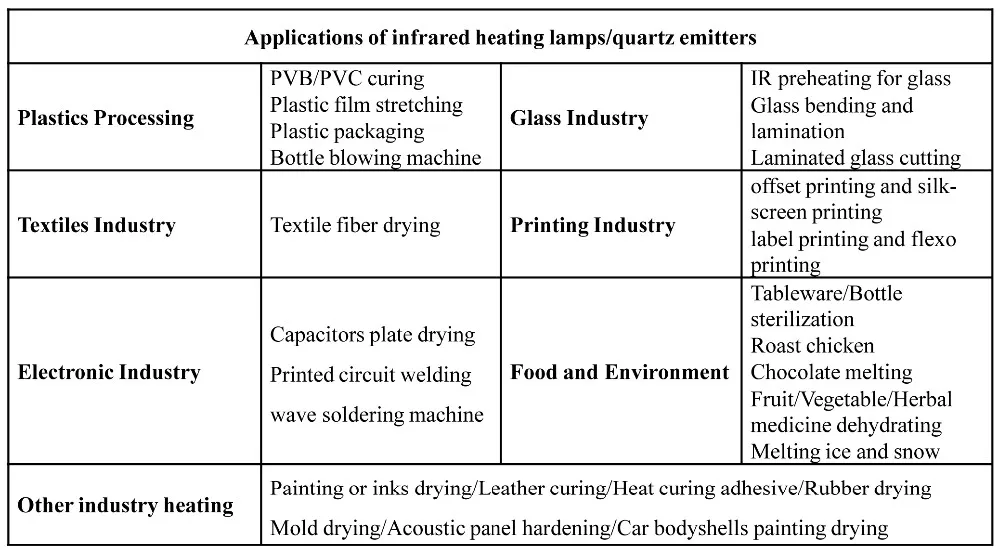

Applications

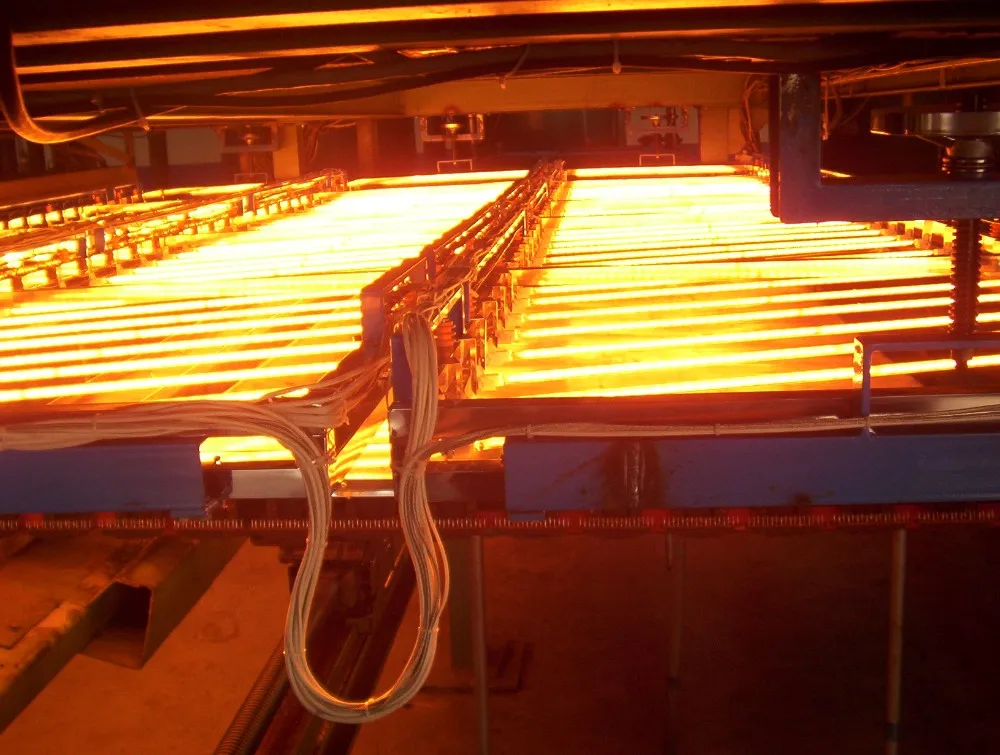

Our short wave single tube IR lamps are available for large surfaces, for three dimensional shapes and for small work pieces. And the IR lamps are already successful used in printing,packing,plastic processing,heating food,drying wood,auto industry and other areas what you need.

Company Information

Nanjing E-DEN Lighting Technology Co., Ltd., a professional manufacturer and trading company established in 2011, specialized in producing infrared heating lamps and providing IR heating solutions. Our customers spread all over the Euro-Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada, Russia and other dozens of countries. We also offer OEM/ODM manufacturing service for our customers all over the world. We can design and produce infrared heating lamps or heaters according to your requests. We manufacture singe and twin tube IR heating lamps in short wave, fast response medium wave, carbon medium wave and medium wave. Base on reliable quality and honest reputation, our IR products pass the ISO 9001 international quality certification and CE safety certificate. We always do our best to provide our customers highest quality products and most satisfactory after-sales service.

FAQ

1: We offer Full Refund Agreement in case of bad quality!


2: We sign a Contract with Legal Liability not only invoice!


Q1. Can I have a sample order for infrared heating lamp?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks

Q3. Do you have any MOQ limit for IR lamp order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for infrared lamp?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the infrared lamp product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5000 hours average working life warranty to our products.

Q8: How to deal with the broken lamps after orders?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less

than 1%.

If there is any breakage during the transport, please take clear photos for the broken products and send the photos to us within 48 hours after receiving the package.
If there is any breakage during the guarantee period, we will send new lamps with new order for small quantity. For defective batch products, we will resend them to you or we can discuss the solution including re-call according to real situation.


Attention:


Price only for part number IRX23.5-10-370 replace 13195X/98
